Flywoo GOKU GN 745 45A AIO 32bit V3 Plug&Play O4/O4 Pro
Description
Description

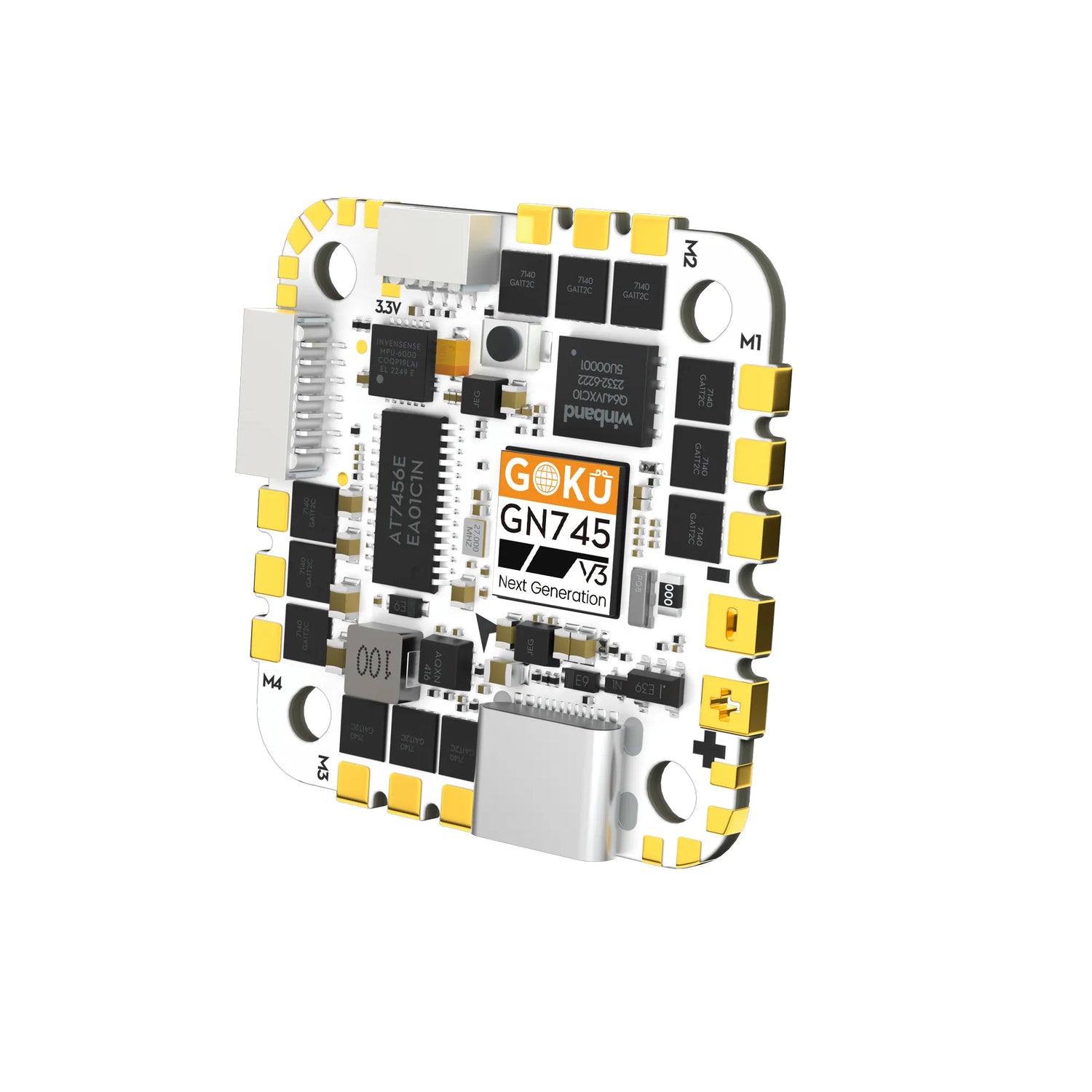

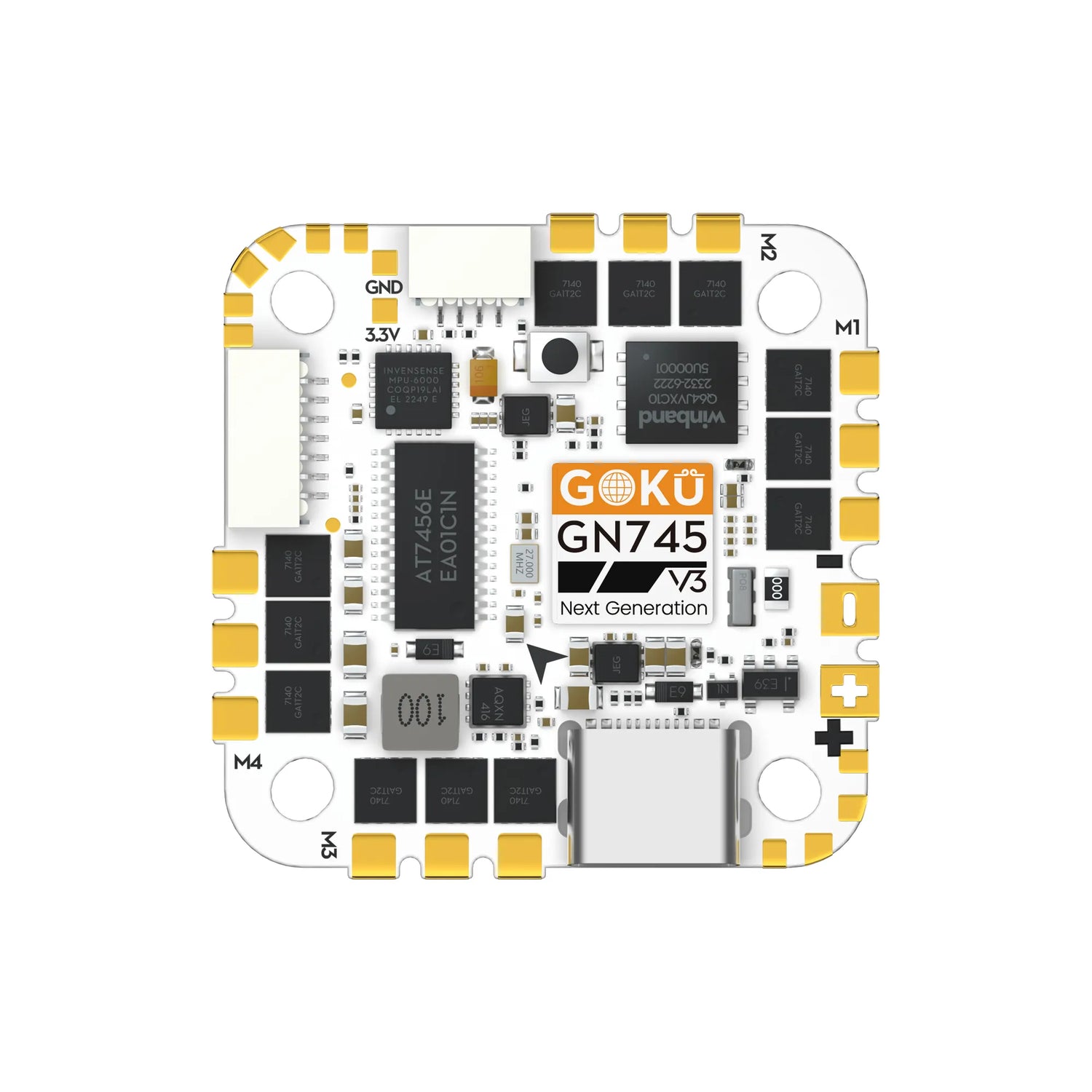

Since its launch, the GOKU GN745 AIO has stood as Flywoo's top-tier AIO product, earning widespread acclaim from Betaflight, INAV, and Ardupilot enthusiasts. Now, we're excited to introduce the latest upgrade in this series—the V3 version! The V3 boasts a new ESC two-in-one drive solution, enhancing the continuous current capacity to 45A and improving the overcurrent protection capability of the motor pads, resulting in a more powerful overall performance. Furthermore, the V3 version significantly advances in terms of convenience, featuring 4 new direct-plug Uart ports and adopting a Type-C interface for easier connectivity.
Package Includes:
1x UNICON UPL Capacitor 25V 470UF
4x M2x6.6 Shock-Absoring Ball
4x M2 Rubber Ring
1x XT30 Power Cable
1x DJI O3 Connection Cable
1x VTX & Camera Connection Cable
1x Receiver Connection Cable
1x GPS Compass Connection Cable

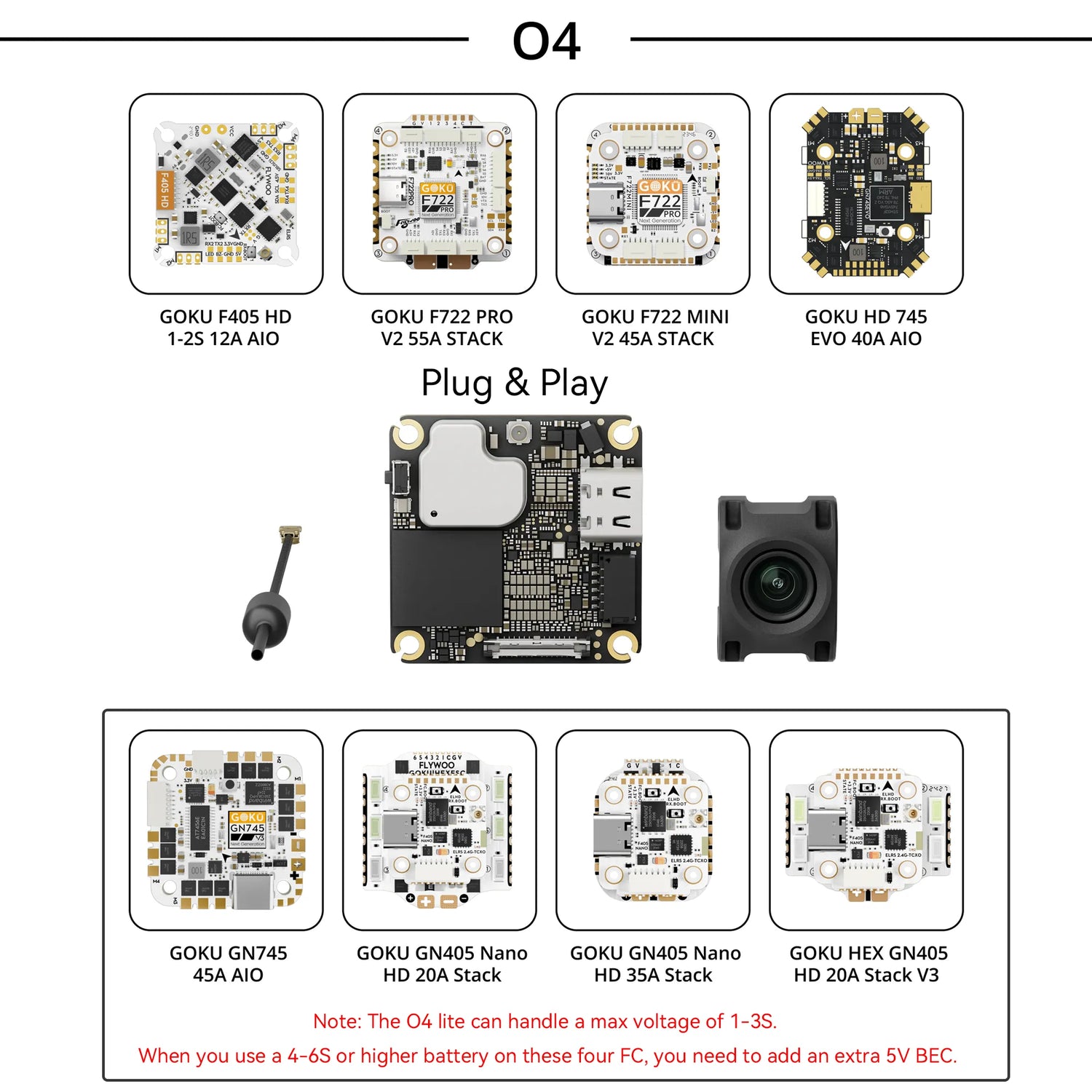

NOTE: The O4 lite can handle a max voltage of 1-3S. When you use a 4-6S or higher battery, you need to add an extra 5V BEC.
Highlights：
-
Performance: Utilizes STM32F745 chip, AM32 firmware, and MPU6000 gyro, with dual BEC, barometer, black box, supports 7 serial ports and I2C.
-

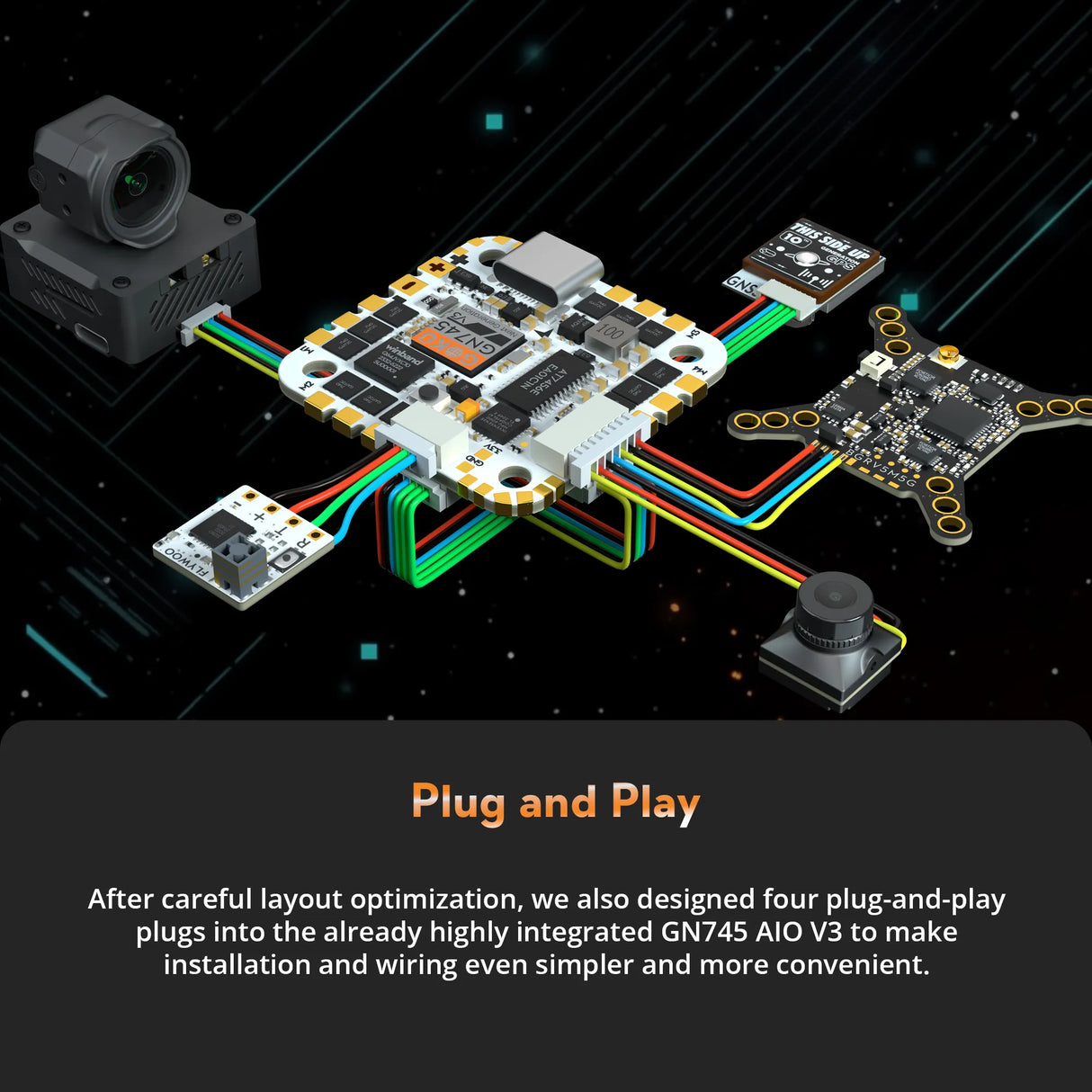

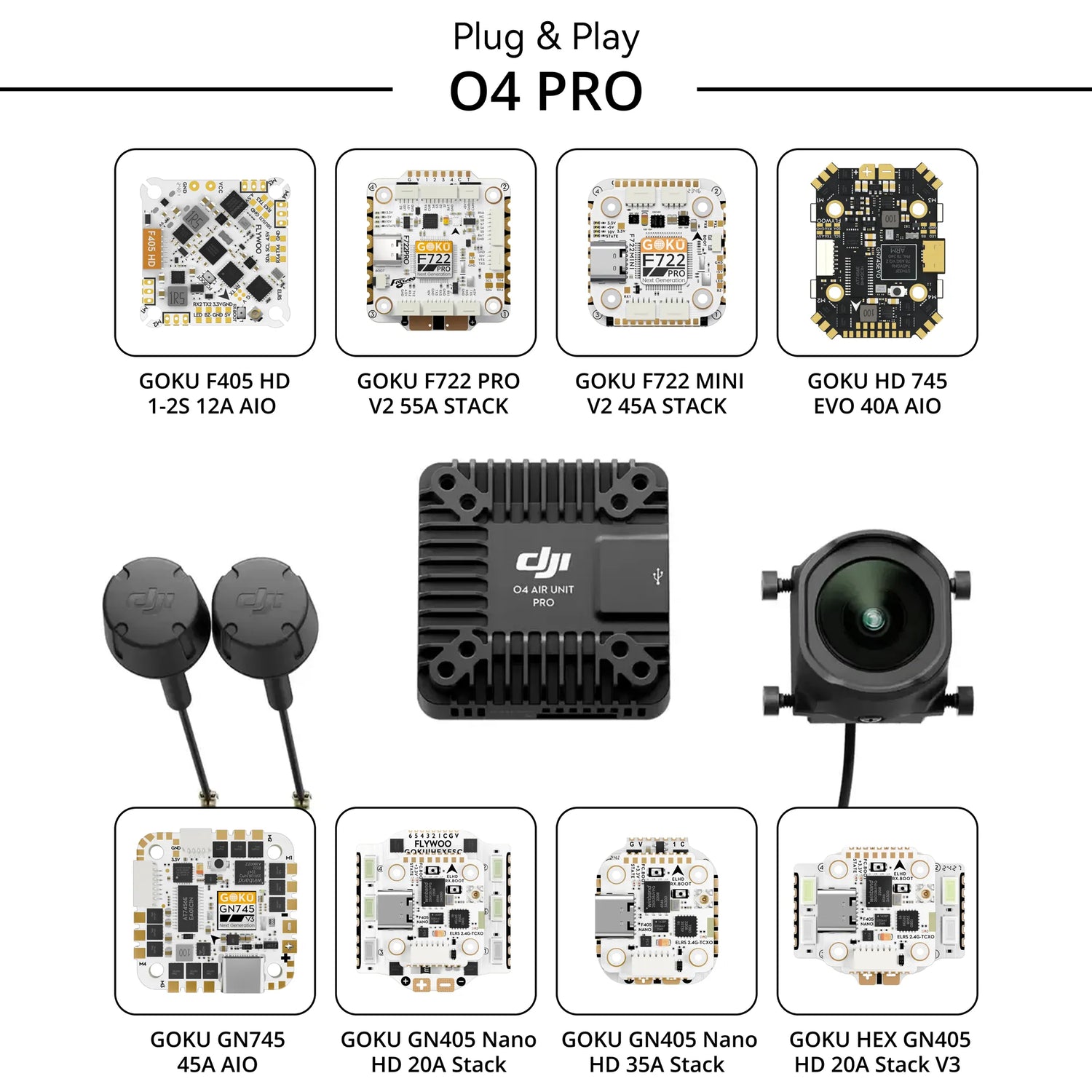

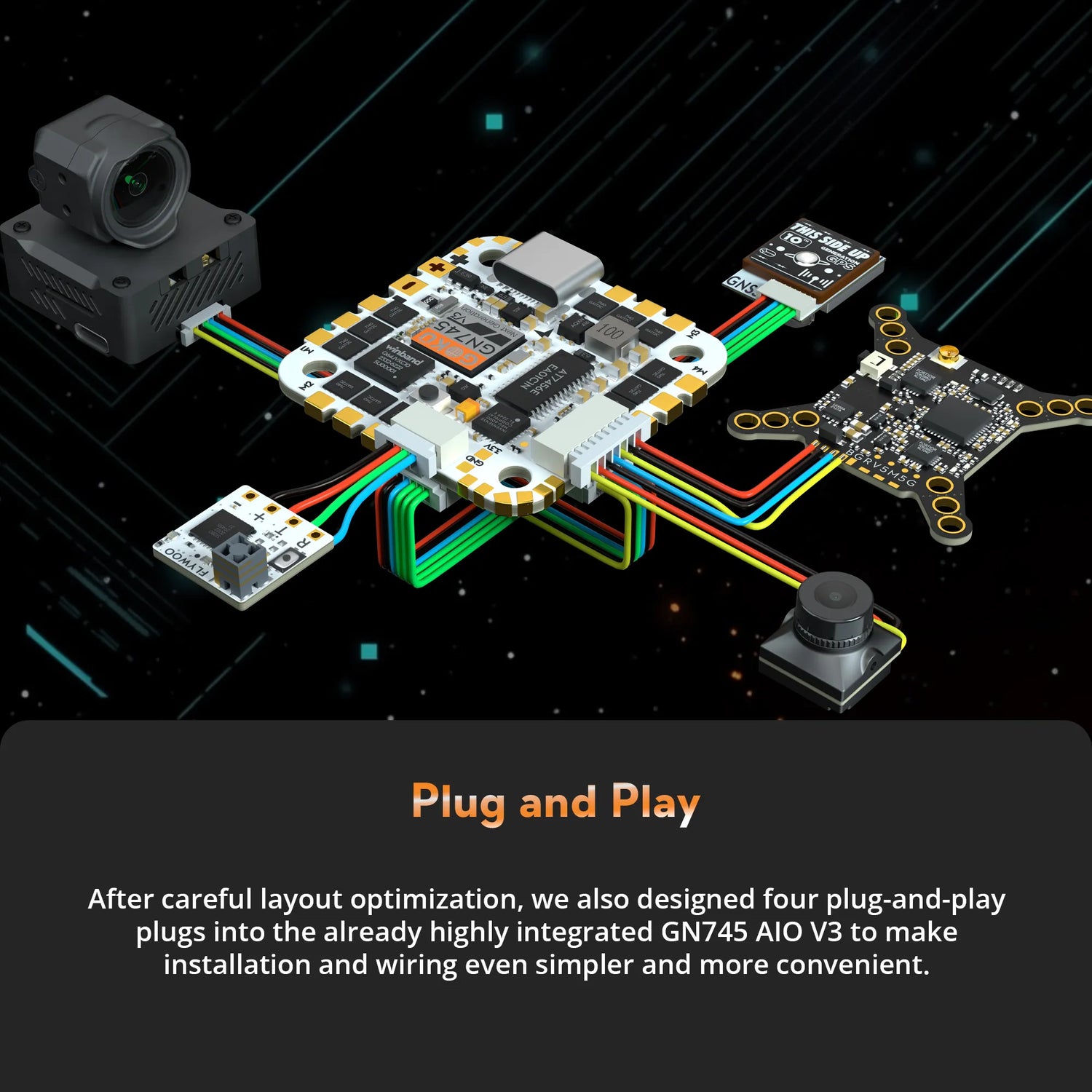

Plug & Play: Compatible with O3 air unit, GPS, Camera, Analog VTX, and Receiver without the need for soldering.
-

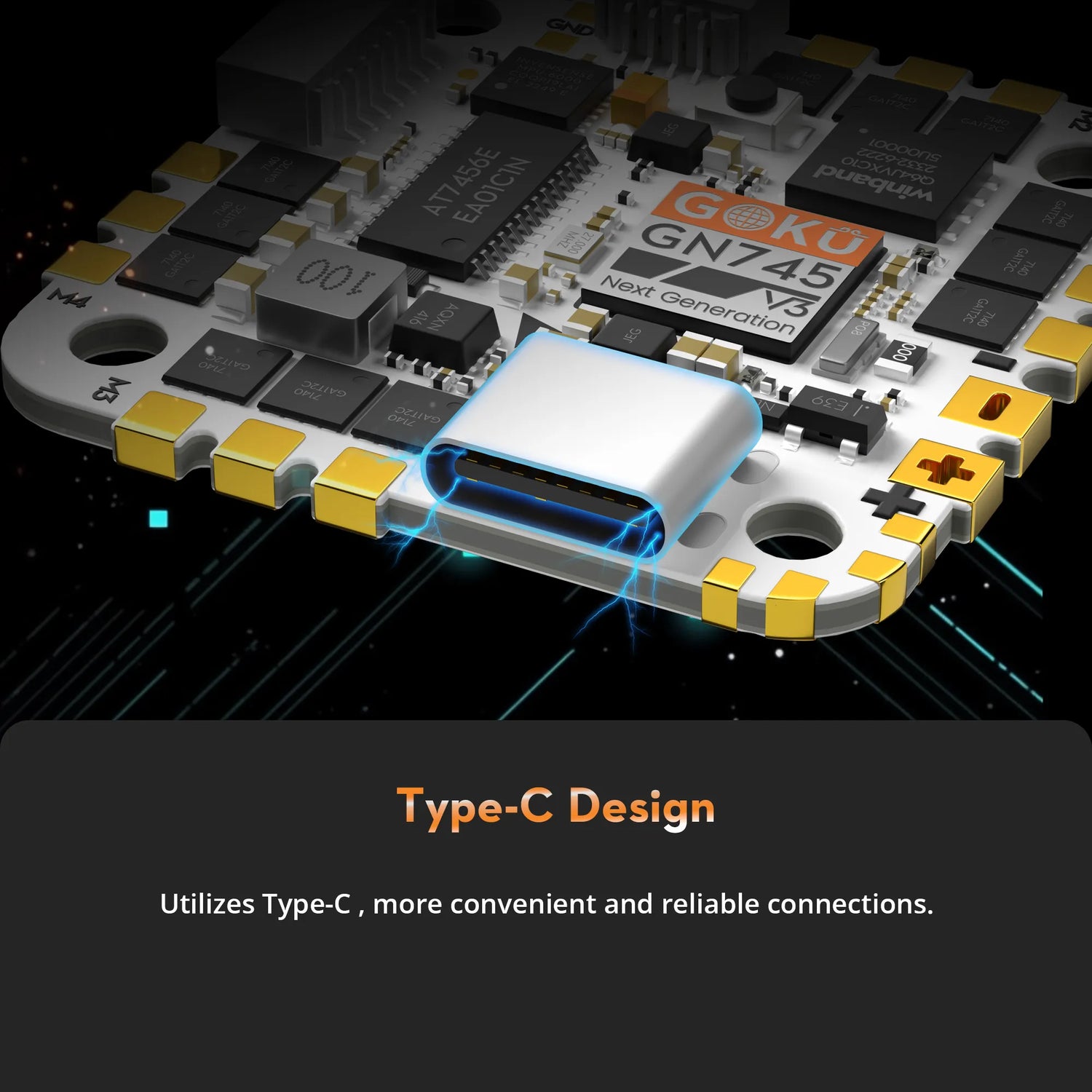

Type-C Interface: Features a Type-C interface for improved compatibility and easier connection.
-
Compatibility: Supports BF, INAV, and Ardupilot platforms.
-

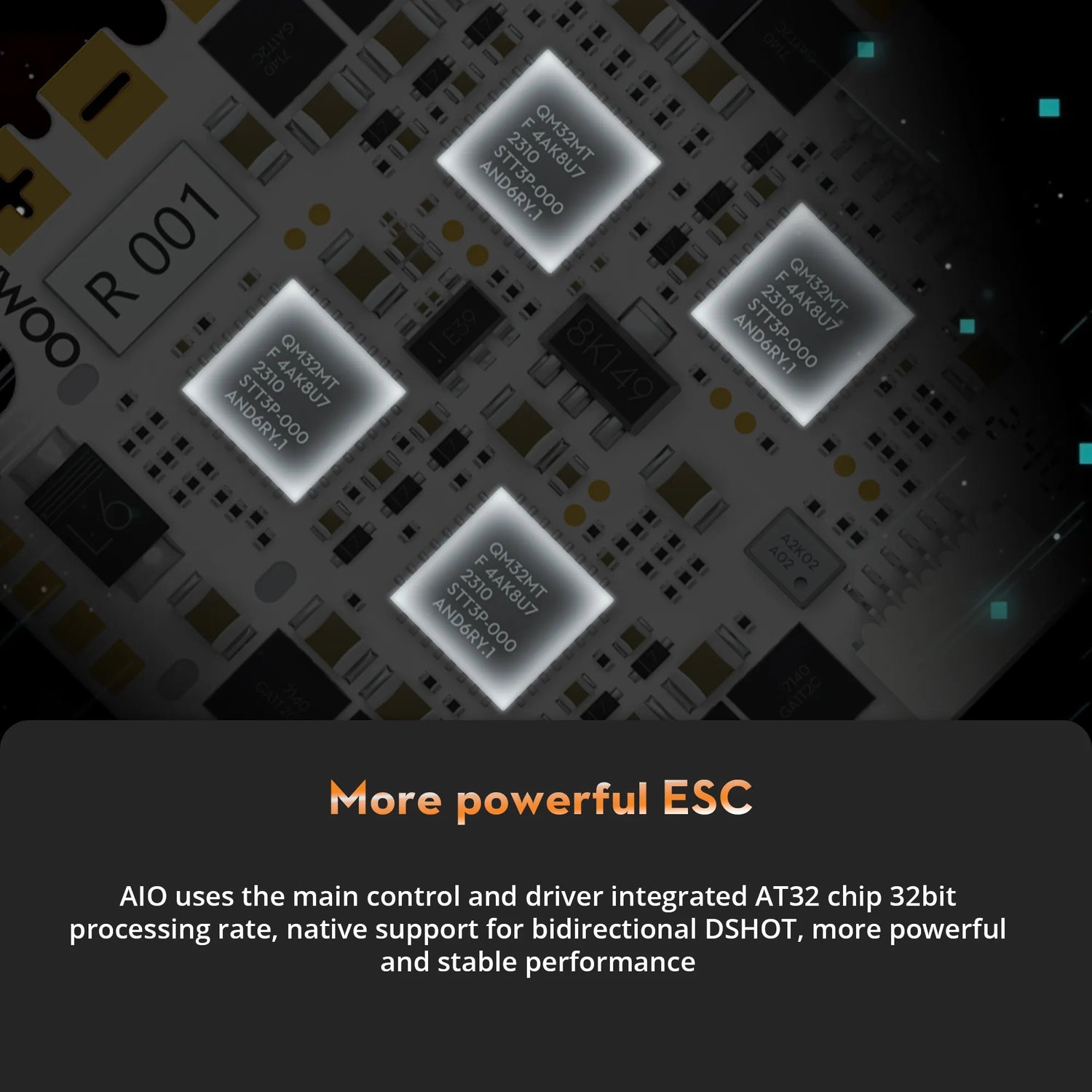

New Layout: New ESC two-in-one drive solution, with a continuous current up to 45A.
-

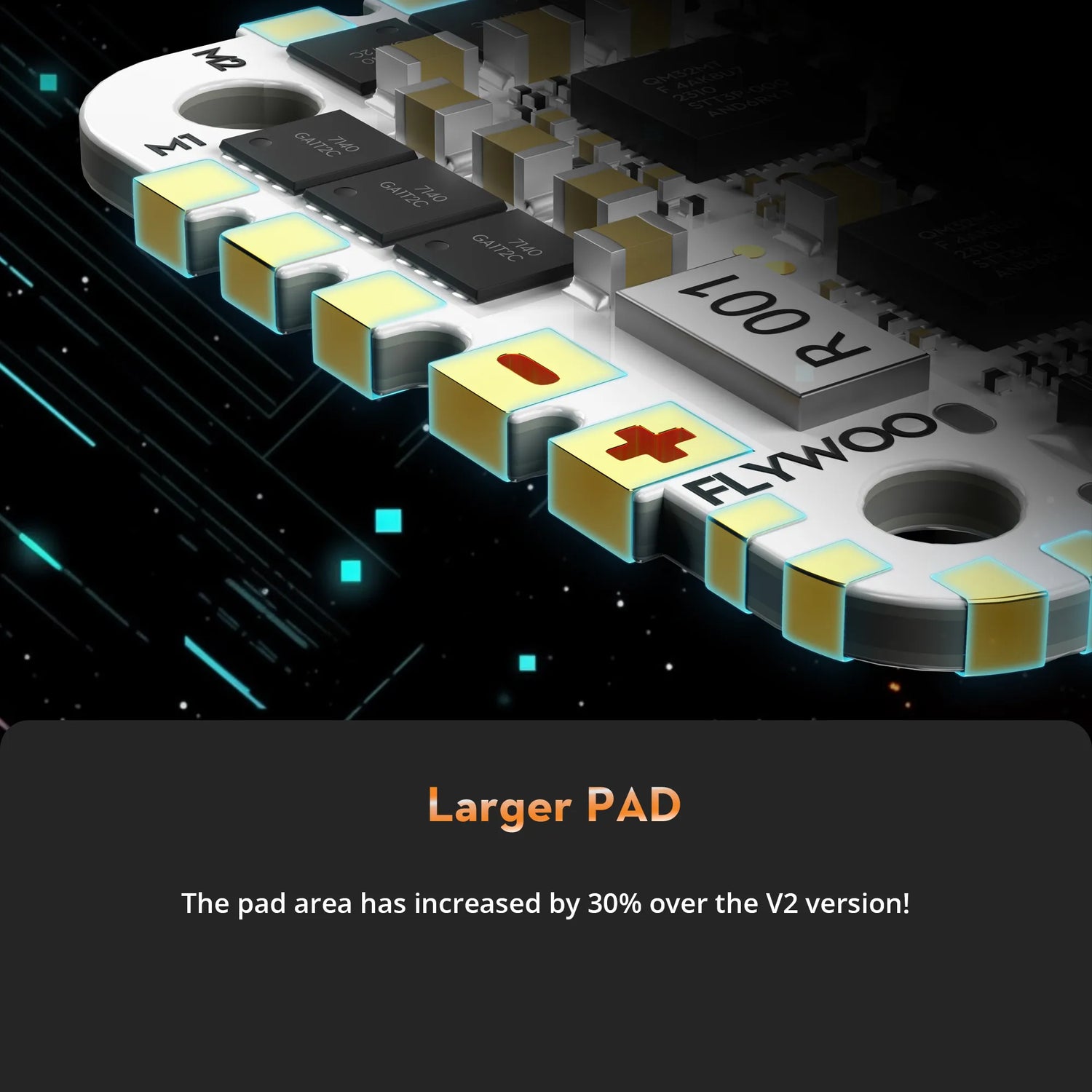

Better Protection: Larger motor pad area with improved overcurrent protection.
 GOKU GN745 45A AIO 32bit V3
|
 GOKU GN745 45A AIO 32bit V1.2
|
|
|
Firmware:
|
STM32F745 BGA
|
STM32F745 BGA
|
|
Continuous Current:
|
45A-50A MAX
|
40A-45A MAX
|
|
BEC:
|
5V 2A
|
5V 2A/9V 2A
|
|
ESC
|
32bit
|
32bit
|
|
Flash:
|
1MB
|
1MB
|
|
Black Box
|
16mb
|
16mb
|
|
Barometer:
|
DPS310/SPL06
|
DPS310/SPL06
|
|
Motor:
|
M1-M4 OUTPUT I2C: SCL/SDA
|
M1-M4 OUTPUT I2C: SCL/SDA
|
|
Uarts:
|
1,2,3,4,5,6,7
|
1,2,3,4,5,6
|
|
Plug Uart ports
|
YES
|
\
|
|
connector：
|
Type-C
|
Micro
|
|
OSD:
|
AT7456E
|
AT7456E
|
|
Hole:
|
25.5*25.5-3mm
|
25.5*25.5-3mm
|
|
Size:
|
33.5x33.5mm
|
33.5x33.5mm
|
|
Weight:
|
9.4g
|
8.5g |
Specifications：
BF Flight Controller Firmware: FLYWOOF745AIO
INAV Firmware: FLYWOOF745
Ardupilot Firmware: FLYWOOF745

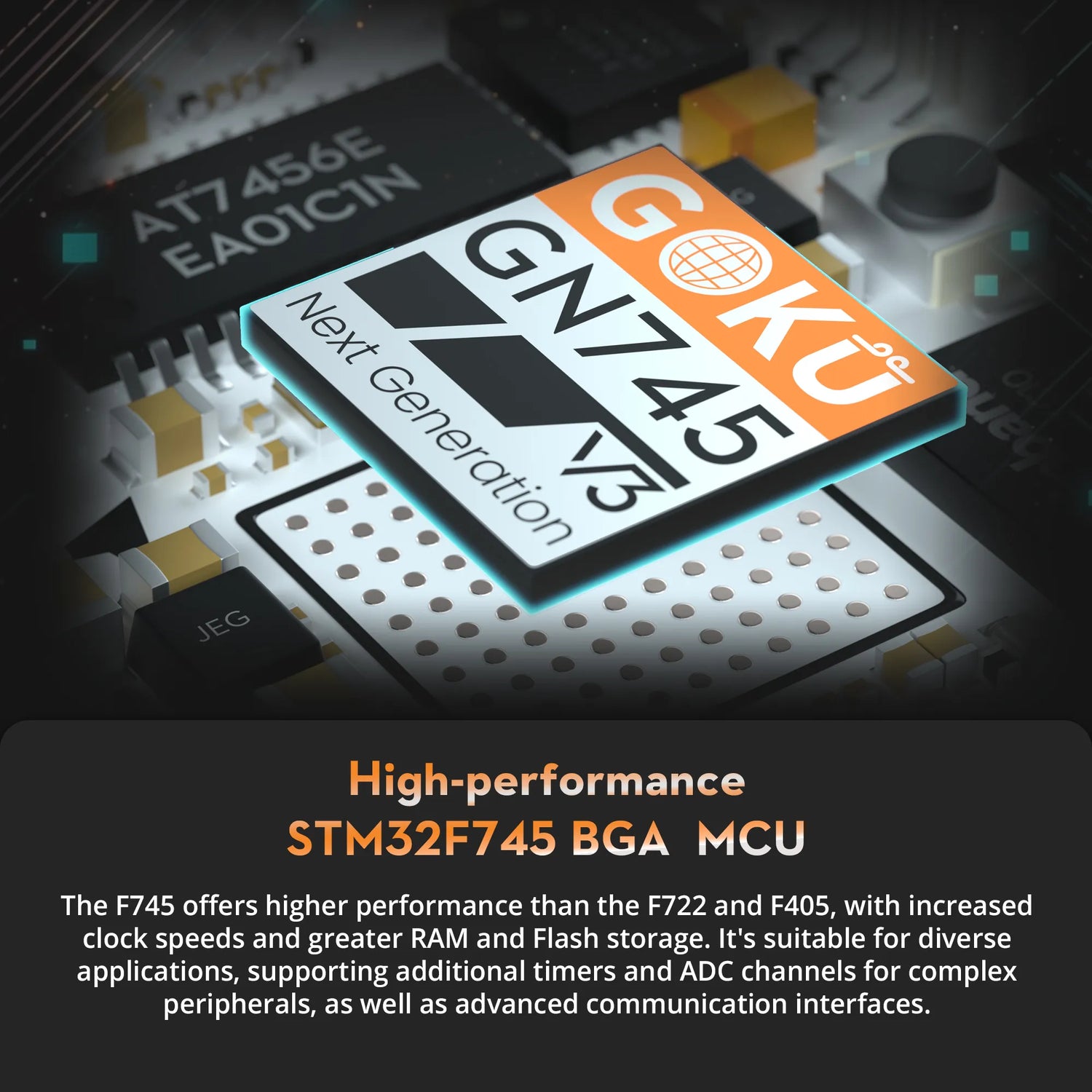

MCU: STM32F745 32-bit processor,216MHz, 1MB Flash
Barometer: SPL06
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
7 hardware UARTS (UART1,2,3,4,5,6,7)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
PPM and PWM receivers are not supported.
Onbord 16Mbytes for Blackbox logging
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max

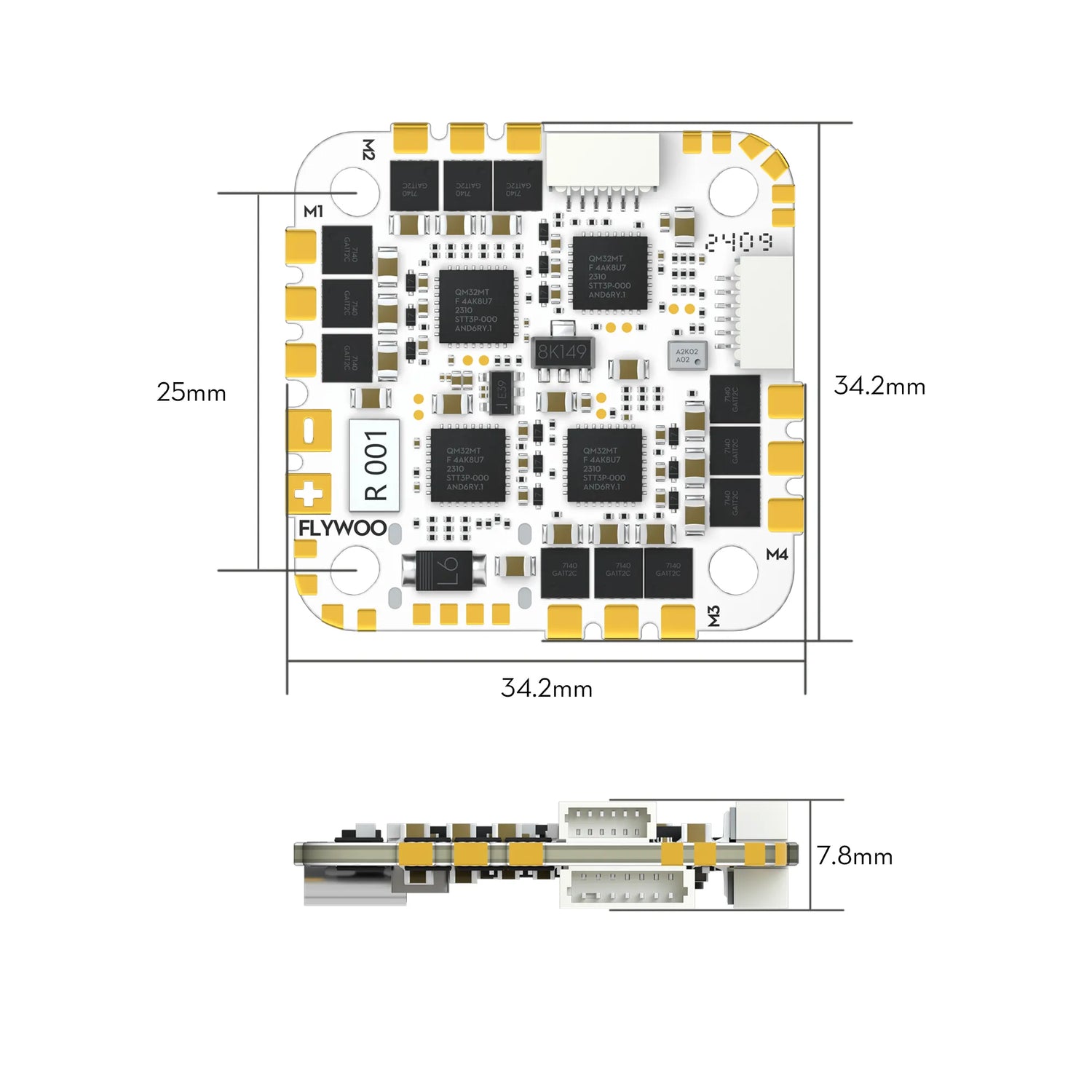

Dimensions: 33.5x33.5mm
Mounting Holes: Standard 25.5/26.5mm square to center of holes

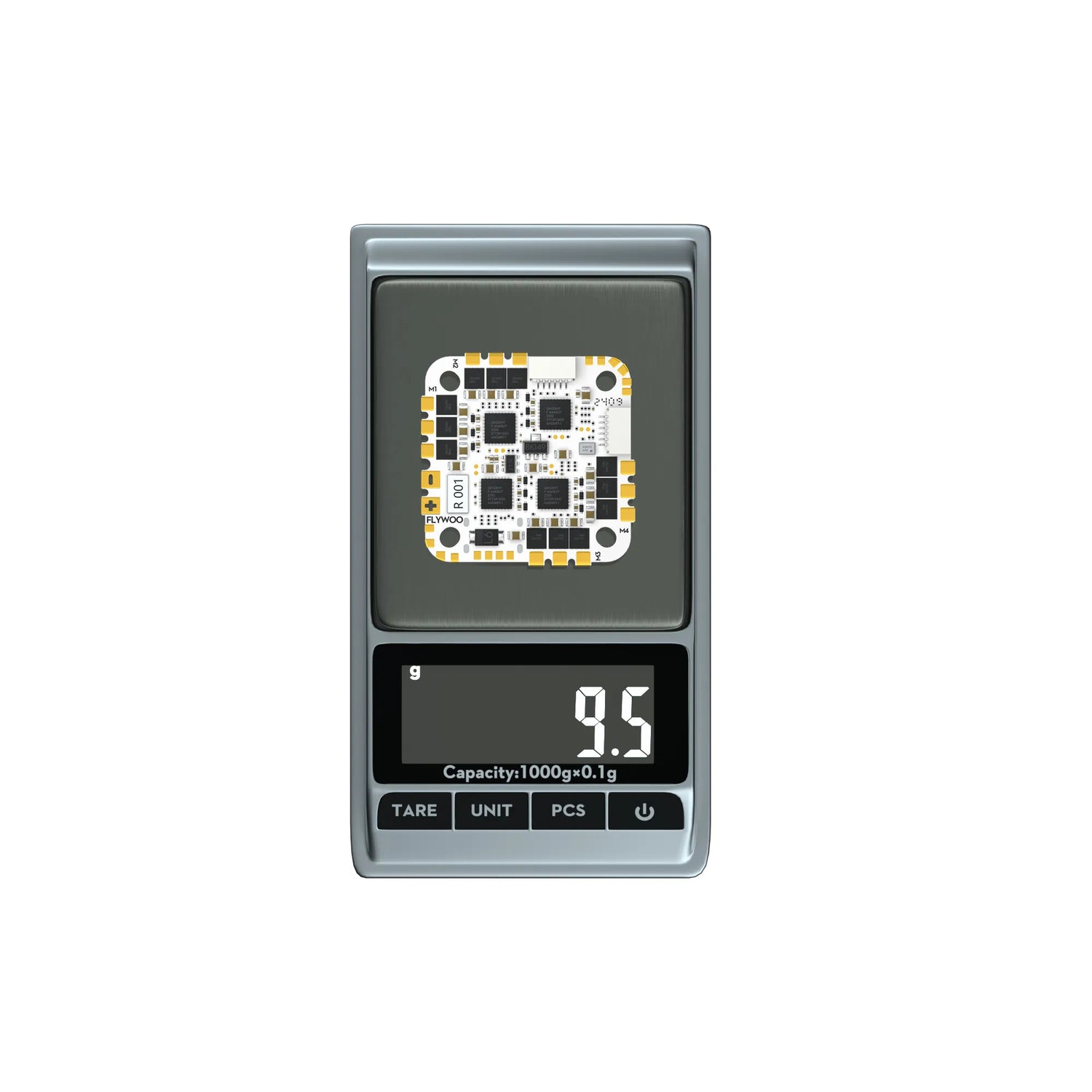

Weight: 9.4g

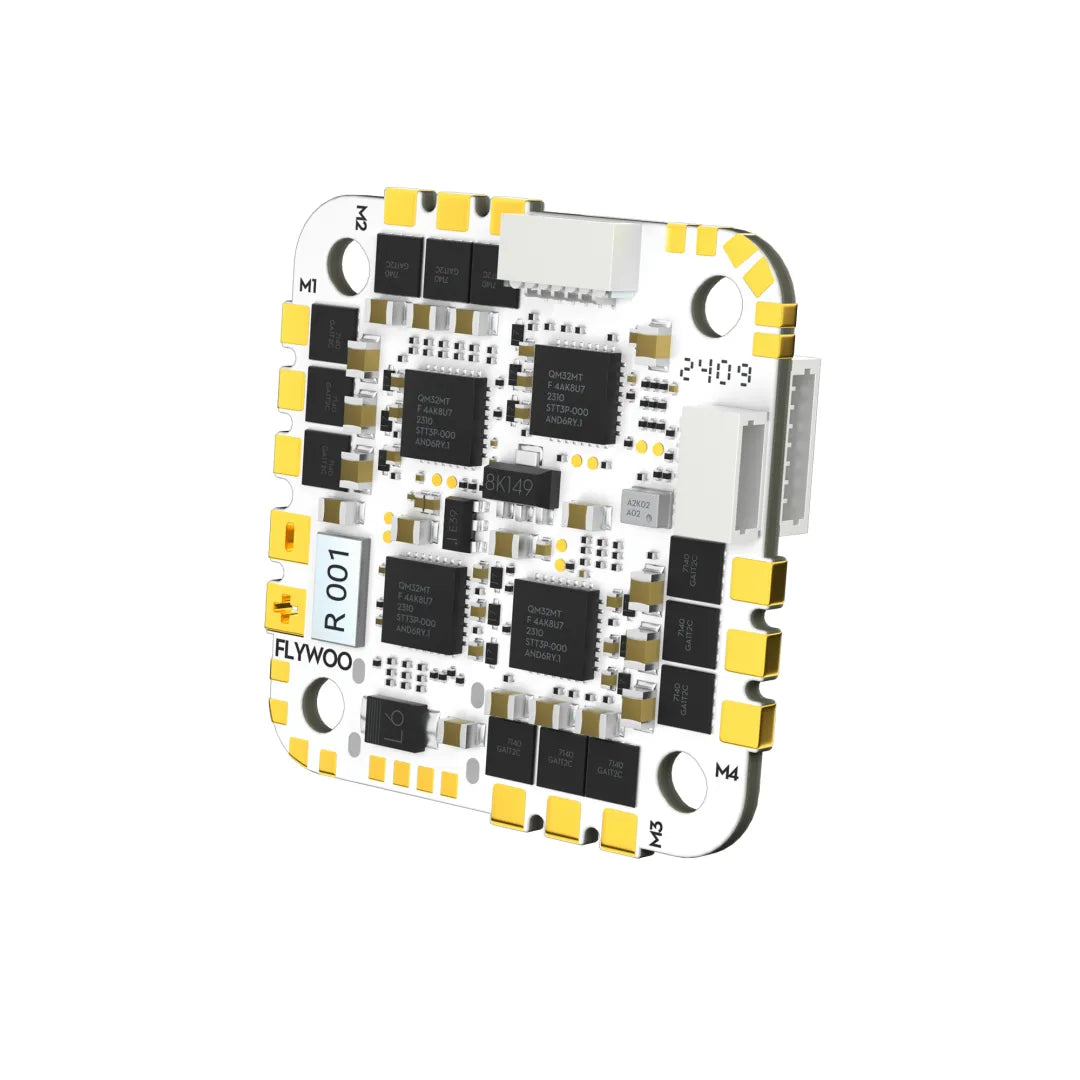

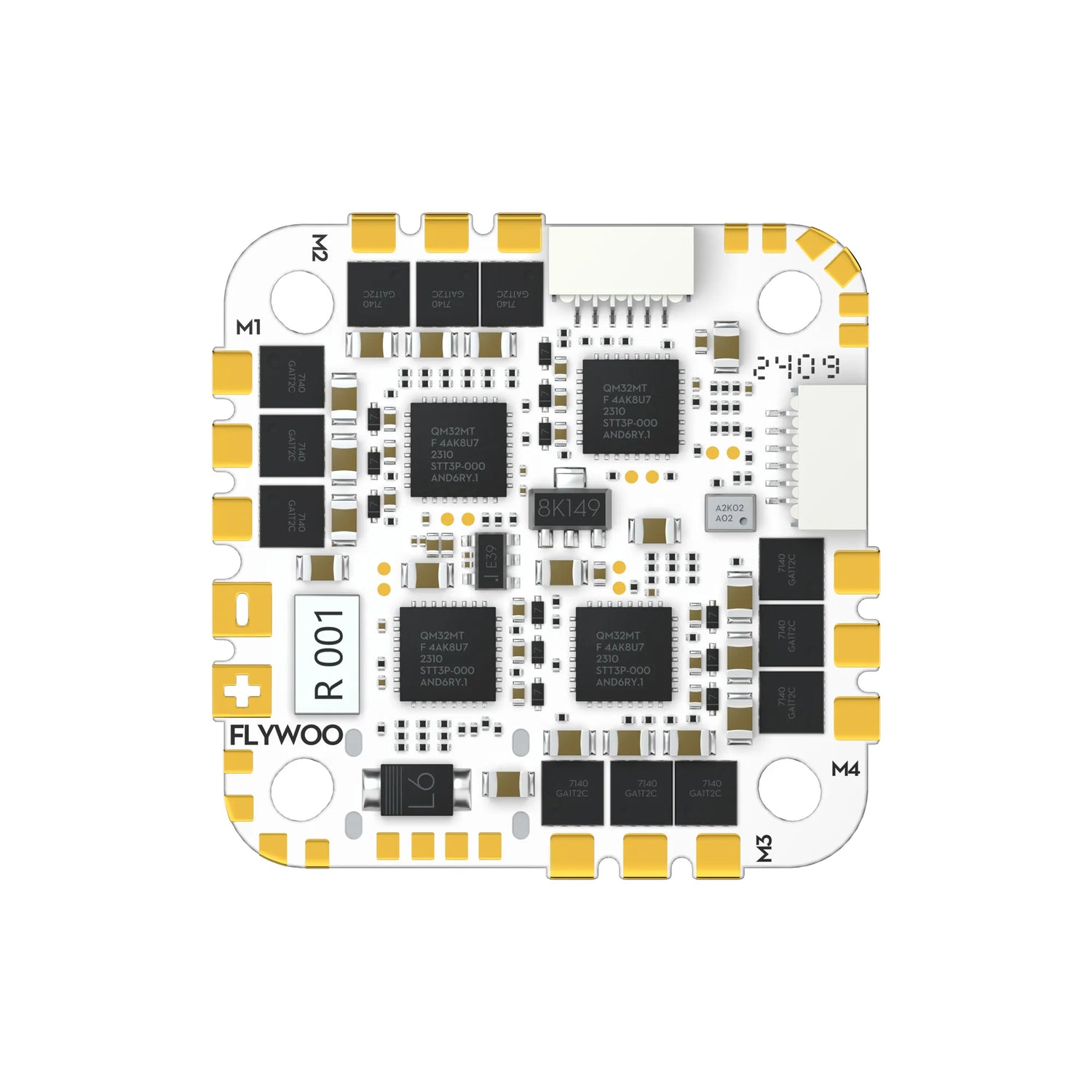

Onboard 4in1 ESC
Support AM32
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
Input Voltage: 2-6S Lipo
Continuous Current: 45A
Firmware: AM32_F4A_4IN1_F421
