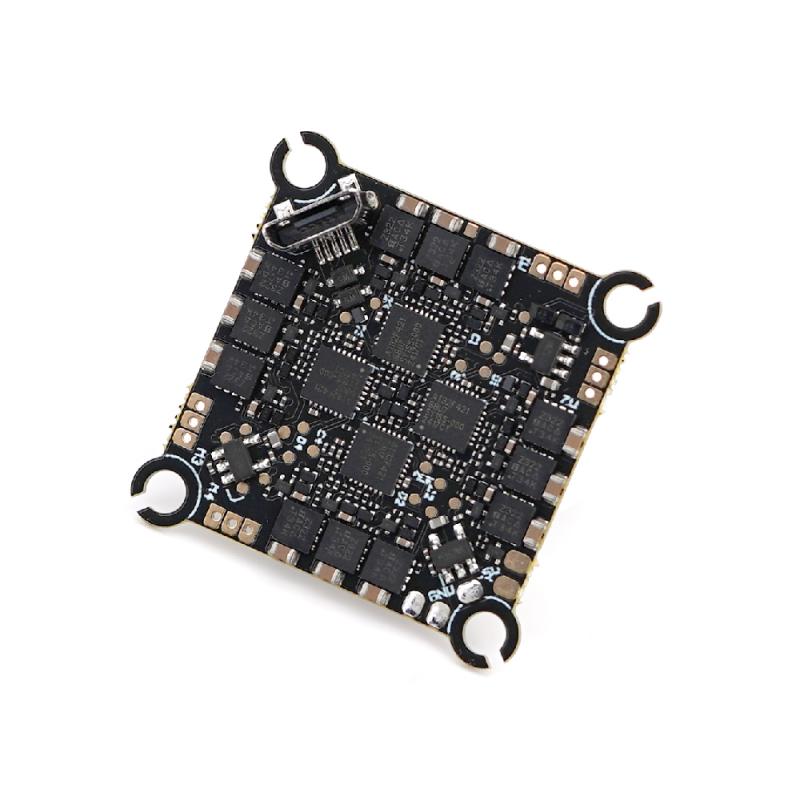

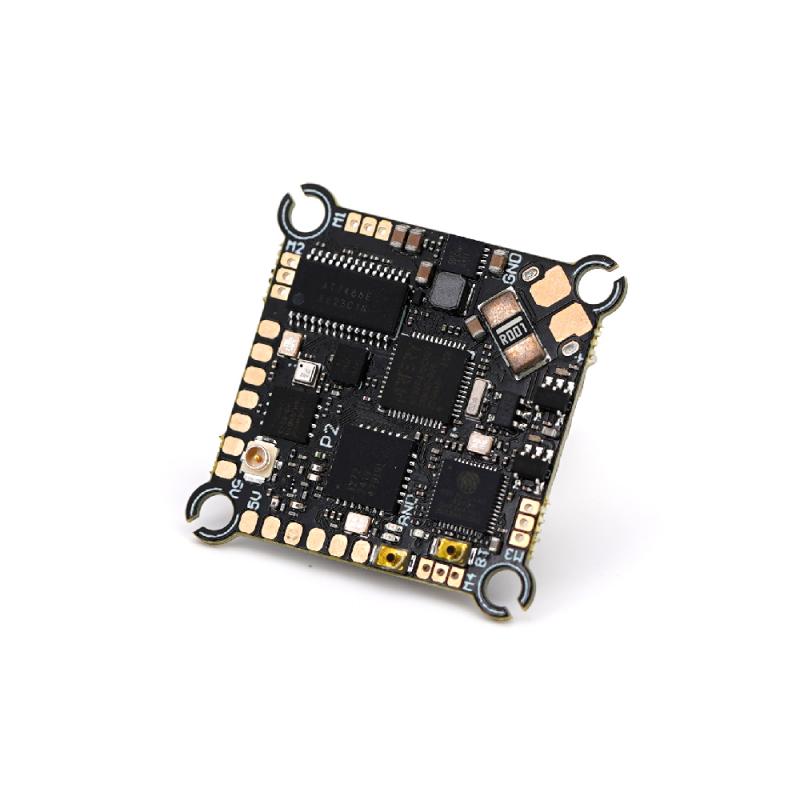

TBS Lucid AIO 1-2S

The TBS Lucid AIO 1-2S was engineered to tick a lot of boxes for long range 1S/2S drone pilots as well as whoop pilots that don't enjoy radio link limitations and need a bit of extra power from their stack.

Built to a 25x25 "Whoop" form factor, it is the only board that has the necessary grunt to run 2S boards without burning out, while also being capable of running 1S batteries down so low you will hear them beg for mercy.

The "AIO" stands for all in one, or a 3-in-1 specifically. Included is an Flight controller, 4in1 ESC and Crossfire Receiver. It also comes with an OSD chip for analog video.

It hopefully goes without saying that each TBS Lucid AIO is tested out of the factory and has been put through the wringer by some of the most seasoned whoop pilots before being offered for sale, which further distinguishes the board from some of the incumbents.

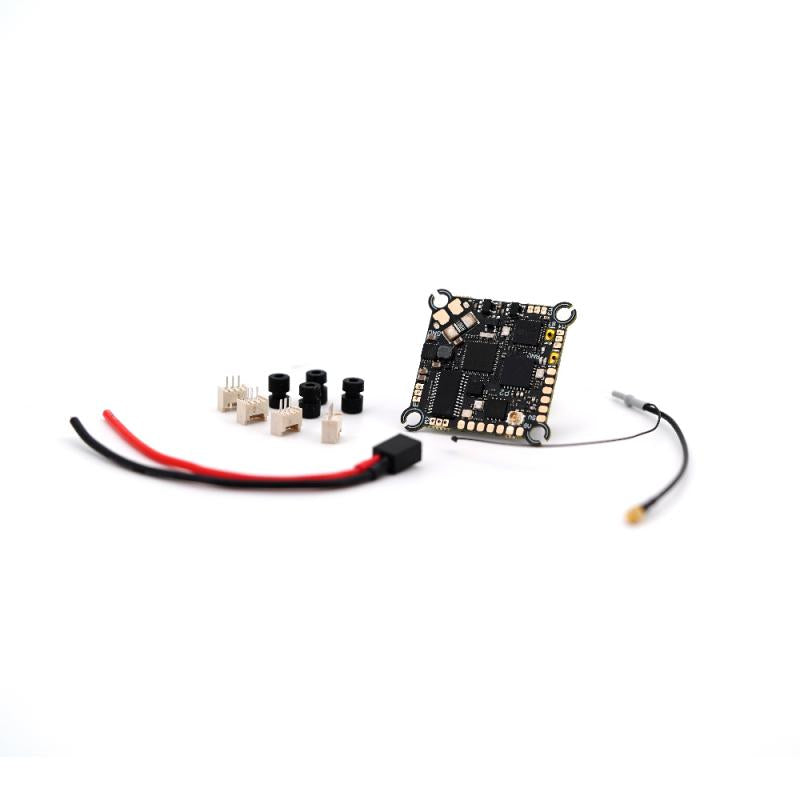

Package Includes:

1x TBS Lucid AIO

1x TBS Crossfire "Micro RX" antenna

1x 4pcs rubber grommets

1x 4pcs motor sockets separate (for plug & play)

Default/recommended port assignment:

UART1: Spare

UART2: Smart Audio (TX Pin Only)

UART3: DJI O3 Air Unit

UART5: Reserved for on-board CRSF Rx

Specifications:
