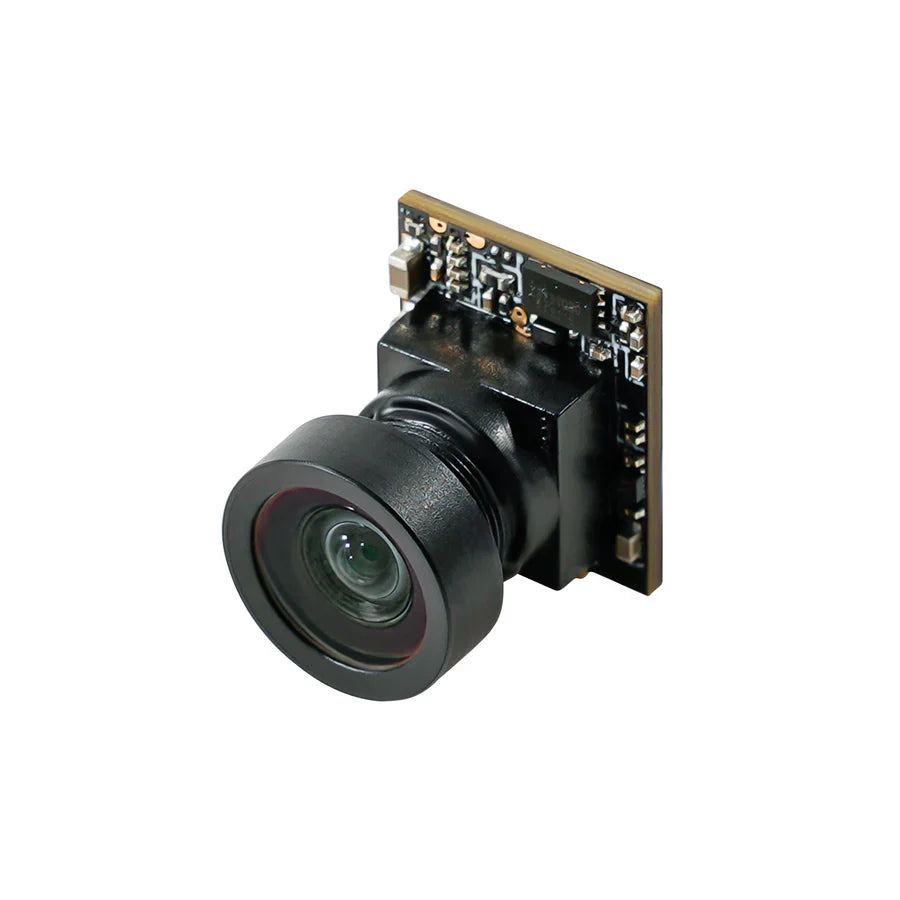

BetaFPV C03 FPV Micro Camera

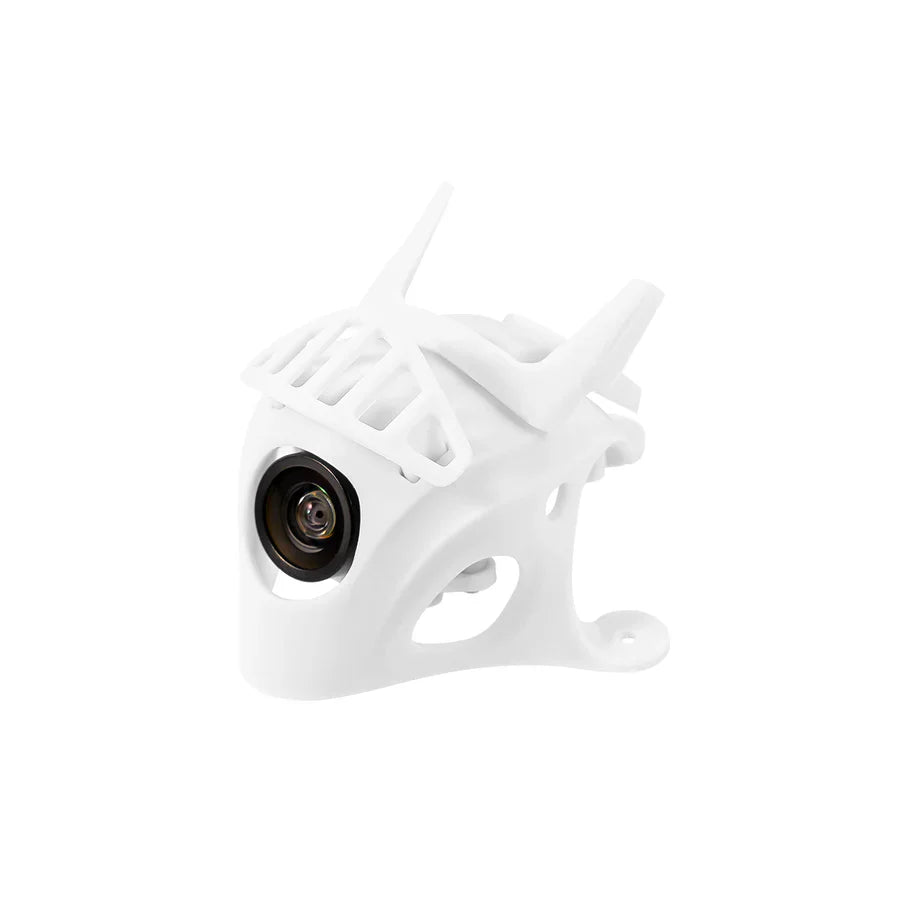

C03 is a lightweight 1.45g and 1200TVL resolution camera that has been designed to provide superb performance for micro FPV quadcopters. It has a 2.1mm lens that gives a 160° field of view, operating in 4:3 image ratios, and features a 1/3'' CMOS sensor for clear and brilliant images. It is supplied with a BETAFPV Micro Canopy, which perfectly fits for C03 camera, making it more convenient for pilots to build quads.

Package Includes:

1x C03 FPV Micro Camera

1x BETAFPV Micro Canopy

1x 20° Lens Camera Mount for C02

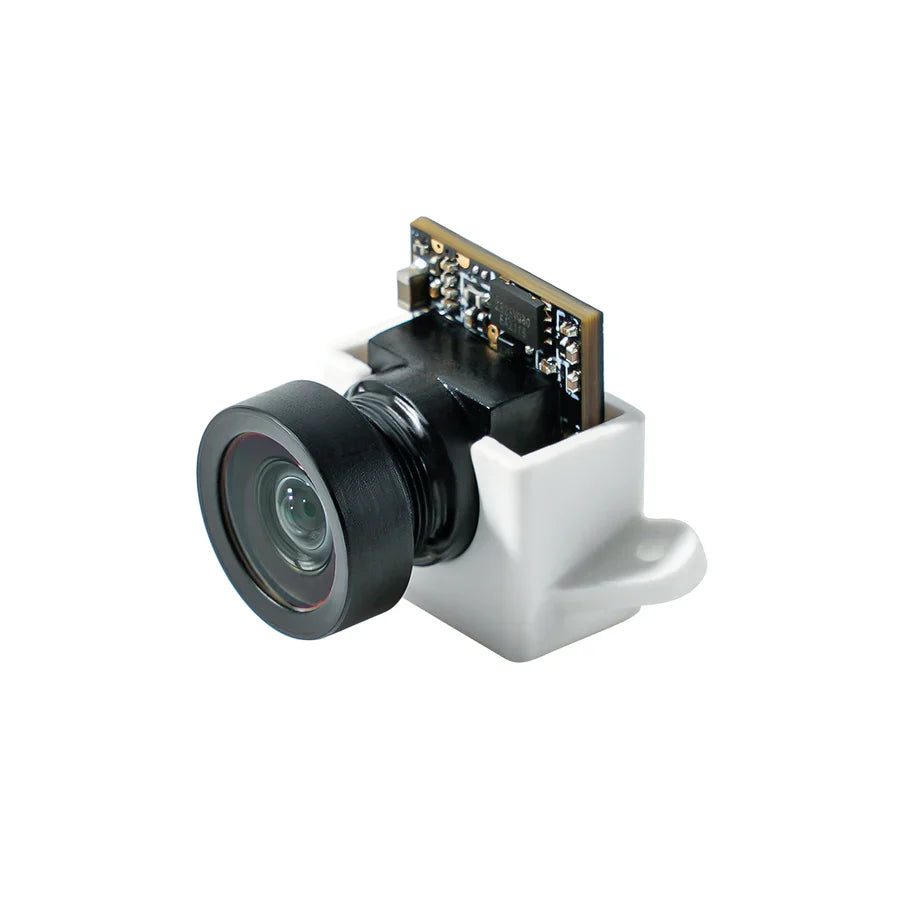

1x 20° Lens Camera Mount for C03

1x 30° Lens Camera Mount for C03

3x Decorative Parts

4x M1.4*5 Screws (Sliver)

6x M1.4*4 Screws (Black)

Features:

• Comes with BETAFPV Micro Canopy, and 20°/30° camera mounts, which fully match the C03 camera. This bundle allows pilots to build whoop drones easily.
• Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.

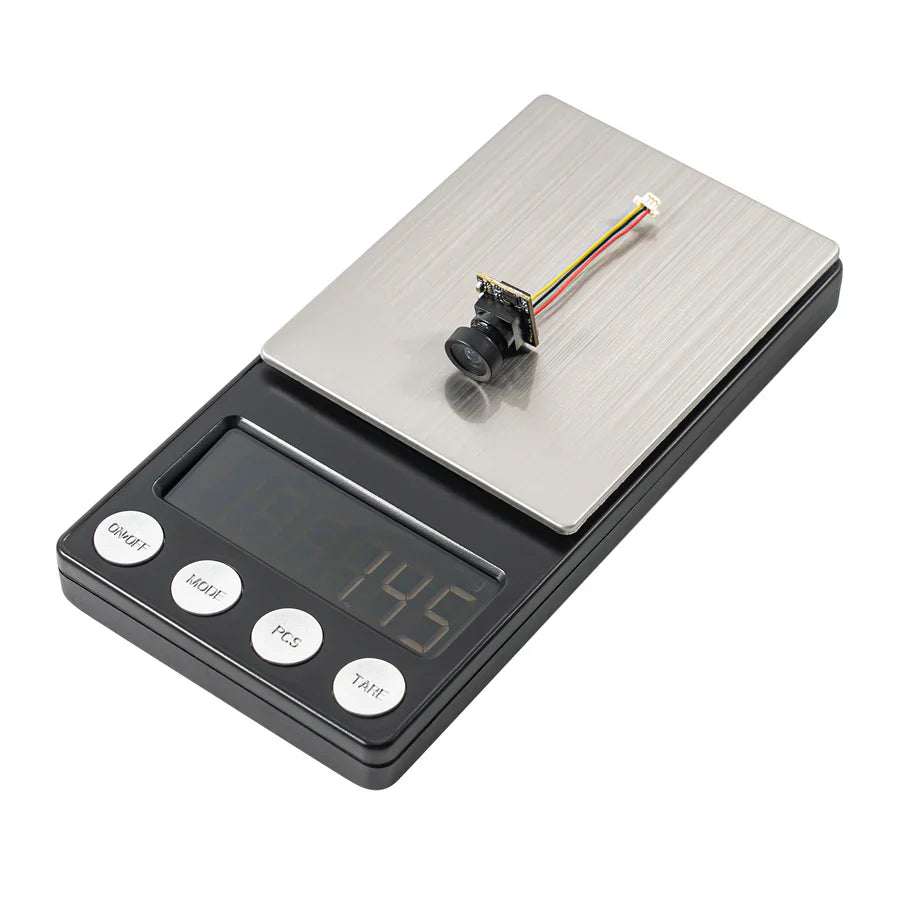

• Miniature, and lightweight design, weighing only 1.45g. Completely suitable for M03 5.8G VTX on micro whoop drone.
• 1200TVL resolution and 1/3" CMOS sensor ensure a high-quality and clear image
• Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition
• 2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.

Specifications:

Item: C03 FPV Micro Camera

Image Sensor: 1/3" CMOS Sensor

Horizontal: 1200TVL with Global WDR

Signal System: NTSC (4:3)

Lens: 2.1mm(M7) FOV 160°

S/N Ratio: >50db

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: 0.01Lux@1.2F

D-WDR: Auto

Day/Night: Color

Power: DC 3-5.5V

Current: 100mA@5V / 120mA@3.3V

Housing Material: ABS

Dimension: 11*15*14mm

Net weight: 1.45g

Diagram:

Plug-N-Play Connector

C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.
