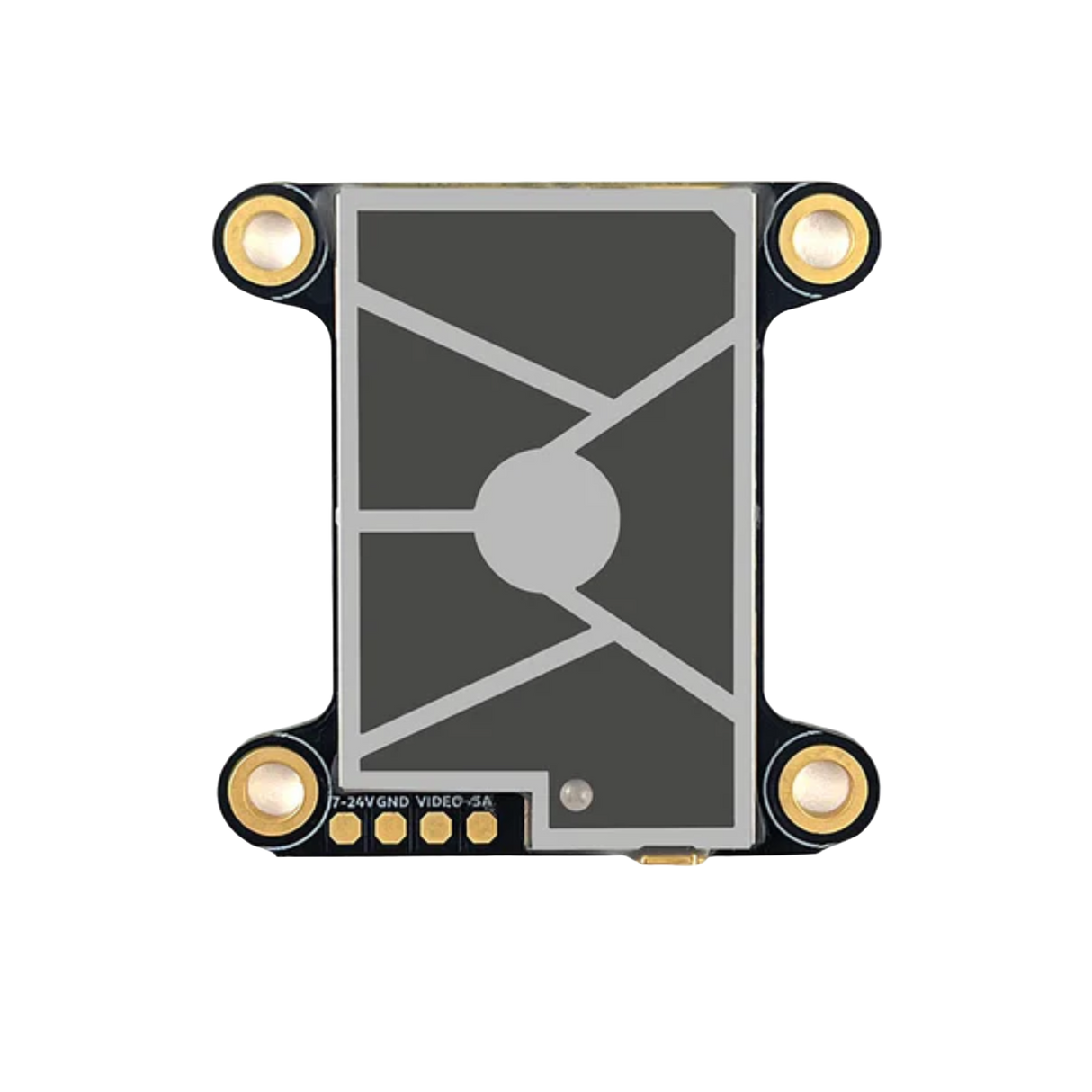

DarwinFPV Cement 5.8G 1000mw Waterproof VTX

Darwin Cement VTX is a highly durable VTX that is IP67 waterproof and dustproof. With a maximum output power of 1000mW, it ensures reliable performance even in harsh conditions. It features an anti-reverse connection and anti-surge protection, ensuring the VTX remains undamaged even without an antenna connected. Rest assured, this VTX is designed to thrive in challenging environments.

Package includes:

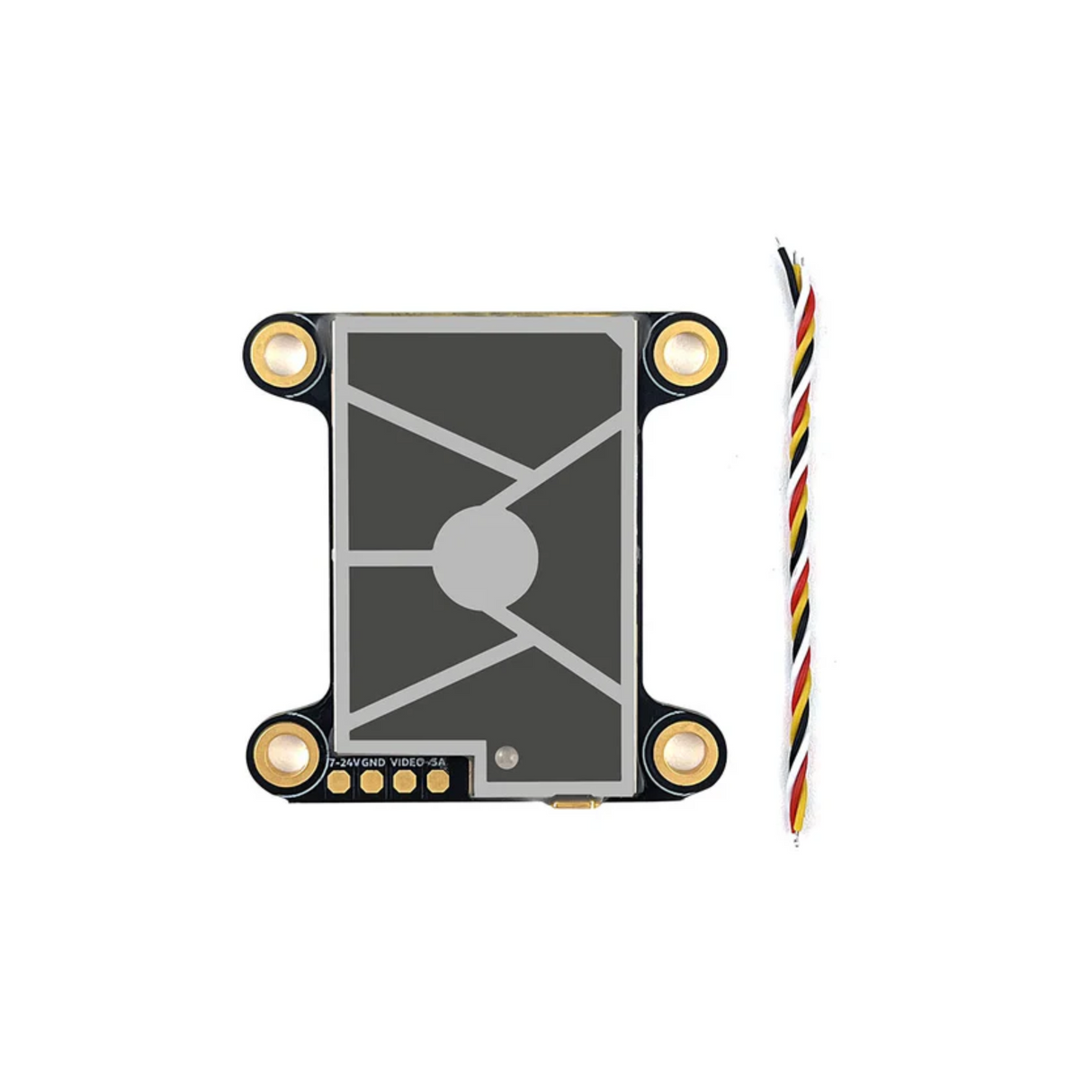

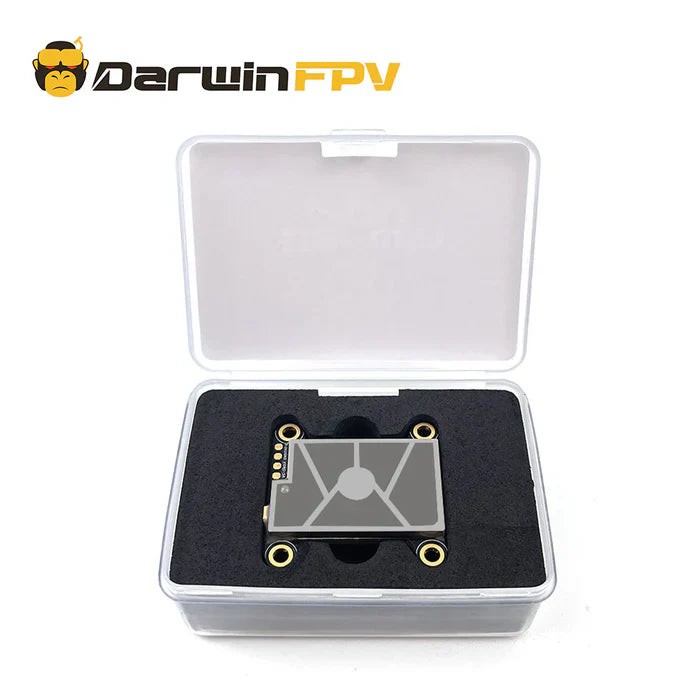

1x DarwinFPV Cement 5.8G 1000mW VTX
1x 4P 90mmVTX cable (#28AWG red/black/yellow/white)
1xSticker

Features:

1. Our VTX is rated IP67 for waterproofing, allowing it to withstand immersion in water up to 0.5 meters deep for 30 minutes without any damage.
2. It features an anti-reverse connection, anti-surge, and over-temperature protection circuit for enhanced safety and reliability.
3. With a military-grade power amplifier chip, our VTX is designed to prevent damage even if the antenna is not connected.
4. With a high power output of 1000mW, it offers stronger signal penetration, ensuring a more stable picture and longer transmission distance.

Specs:

Model: DarwinFPV Cement 5.8G 1000mW VTX
Input Voltage : DC7-24V(2-6S)
The Output Voltage: Non
Rated current(Tested at maximum power) : 10V/600mA@1000mW/30dBm
Transmission distance : 3km(There is no interference at the seaside, and the original antenna is used for testing)
Input Impedance: 75Ω
Channel Indicate : 3 LEDs 1 power indicator light (red light)
VTX protocol : SmartAudio
Antenna interface:  MMCX
Cable input interface: 4P double-ended tinned connecting cable

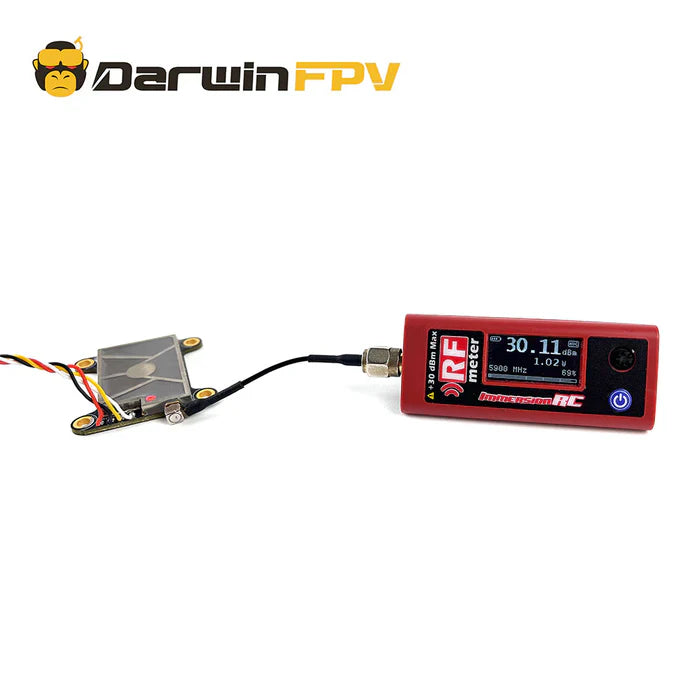

Output power : 200mW/800mW/1W
Method to adjust parameters(button/OSD) : OSD
Frequency group : 40 channel(A/B/E/F/R frequency group)
Frequency range  : 5645-5945MHz (5.645-5.945GHz）
Operating temperature: -10℃-50℃
Video format: NTSC/PAL
Microphone: Non
Mounting Hole Size:  30.5mm × 30.5mm（M3）
Size :  38mm × 37mm × 4.5mm

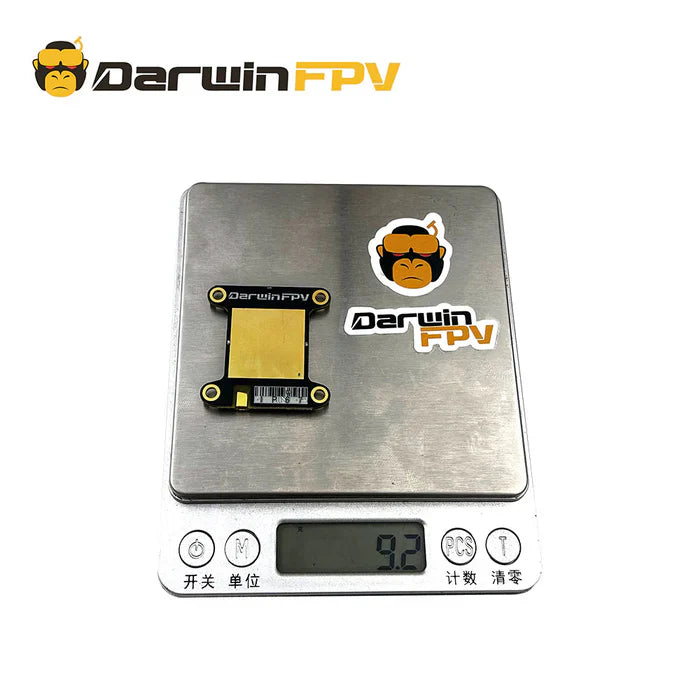

Weight : 9.2g±5g (without antenna and power cable)
