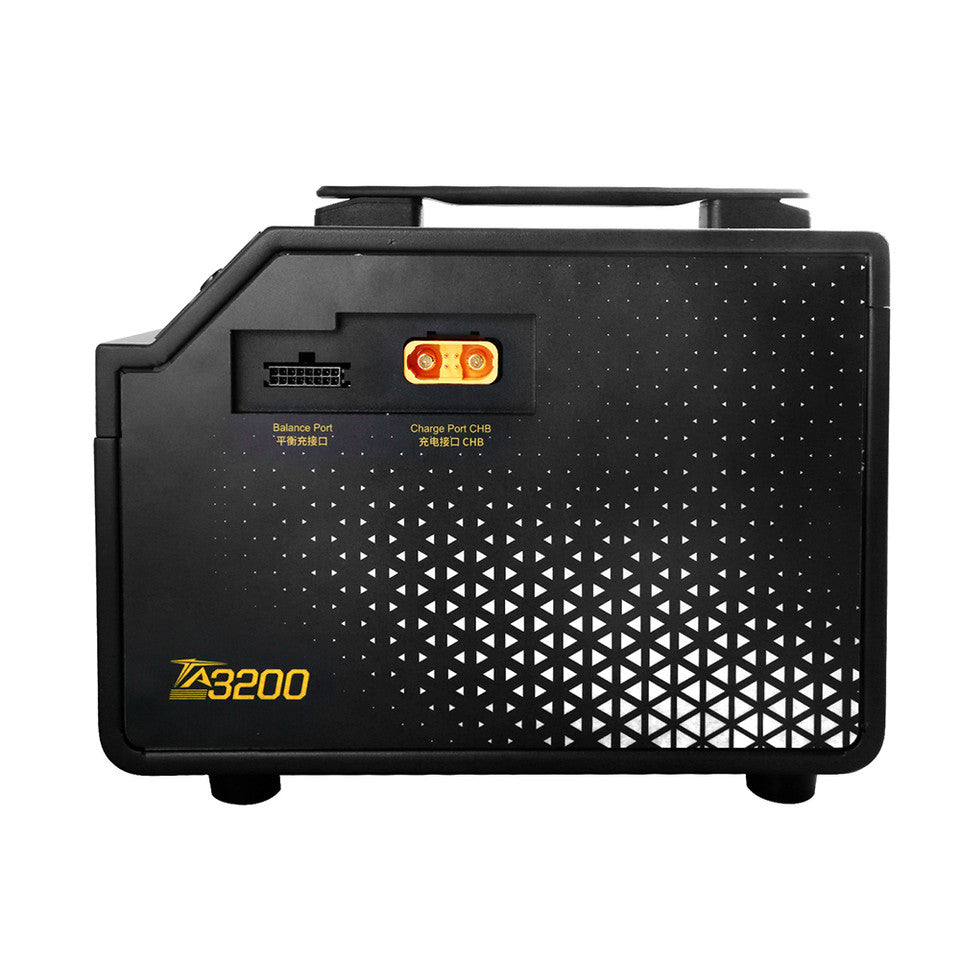

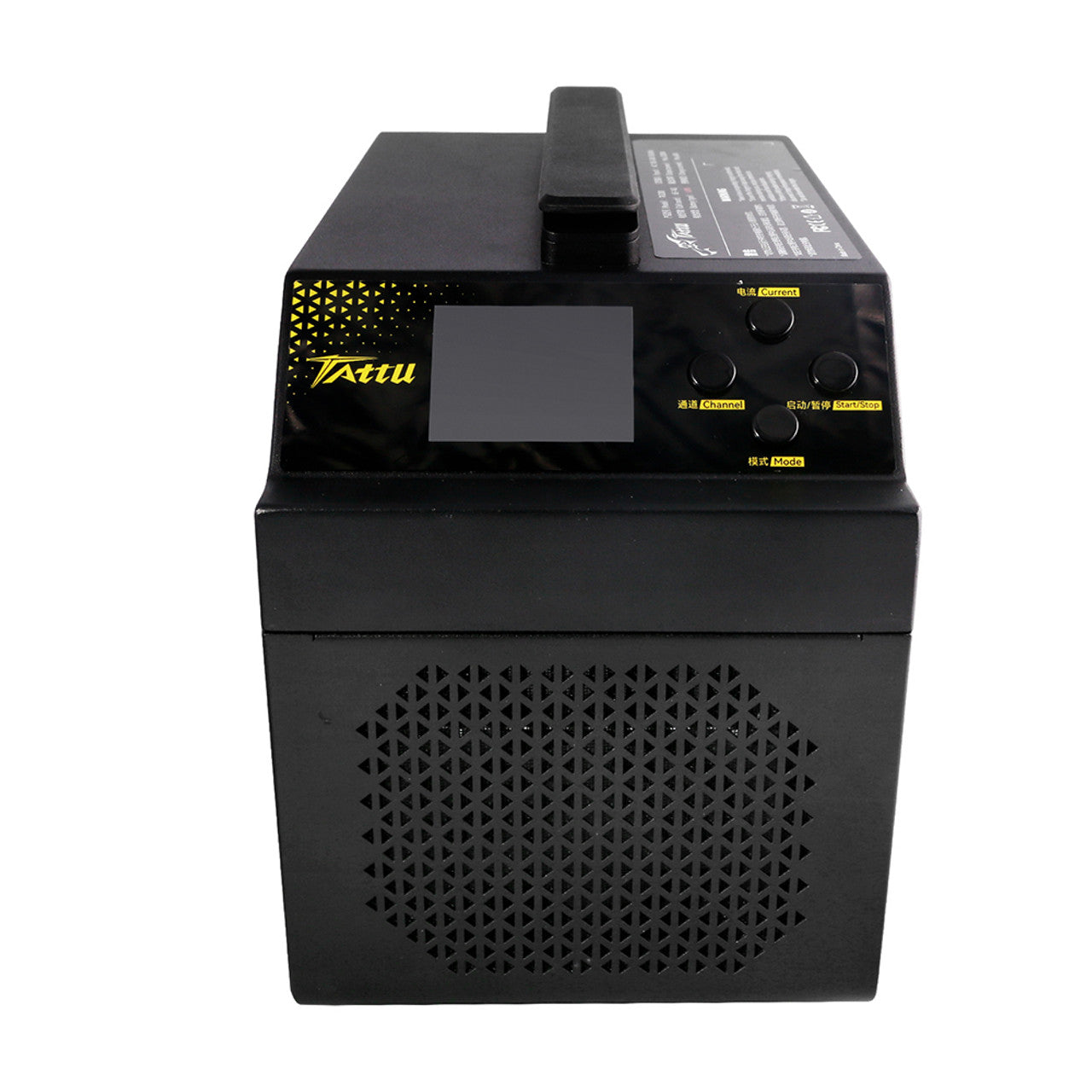

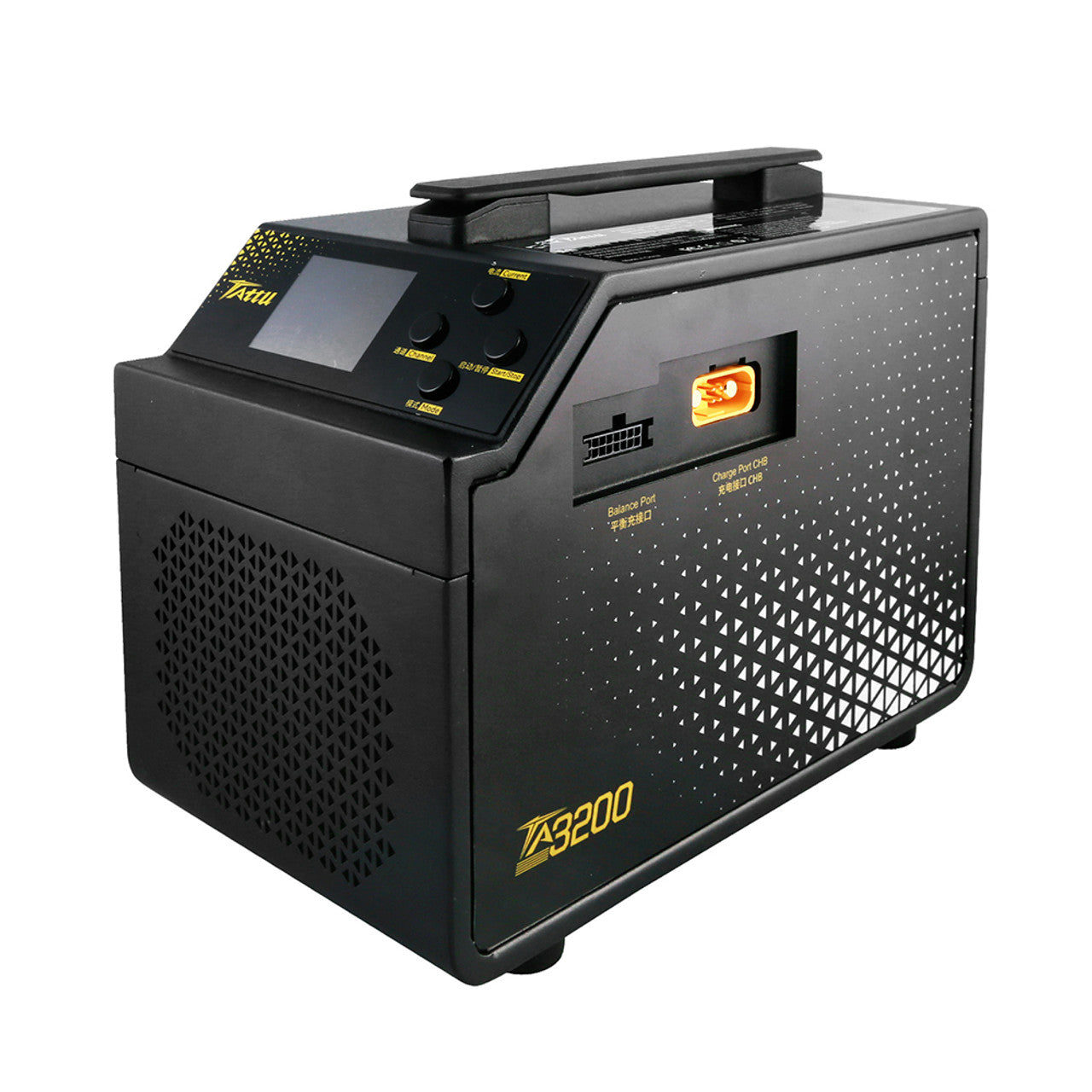

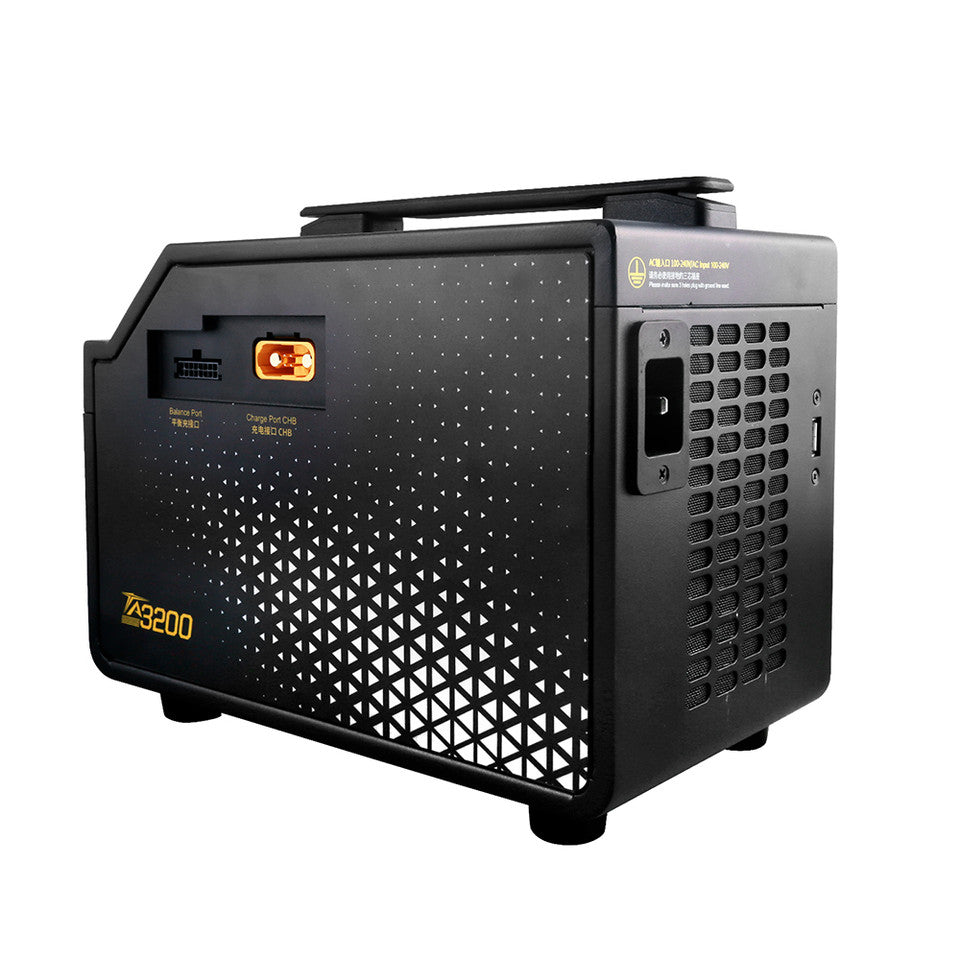

Tattu Dual-channel smart charger 60A/3200W for 6S-14S LiPo Tattu Smart battery

The TA3200 represents the latest advancement in Tattu’s line of premium smart chargers, designed to safely and efficiently charge Tattu/GensAce Smart batteries such as the TATTU Plus 1.0 16000mAh compact Smart Battery, as well as other soft pack batteries from 6S to 14S. Equipped with dual high-power channels delivering up to 3200W/60A, it supports batteries using the DroneCAN protocol, ensuring safety and user-friendly operation. Users can select from three optimized charging modes—fast, normal, and storage—compatible with both standard LiPo and HV batteries. Charging currents vary depending on input voltage, with options tailored for 220V and 110V sources.

Package Includes:

1x Charger

In all modes, while charging you can safely rely on the ability to follow real time parameters on the large LCD display like:

• Battery State of Charge percentage
• Current status of charge
• Battery Voltage
• Cell Voltage differences
• Charging current

To increase the charger and battery its operational efficiency and cycle life reliability we have added several smart features like:

• Powerful internal fan to keep operational temperatures under total control
• Smart charge software algorithms to improve battery efficiency and therefore cycle life
• Sturdyprotective durable hard case to protect it from shocks and intensive usage
• High duty gold plated internal charge connectors with dust protection covers
• Convenient Carry-on handle for comfort placement and transport
• USB port allows for the latest software updates
• Multi-lingual instruction manual with detailed information and excellent after-sales service

Specifications:

• AC Input: 100-240V
• Max Output Power: AC100-110V 1200W, 220-240 3200W
• Charge Current: Up to 60A
• Size: 276x154x216mm
• Weight: Approximately 6000g
• Battery Type: 6-14S Smart battery, Normal Soft Pack Lipo Battery
• Mode: Charging, Storage
