Skystars | SKU:
150707-C2
Skystars F7HD pro4 Flight Controller 30x30
$64.98
Unit price
/
Unavailable
Shipping calculated at checkout.
Skystars F7HD pro4 Flight Controller 30x30 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship.

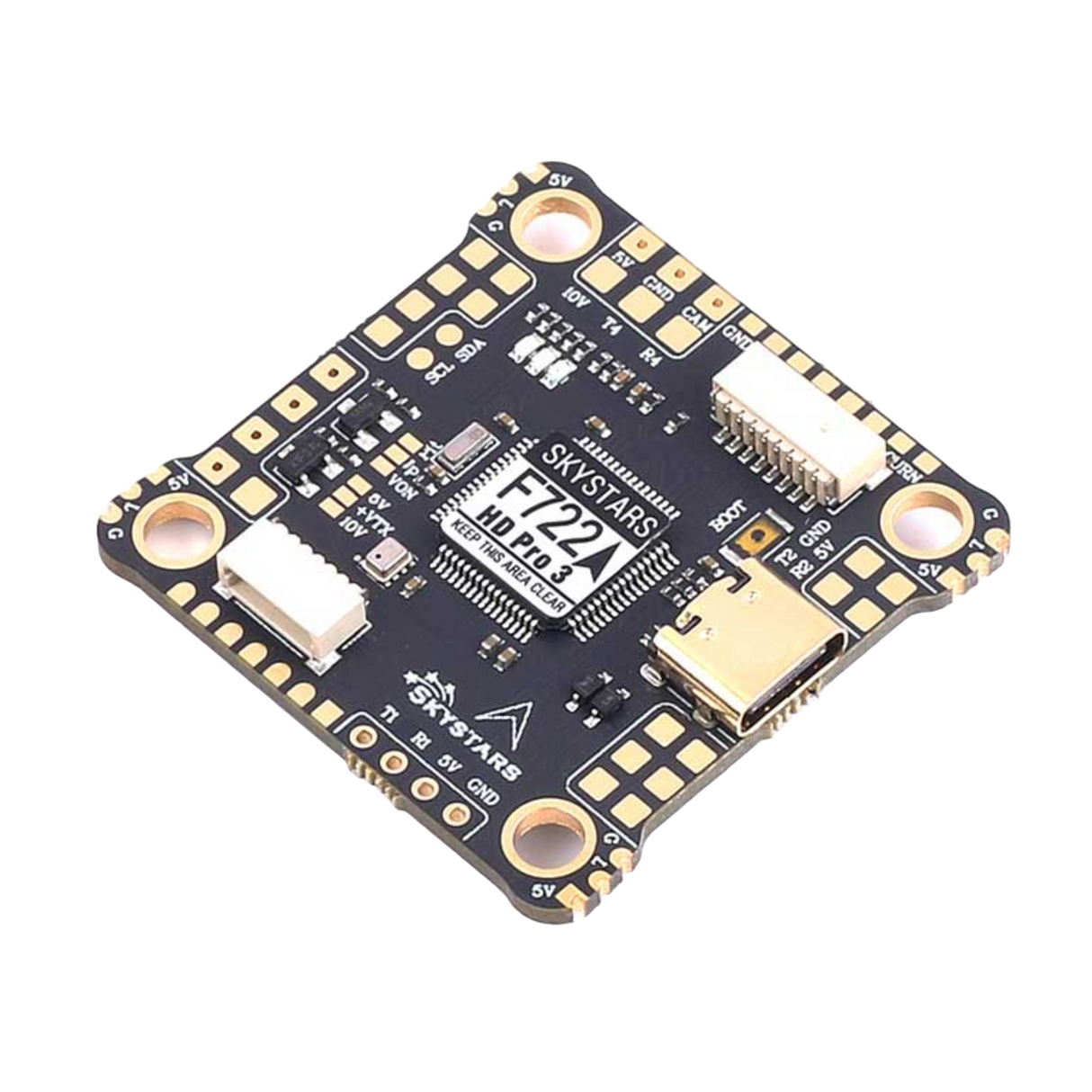

Skystars F7HD pro4 Flight Controller 30x30
$64.98
Unit price
/
Unavailable
Description
Description
A 30.5x30.5mm FC with a plug for your HD system.
Package includes:
1x F7HD Pro3 FC
4x M3 silicon grommets
1x JST-GH-6P cable for DJI port, 10cm
Specs:
- MCU: STM32F722RGT6 216MHz
- Gyroscope: BMI270
- Baro: BMP280
- OSD: Betaflight SPI OSD / DJI HD OSD (UART6)
- Black box: 16MB
- Uarts: 6 available
- 4x PWM outputs
- 1x I2C
- 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
- USB Type-C (USB2.0)
- VTX 10V / Vbat filtered power ON/OFF switch
- DJI FPV OSD supported by any spare UART.
- LED: 4 independent LED pads, supports WS2812.
- Type of receiver supported: Sbus, CRSF, ibus, XBUS, Spektrum satellite receiver (The default receiver input is on UART1)
- Input voltage: 3-6S
- BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
- LDO 3.3V: Max.250mA
- BetaFlight firmware: SKYSTARSF722Pro
- INAV firmware:SKYSTARSF722HD
- Mounting holes: 30.5x30.5mm
- Real size 39x39mm
- Weight: 6.9g
