Skystar F7+KM55 AM_32 ESC 20x20
Description
Description

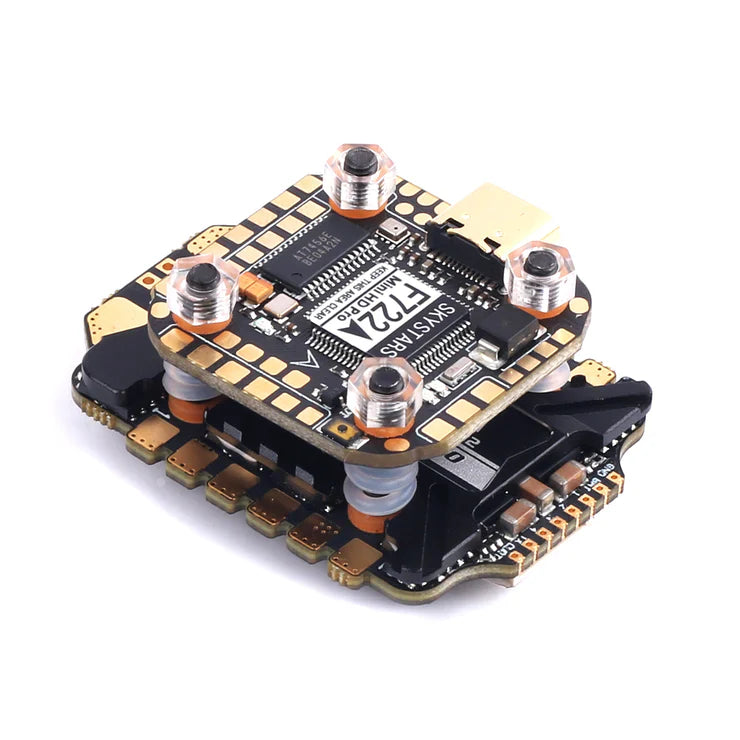

The Skystars F7 KM55 Stack is a 20x20mm Stack based on an F7 chipset. This stack can be used with up to a 6S battery, but it gets better! The stack also has 6 UARTS and a black box and supports motor telemetry such as RPMs, Voltage, and current.
Package includes:
1x F7 Flight Controller
1x KM55 AM-32 ESC
Specs:
F722 HD FC
- MCU: STM32F722RGT6 216MHz
- IMU: MPU6000 (SPI)
- OSD: Betaflight OSD & DJI HD OSD (UART6)
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Barometer: YES
- Buzzer Pad: YES
- 5V 2A & 10V 2A
- Input Voltage: 3-6S Lipo
- Blackbox: 16MB
- Firmware: SKYSTARS F7HD
- Dimensions: 35x28x7mm
- Mounting Holes: Standard 20mm/M3 square to center of holes
- Weight: 4.2g

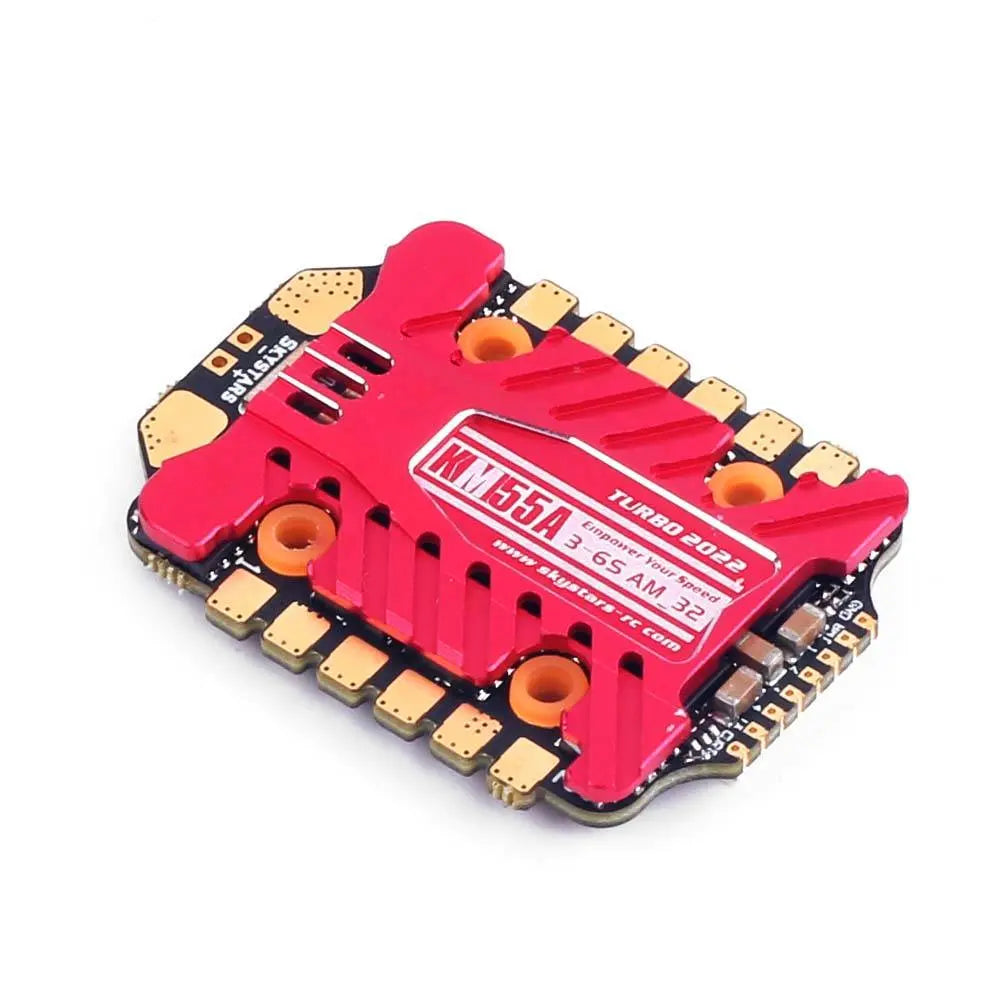

KM55A
- Input voltage: 3-6S LiPo
- Constant Current: 55A
- Peak Current: 70A≥ 10S
- Firmware: BLHeli_32
- Support: Dshot 600/1200
- Mounting hole : 20X20 mm/M3
- BEC: No
- Product size: 35*47*6.5mm
- Weight: 16.5g
