GOKU F405 SE 3-4S 20A AIO Plug & Play O4/O4 Pro
GOKU F405 SE 3-4S 20A AIO Plug & Play O4/O4 Pro is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.
GOKU F405 SE 3-4S 20A AIO Plug & Play O4/O4 Pro
Description
Description

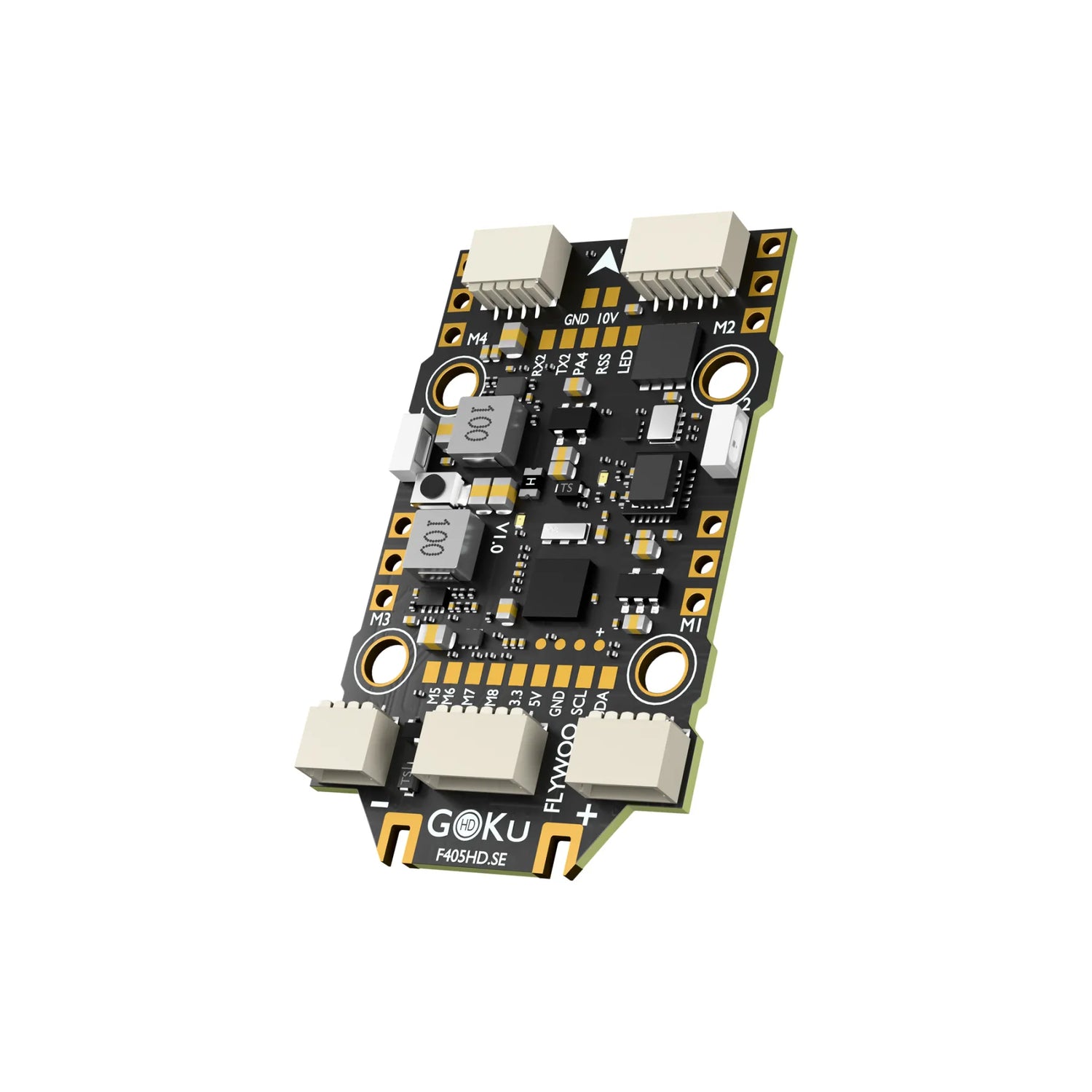

Powered by STM32F405 and ICM42688-P/ MPU6000 gyro for responsive, butter-smooth control. Features dedicated dual BEC for direct DJI O4 Air Unit connection on 3-4S (no extra BEC needed). Full plug-and-play ports mean only motor wires require soldering – easy even for beginners. At just 6.5g with standard 20×20mm mounting, it delivers the perfect balance of functionality and lightness.
Package Includes:
1x GOKU F405 SE 3-4S 20A AIO
5x M2X10 cup head screws
5x M2 nylon nuts
5x M2*6.6 shock-absorbing balls
1x 220U 25V capacitor
1x XT30 Male 18WG power cord
1x Buzzer Connection Cable
1x GPS Connection Cable
1x O4\O4 PRO Connection Cable
1x Receiver Connection Cable
Feautres:
- Butter-Smooth Flight – STM32F405 MCU + ICM42688-P (MPU6000) gyro for ultra-responsive, jitter-free control
- Powerful & Efficient – 20A continuous / 25A peak current, supports 3-4S LiPo batteries
- Plug-and-Play HD FPV – Dual BEC (10V/2A + 5V/2A) for direct DJI O4/Air Unit connection, no extra regulators needed
- Beginner-Friendly Build – Full plug-and-play ports, only motor wires require soldering
- Ultra-Light & Compact – 20×20mm standard footprint, only 6.5g, deeply optimized for Firefly 25mini 3S & 20pro 4S
- Unlimited Flight Modes – Onboard 8MB black box, supports Betaflight/INAV dual firmware

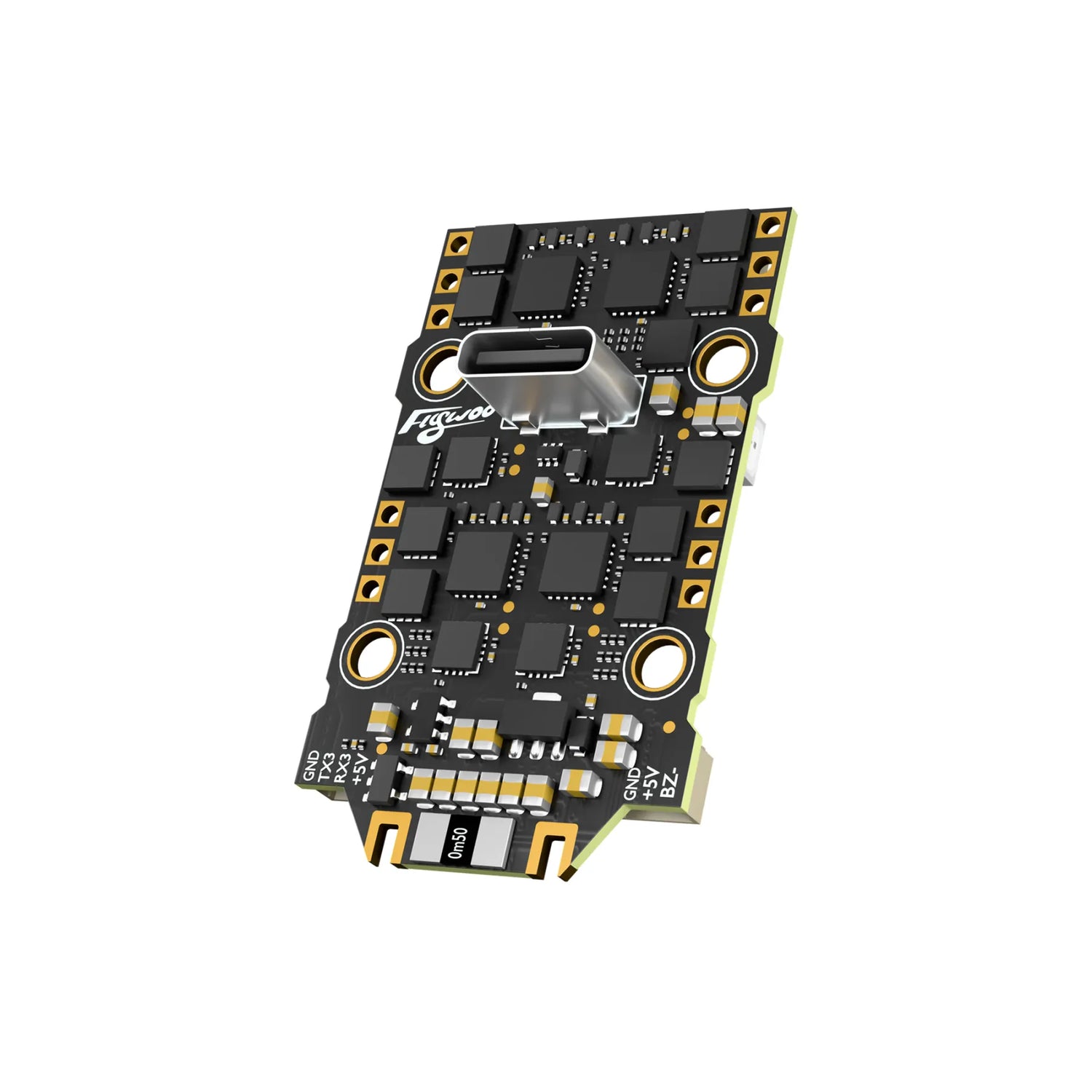

- Hassle-Free Tuning – Bottom-mounted vertical Type-C port, no disassembly needed for firmware flashing
- Built to Last – 6-layer gold-plated PCB, stable operation from -20°C to 50°C
Specifications:
| Product Model | GOKU F405 SE 3-4S 20A AIO |
| MCU | STM32F405BGA |
| Gyro | ICM42688P / MPU6000 |
| ESC | 4-in-1, 20A continuous / 25A peak per channel |
| Barometer |
SPL06
|
| OSD Support: |
No
|
| Input Voltage | 3–4S LiPo |
| UART |
UART:1(elrs).2.3.4.5(sbus).6
|
| BEC Output | 10V/2A + 5V/2A dual independent |

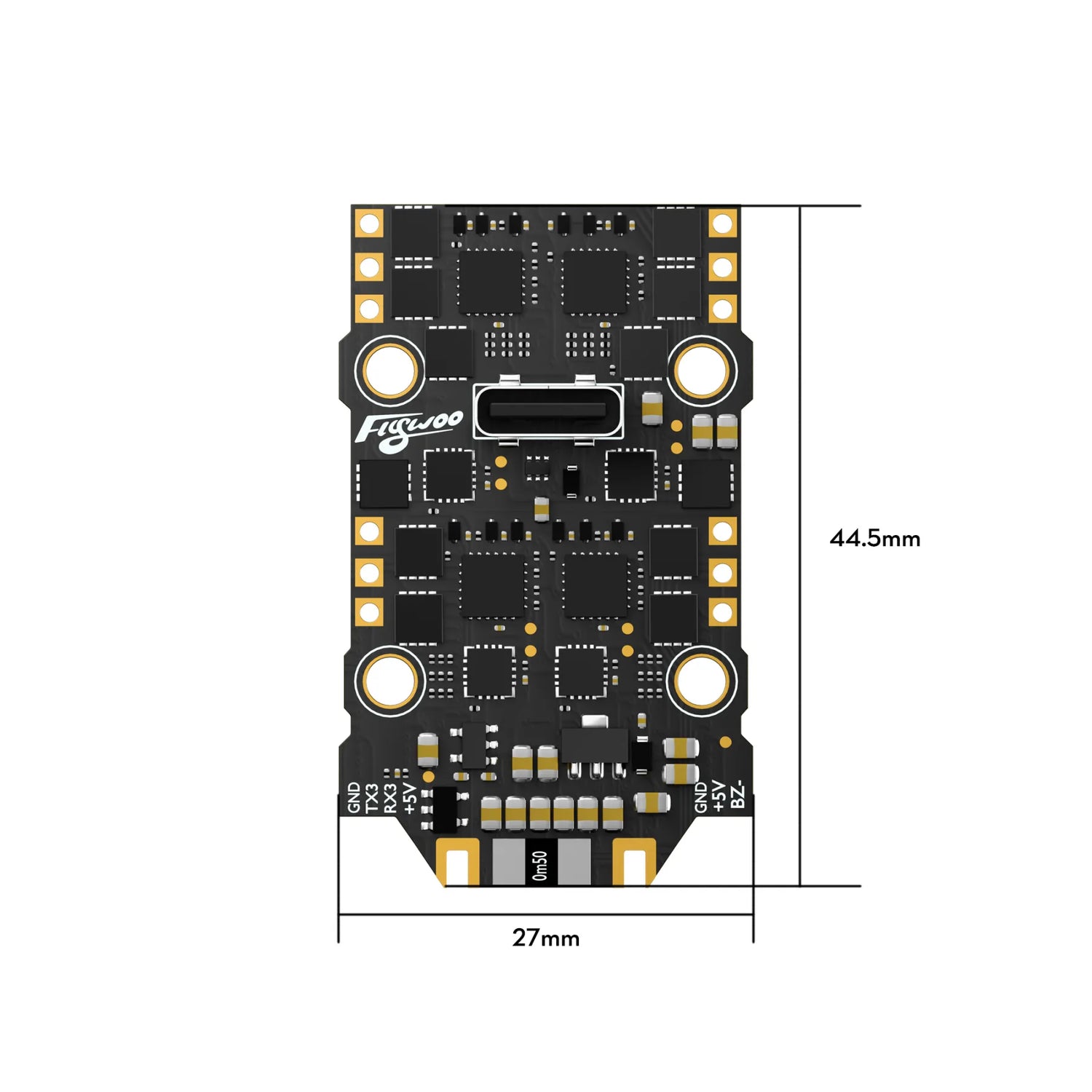

| Mounting Holes | 20×20mm standard |

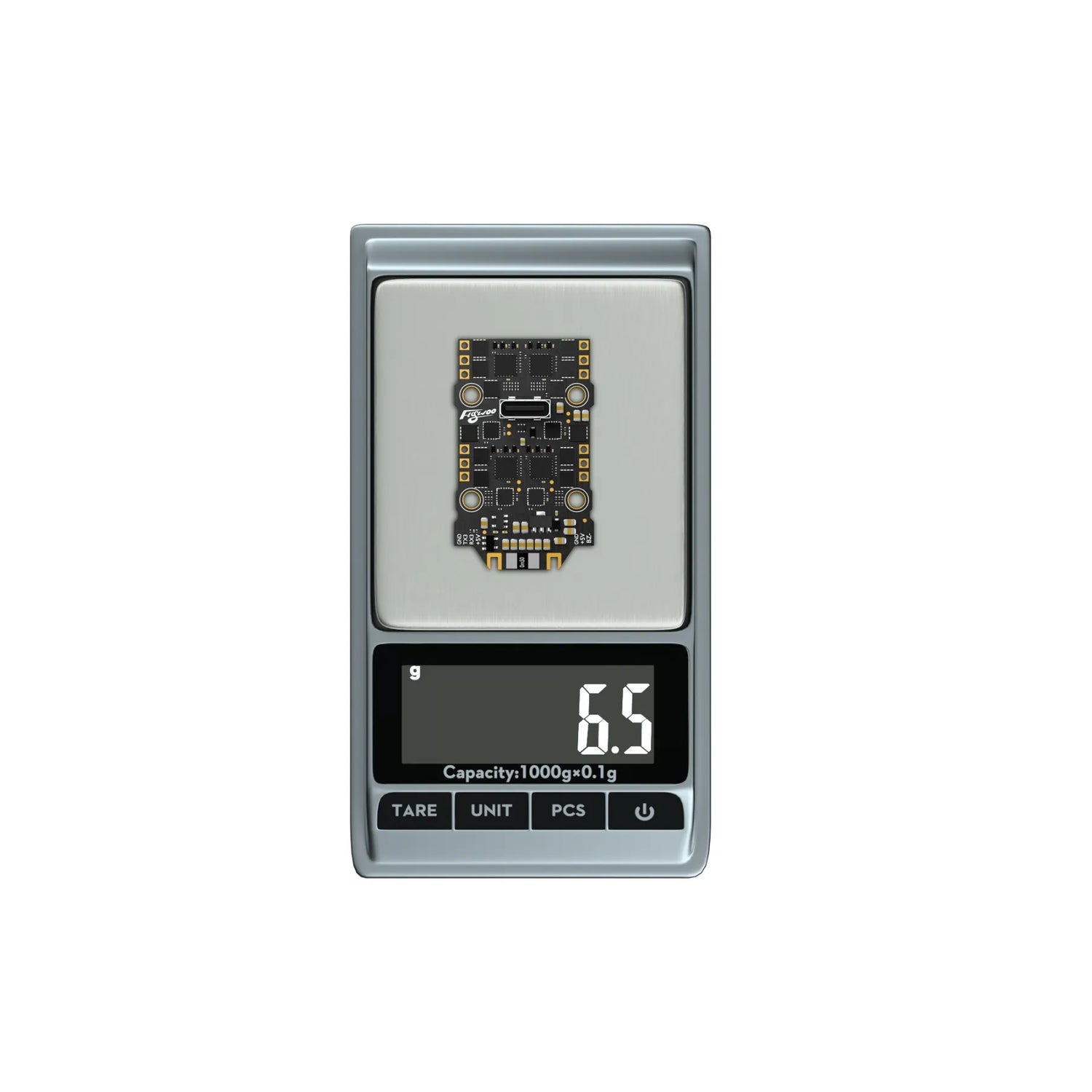

| Net Weight | 6.5g |
| On-Board Storage | 8MB flight black box |
| Interfaces | HD VTX, receiver, GPS, Bluetooth, buzzer ports; bottom Type-C |
| FC Firmware |
BetaFlight Firmware: FLYWOOF405S_AIO
INAV Firmware: FLYWOOF405HD
|
| Compatible Drones | Firefly 25mini 3S, Firefly 20pro 4S, 2" / 2.5" micro FPV drones |
| ESC Firmware | G_H_30_48KHz_Bluejay |
|
Battery connector
|
XT30 |
