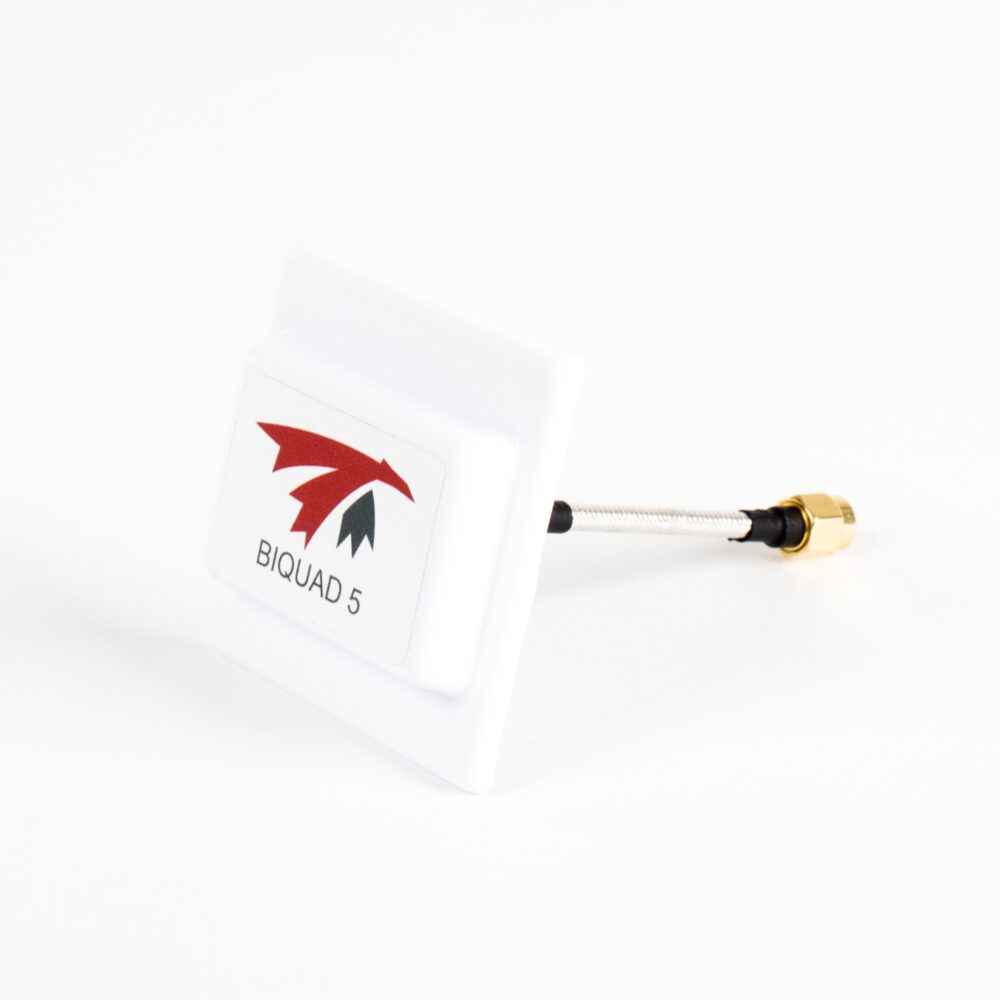

TrueRc 5G BiQuad
TrueRc 5G BiQuad is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship.
TrueRc 5G BiQuad
Description
Description
Note: Pictures may not accurately picture the antennas length/color/connector from the selected variant. Please ensure the variants/options you have selected are correct for your needs. Contains 1 Antenna.

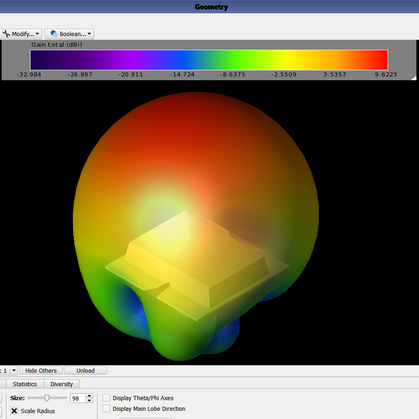

A biquad? The biquad is the linear equivalent to the crosshair, with its clean radiation pattern and great efficiency. We of course added our own twist to it by stretching its bandwidth to cover the whole 5GHz ISM band. This make it usable with both digital and analog systems. Mount it right on your goggles whether they have top or side SMA connection, the included low-loss semi-flexible extension have them covered.
Package Includes:
1x Antenna
1x Extension
Specifications:
- Frequency: 5-6GHz
- Gain: 9.5 dBi
- Linear polarization
- Beam-width*: 110deg
- Beam-width @-3dB**: 65deg.
- Connector: SMA male
- Dimension: 2.1″x2.1″x0.5″
- Included 5cm low-loss semi-flexible extension.
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
