TrueRc Blaze 5.8

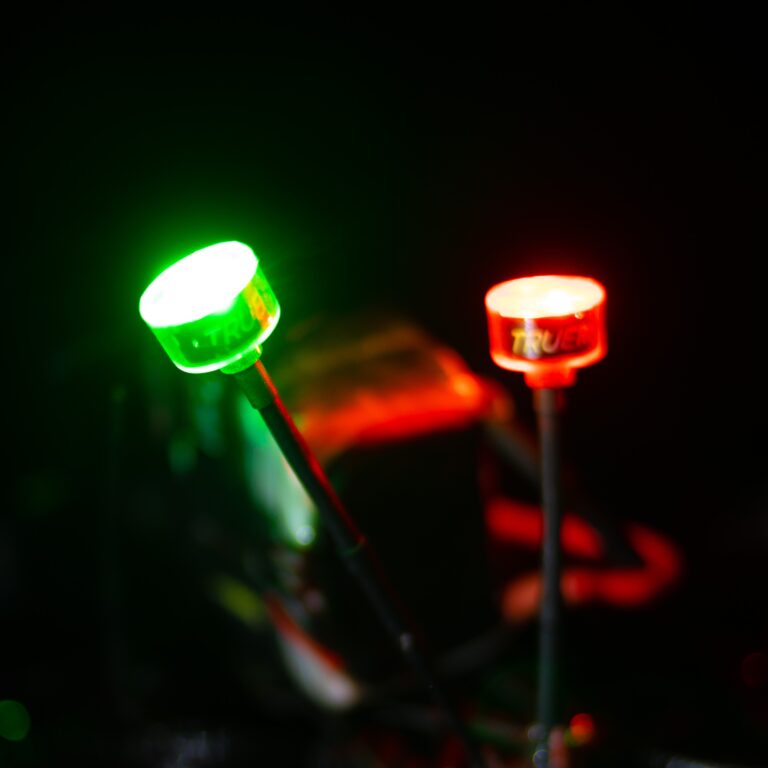

Featuring our latest high fidelity* circular polarized antenna design added of a CREE™ XQ-E high-intensity LED, the BLAZE 5.8 is no ordinary antenna. It is a high-performance CP omni-doubling as a powerful LED light. Thanks to an advanced RF design and heat management, this antenna possibly outshines anything in both the 5.8GHz and visible spectrum.

Note: Pictures may not accurately picture the antenna's length/color/connector from the selected variant. Please ensure the variants/options you have selected are correct for your needs.

Package Includes:

1x Antenna.

1x 12 or 18-ohms resistor, depending on color.

1x Micropower connector.

1x Heat shrink.

Features:

Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing. ‘

CREE™ XQ-E high-intensity LED.

Wider Bandwidth (5.4-6.3GHz).

*Pattern stays true even in harsh/sub-optimal installations.

Single wire 5V LED power hookup with micro connector.

Available in red, green, blue and white.

Available with True-SMA connector.

Available with high-quality dji compatible MMCX.

Available with support tube and U.fl pigtail (vista).

Specifications:

Gain: 1.9dBic

Polarization: RHCP or LHCP

Cross-Polar Rejection: -15 to -30dB, (1.9%)

Bandwidth: 5.4GHz-6.3GHz

Radiation Efficiency: 99%

SWR: <=1.2:1

Weight: 7.9 g ‘

Dimensions(head): 16.5mm dia. X 10.7mm height.

Length: 80mm to 125mm.

Cable: Heavy-duty semi-rigid RG402 coax or custom RG316S.

Connector: True-SMA, MMCX90 or U.fl w/support tube (Vista)

Current draw: 100-110mA with included resistor.

Max current: 400mA.

Supply voltage: 5V with included resistor.

l Approx luminous flux @100mA: 20 to 50 Lumen, depending on color.
