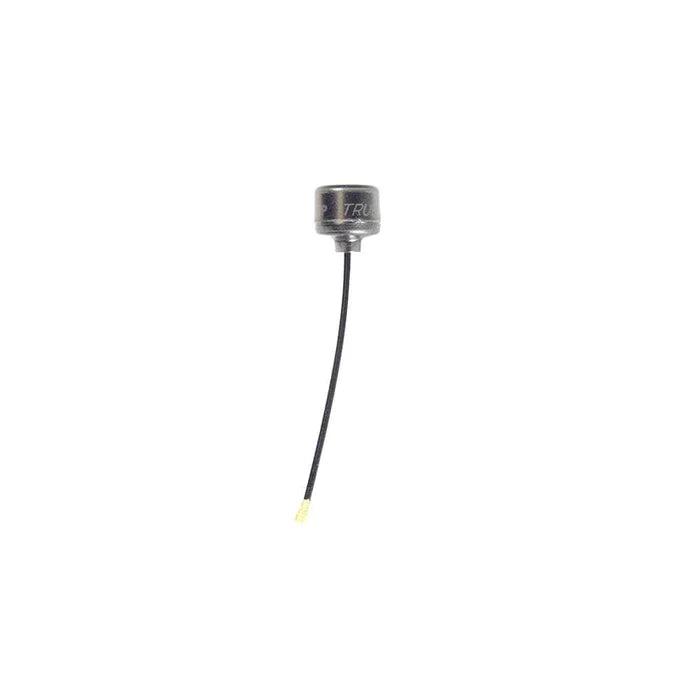

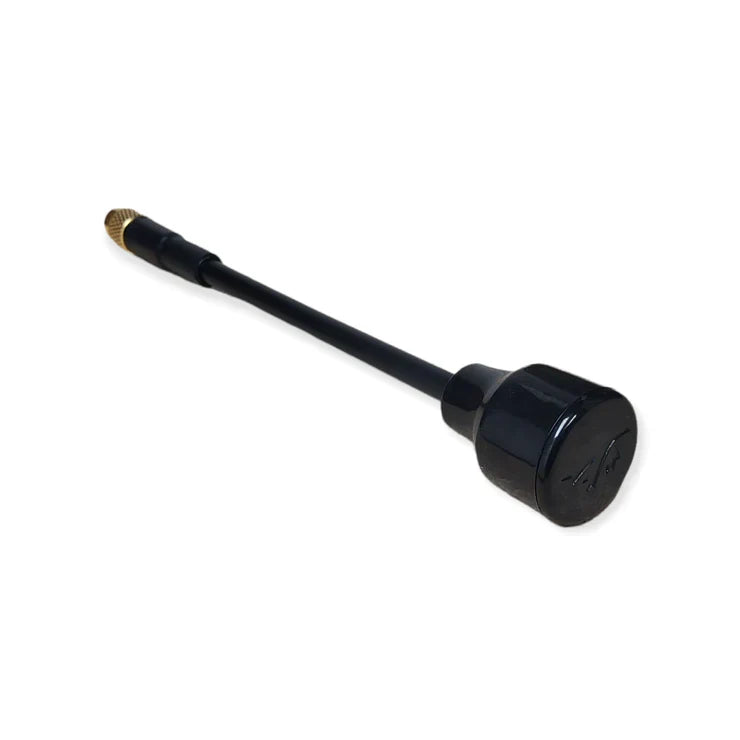

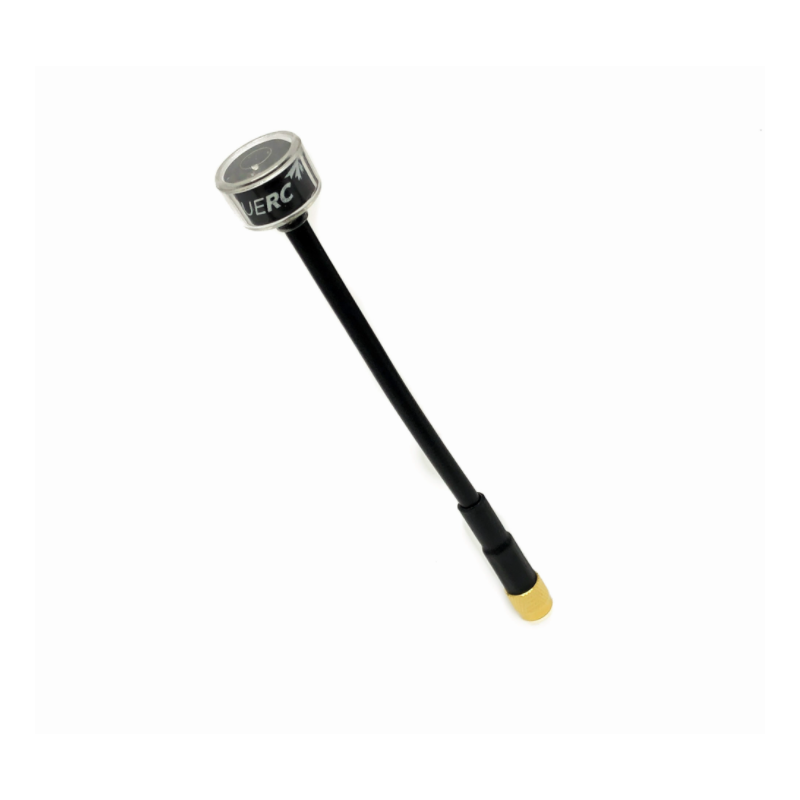

TrueRc Core 5.8

The CORE 5.8 is a distillation of all those years working with drone enthusiasts and professionals alike. This omnidirectional antenna starts with a refined RF design that provides excellent consistency within units and various cable configurations. We then added a very durable outer shell that protects the antenna from inevitable crashes. Finally, it is available in three different colors to suit your style.

Colors vary (Red/Green/Grey)

Note: Pictures may not accurately picture the antenna's length/color/connector from the selected variant. Please ensure the variants/options you have selected are correct for your needs.

Package Includes:

1x Antenna

Features

• Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
• A clear indication of polarization direction
• Smooth radiation pattern with even gain in all directions
• Excellent axial ratio and efficiency
• Flexible coax cable option that deflects impacts
• Exclusive knurled True-SMA for easy tightening

Specs:

• Gain: 1.9dBic
• Polarization: RHCP or LHCP
• Cross-Polar Rejection: -10 to -20dB
• Bandwidth: 5.5GHz-6.1GHz
• Radiation Efficiency: 98%
• SWR: <=1.2:1
• Weight: Vary with connector/cable option
• Dimensions(head): 16.9mm dia. x 13.1mm height.
• Length: Vary with cable option
• Cable: TrueRC RG316S/RG402/RG178 coax
• Connector: Reinforced True-SMA/90 male, U.FL, MMCX/90
• Includes 1 Antenna

US. Pat. 10,804,618

Can. Pat. 2968566
