FlyFishRC M10 Mini GPS Module
Description
Description

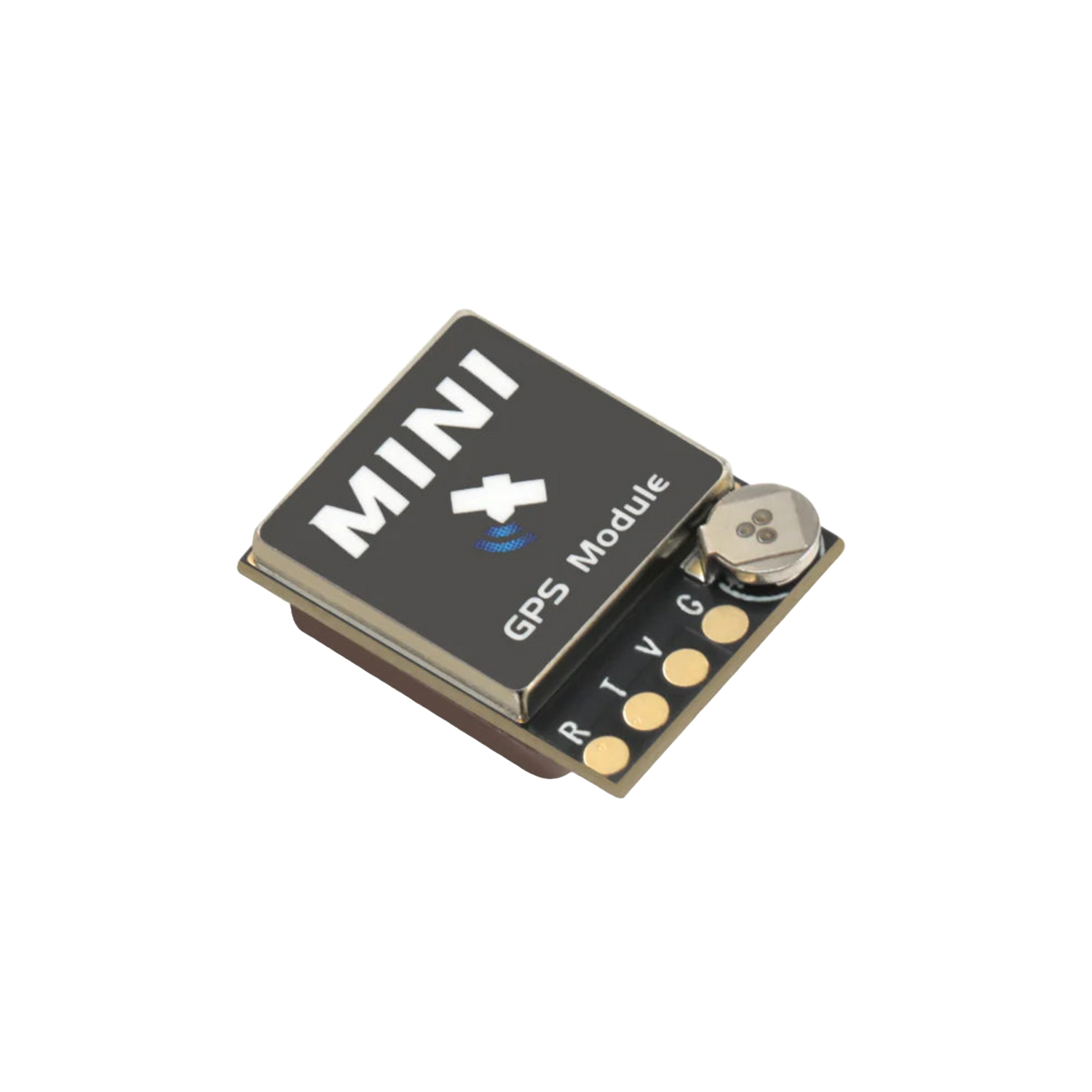

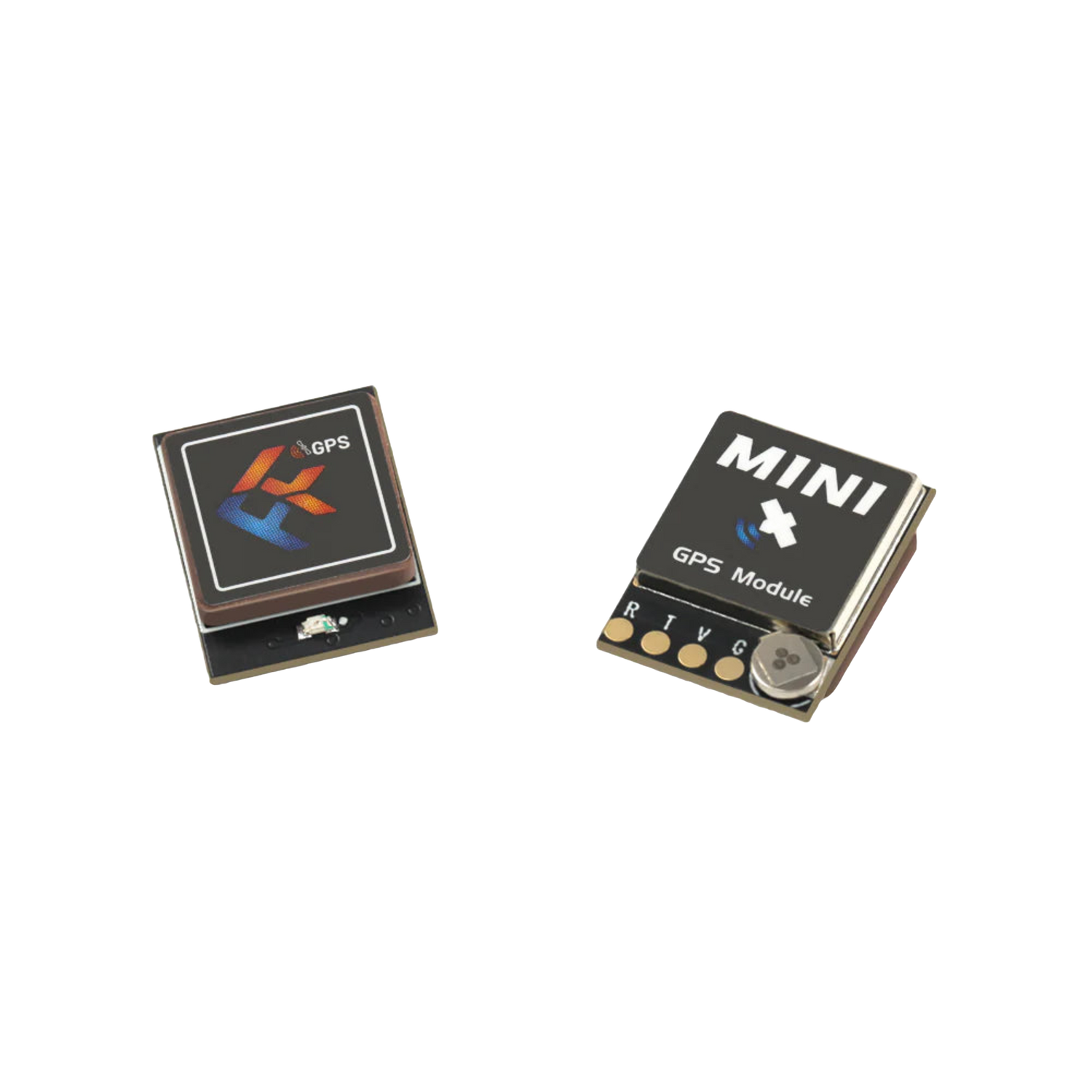

FlyfishRC-M10 Mini is a GPS that is small in size, fast in speed, and easy to use. It features a 12*12mm RHCP ceramic patch antenna that provides excellent reception and highly stable connectivity. This antenna can be used to add a return to home function to your FPV drone.
Package Includes:
1x FlyFishRC M10 Mini GPS Module

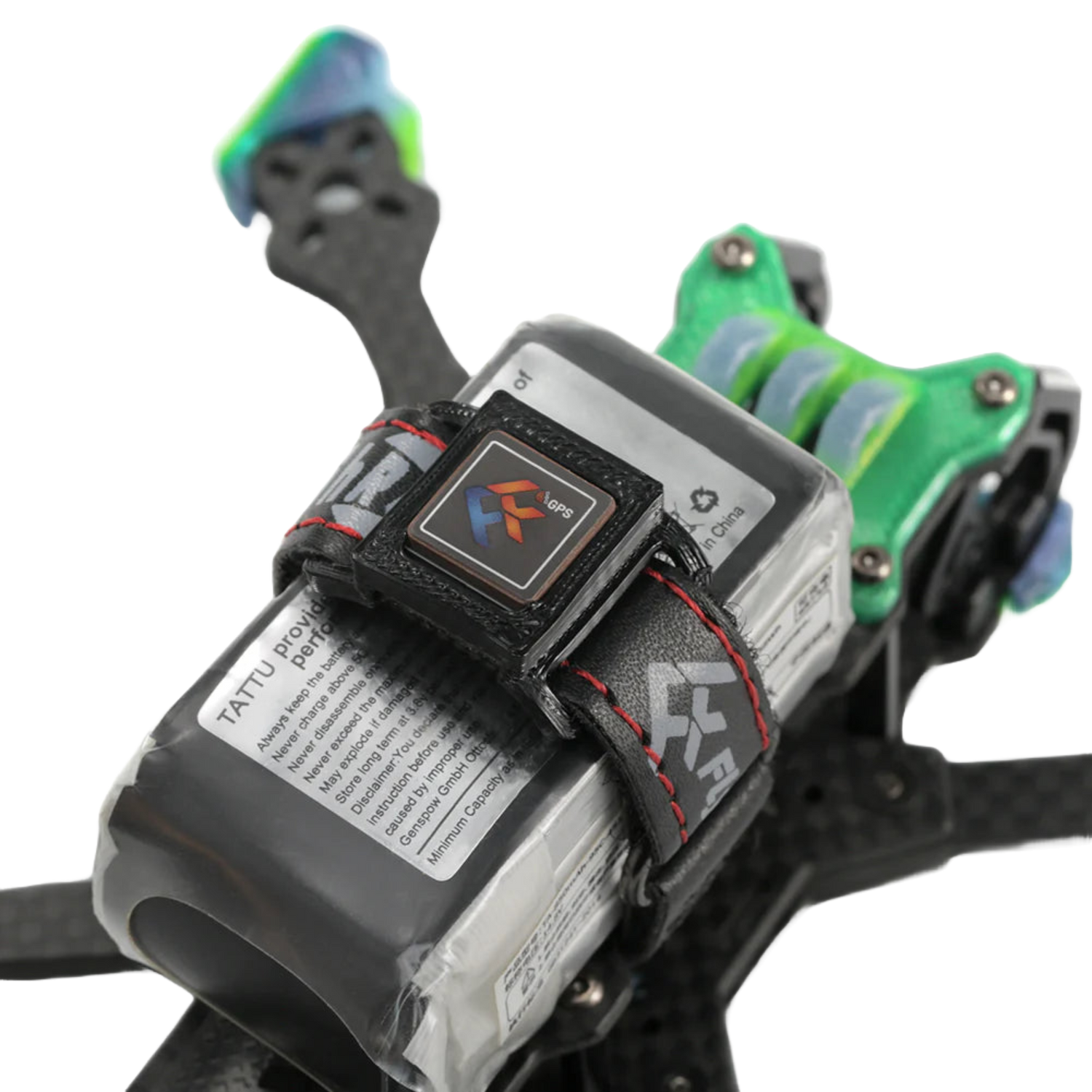

1x Battery strap GPS Mount
4x #30 Silicone Cable
1x GPS Manual
Specifications:
GPS Module Protocol: Ublox/NMEA
Speed Accuracy: 0.05m/s
Cold Start: 30 s
Hot Start: 1-3 s
Tracking Sensitivity: -167dBm
Input Voltage: 3.3~5.5V (typical value 5V)
Maximum Altitude: 50000m
Maximum Speed: 500m/s
Maximum Acceleration: ≤4G
Baud Rate: 4800-115200bps (recommended 115200bps)
GPS Module Size: L16.2x W12.3x H4.9mm
GPS Ceramic Size: 12*12mm
Weight: 2.4g (±0.5g)
Pin Out:
VCC: System main power supply, voltage is 5V, current is about 40mA during operation
GND: Ground
RXD: Data input
TXD: Data outputÂ
