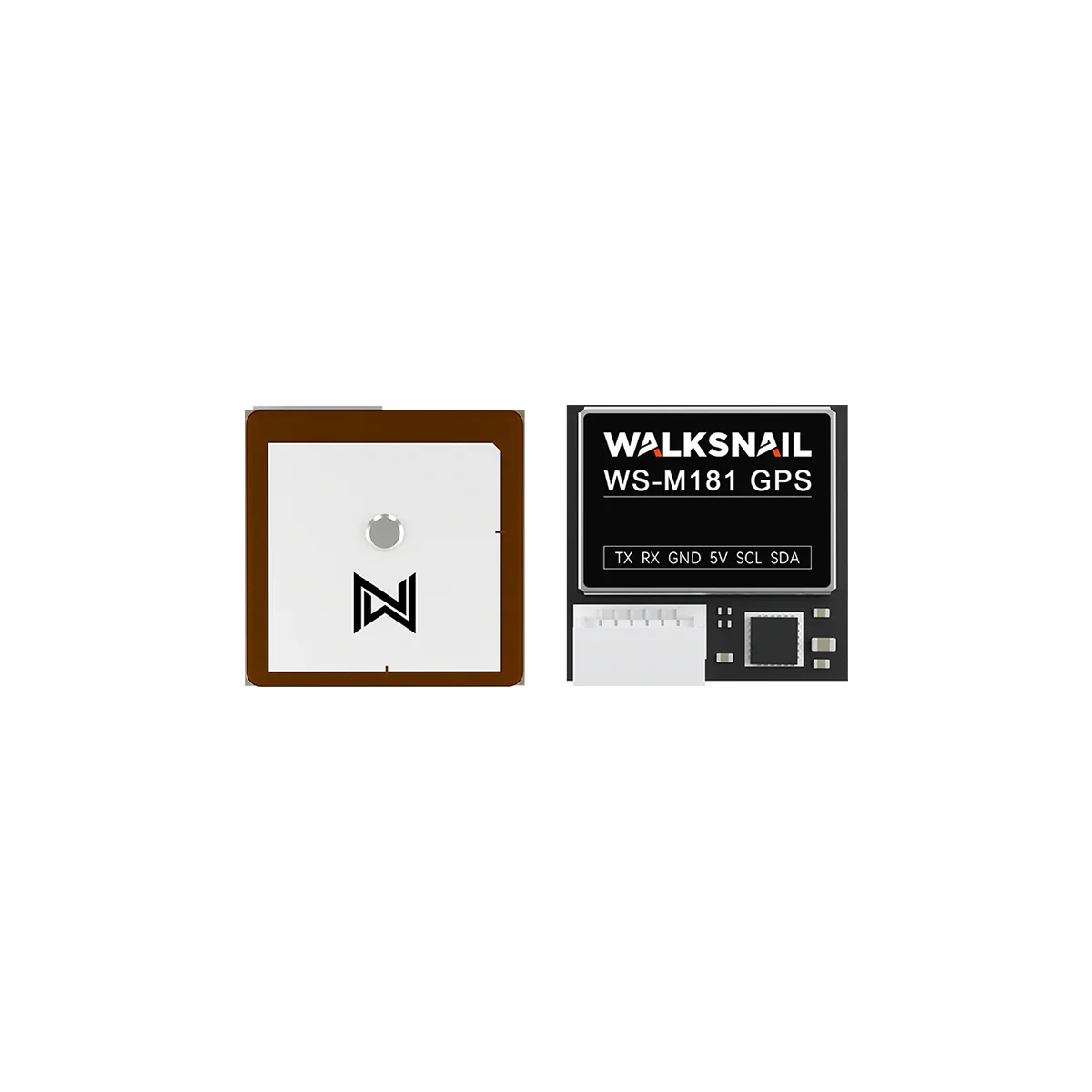

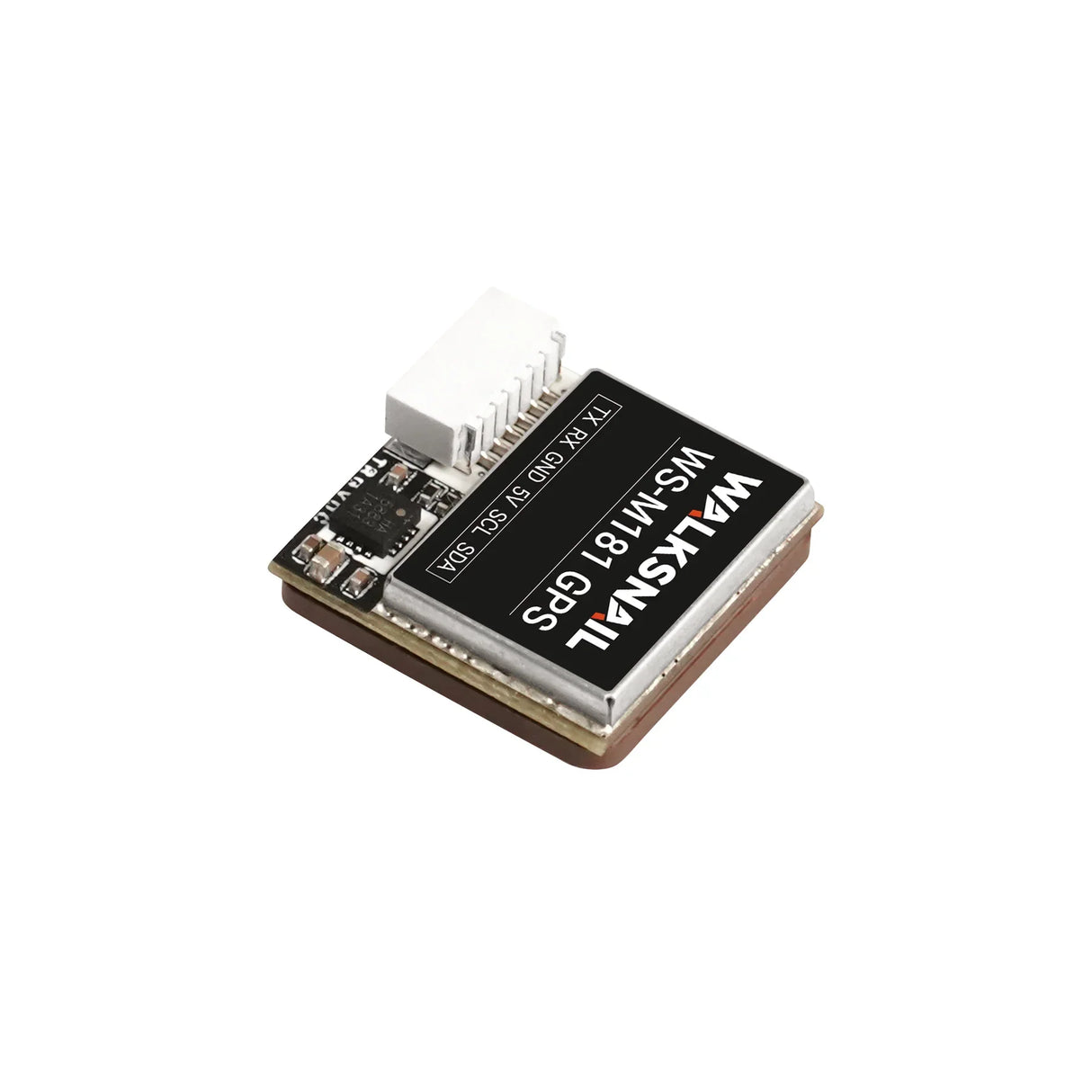

Walksnail WS-M181 GPS
Description
Description
The Walksnail WS-M181 GPS module is the perfect addition to virtually any quad. This GPS can quickly acquire satellite and can be used to configure failsafes.
Package Includes:
1x WS-M181 GPS
1x Data Wire
Features:
- With small size, light weight, fast positioning, and stable connection. It is suitable for FPV, RC airplane, quadcopter and others to enhance the flight experience.
- Featuring the u-blox M10 platform UBX-M10050 GNSS chipset and BUILT-IN QMC5883 MAG, the module offers stronger performance and more accurate positioning.

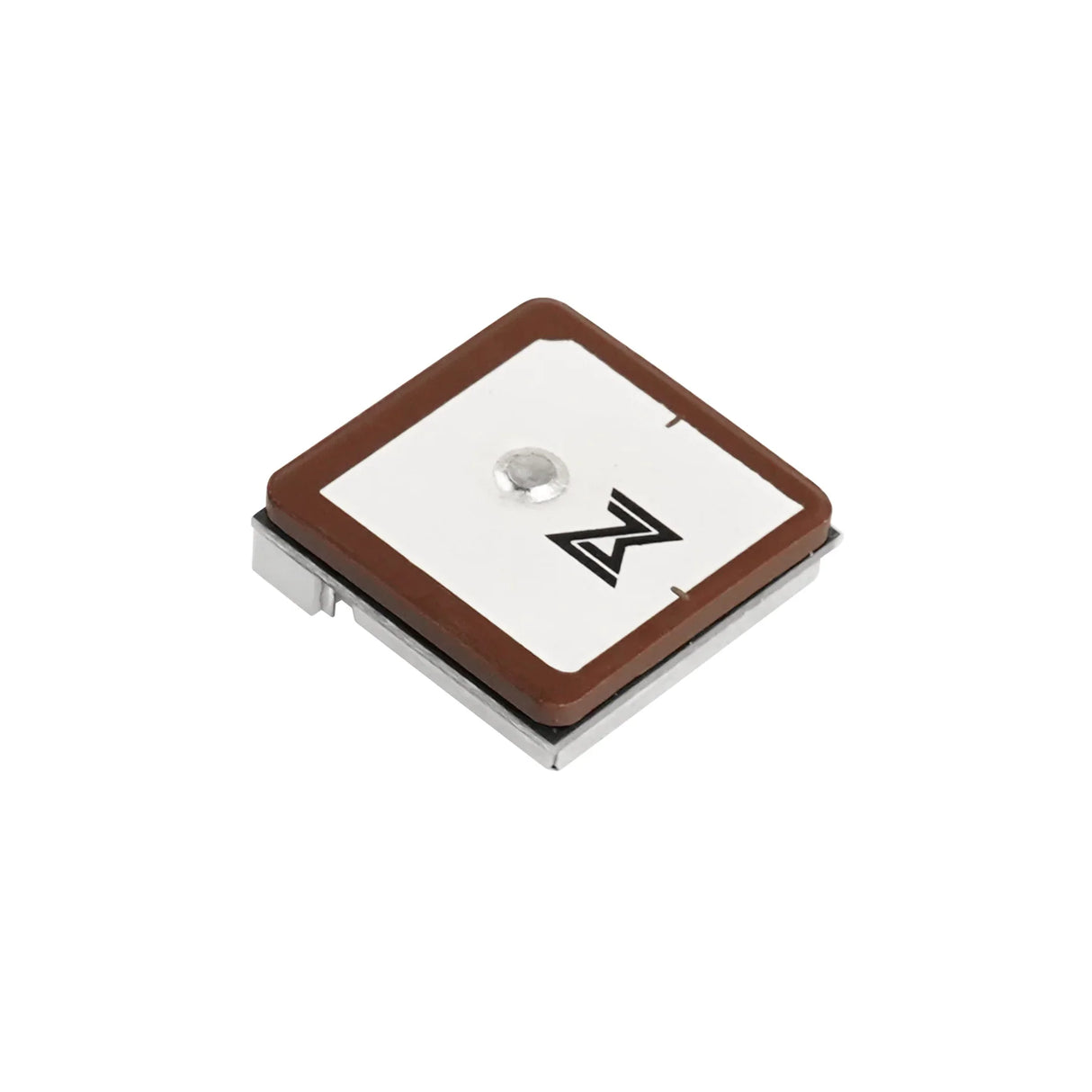

- The ultra-thin ceramic antenna uses a special spray painting process to prevent oxidation and scratching, ensuring consistent positioning performance.
- The built-in battery can realize hot start and realize positioning quickly.
|
Specifications: |
|
|
nam e |
Walksnail WS-M181GPS |
|
Chip: |
M10 (ten generation chip) |
|
Frequency: |
GPS L1,GLONASS L1,BDSB1,GALILEO E1,SBAS L1.QZSS L1 |
|
Power: |
5V |
|

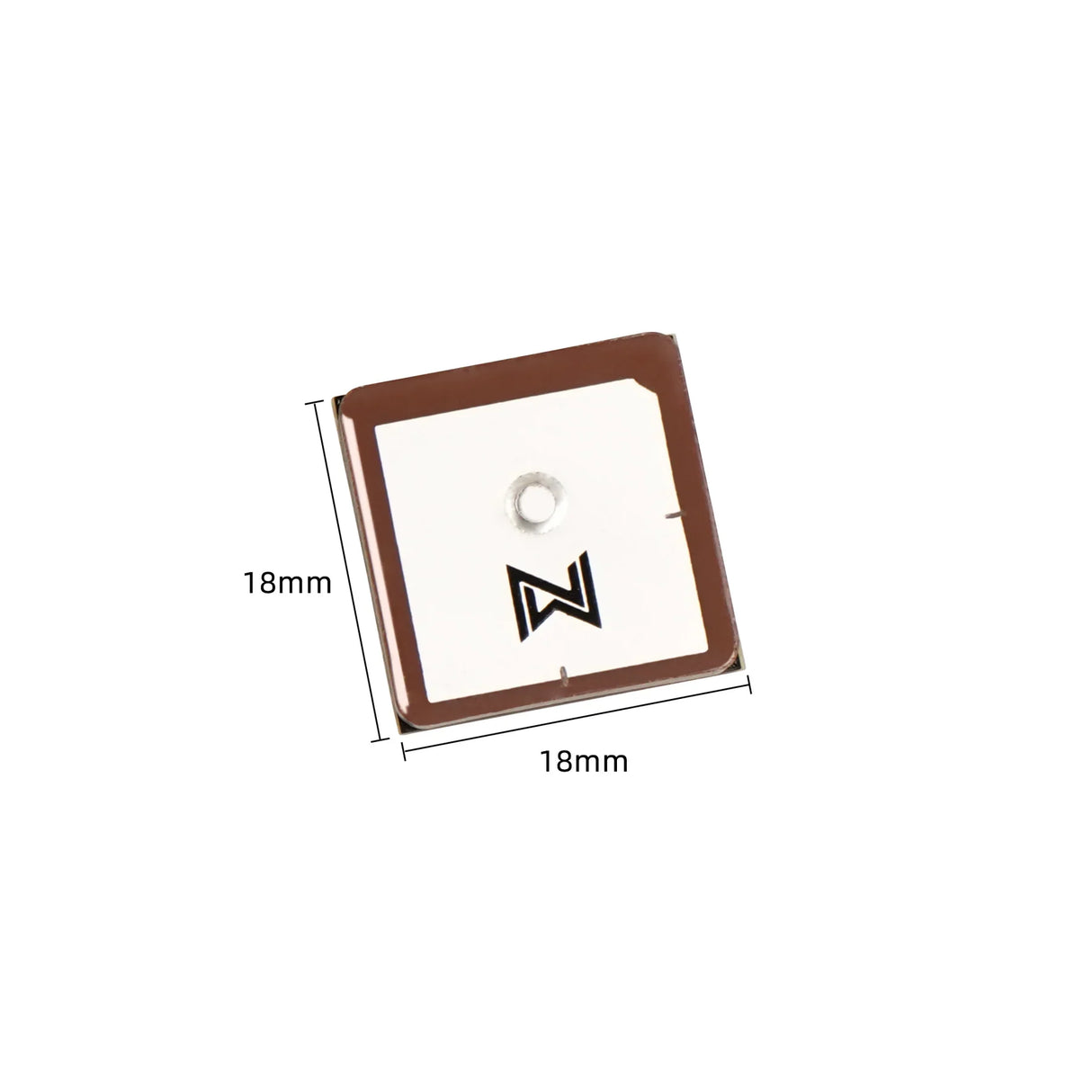

Size:Â |
18mm*18mm*4.6mm |
|
Antenna: |
ceramic antenna (oil spraying process, prevent scratching and oxidation) |
|
Receiving channels: |
72 search channels |
|
Compass： |
QMC5883 |
|
Baud rate: |
115200dps |
|
Output protocol: |
NMEA UBLOX (dual protocol) |
|
Output frequency: |
1Hz-10Hz, Default 10Hz |
|
Speed accuracy: |
0.05m/s |
|
Horizontal positioning accuracy: |
2D ACC1.5m(open air) |
|
Receiving sensitivity: |
Trace-162dBm Capture -160dBm |
|

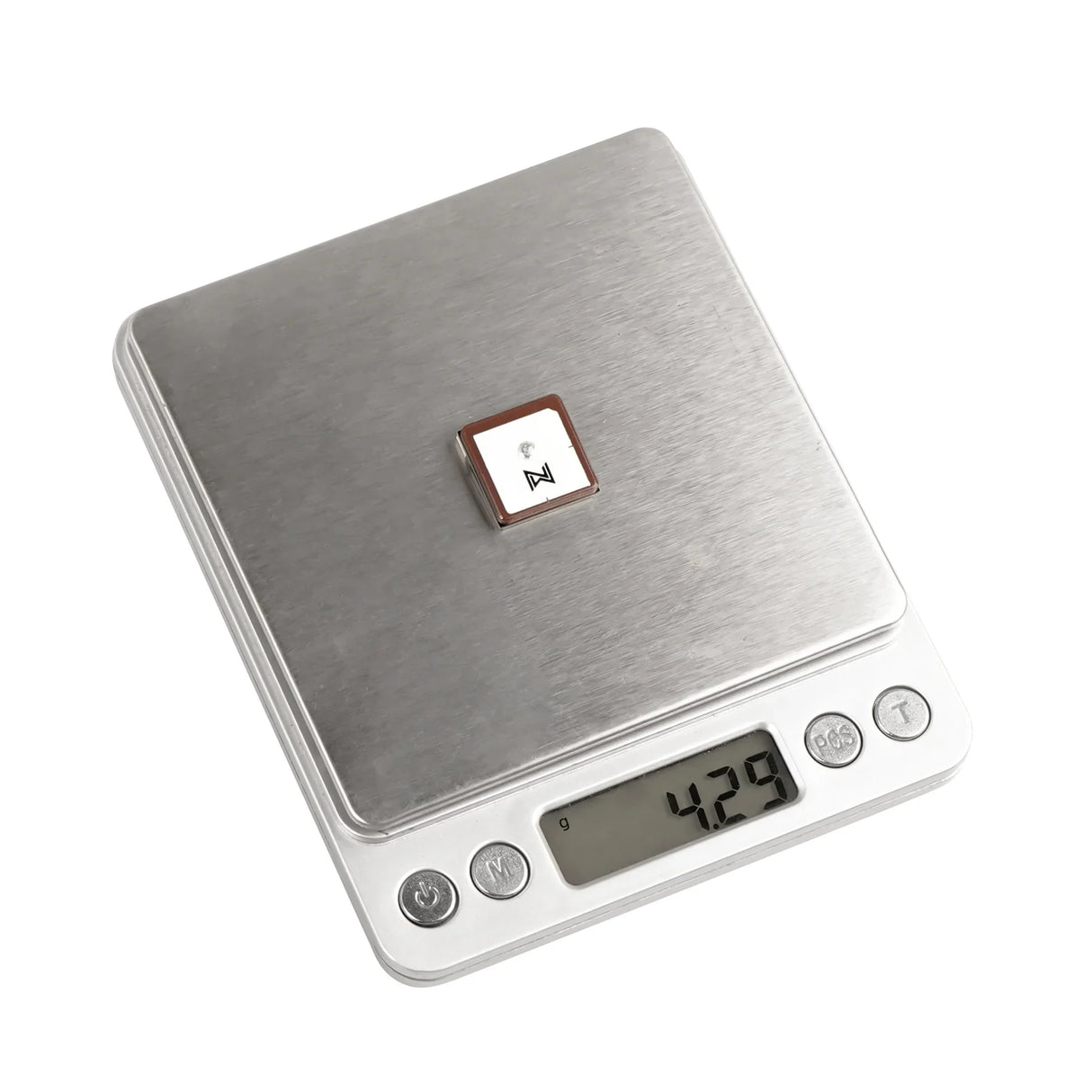

weight： |
About 4.3g |
|
Dynamic characteristics: |
|
|
Altitude: |
50000m |
|
Speed: |
500m/s |
|
Acceleration: |
4G |
|
Operating temperature: |
-40℃-+85℃ |
|
Storage temperature: |
-40℃-+105℃ |
