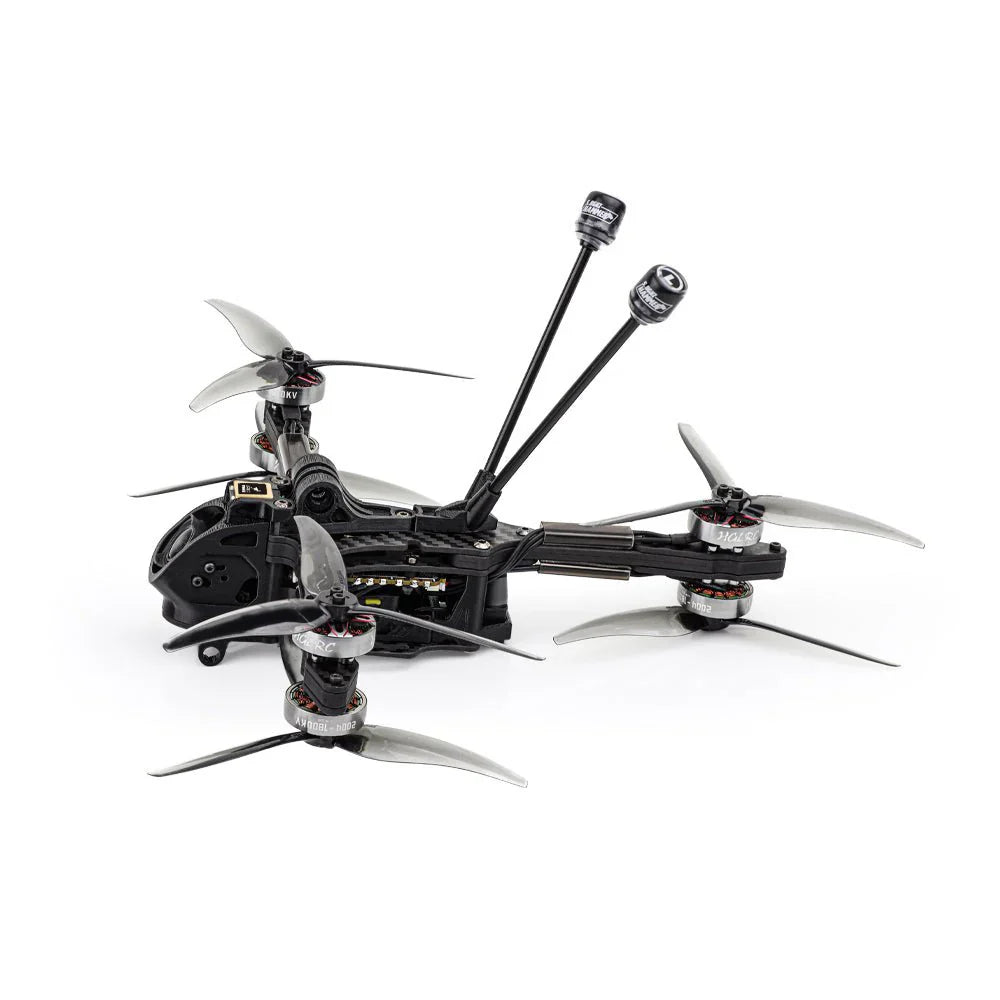

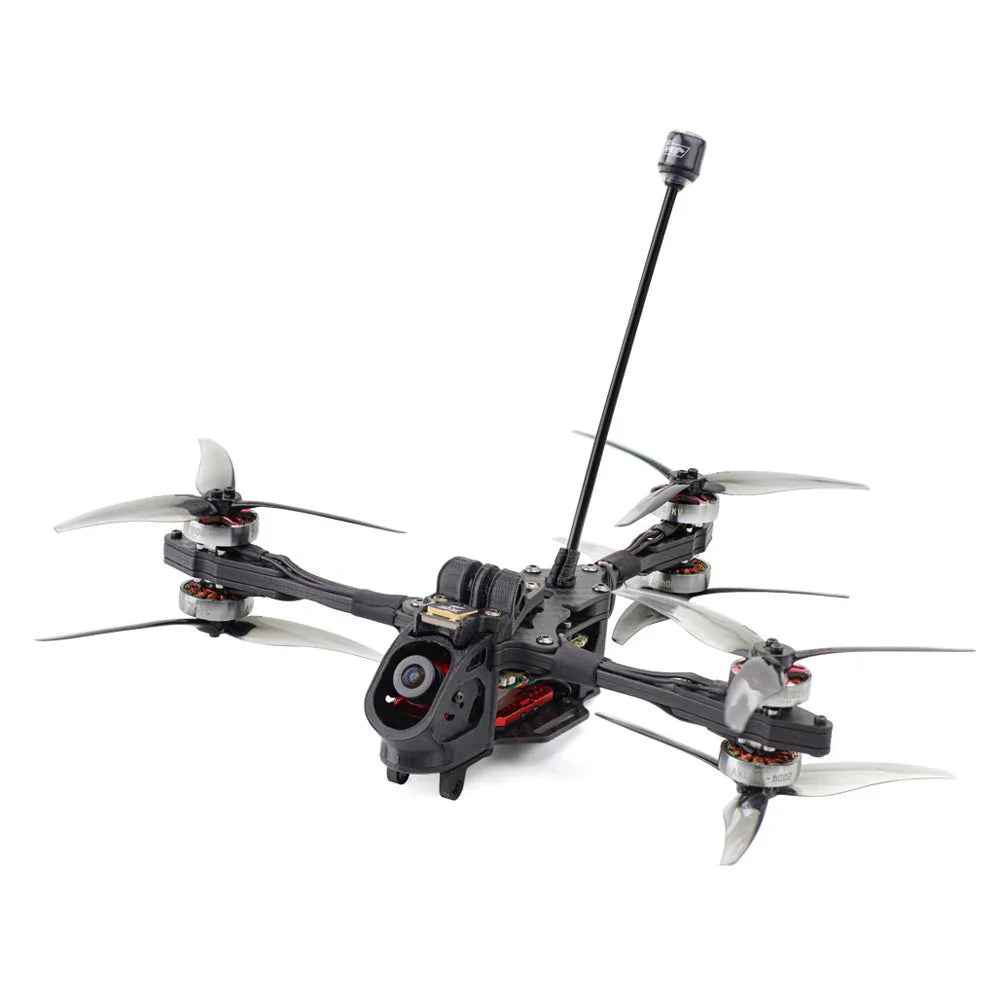

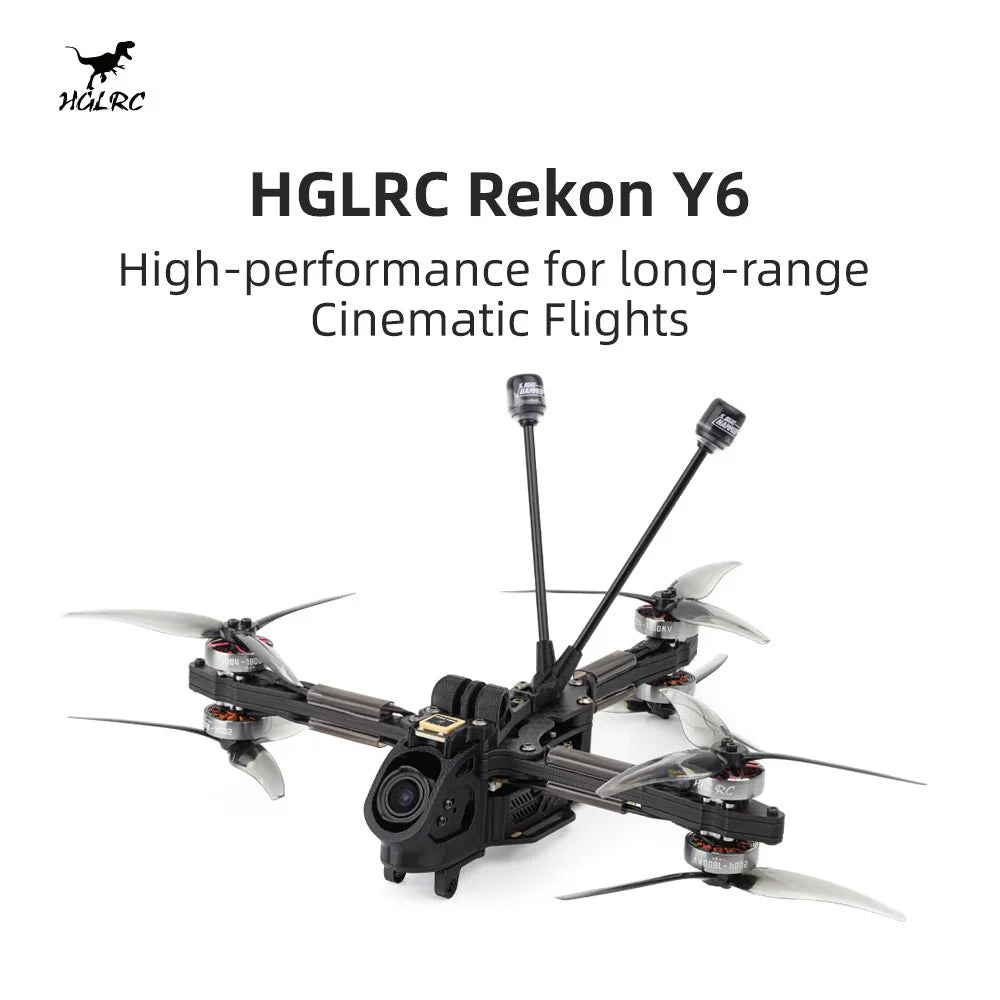

Rekon Y6 5-inch Long-Range FPV Drone (Analog/ELRS 2.4G)

Designed for long range flying, the Rekon Y6 5-inch FPV Drone features a unique "tri-arm" design that makes it more efficient.

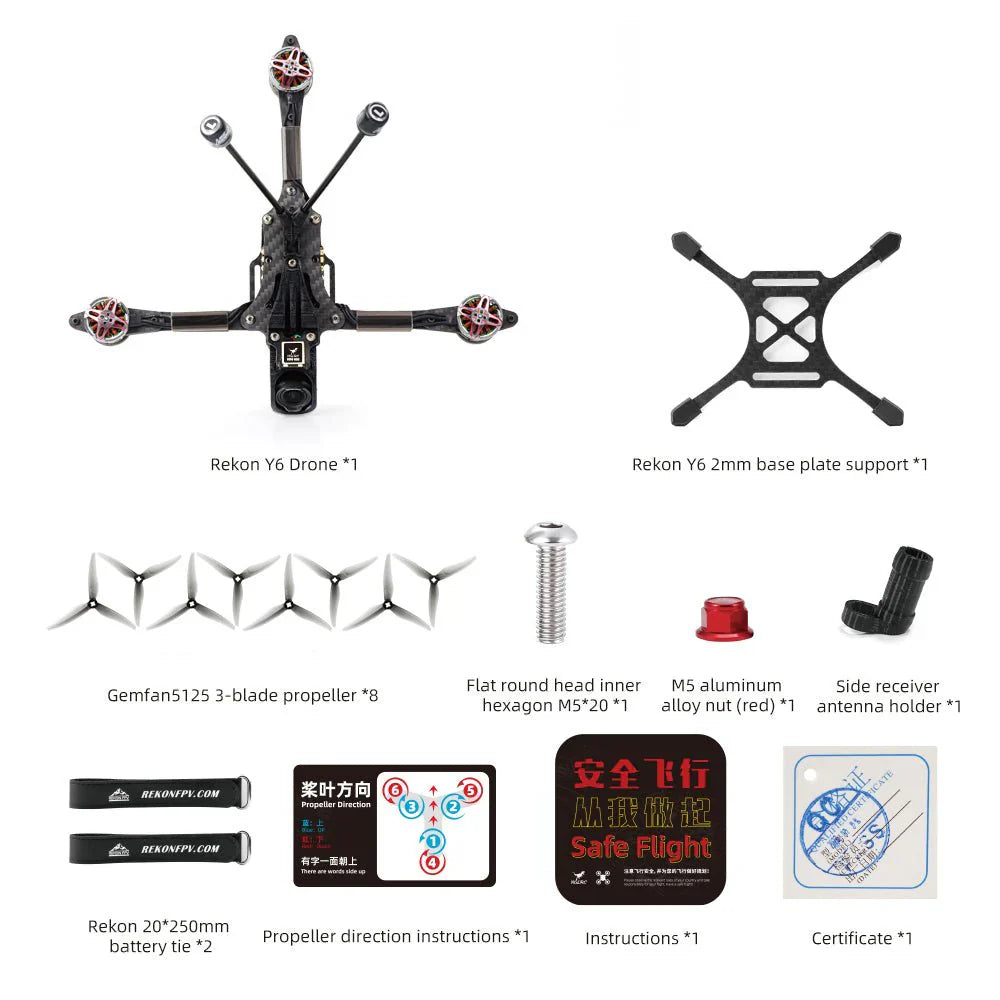

Package Includes:

1x Rekon Y6 Drone (Analog)

8x Gemfan5125 3-blade propeller

1xM5*20 stainless steel screw

1x anti-loosening self-locking M5 aluminum alloy nut

2x 20*250mm Rekon Battery Straps

1x side receiver antenna mount

1x Bottom plate support

1xReceiver(Optional)

Features:

• Offers a 50% increase in propeller area compared to a standard 5” quadcopter to carry full-sized action camera, while maintaining a compact design.
• Fixed power connector: avoids instability caused by shaking of the connector during flight, making the flight more stable
• Reserve the side antenna Mount: you can change the antenna installation position by yourself, or install a dual-antenna receiver to effectively solve the signal dead zone
• Super long battery life: With 18650 6S 3000MAH battery, the battery life can reach 20 minutes without load, and up to 10 minutes with Gopro8.
• Unobstructed Camera Views: Propellers are designed to stay out of the action camera’s view, enabling clear, unimpeded video capture
• Optimized for Speed and Stability: Increased cruising speed and enhanced straight-line flight stability provide a "locked-in" feel, ideal for cinematic long-range shots and
  dynamic vehicle chases.
• Equipped with M100mini GPS: compact and exquisite, stable flight

Specifications:

Frame：Rekon Y6 Long Range Frame

FC：SPECTER F722 40A 4S-6S 6-way AIO

MCU：STM32F722

GYRO：MPU6000

FC Firmware：HGLR-HGLRCF722AIO_X6

Continuous current：40A

Peak curren：45A（10 Sec）

ESC Firmware：F-H-40 - Bluejay, 0.19, 48kHz

VTX：ZEUS1.6W VTX / Moonlight Kit HD / DJI O3 Air Unit HD

Motor：SPECTER 2004 1800KV(6S)

GPS：M100 MINI GPS

Buzzer：Soter FPV Drone Buzzer

Propeller：Gemfan5125 3-blade propeller

Wheelbase：former200mm，after170mm

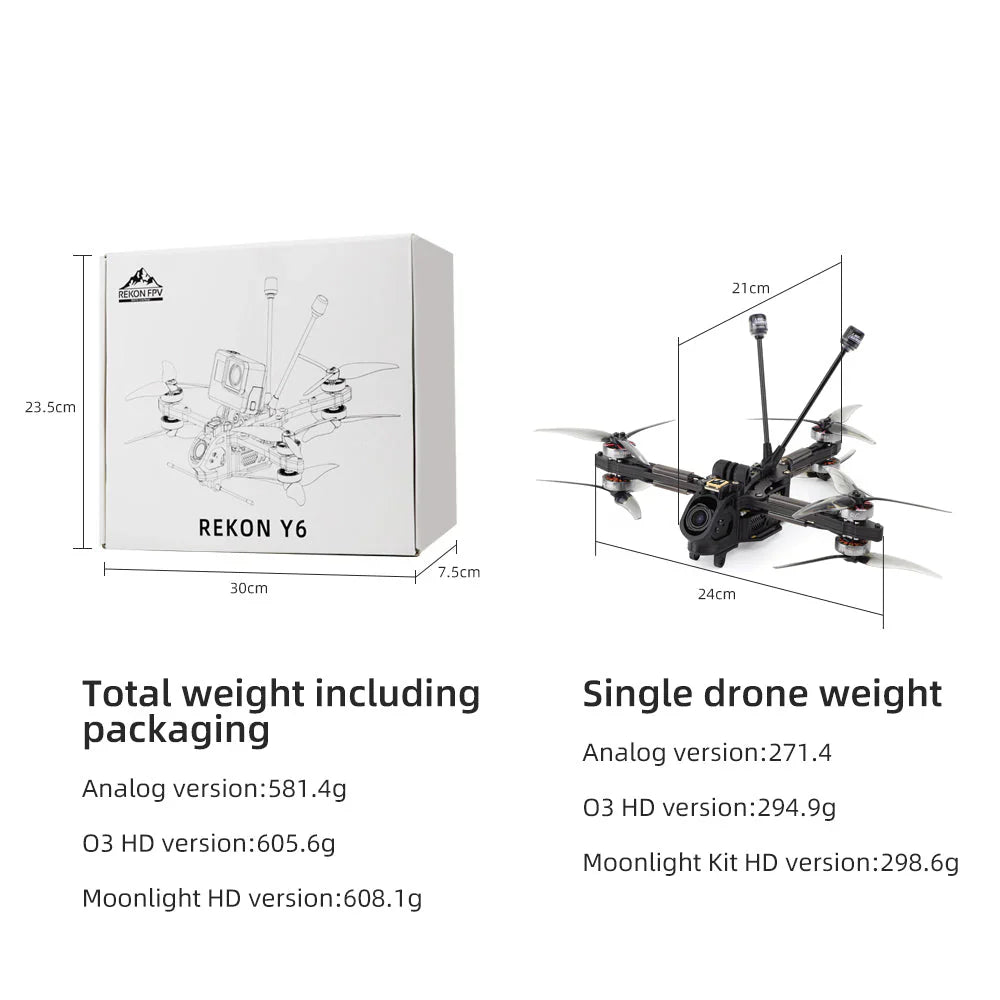

Size：200mm*209mm

Weight：Analog Version: 271.4g
