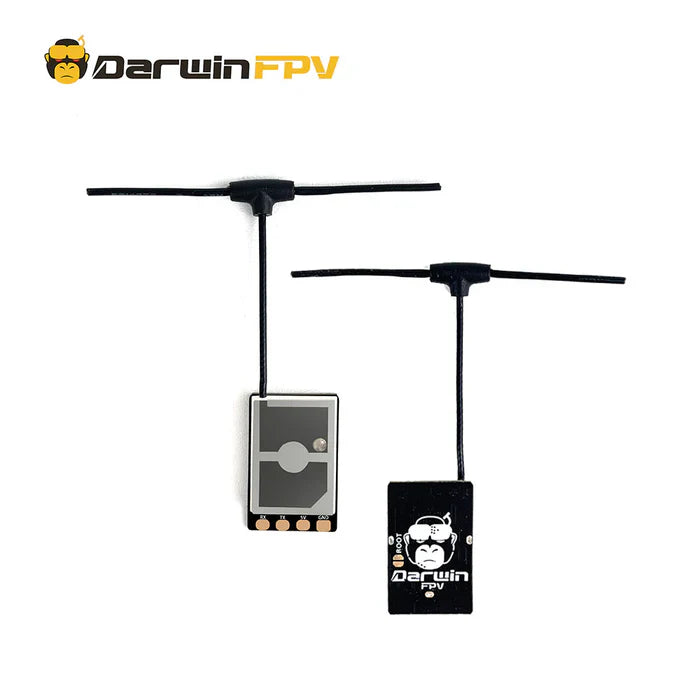

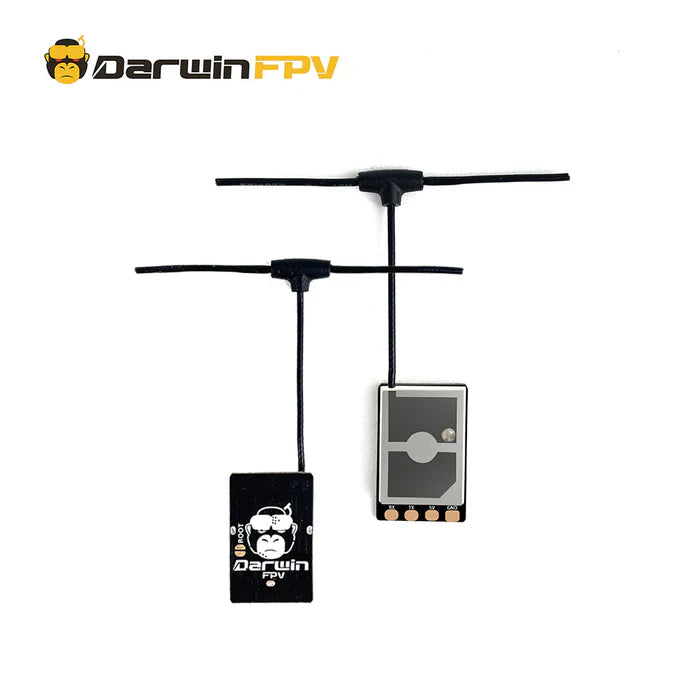

DarwinFPV Cement Ultra Durable ELRS 2.4G Receiver

The original design intention of the "cement" ultra-durable series of products:
How to make fpv drone break through the environmental limit again? To enhance the fun of flying for players, experience different flying perspectives, shoot different materials, and not be afraid of dust, rain, snow, and any harsh environment.
We noticed that in order to prevent dust, tin slag, grass juice, rain, etc. from damaging electronic equipment, the pilots used methods such as anti-corrosion paint, printed parts, and bandages to protect the equipment. These methods are not only complicated and time-consuming and do not comply with the manufacturer’s warranty policy. They also have low reliability and a high probability of failure.

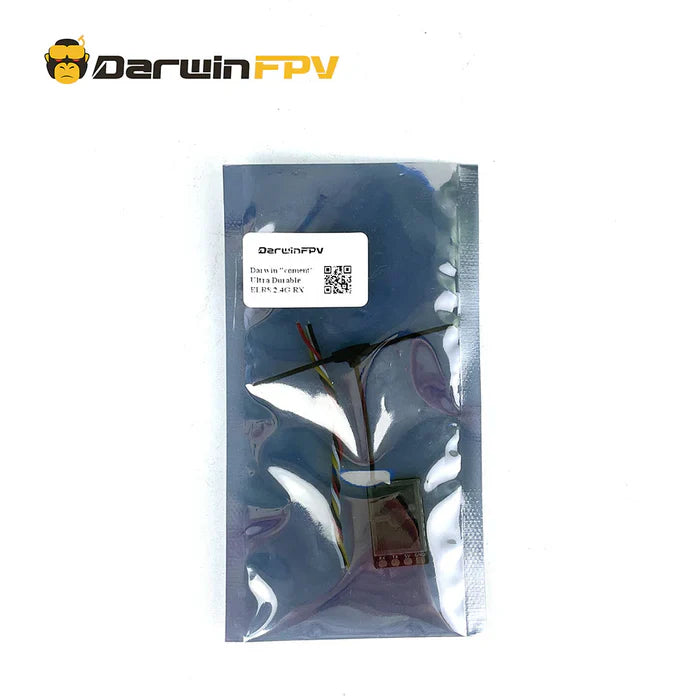

Package Includes:

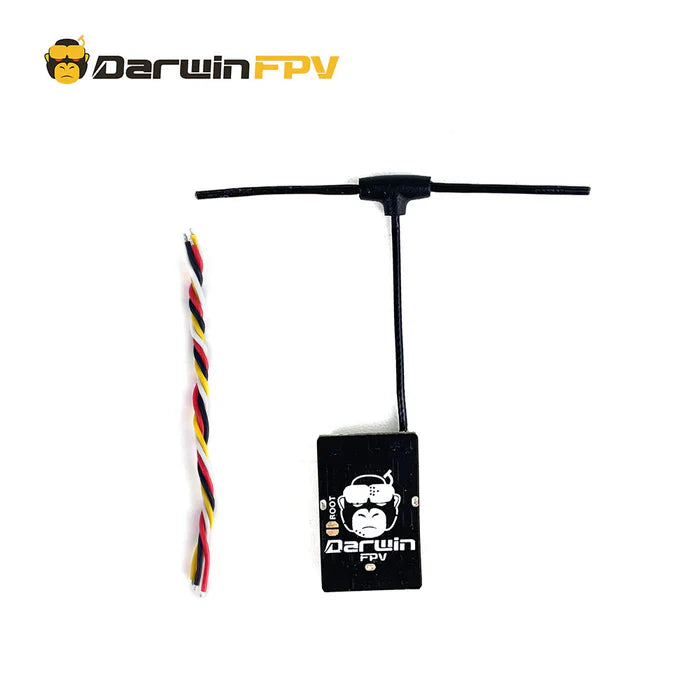

1x DarwinFPV "Cement" Ultra Durable 2.4G Receiver

1x Silicone cable (length 70mm)

1x Transparent heat shrink tube (length 50mm, diameter 14mm)

To this end, Darwin launched a new "cement" ultra-durable series, so that you have more confidence to challenge the extreme environment. "Cement" - makes playing FPV drone more fun!

Why is it called "cement"?
Because it looks like cement and is potted, and has the same durability as cement, and we hope that your drones can be used safely and boldly in the water and mud!

"Cement" ultra-durable ELRS 2.4G receiver is a high-performance receiver specially designed for fpv drone. It has an anti-reverse connection function,IP67 dustproof and waterproof rating, and a 100mW power amplifier(PA), bringing a powerful, stable, and reliable remote control experience.

Info:

Specs:

Name: DarwinFPV "Cement" Ultra Durable 2.4G Receiver

Weight: 3.0g±0.2g

Size: 14.2mm x 22.0mm x 4mm

Packet Rate: 2.4GHz ISM

RF: 100mW

Voltage: 5V

Current: 60mA

Protocol: CRSF

Firmware: BETAFPV_Nano_2400_RX

Chip: ESP8285、SX128X、AT2401C

Antenna:Mini T antenna(50mm)

The receiver's factory firmware is ELRS_V3.2.0

Instructions:

ELRS receiver and FC wiring diagram:

Indicator Light State:

Config:

Open the Betaflight Configurator, go to the "Ports" tab and enable the corresponding UART as "Serial Rx" (take UART2 as an example, as shown in the image below). Save and reboot.

On the "Receiver" tab, click "Serial Receiver Provider " on the Receiver panel and select "CRSF".

Binding:

1. The receiver is powered on and off for 3 consecutive times (within 1 second interval);
2. The LED light of the receiver flashes twice, indicating that the receiver has entered the binding mode;
3. Put the TX Module or the remote controller into the binding state. Once the LED status becomes steady on, the binding is successful.
