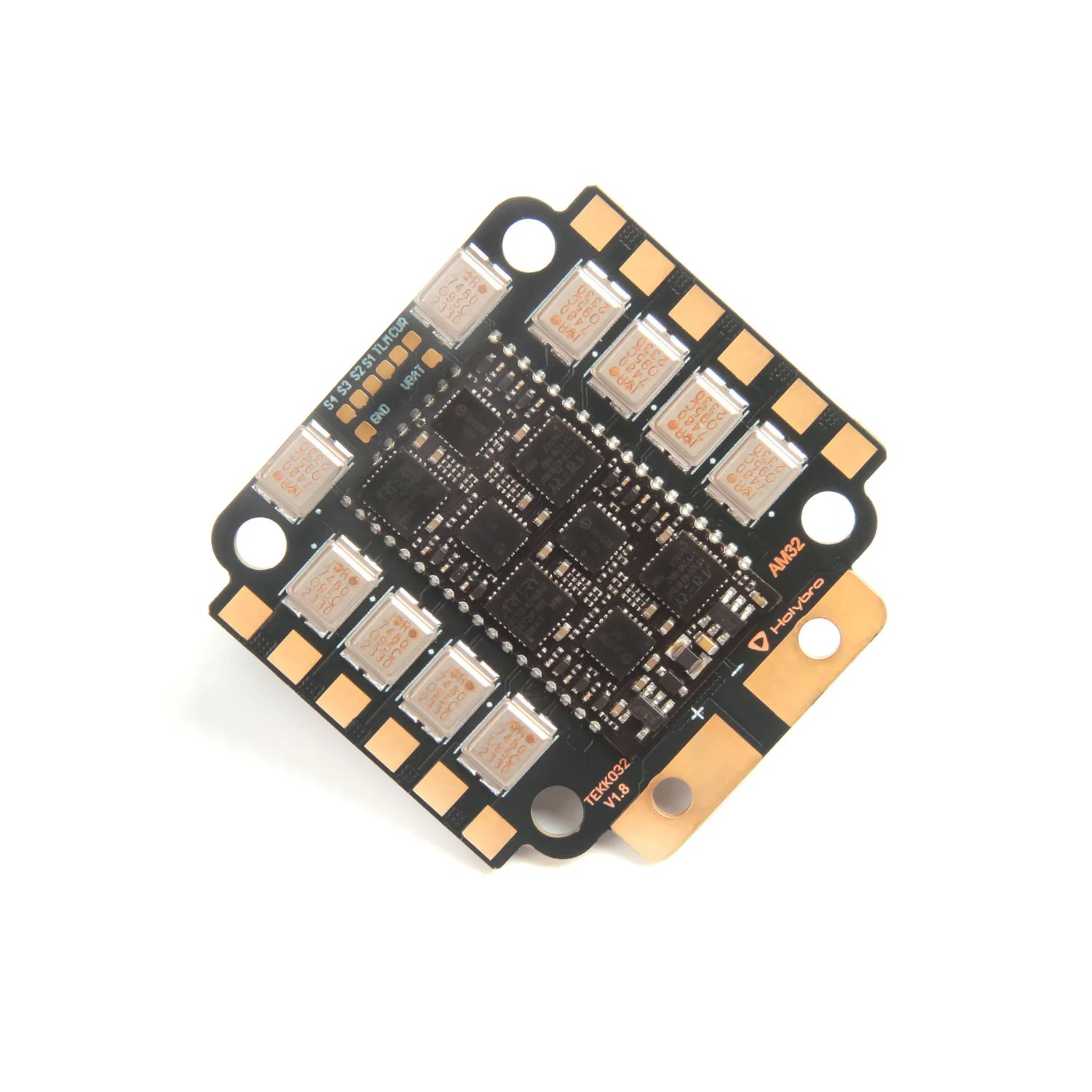

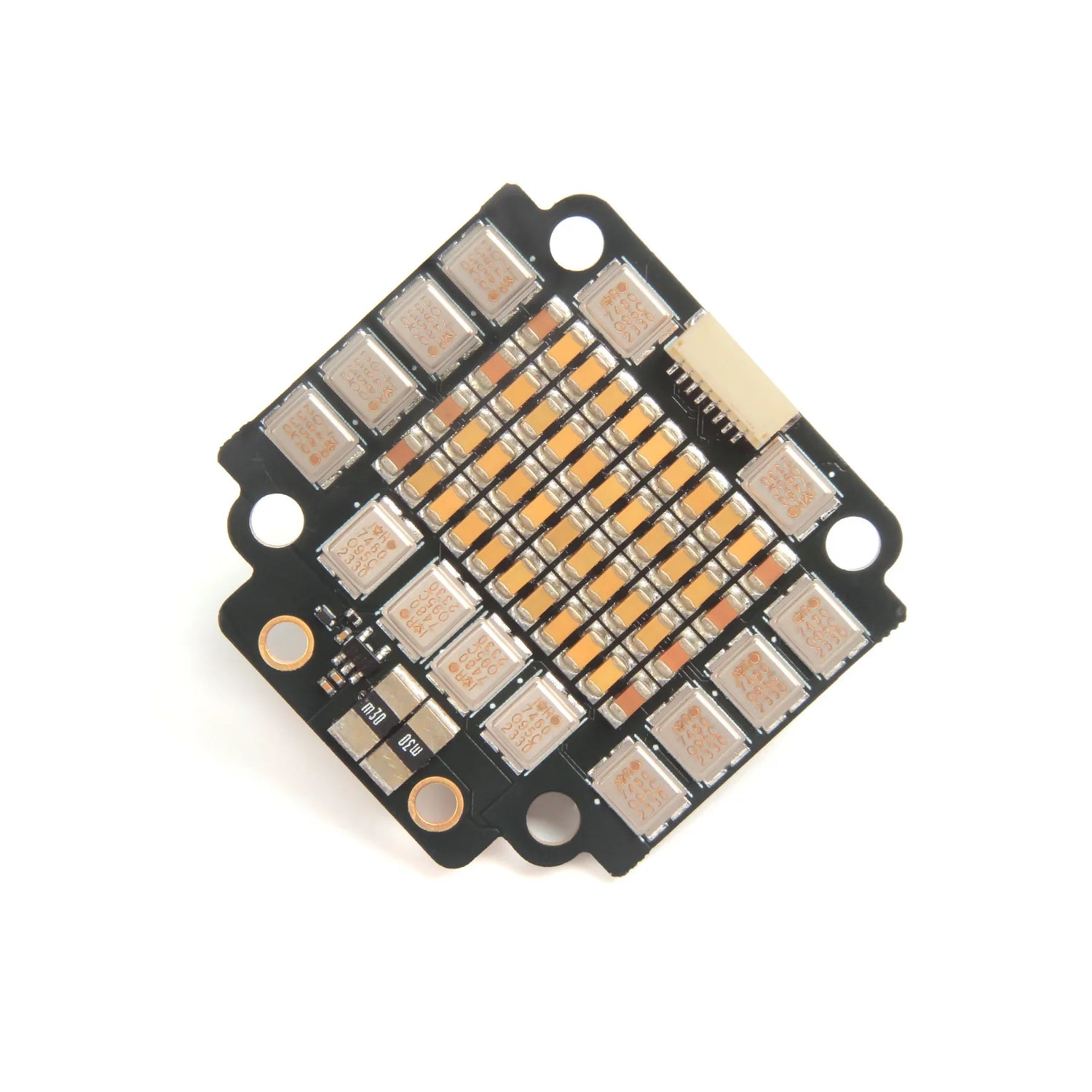

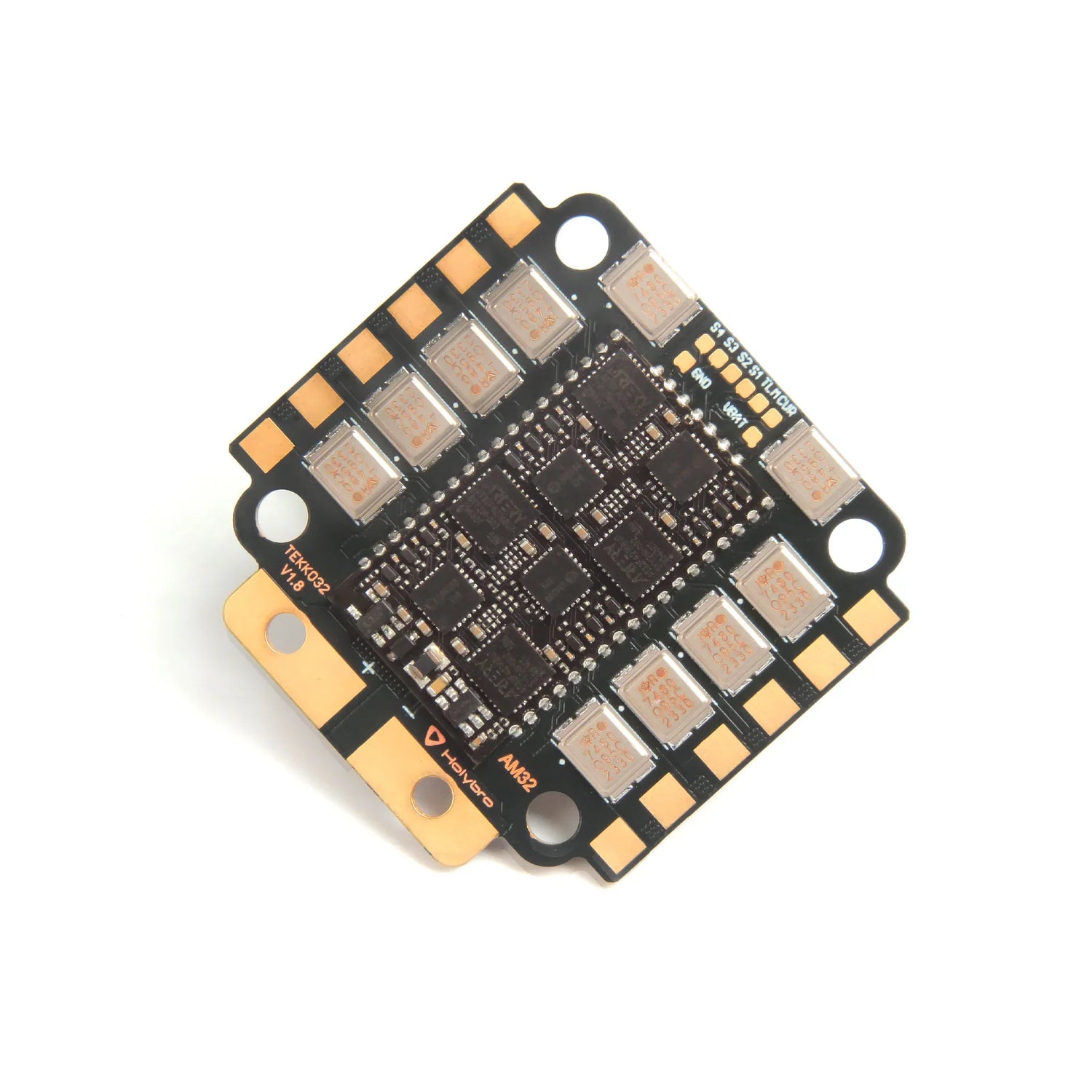

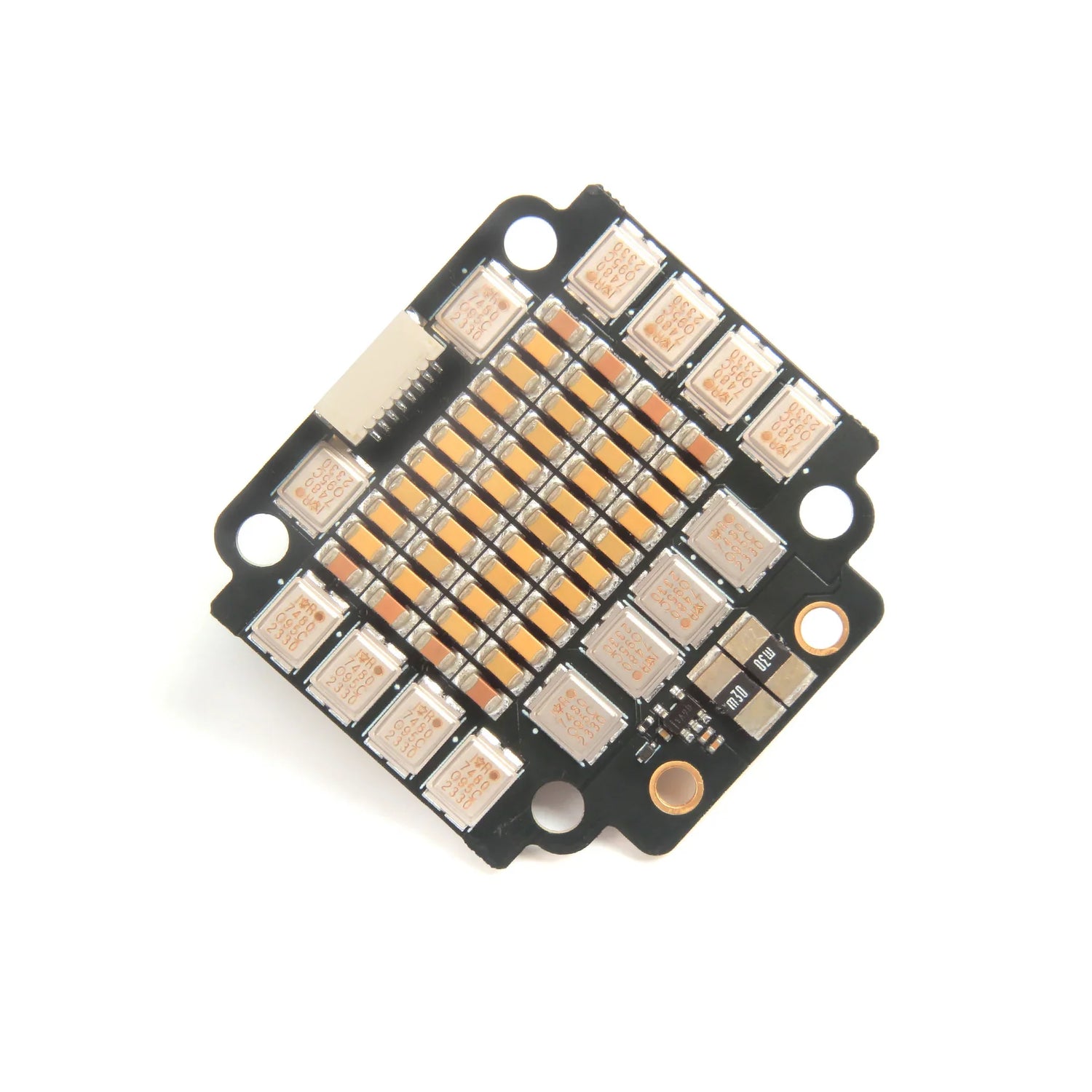

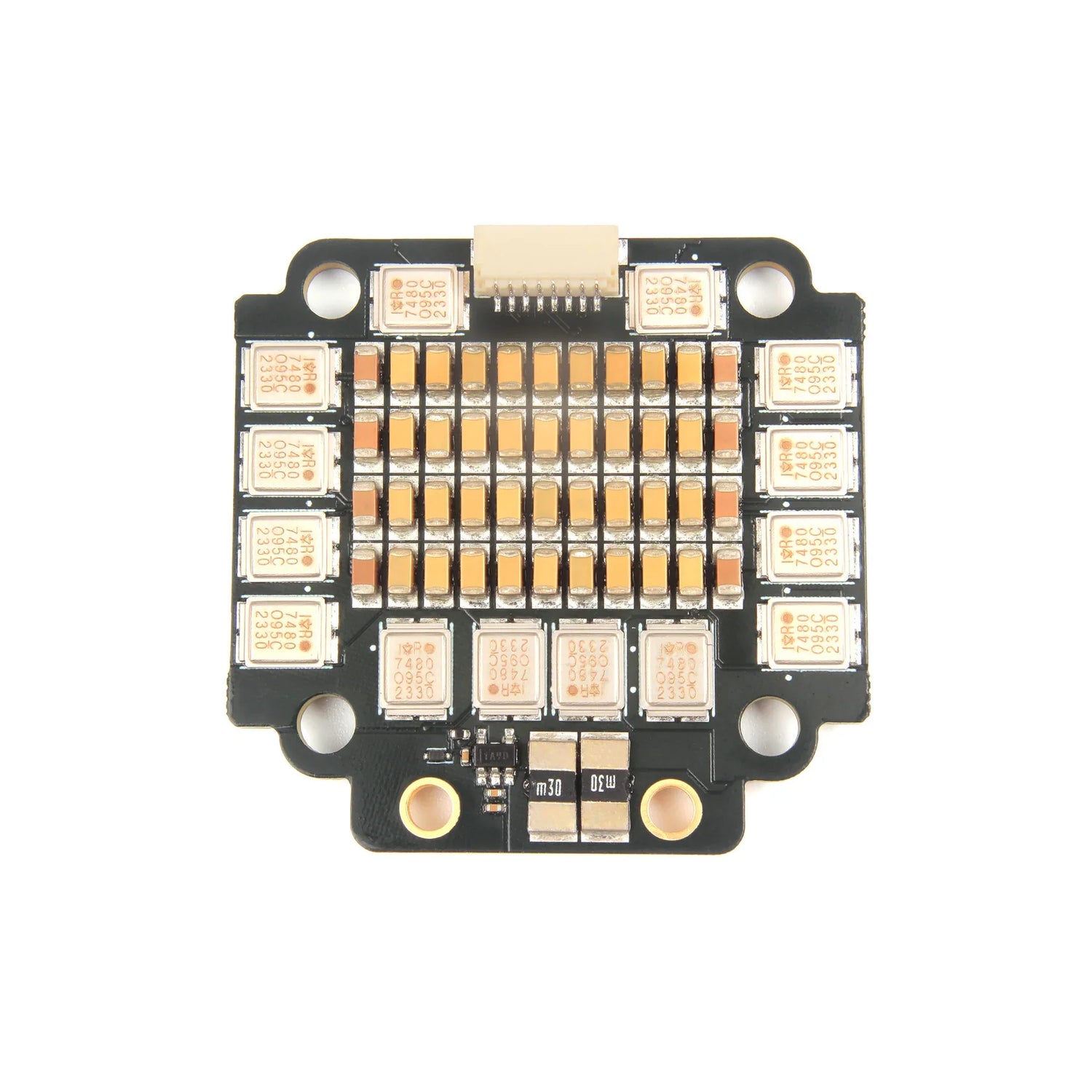

Tekko32 F4 Metal 4in1 65A ESC (AM32)
Tekko32 F4 Metal 4in1 65A ESC (AM32) est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.
Tekko32 F4 Metal 4in1 65A ESC (AM32)
Description
Description
The Tekko32 Metal is a revolutionary 4in1 ESC that utilizes the high-speed F4 MCU, making it a top choice in the market. This MOSFET ESC boasts a robust metal case and offers precise control with a swift response.
Package Includes:
1x Tekko32 F4 Metal 4in1 65A ESC (AM32)
Features:
- New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM Frequency: 16k to 96k
- Metal-cased MOSFET for excellent heat dissipation
- Massive on-board capacitance for noise filtering at 2068uf
- 3 oz copper PCB design to allow bigger current and better heat dissipation
- Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
Specifications:
Continuous Current: 65A x4
Burst Current: 75A x4
Supports 4-6S battery
Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
ESC telemetry Supported
Onboard analog current sensor
No output BEC
AM32 firmware
1000uf 35v capacitor included (highly recommended for 6s setup)
Amperage meter scale ratio: 180
Dimensions: 43 x 44mm / Weight: 15.8g
Mounting holes: M4 30.5x30.5mm (M3 grommets included)
