GEPRC  |  SKU: GEP391-C2

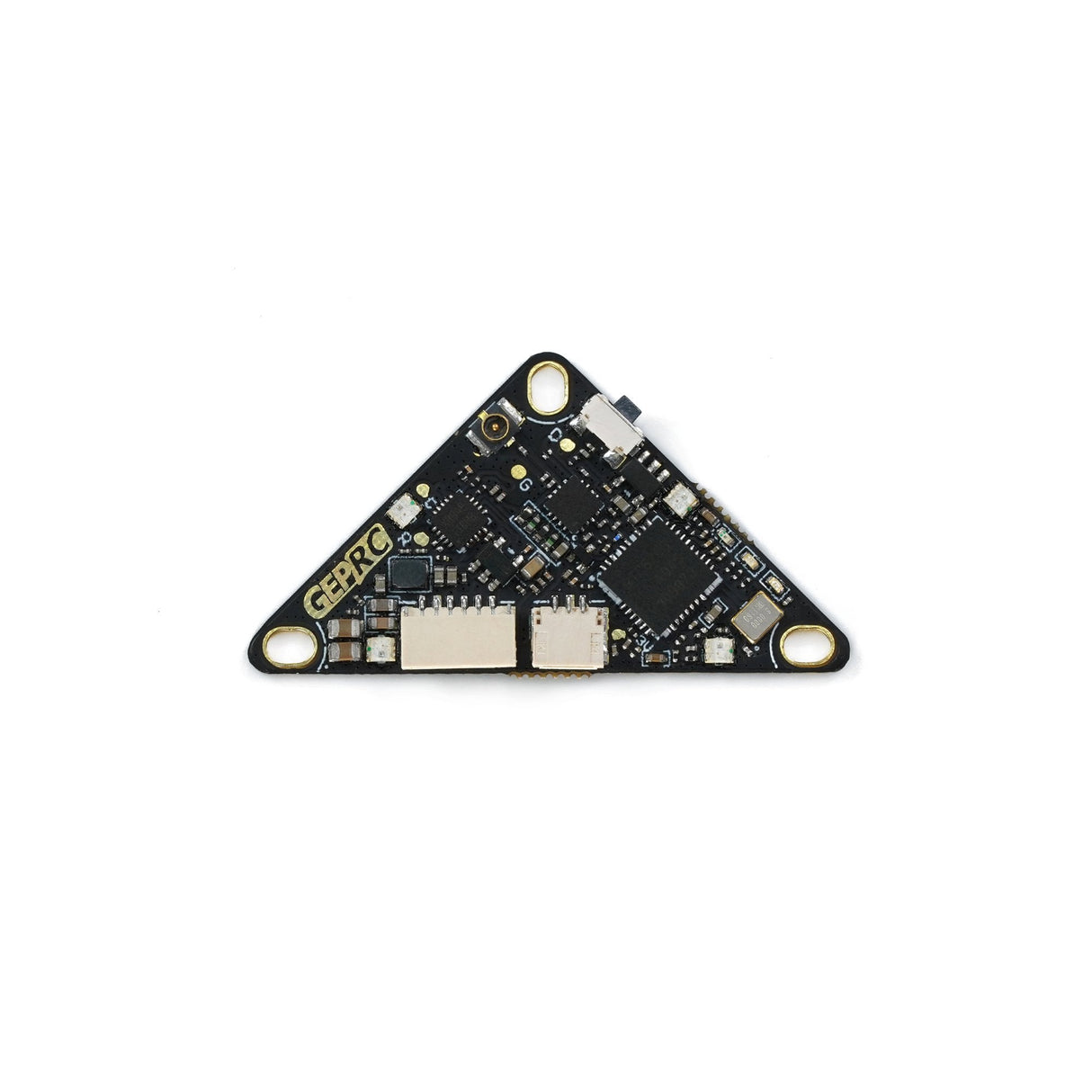

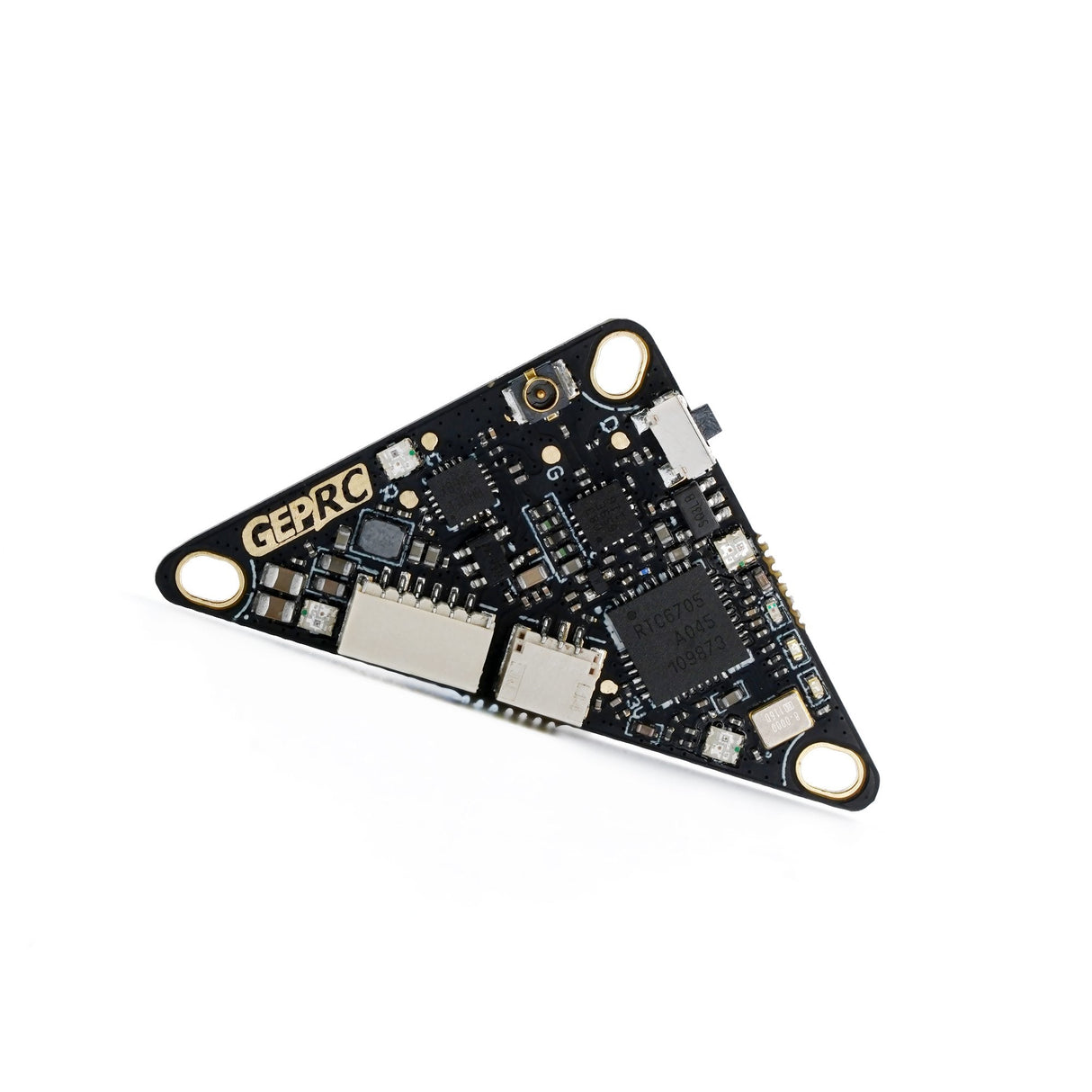

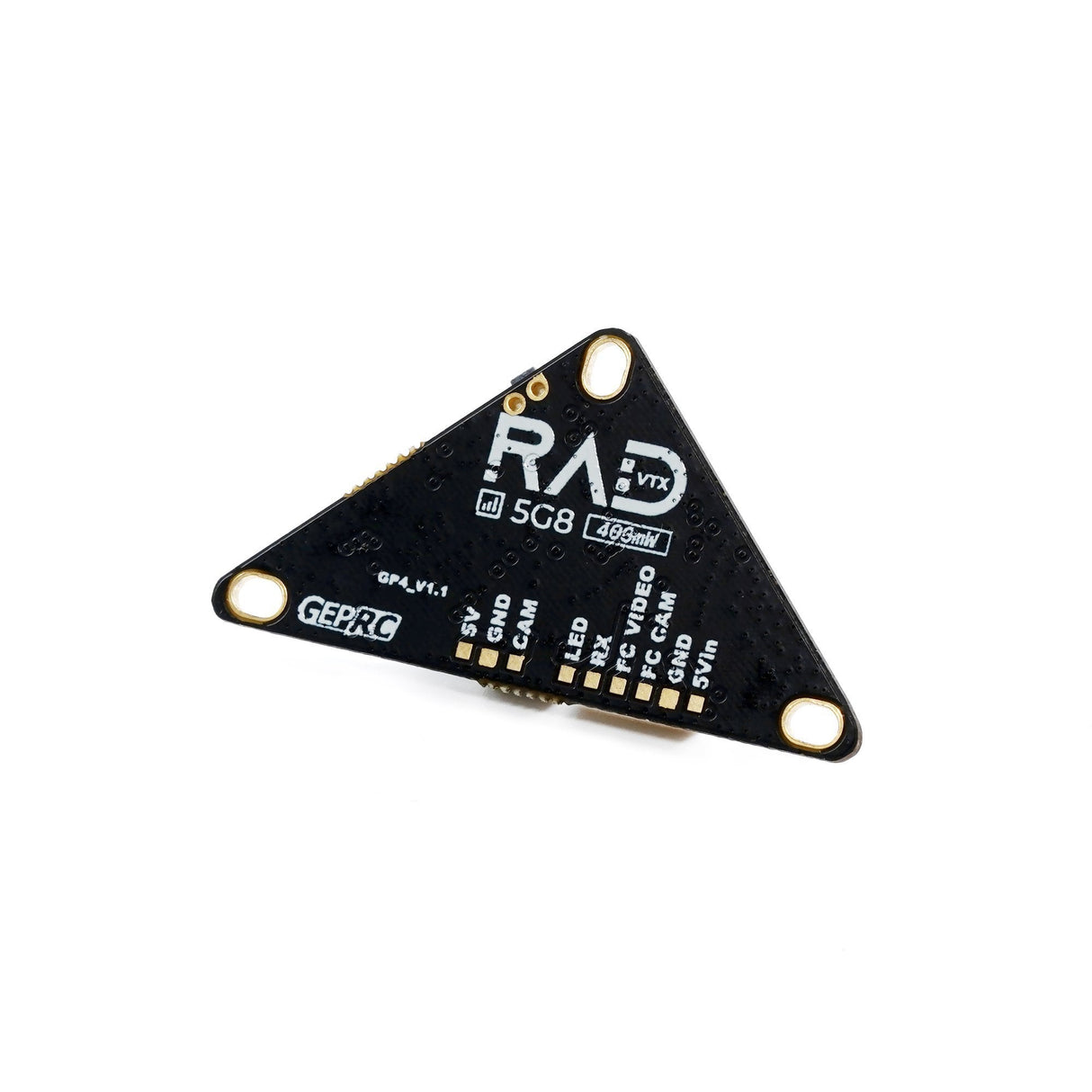

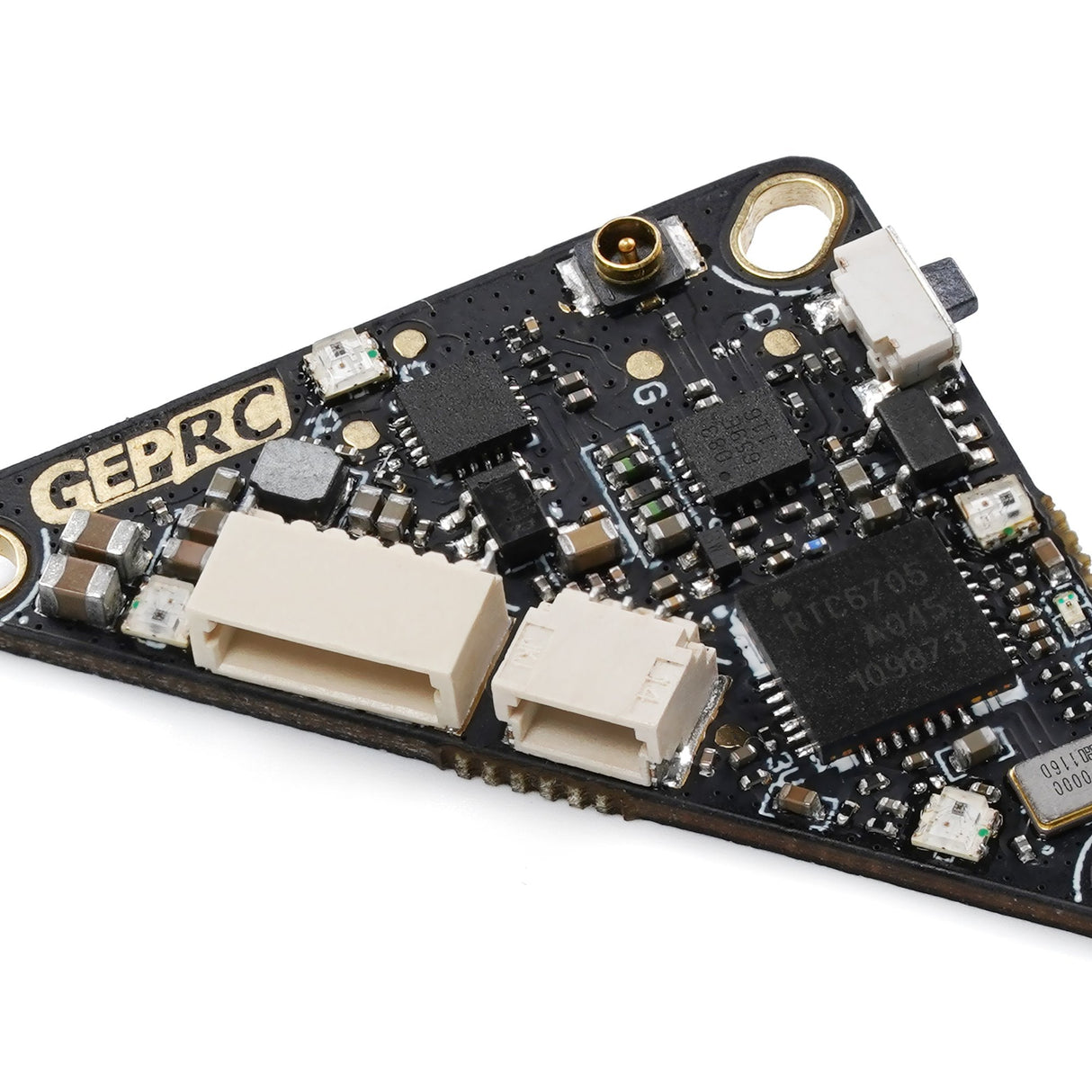

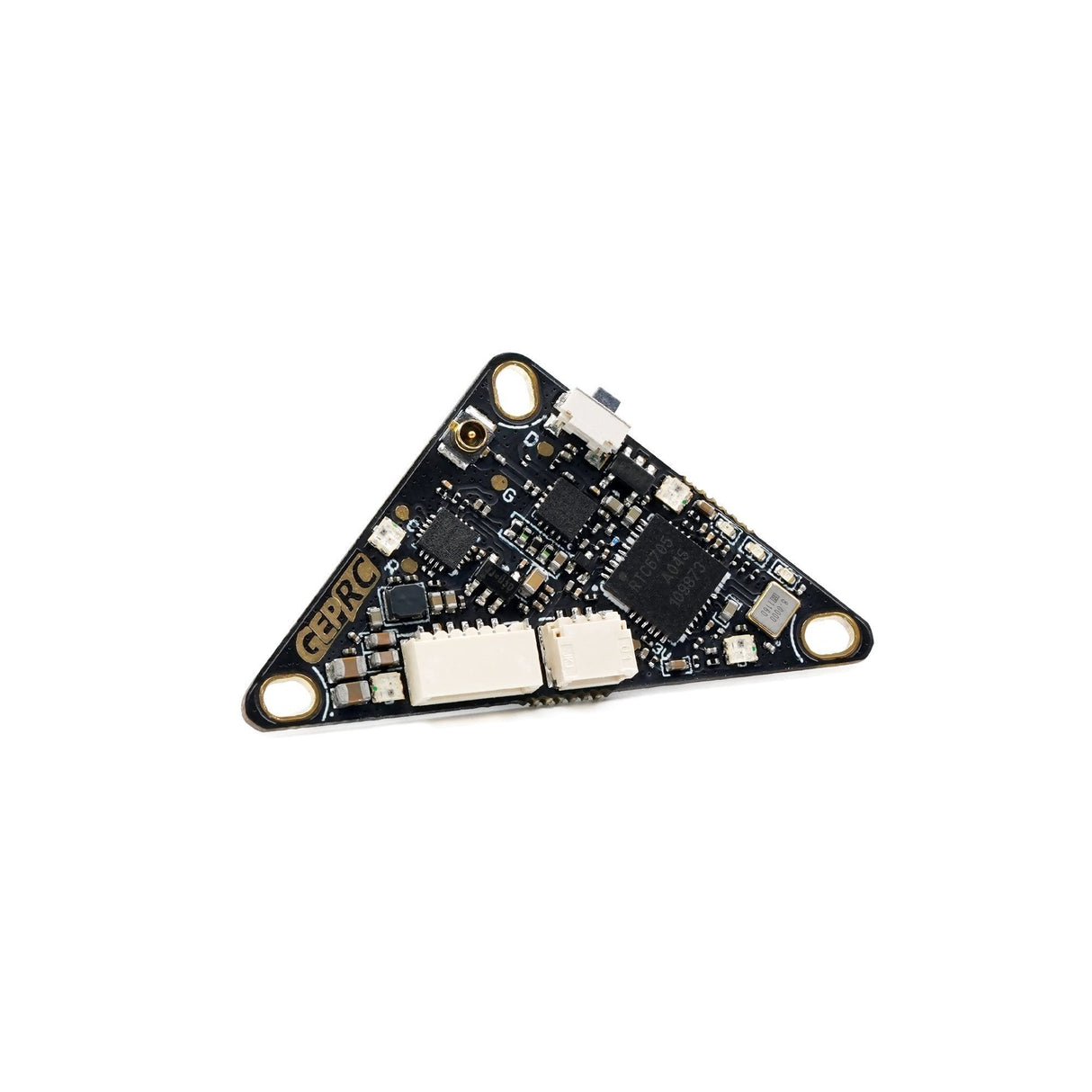

GEPRC RAD Whoop 5.8G VTX 400MW

$40.99
Shipping calculated at checkout.

Shipping & Fufillment

All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.

Description

This GEPRC RAD Whoop 5.8G VTX offers 4 power levels that can be easily adjusted, providing a maximum power of 400mW. It ensures stable transmission and efficient heat dissipation, along with IRC Tramp protocol and fast OSD parameter tuning. It also features temperature control protection to prevent overheating and damage. With a one-button design and three indicator lights, operation is simple. The UFL antenna connector and SH1.0 cable connector are widely used, and the installation hole is compatible with 25.5mm-26.5mm sizes.

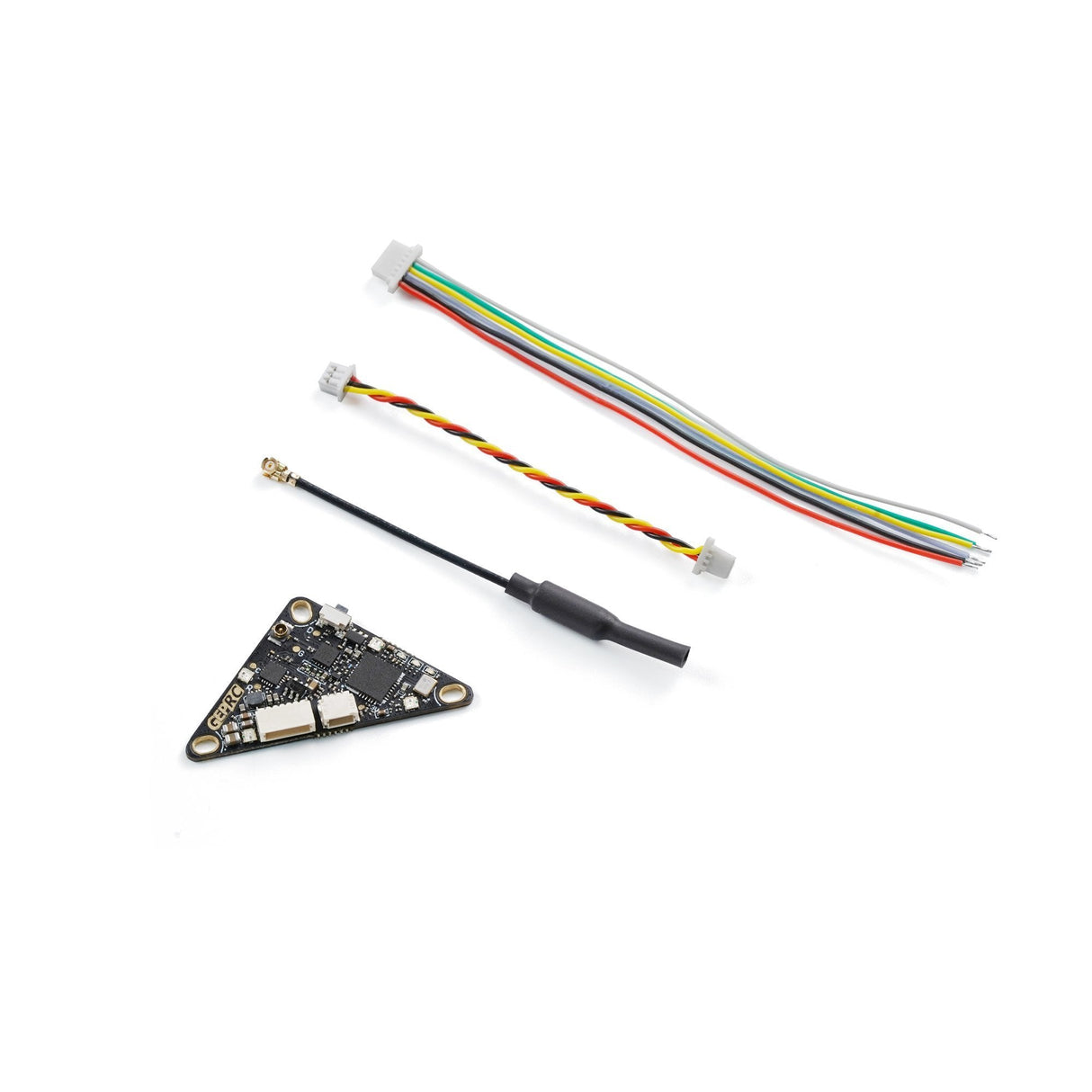

Package Includes:

1x GEPRC RAD Whoop 5.8G VTX

1x Antenna

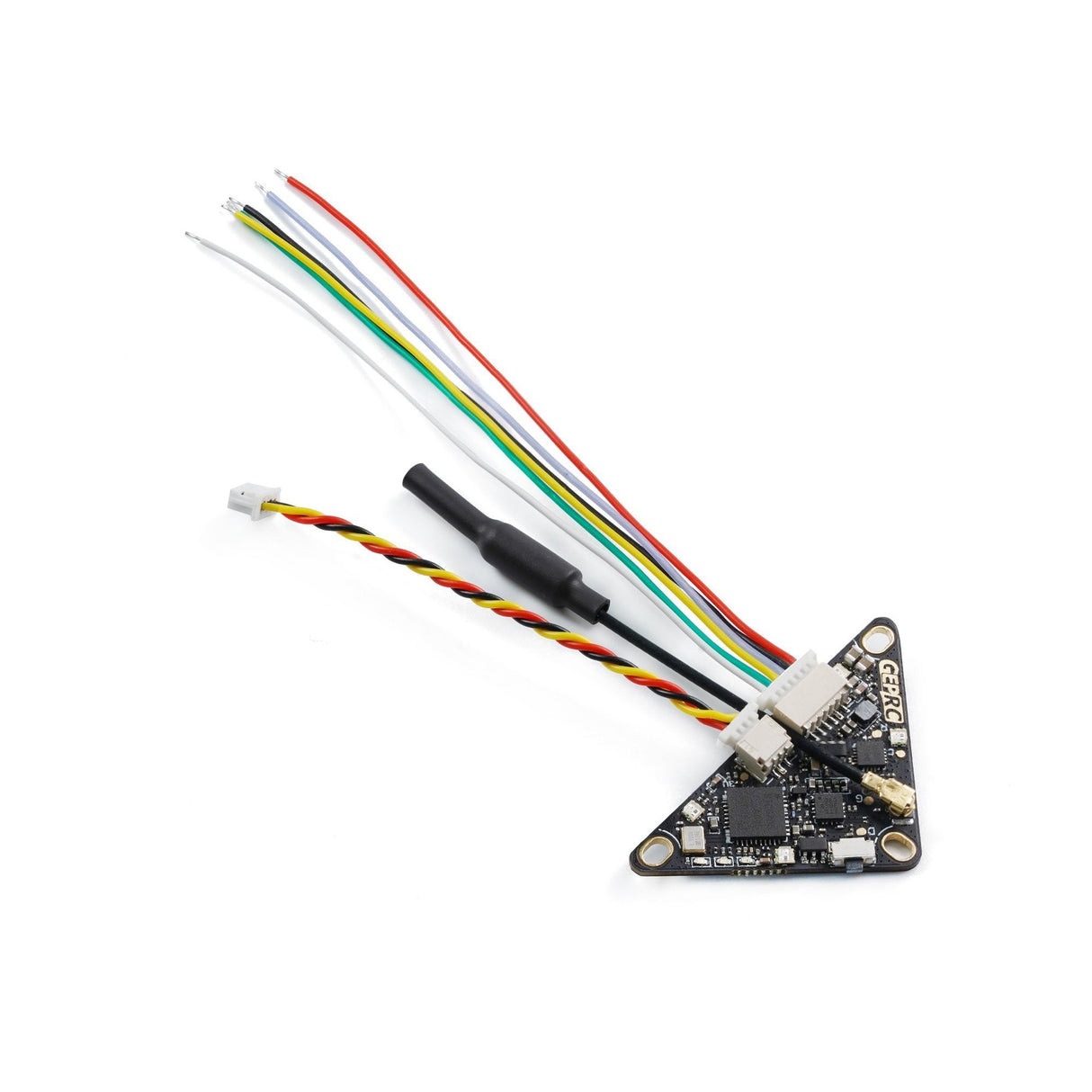

1x Wire Kit

Features:

  • 400mW power, low heat generation, stable operation, suitable for short and medium range flight
  • 3 power channel adjustable PitMode/25mW/200mW/400mW
  • With temperature control protection function to prevent high temperature burnout
  • DC5V input, power consumption is only 400ma, can be powered directly from flight controller 5V
  • VTX control protocol IRC Tramp, support OSD parameter tuning
  • One adjustment button, three indicator lights, easy to operate
  • The mounting holes are compatible with 25.5mm-26.5mm

Specifications:

 Model: RAD Whoop 5.8G VTX

Brand: GEPRC

Input voltage: DC 5V

Output voltage: 5V@500mA (power supply 5V to the camera)

Input Impedance: 75Ω

Protocol: IRC Tramp

Antenna connector: UFL

Cable connector: SH1.0

Output power: PitMode/25mW/200mW/400mW

Frequency: 40CH

Video format: PAL/NTSC

Microphone: none

Mounting hole: 25.5mm-26.5mm dual compatible (M2)

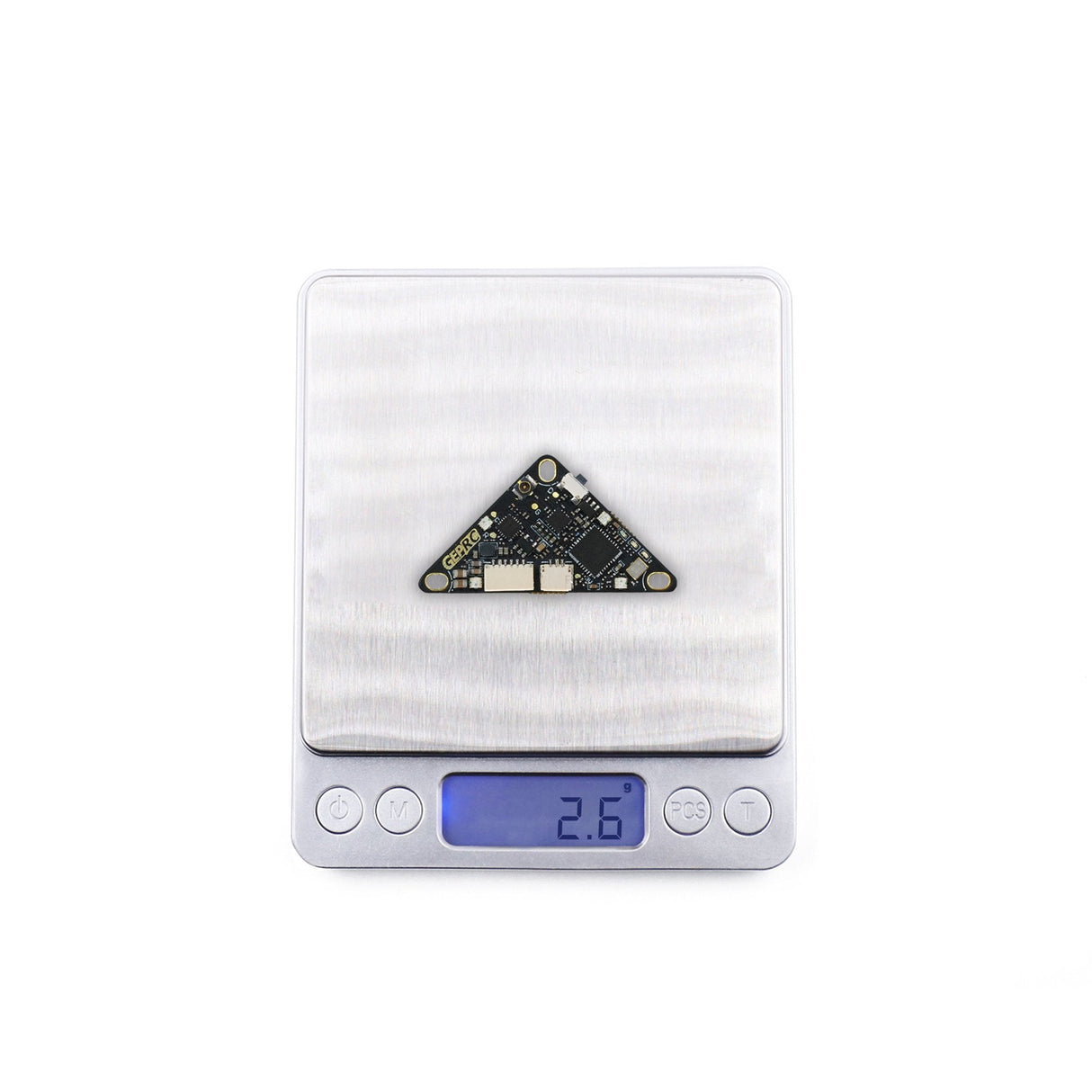

Weight: 2g (Without cables)

Instructions:

Connection Example

Frequency Table
