HDZero  |  SKU: HDZ-1006  |  ID: L-R10-42

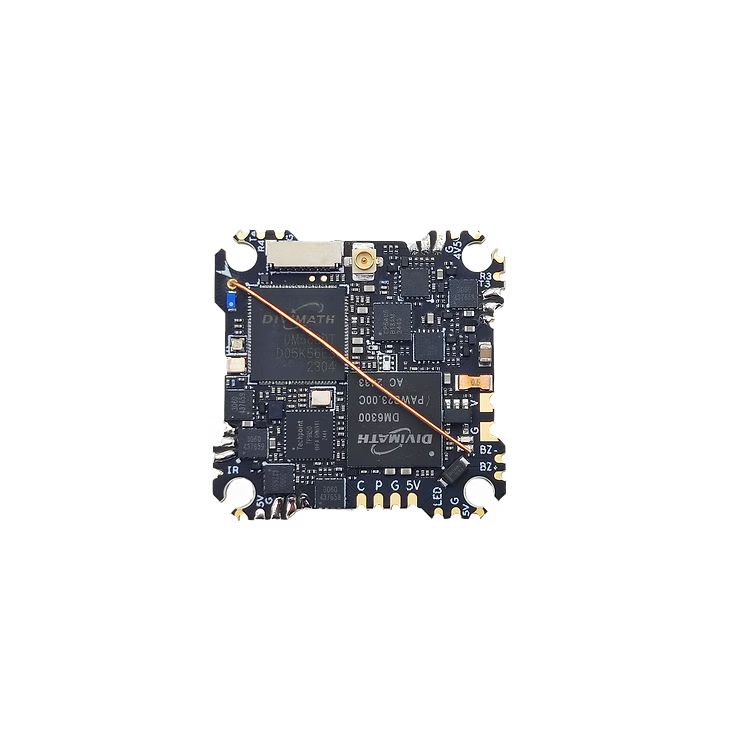

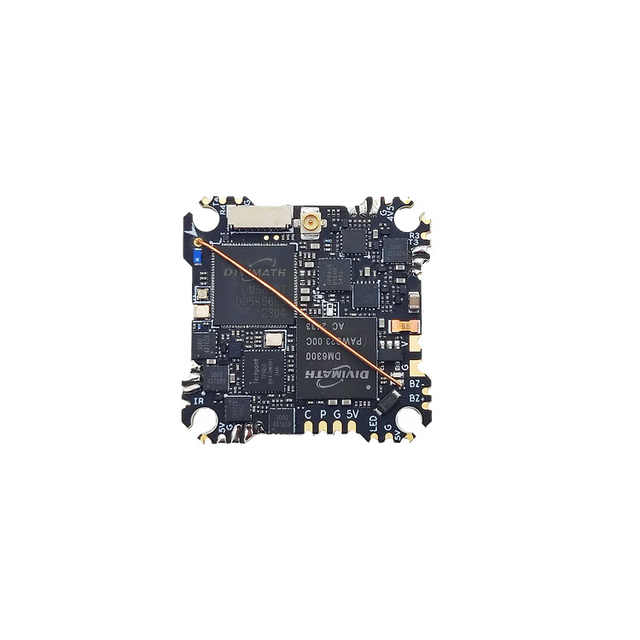

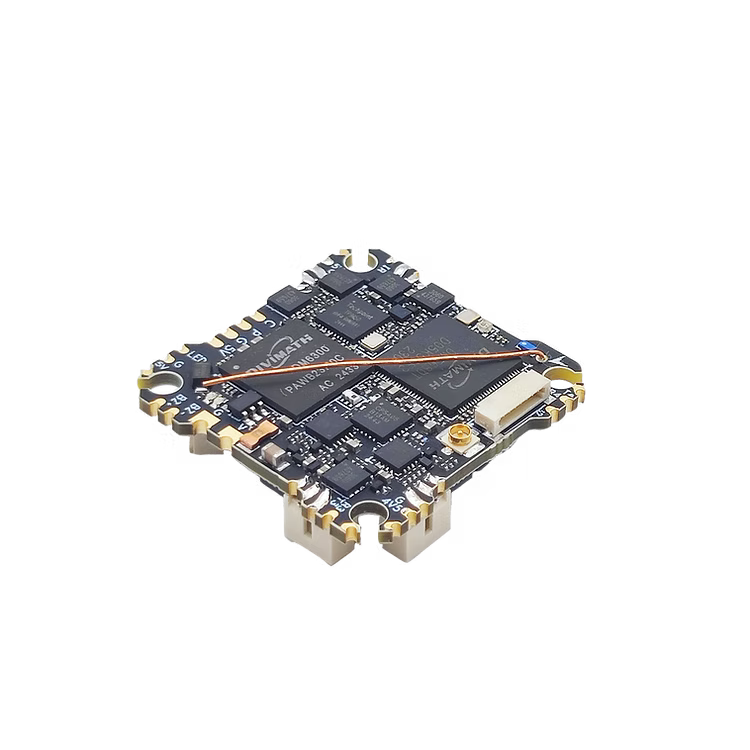

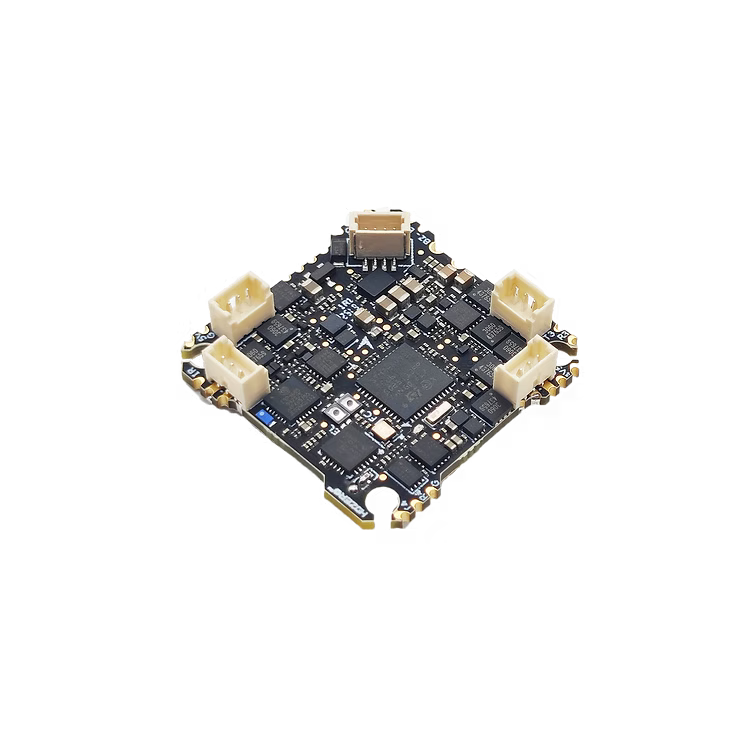

HDZero AIO15 – 2S/3S Digital AIO Flight System

$158.99
Shipping calculated at checkout.

Same-Day Shipping

Order before 4:00 PM MST for same-day shipping Monday to Friday if you select UPS or Purolator at checkout. Excludes weekends and holidays. Subject to delays. Learn more.


Shipping & Fufillment

All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.

Description

The HDZero AIO15 is the world’s first all-in-one (AIO) digital FPV flight system designed specifically for 2S–3S tiny whoops and micro freestyle builds. It combines everything you need—flight controller, digital video transmitter, ESC, receiver, and BEC - into a compact, ultra-lightweight 31.3x31.3mm board.

With an integrated 15A 4-in-1 ESC, the AIO15 supports higher-current motors and 2 - 3S batteries, enabling powerful sub-33.4g builds without compromising video quality or responsiveness. Whether you're building your own freestyle whoop or flying a ready-to-go platform like the M8 Freestyle HD, AIO15 delivers the performance micro pilots have been waiting for.

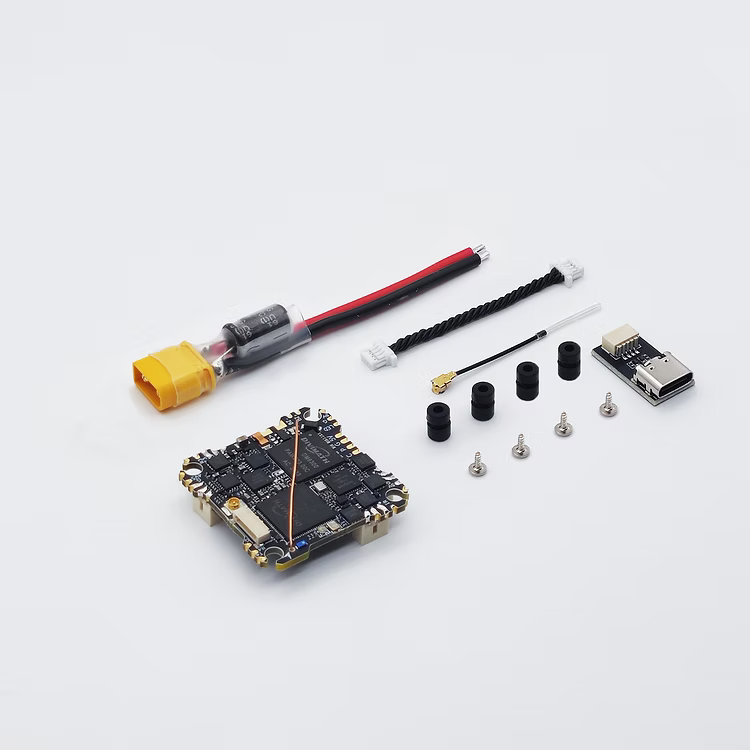

Package Includes:

1x HDZero AIO15 board

1x Power cable with xt30 connector

4x screws

4x rubber grommets

1x ultra-lite linear VTX antenna

1x Adapter board

1x Adapter cable

Designed in Response to Pilot Feedback

Pilots loved the convenience and weight of the HDZero AIO5, but wanted more power and voltage flexibility. The AIO5 was limited to:

  • 5A ESCs
  • 1S voltage only

The AIO15 solves this with:

  • 15A ESCs (18A peak)
  • 2S-3S battery support

Now you can fly harder, faster, and longer with the digital clarity and ultra-low latency HDZero is known for.

Features:

  • Integrated HDZero 5.8GHz Digital VTX
    • Output Power: 25mW / 200mW
    • Channels: R1- R8, F2/F4, L1 - L8
    • U.FL connector with included ultra-light linear antenna
  • Built-in Serial ExpressLRS 2.4GHz Receiver
    • Packet rates: 50 - 1000Hz (50/100/150/250/333/500/D250/D500/F500/F1000Hz)
    • Pre-soldered enamel wire antenna
  • Flight Controller
    • MCU: STM32G473 @170MHz, 512K Flash
    • Gyro: ICM42688
    • Onboard voltage and current sensing
    • Firmware target: HDZERO_AIO15
  • 4-in-1 15A ESC
    • MCU: EFM8BB21
    • Current: 15Ax4 continuous, 18Ax4 peak (3s)
    • BlueJay firmware (Z_H_30_48_v0.19.2)
    • DShot600 ready
  • 5V BEC
    • 5V @ 1A output for accessories and camera

Specifications:

  • Battery Input: 2S–3S (3.5V–13V)
  • Mounting: 25.5x25.5mm M2
  • Board Dimensions: 31.3x31.3mm
  • Weight: 7.2g (with motor plugs)
  • Compatibility: Fits popular whoop frames

Applications

Perfect for:

  • 80mm freestyle whoops
  • Lightweight micro drones
  • Pilots seeking minimal weight with maximum performance
  • Builders upgrading from the AIO5
