RadioMaster Ranger 2.4GHZ ExpressLRS RF Module Starter Combo

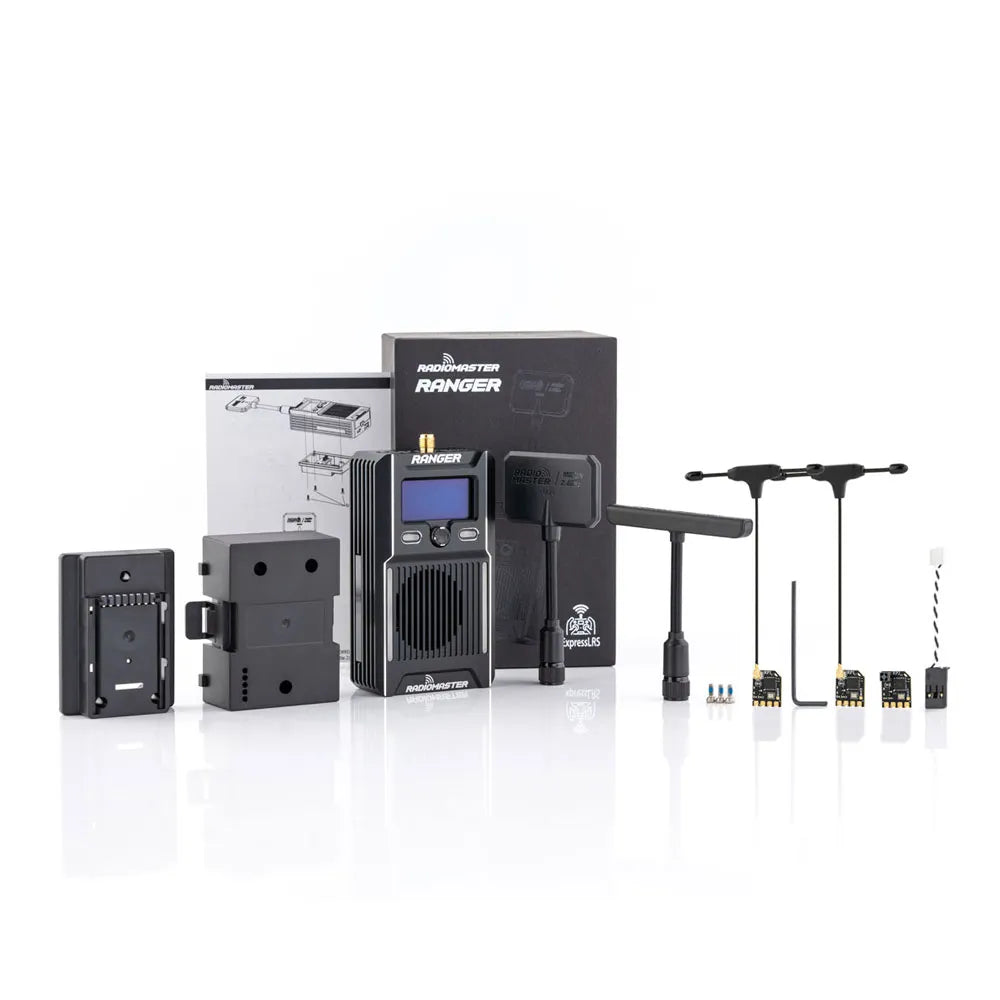

Package includes:

1x RANGER Module

1x Futaba CRSF socket cable

1x JR Adapter

1x Nano Adapter

1x T Antenna

1x Moxon Antenna

1x Hexagon socket screwdriver

3x M2*5 Screws

1x Assembly Manual

2x RP1 ExpressLRS 2.4ghz Nano Receiver

1x RP2 ExpressLRS 2.4ghz Nano Receiver

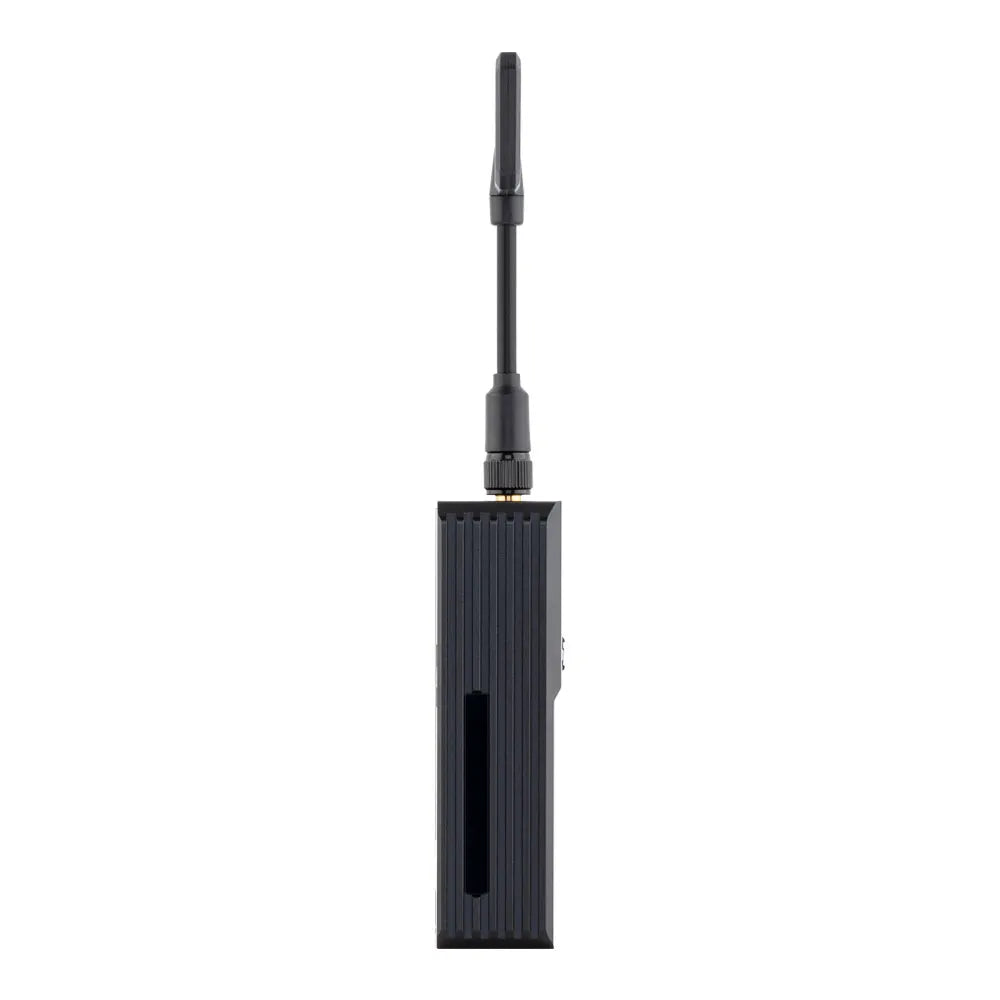

The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

Featuring an OLED display, a directional menu key, and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.

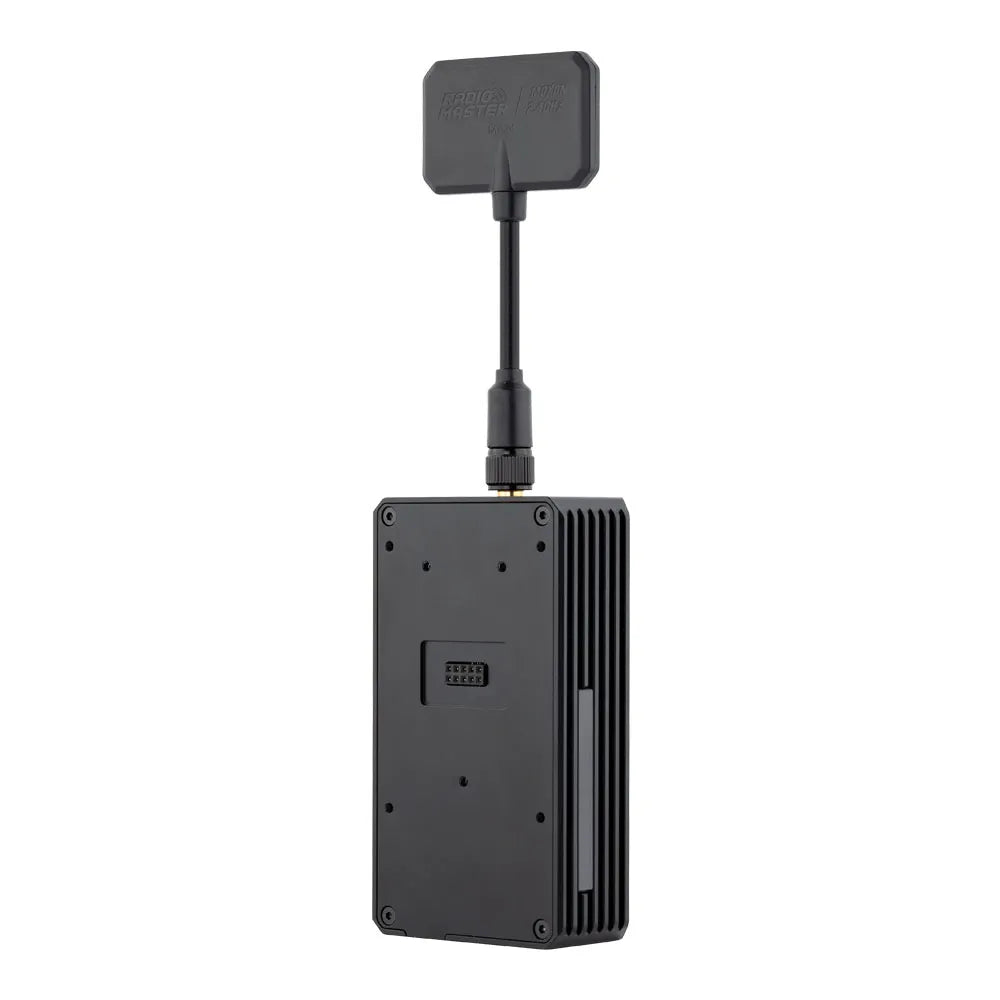

The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

Combo Package

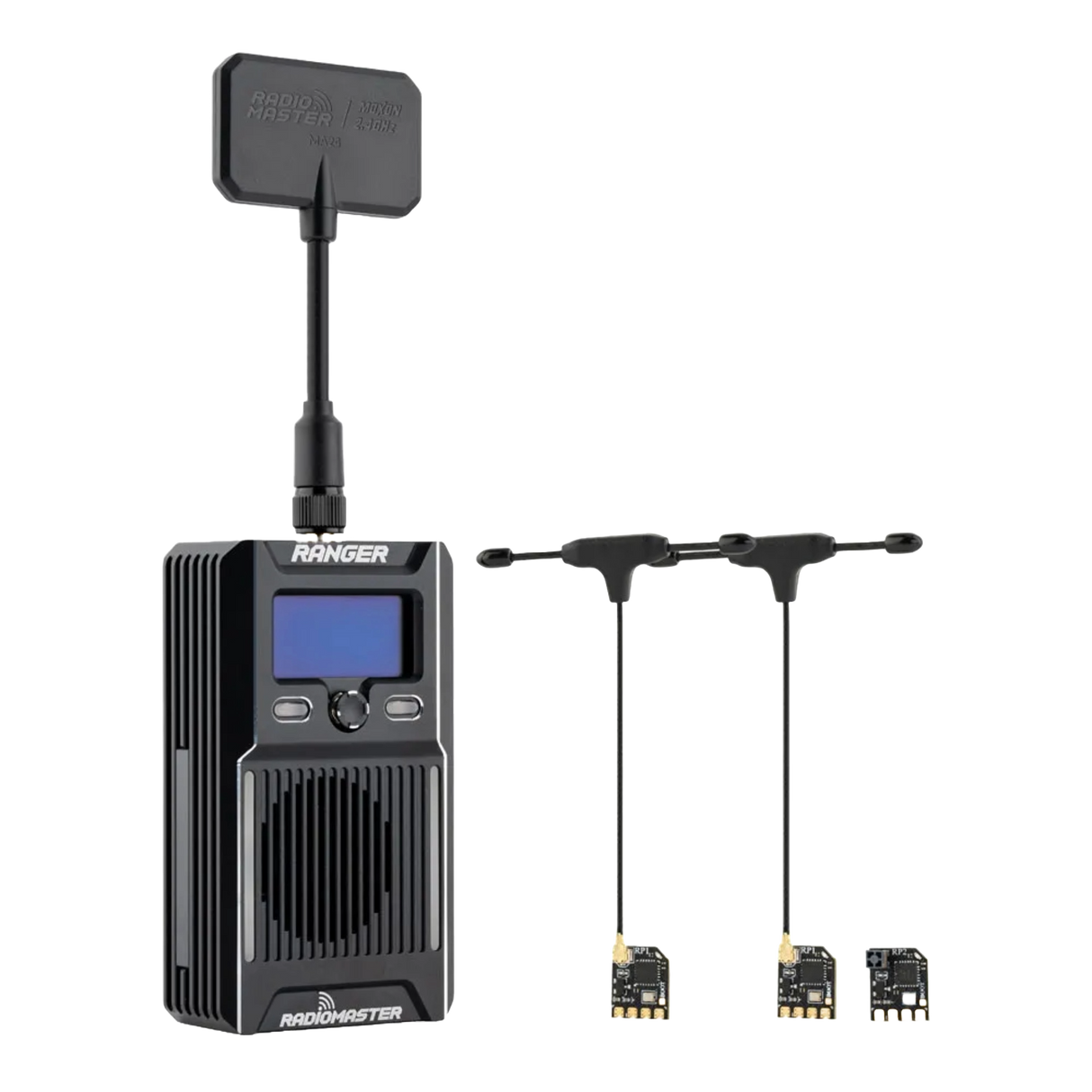

The Ranger Combo package is the ideal way to get started in the world of ExpressLRS. A complete module is provided along with two RP1 ExpressLRS receivers and one RP2 ExpressLRS receiver.

Features

★ OLED Display
★ Rugged CNC Case
★ Built-in Accelerometer
★ Packet rates up to F-1000Hz
★ Up to 1 Watt Power output
★ Wifi and Bluetooth support
★ High-efficiency cooling system
★ 5 Direction Nav key and customizable shortcut buttons
★ Micro and Nano adapters included
★ Moxon and T-antenna included
★ CRSF cable for compatible Futaba radios included
★ Combo Package includes 1 x Ranger Module, 2 x RP1 Receiver, 1 x RP2 Receiver

Specification

Item: Ranger 2.4GHz ELRS Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux, as espbackpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz to 2480 MHz
Maximum packet rate: 500Hz/F1000Hz (F1000 mode requires EdgeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
Futaba CRSF socket cable: Included
OLED screen:  64x128px
Wifi Support: Yes
Bluetooth support: Yes
3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Built-in RGB light strip
XT30 Power supply voltage: DC 6V - 16.8V
Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
Dimension: 95*51*25mm (without antenna)

We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/
