Item: Ranger Micro Module
-
Regulatory Domain: ISM2400
-
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
-
RF chip: SX1281IMLTRT
-
Frequency Range: 2400 MHz - 2480 MHz
-
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
-
Minimum receiver refresh rate: 25Hz
-
RF Output Power: Default 100mW
-
Wifi Support: Yes
-
Bluetooth support: Yes
-

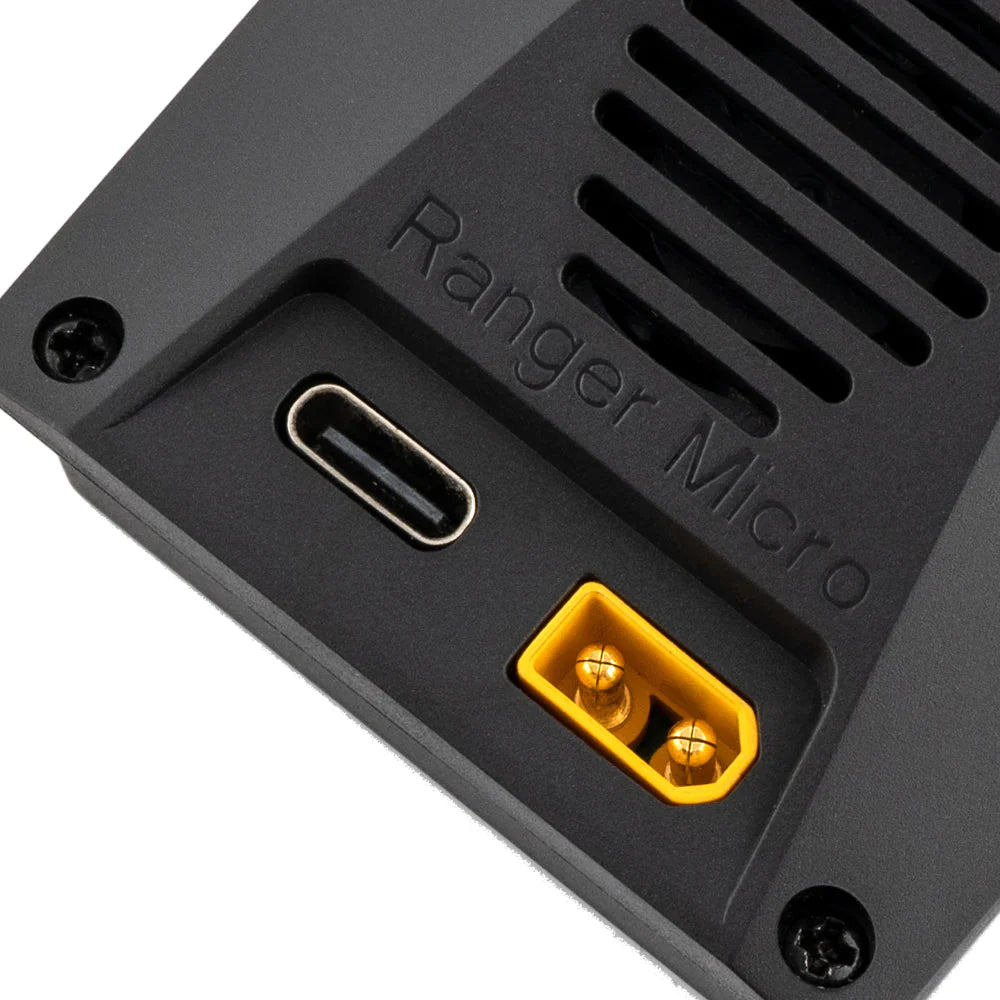

XT30 Power supply voltage: DC 6V - 16.8V
-
Weight: 50g (with antenna) / 40.5g (without antenna)
-

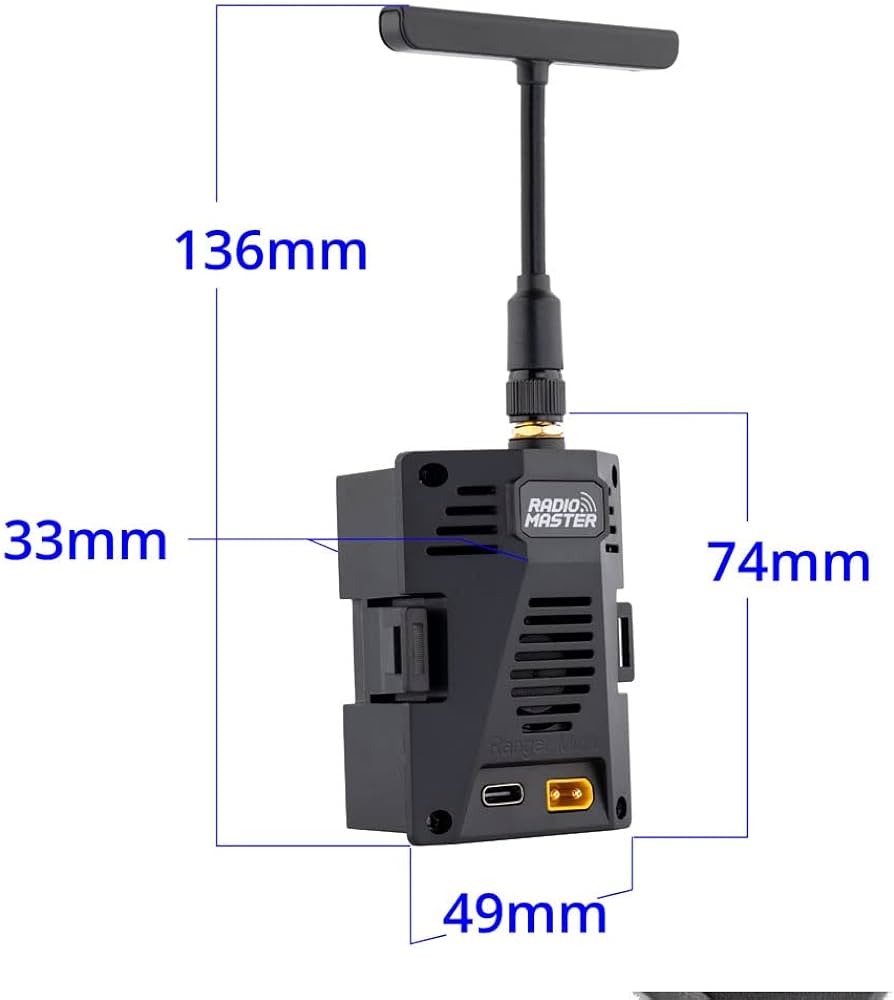

Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
1
of
6
Loading...
RadioMaster | SKU:
RM23-C1
Radiomaster Ranger Micro Combo
$82.79
Unit price
/
Unavailable
Shipping calculated at checkout.
Radiomaster Ranger Micro Combo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship.
Radiomaster Ranger Micro Combo
$82.79
Unit price
/
Unavailable
Description
Description
Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

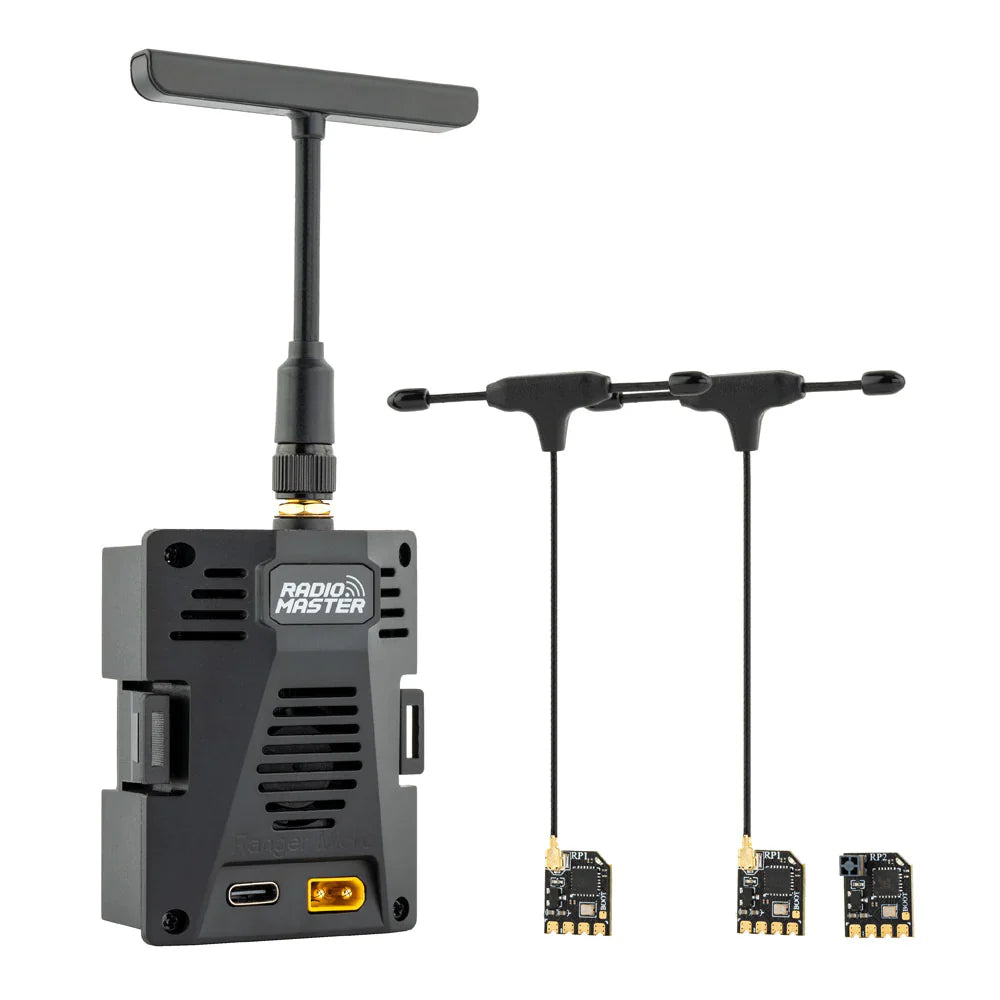

Package includes:
1x Ranger Micro Module
1x T Antenna (TX)
2x RP1 ExpressLRS 2.4ghz Nano Receiver
1x RP2 ExpressLRS 2.4ghz Nano Receiver
Note: The Ranger Micro 2.4GHz ELRS Module fits JR-style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules. For more information on the Ranger series, please check here.
Features
- Built-in ExpressLRS Backpack
-
High-efficiency cooling system
-
Wifi and Bluetooth support
-
Packet rates up to F-1000Hz
-
T-antenna included
-
With the Micro connector, support TX16S MKII and TX12 MKII radio
Specification
Size
Ranger Series
We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/
- Ranger 2.4GHz ELRS Module
- Ranger Micro 2.4GHZ ELRS Module
- Ranger Nano 2.4GHZ ELRS Module
- 2.4GHz T Antenna
- 2.4GHz Moxon Antenna
How to Replace Ranger Micro Board
