Skystars | SKU:
SS19-C2
Sold out
ExpressLRS ELRS 2.4GHz Dual Antenna Nano Receiver (T-Antenna)
$23.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Sign up to be the first to know when it's here
ExpressLRS ELRS 2.4GHz Dual Antenna Nano Receiver (T-Antenna) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.
Description
Description

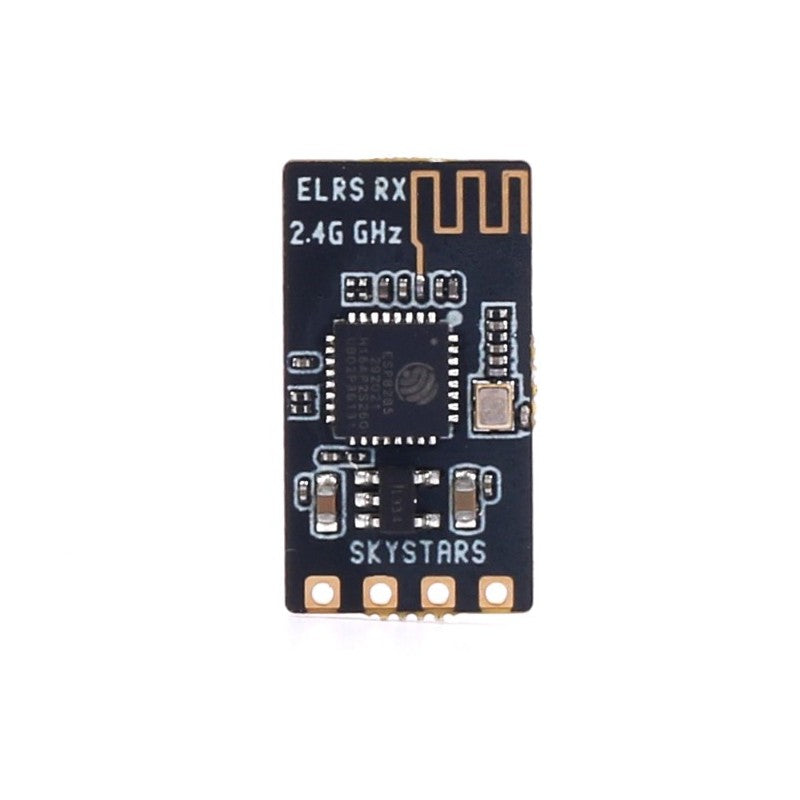

The Skystars 2.4G ELRS nano receiver, featuring dual antennas and an ESP8285 MCU, is designed for radio-controlled devices like drones or RC planes.
It's vital to adhere to country-specific regulations governing power and operational range when utilizing such equipment for flight activities please make sure you utilize this module legally.

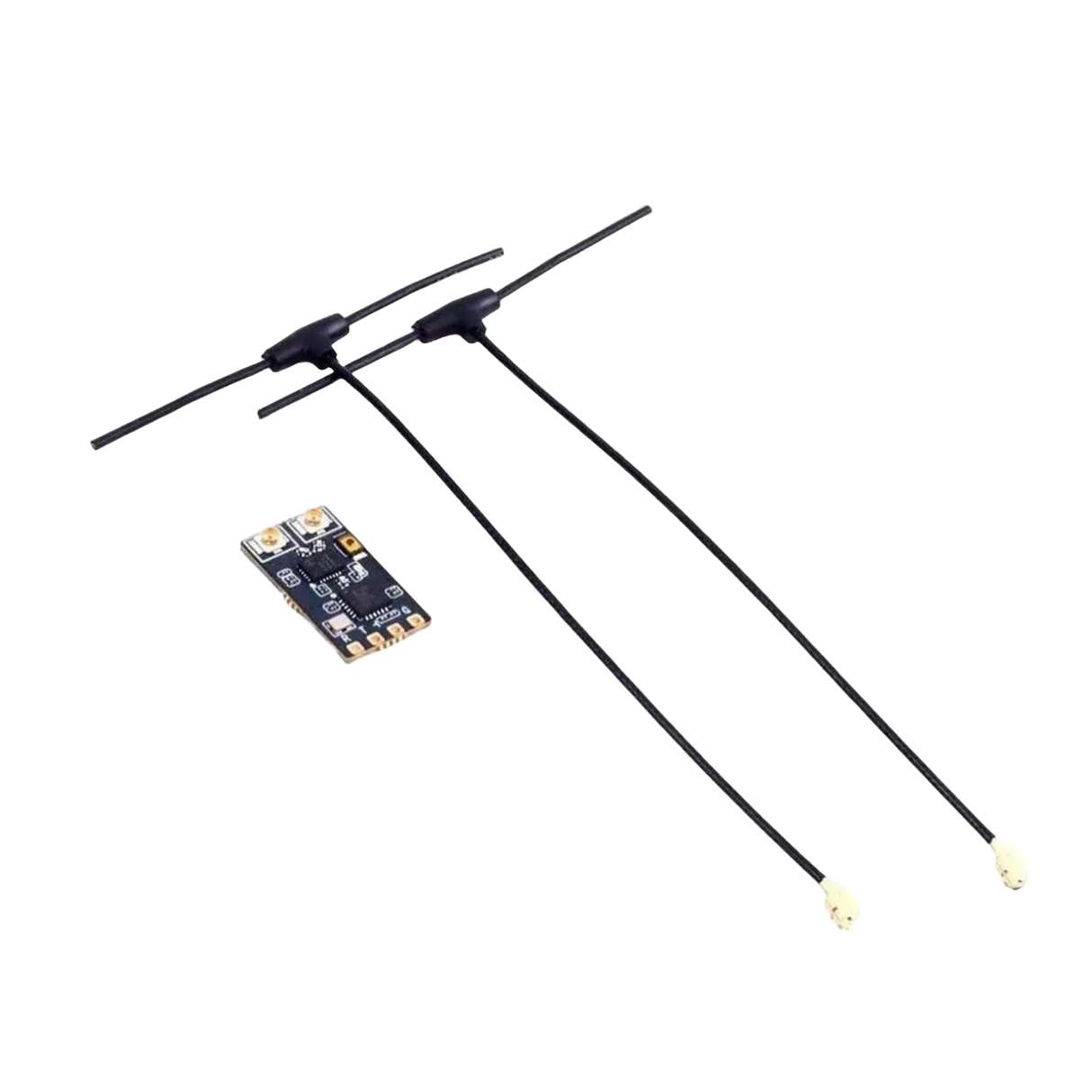

Package includes:
2x T-Antennas1x Nano RX (ELRS/NA Spec)
1x ELRS 2.4G ELRS RX
Specs:
- MCU: ESP8285
- RF: SX1280
- PA/LNA: SE2431L
- Antenna connector: IPEX 1
- RF Frequency: 2.4GHz (2400~2480MHz) Telemetry power: 250mw (~23dbm)
- SE2431L RX_Gain: 12.5dB
- Diversity: Antenna Switching Default: ANT2
- Receiver protocol: ELRS 2.4G
- Input voltage: 4.5~5V DC @ 5V pad Power dissipation: 40~45mA (Before Bind), 70~75mA(Binding), 90~95mA(Wifi Mode) PCB size: 20mm x 11mm
- Weight : 0.8g without antennas
- Firmware : Skystars SS4D_2400_RX
- Firmware update : Via UART or WIFI
- SS4D_2400_RX : Enable "USE_DIVERSITY" ( Checked ) when flashing in ExpressLRS configurator
