SpeedyBee | SKU: ELRS-915-RX-C2

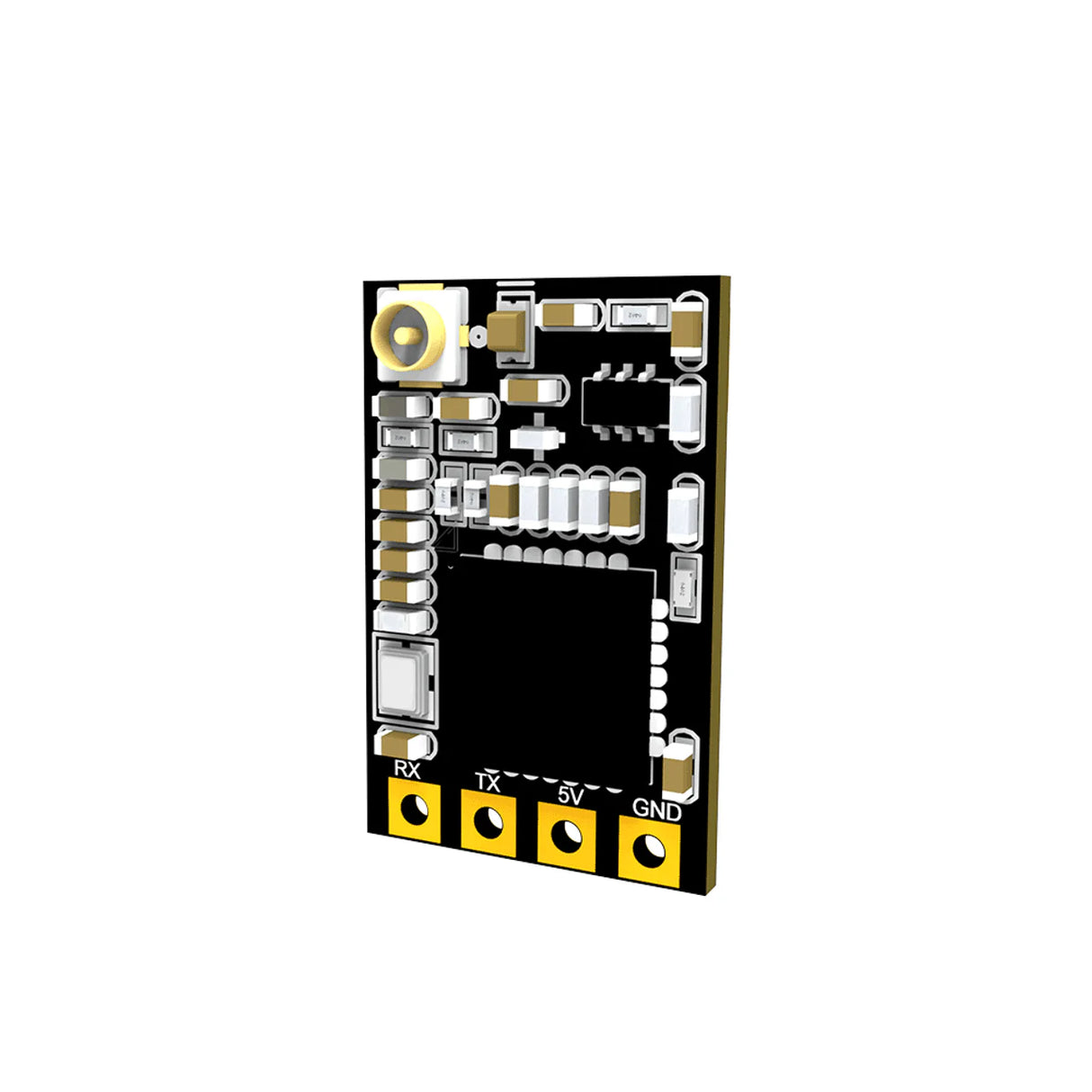

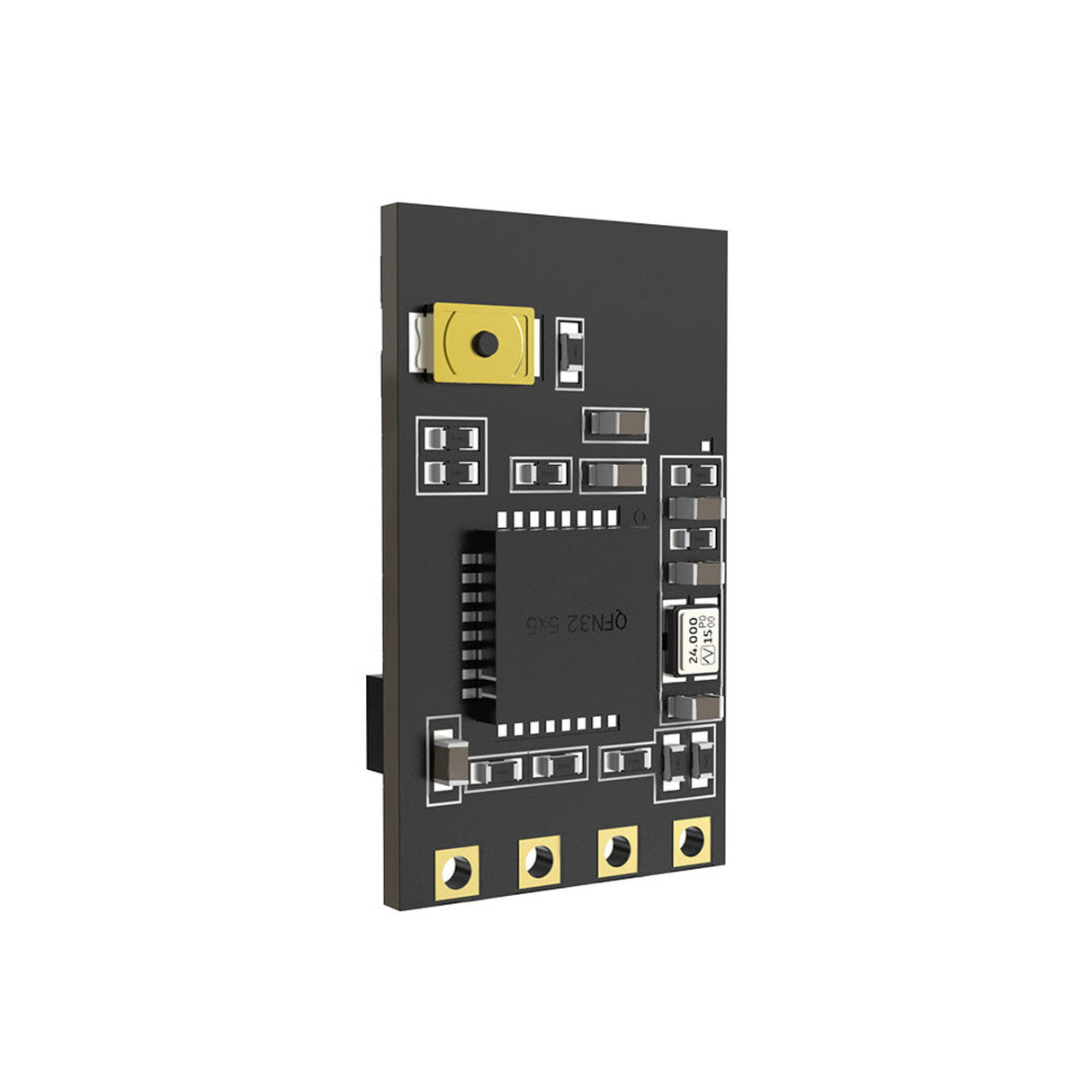

SpeedyBee Nano 915MHZ/2.4GHZ ExpressLRS ELRS Receiver

$17.99

Shipping calculated at checkout.

Same-Day Shipping

Order before 4:00 PM MST for same-day shipping Monday to Friday if you select UPS or Purolator at checkout. Subject to delays and holidays. Learn more.

Frequency

915MHZ 2.4GHZ

Product variants

Shipping & Fufillment

All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.

Description

This SpeedyBee RX is available in both ELRS 915MHZ and ELRS 2.4GHZ and is ideal for budget builds!

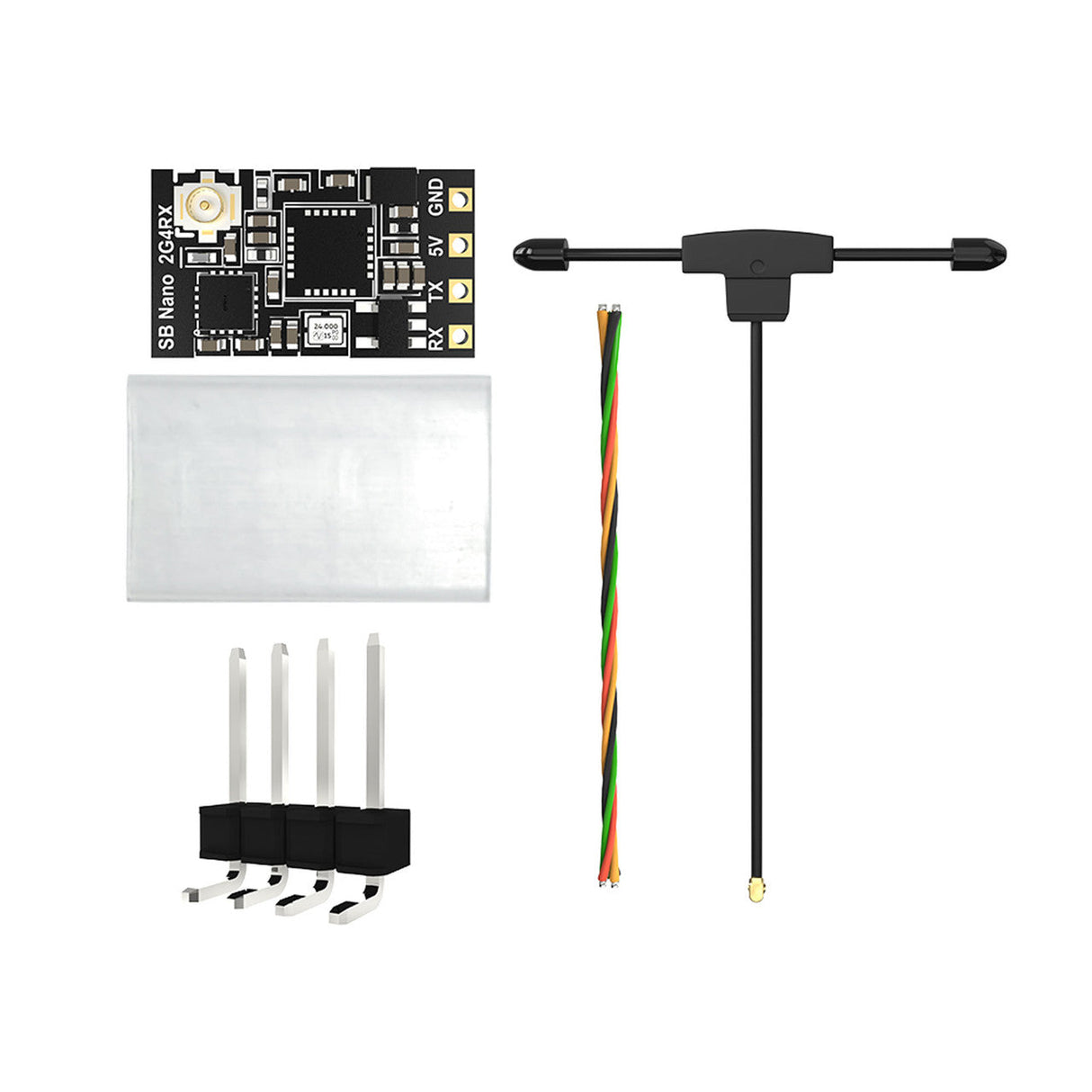

Package Includes:

1x ELRS RX

1x Wire Kit

1x Heat Shrink Tube

Specifications:

Model	SpeedyBee Nano 2.4GHz RX
Name	ExpressLRS Receiver
Frequency	2.4Ghz
Antenna	T-antenna (56*82mm, 0.6g)
Chip	SX1281+ESP8285
Power	100mW (Measured around 170mW)
Input voltage	5V
Antenna connector	IPEX1
Weight	0.7 gram(without antenna)
Dimension	10.4mm*18.4mm
Default Firmware	SpeedyBee Nano 2.4GHz RX 3.4.3

Specifications:

Model	SpeedyBee Nano 915MHz RX
Name	ExpressLRS 915MHz Receiver
Frequency	915MHz
Antenna	T-antenna (138*104mm, 3g)
Chip	SX1276+ESP8285
Power	50mW
Input voltage	5V
Antenna connector	IPEX1
Weight	0.7 gram(without antenna)
Dimension	11mm*17mm
Default Firmware	SpeedyBee Nano 915MHz RX 3.4.2

Light indicator

Double red blinking	binding
Slow red blinking	powering up but unlinked, no packages received from the transmitter
Solid red	receiver is connected, with signal received
Fast red flashing	Wi-Fi is turned on, and updating via Wi-Fi is available
