GOKU GN405S 20A AIO ICM42688 (25.5x25.5)
Description
Description

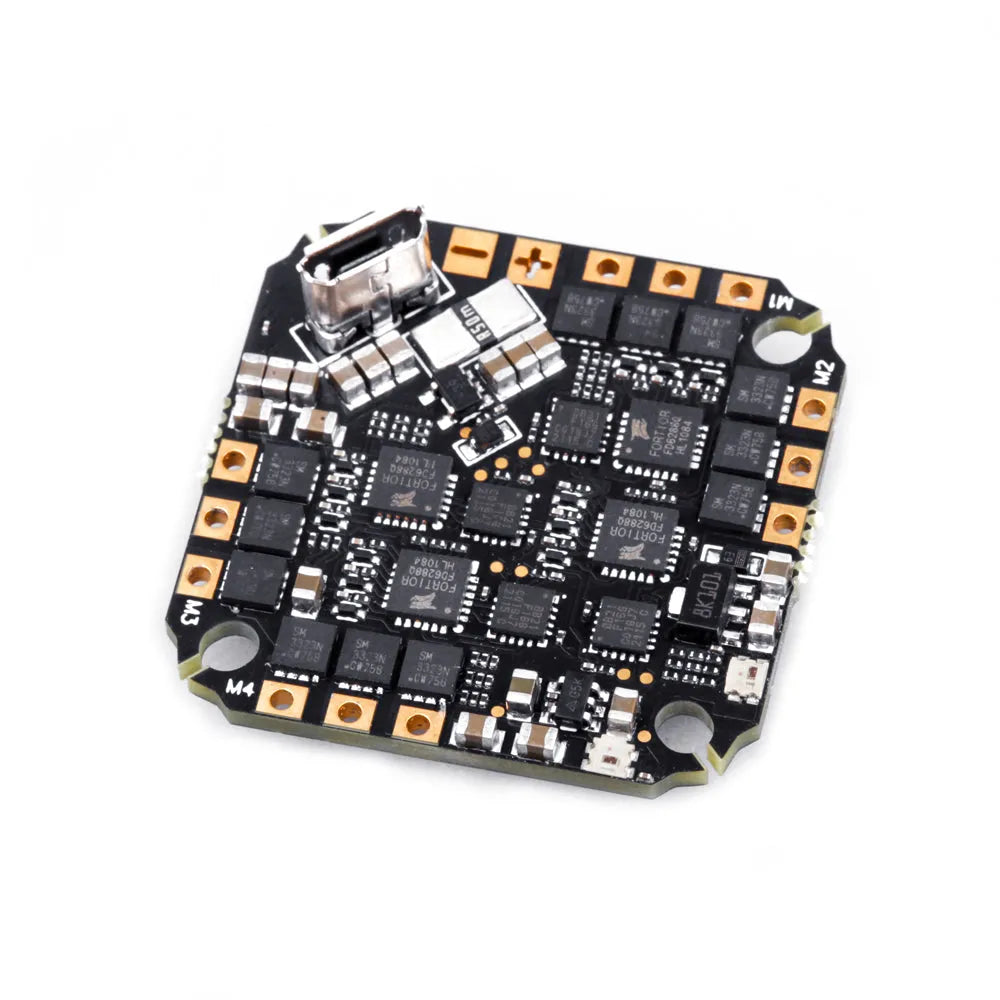

The latest addition to the FLYWOO GOKU series, the GN405 20A FC, offers a cost-effective and robust all-in-one solution tailored for FPV enthusiasts. Equipped with a high-performance F405 processor, it features an integrated 5V BEC, barometer, black box, and WS2812 LED support. This flight controller provides six fully functional hardware serial ports, I2C connectivity, and unlocks extensive functionality to accommodate advanced setups.
Package Includes:
1x AIO
1x Hardware Packet
Features:
- F405 BGA MCU
- Barometer
- 5V BEC
- Black Box
- 20A 8Bit ESC
- 6 UARTS
- current sensor
- LED
Specifications:
MCU: STM32F405 BGA
IMU: ICM42688
Barometer: SPL06
Onboard LED：WS2812*4
6 hardware UARTS (UART1,2,3,4,5,6)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
PPM and PWM receivers are not supported.
Onbord 8Mbytes for Blackbox logging
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max
Dimensions: 33.5x33.5mm
Mounting Holes: Standard 25.5/26.5mm square to center of holes
Weight: 8.5g
Support BLHELI_S
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input Voltage: 2-6S Lipo
Continuous Current: 20A
Firmware: BLHELI_S
