Kakute F405-Wing Mini
Kakute F405-Wing Mini est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.
Description
Description

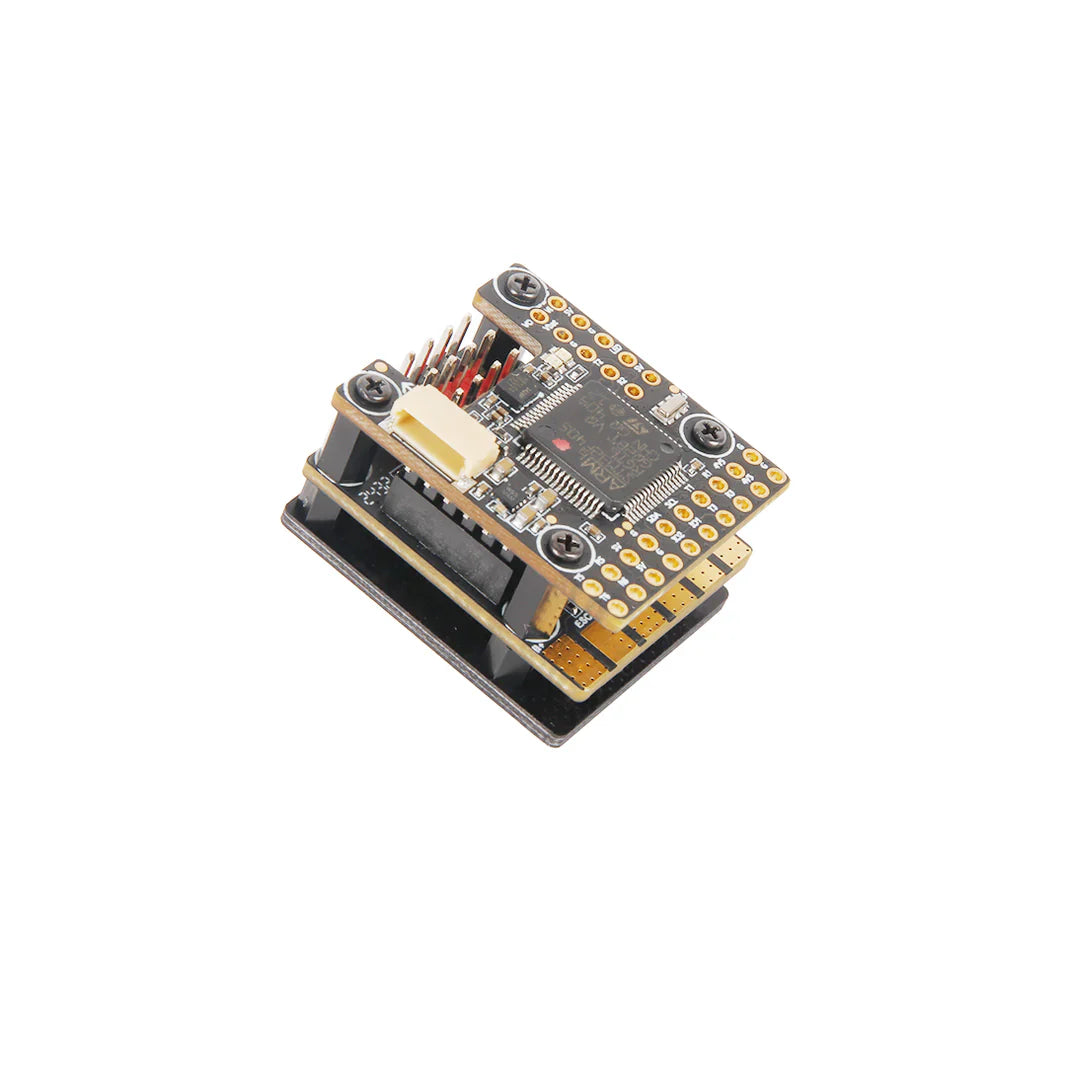

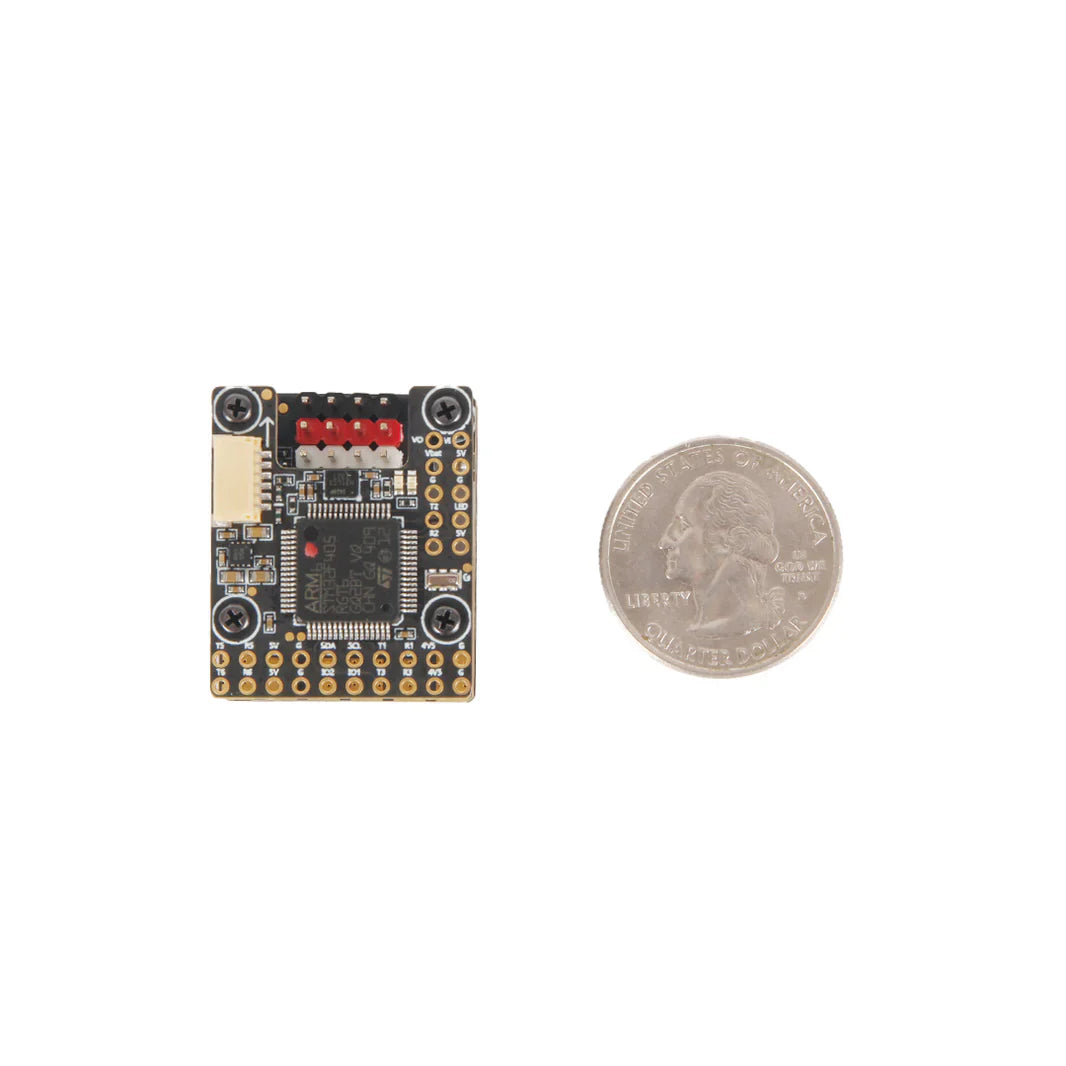

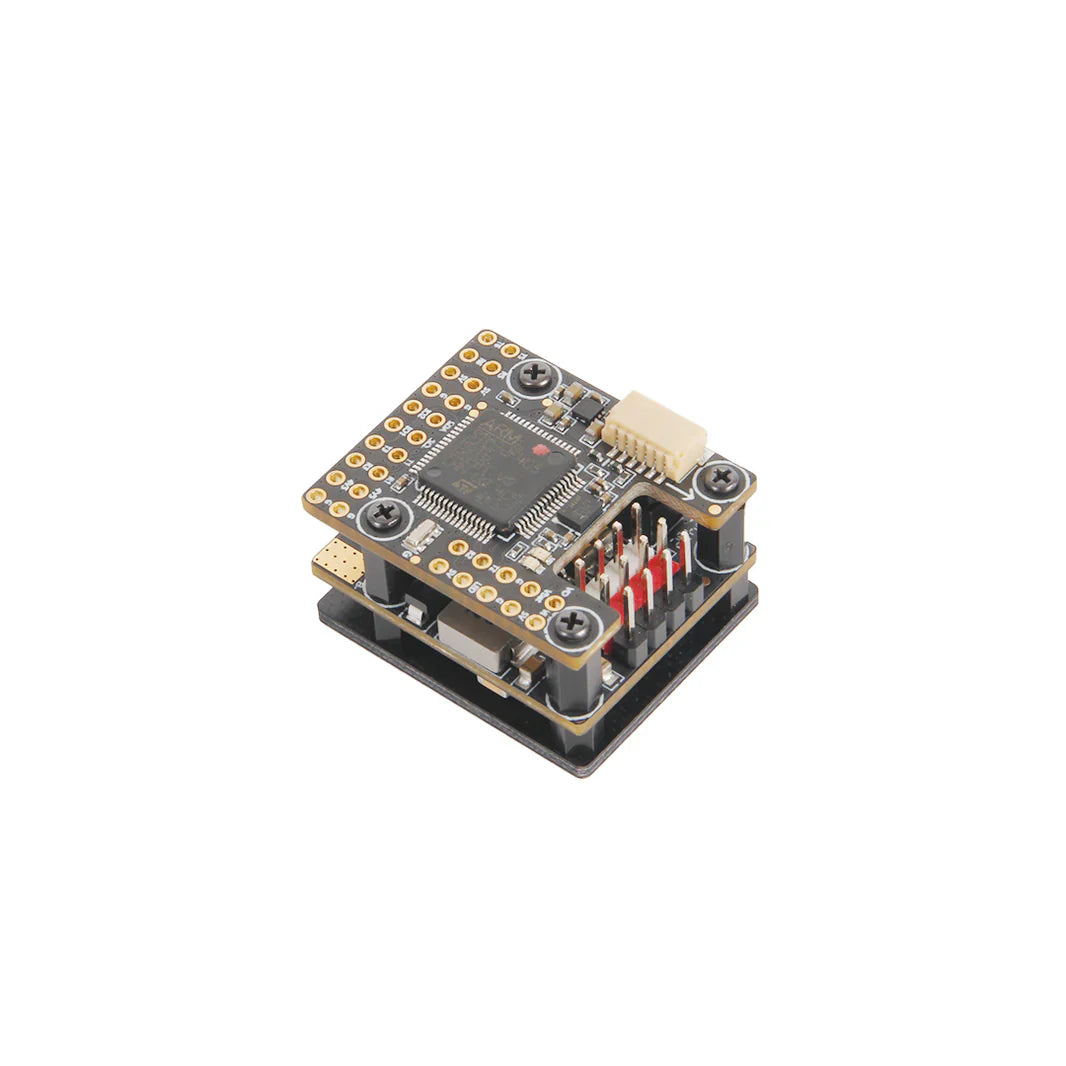

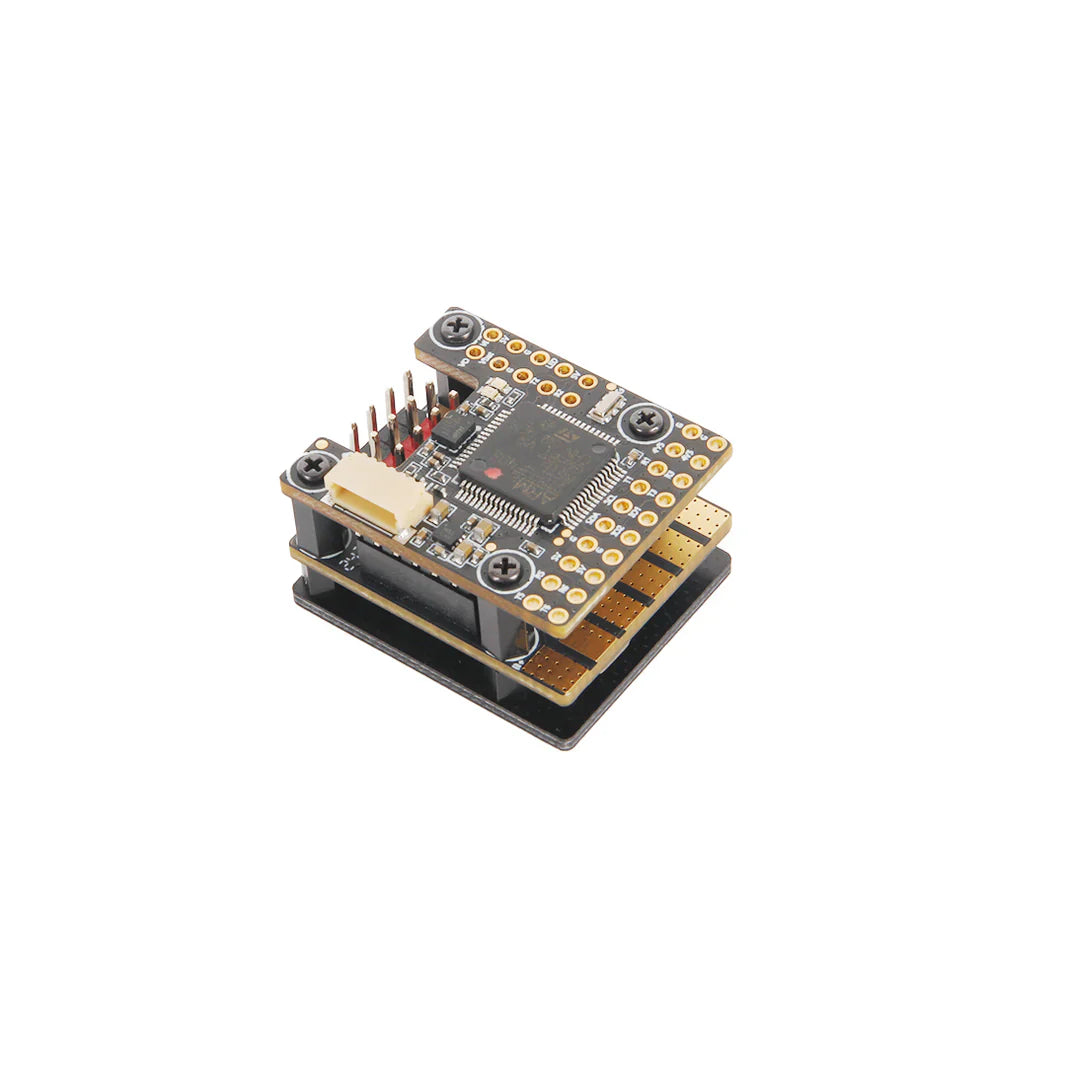

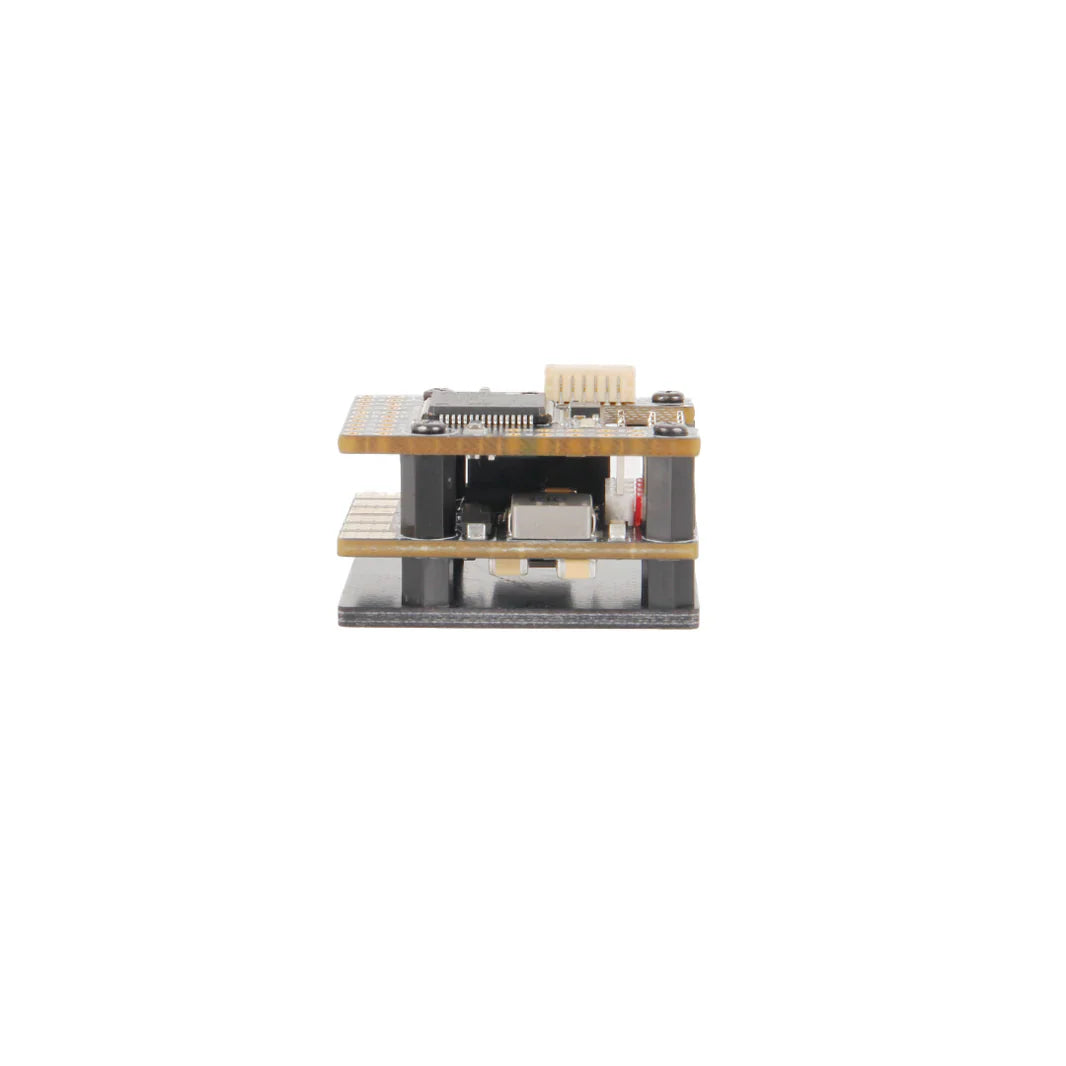

The Holybro Kakute F405 Wing Mini is a compact flight controller designed for fixed-wing and small UAVs, featuring the STM32F405 processor and the low-noise ICM-42688-P IMU with independent LDO for enhanced stability. It includes two onboard BECs for regulated power, an integrated barometer, I2C support, and analog OSD. Tailored for small aircraft, this flight controller delivers powerful performance and precision in a compact form, making it ideal for space-constrained setups.
Package Includes:
1x Kakute F405-Wing Mini Flight Controller
1x Power Board

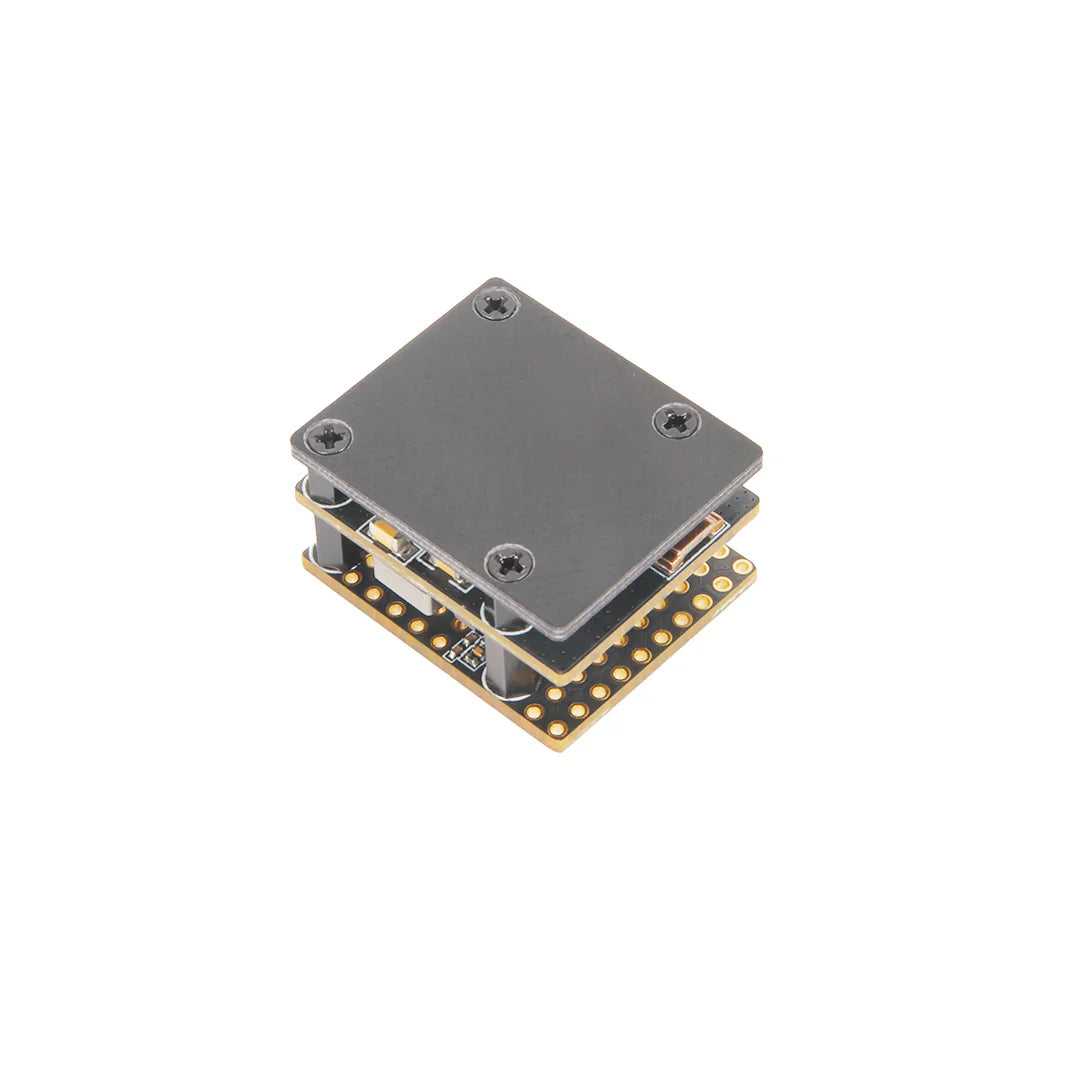

1x Bottom Board
1x USB-EXT Board
1x GPS Module (Optional)
1x Electrolytic capacitor: 2000uF 35v
3x Sets 2.54 DuPont Pin
1x 15cm JST-SH 6Pin Cable (For USB-EXT Board)
- STM32F405 MCU running at 168 MHz
- High-Precision / low-noise ICM-42688-P IMU
- 2 On-board BEC output 5V, 5V/7.2V
- On-board voltage & current sensor
- Integrated SPL06 barometer
- I2C port Support
- Small & low-profile design fits into compact frames
- Supports INAV (7.1.2 & later), Ardupilot (4.5.6 & later), Betaflight (4.5.2 & later)
Specifications:
MCU: STM32F405RGT6, 168 MHz, 192KB RAM, 1MB Flash
IMU: ICM-42688P (SPI1)
Baro: SPL06 (I2C2)
OSD: AT7456E (SPI2)
Onboard Blackbox: 128Mbits (SPI3)
5x Uarts (1,2,3,5,6) and R3 is with built-in inversion
7x PWM output, PWM7 used for NeoPixel LED by default
2x ADC (Bat1/Curr1)
1x I2C (the I2C2 is for external devices, also for onboard sensors)
2x LEDs for FC STATUS (Blue) and 3.3V indicator (Green)

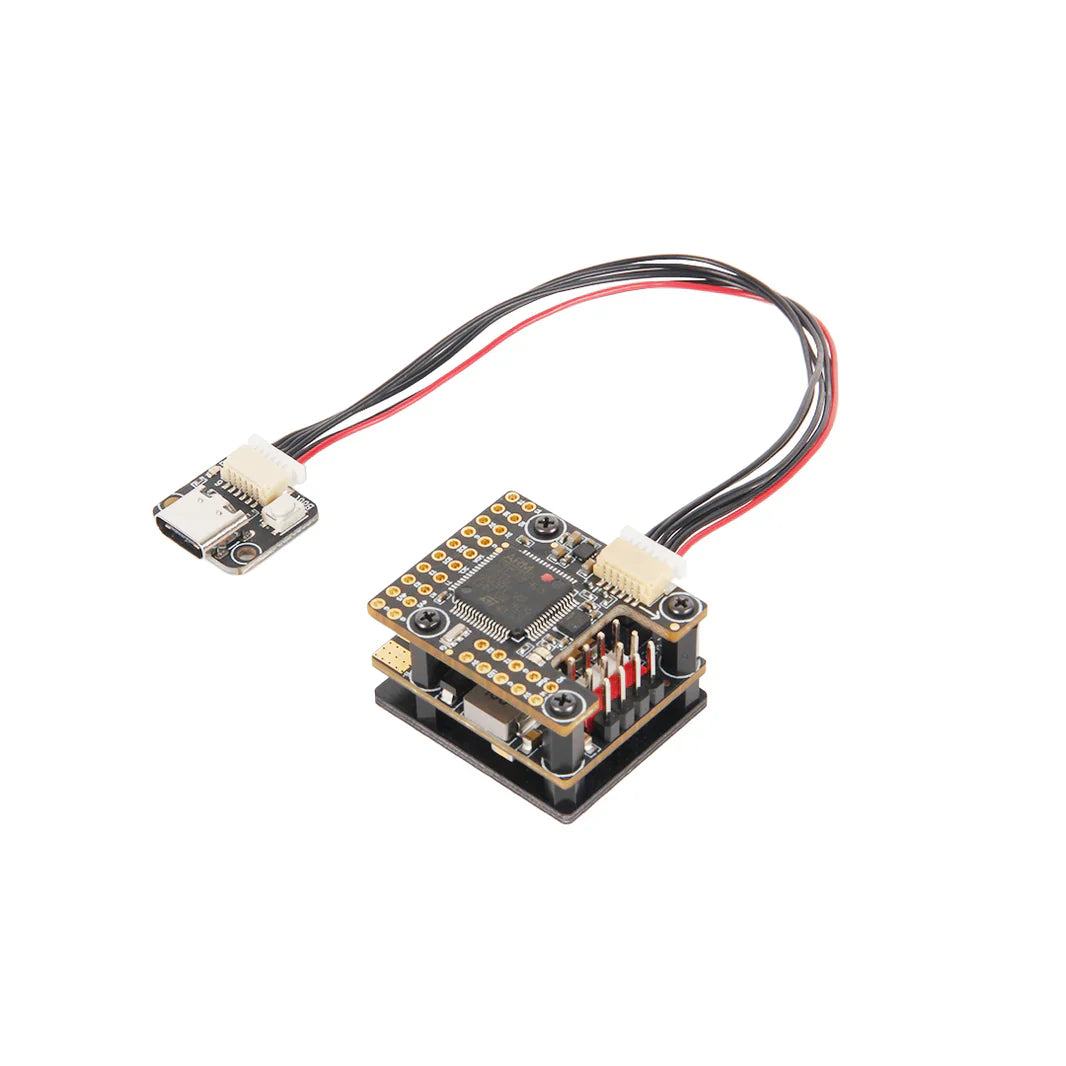

USB/DFU Key Extender with USB Type-C
High-precision Current Sense (110A continuous, 132A peak)
Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11 in ArduPilot, Scale 110 in Betaflight)
Static power 110mA @5V
FC Firmware
ArduPilot: Kakute F405 Wing Mini (4.5.2 & later)
INAV: Kakute F405 Wing Mini (7.1.2 & later)
Betaflight: Kakute F405 Wing Mini (4.5.6 & later)
Power Board
Input voltage range: 7.4~ 36V (2~ 8S LiPo)
2x ESC power pads
Current Sense: 110A continuous, 132A peak. (Scale 250 in INAV, 40 A/V in ArduPilot,Scale 250 in Betaflight)
BEC 5V output
Designed for FC, Receiver, OSD, Camera, 2812 LED Strip, GPS, Telemetry, etc.
Output 5.3 +/- 0.1V DC
Continuous current 3 Amps, 4.8A Peak
BEC VS output
Designed for Servos
Voltage adjustable, 5.3V Default, 7.2V option with Jumper pad
Continuous current 3 Amps, 4.8A Peak
BEC 3.3V output
Linear Regulator
Continuous current: 150mA
Mechanical
Mounting: 20 x 20mm, M2 hole

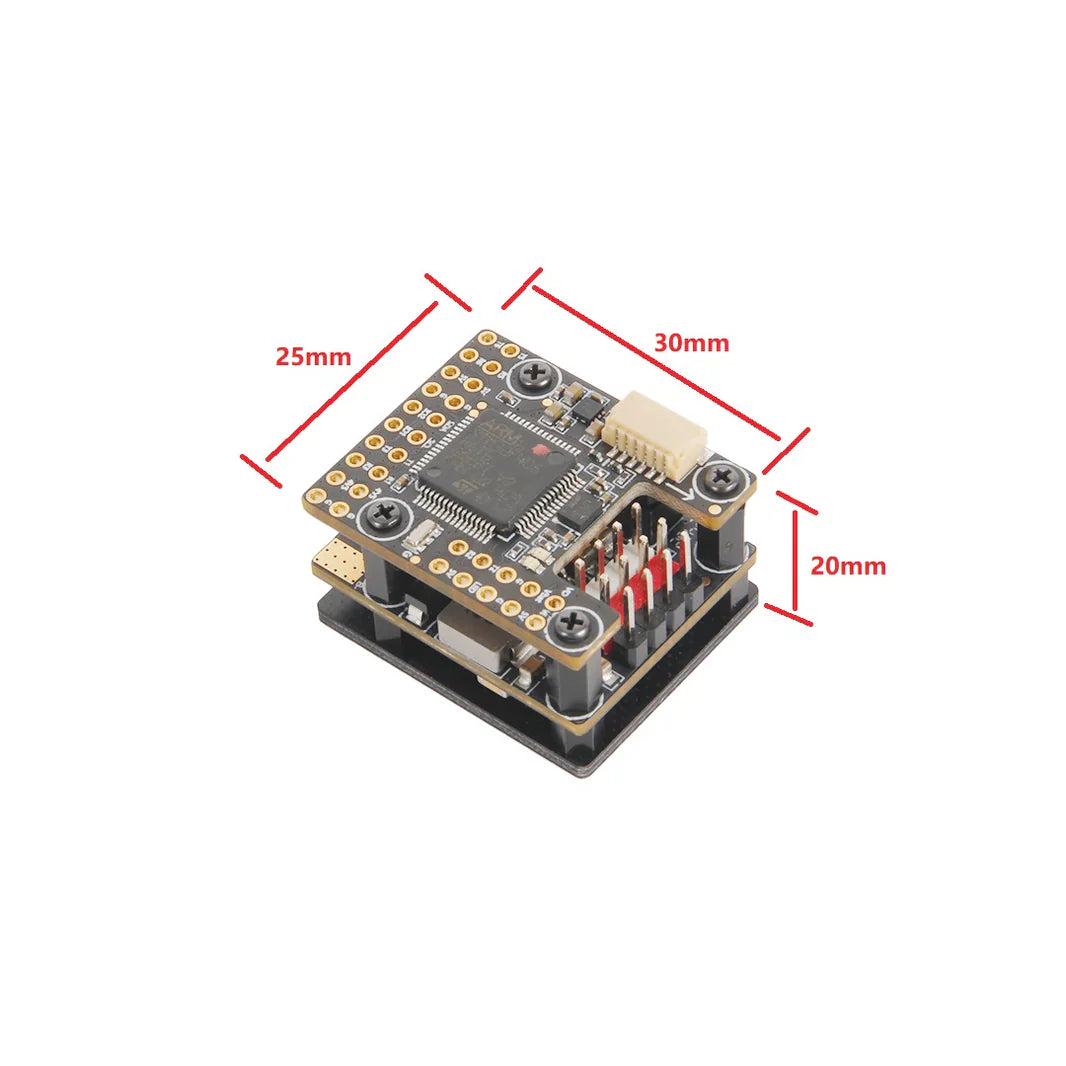

Dimensions: 25x 30 x 20 mm
Weight: 17g with USB extension board
