GEPRC | SKU : GP-TKR80AS | ID: L-R4-43

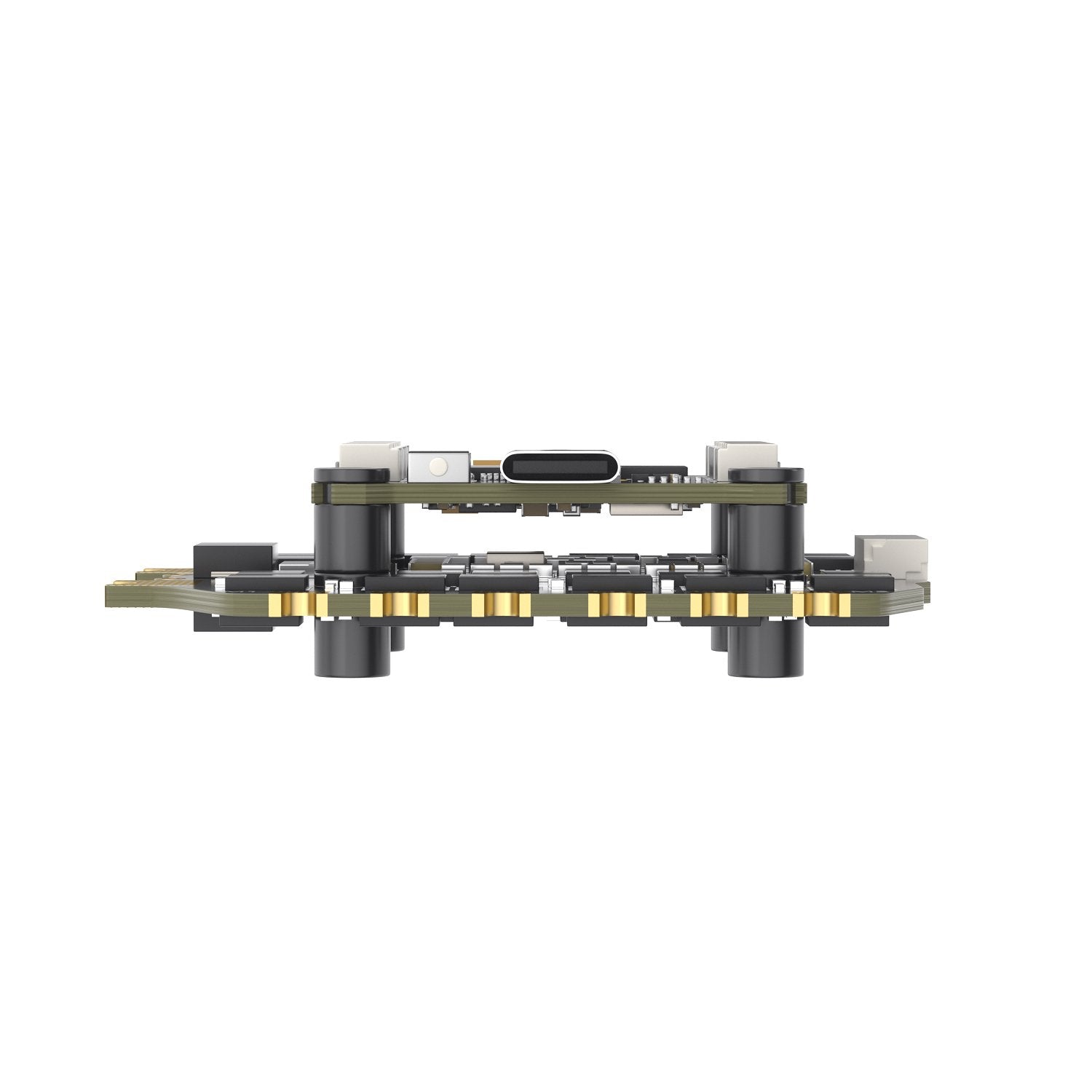

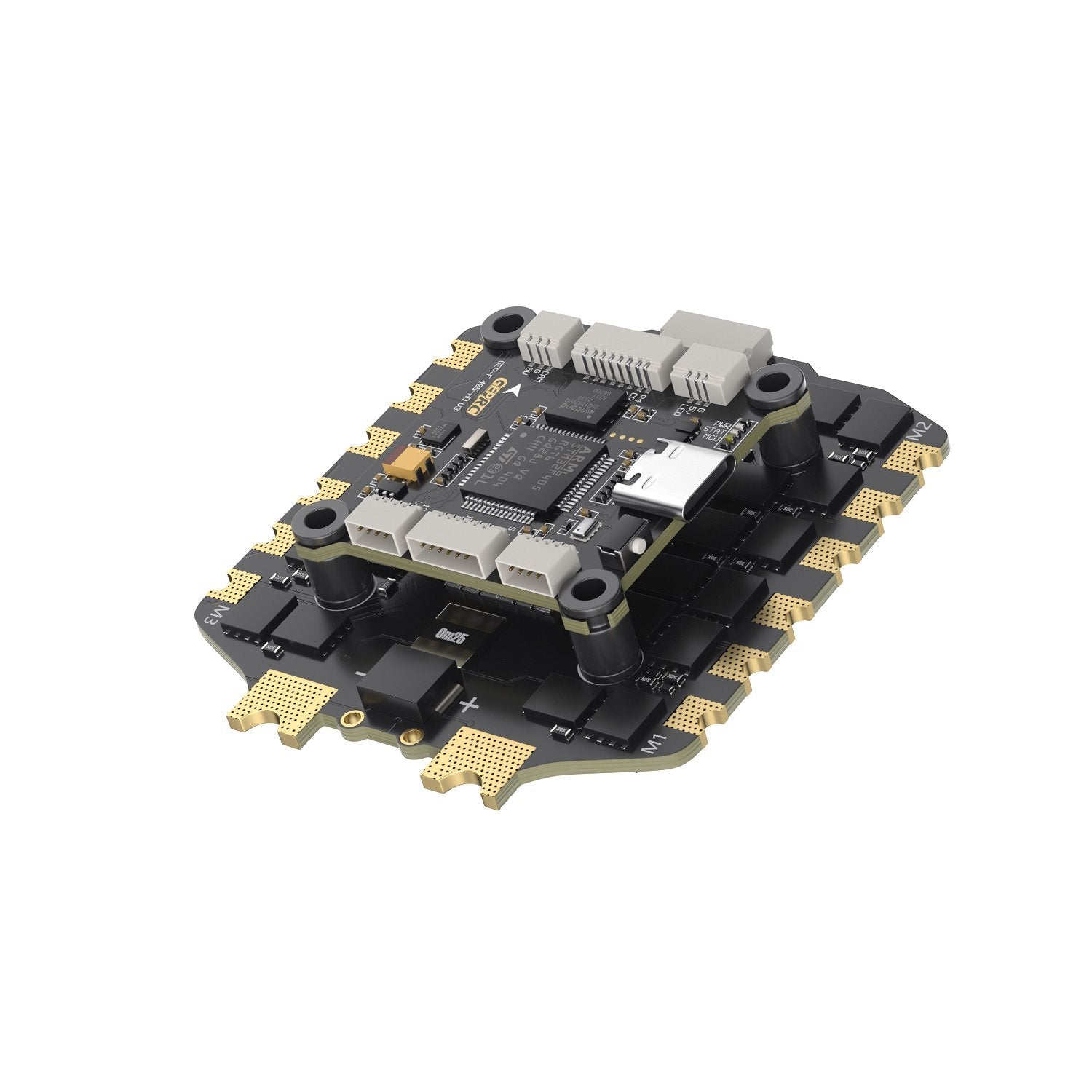

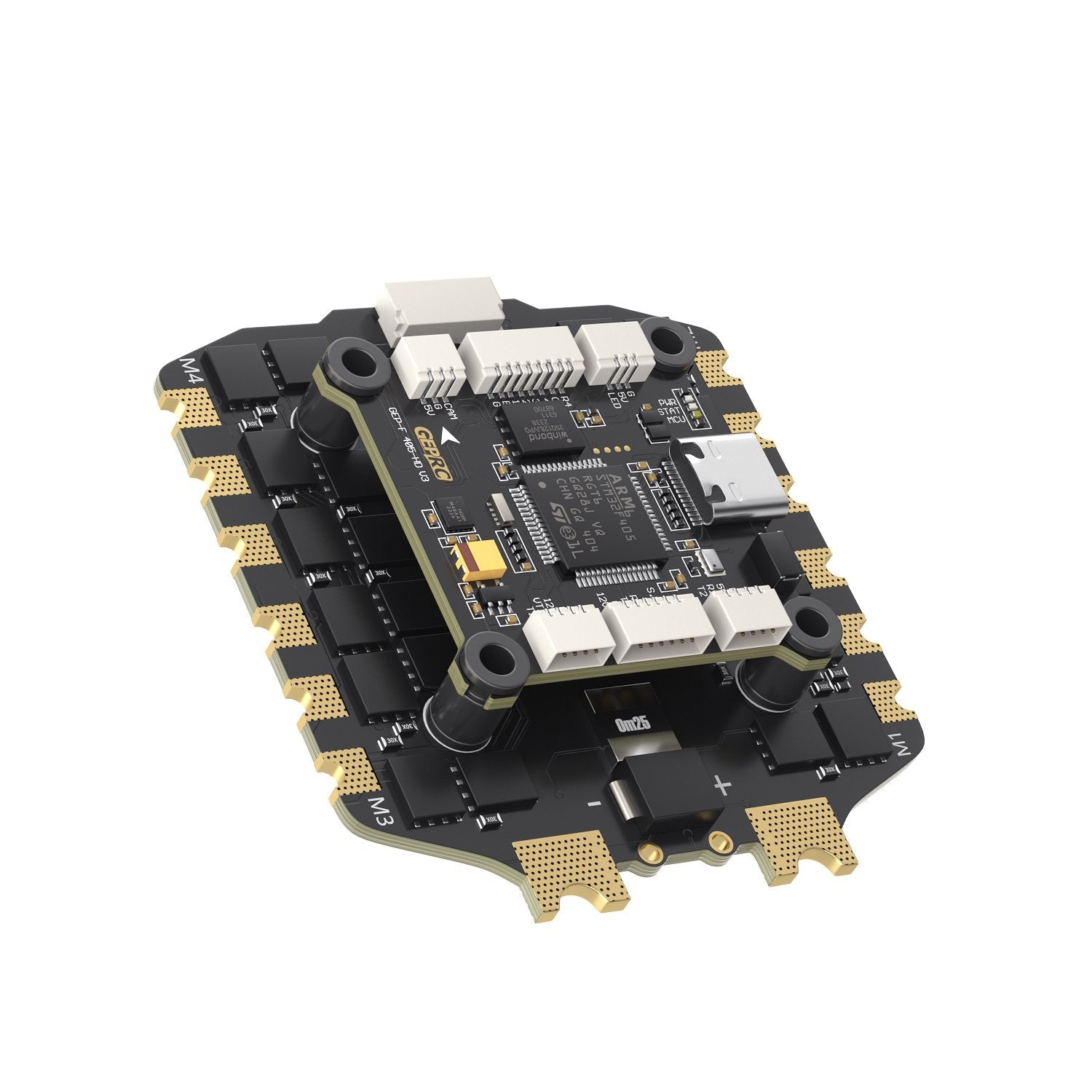

GEPRC Taker F405 BLS 80A V2 Stack

Name: GEPRC Taker F405 BLS 80A V2 Stack
Brand: GEPRC
SKU: GP-TKR80AS
Price: 154.99 CAD
Availability: InStock

$154.99

Frais de livraison calculés lors du paiement.

Same-Day Shipping

Order before 4:00 PM MST for same-day shipping Monday to Friday if you select UPS or Purolator at checkout. Excludes weekends and holidays. Subject to delays. Learn more.

Shipping & Fufillment

All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.

Description

Built around the widely adopted STM32F405 processor, this stack integrates the advanced 42688-P gyroscope and 16M black box memory for comprehensive flight data logging. BECs at 12V/2.5A and 5V/3A.

Package Includes:

1x GEPRC Taker F405 Stack (80A)

Specifications:

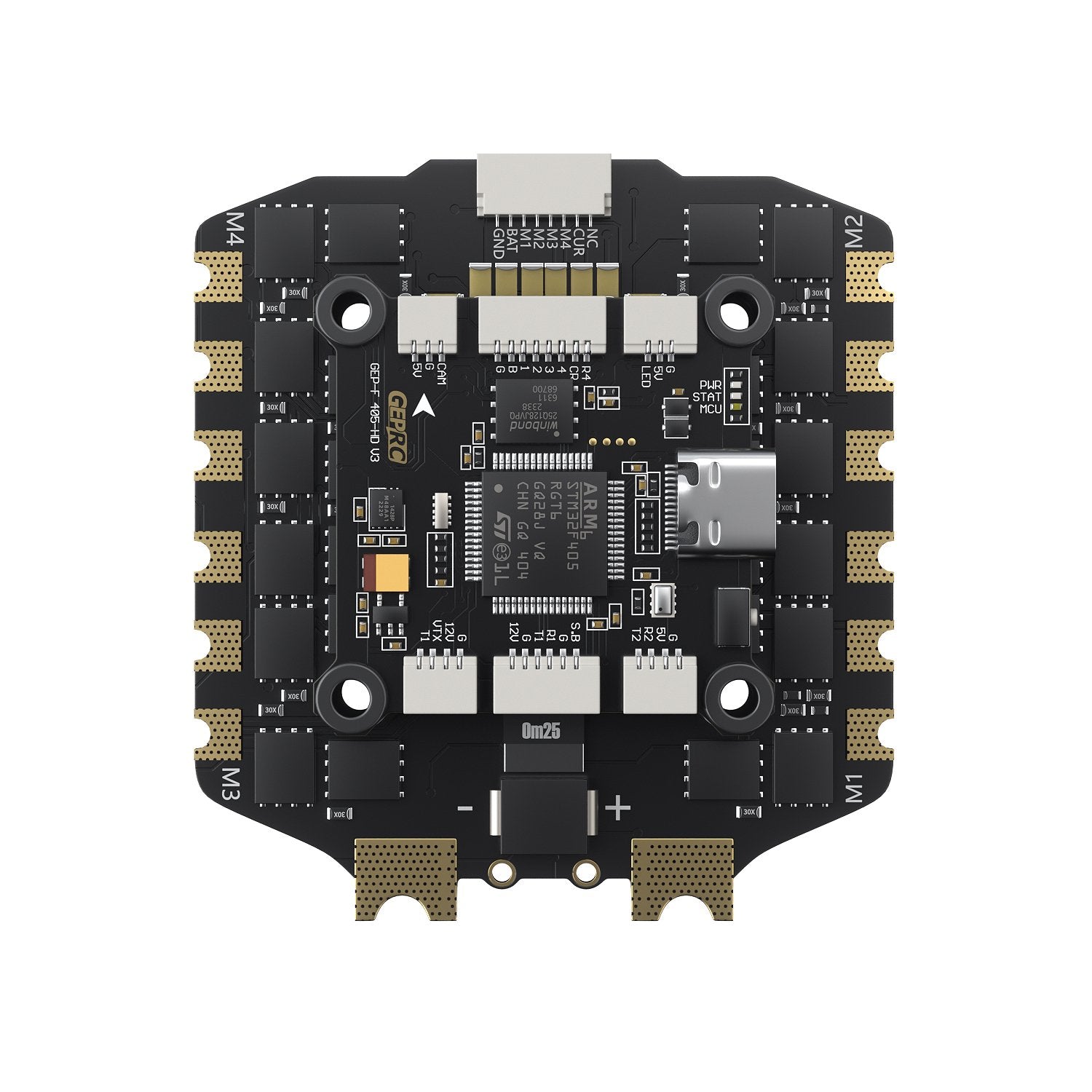

GEP-F405-HD V3 Flight Controller

MCU：STM32F405
IMU：ICM42688-P(SPI)
Air Unit Connection：Direct plugging into DJI Air Unit
Black Box：16M onboard
Barometer: support
Motor outputs：M1-M6
USB Interface：Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,12V@2.5A dual BEC
Firmware Target：GEPRCF405
Size：37.15×37.15mm
Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
Input Voltage：3-6S LiPo
UART：6 UARTs
Power Filter：Integrated LC filter
Weight：7.3g

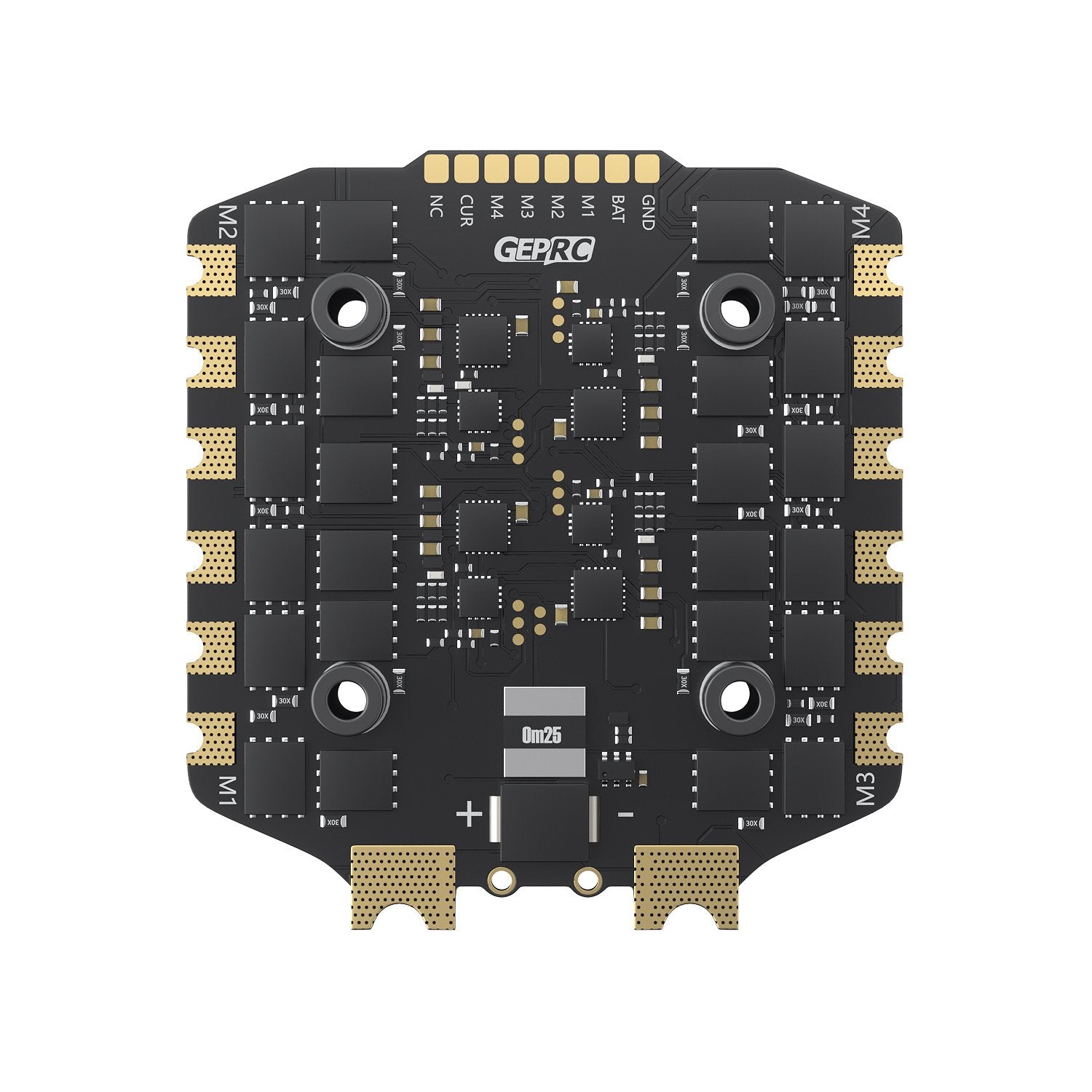

TAKER H80_BLS 80A 4IN1 ESC

Input Voltage: 3-6S Lipo
Ammeter: Support
Continue Current：80A
Burst Current：85A（5 second）
Support Protocol: Dshot 150/300/600
Size：56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 28.1g
Target: B_X_30
