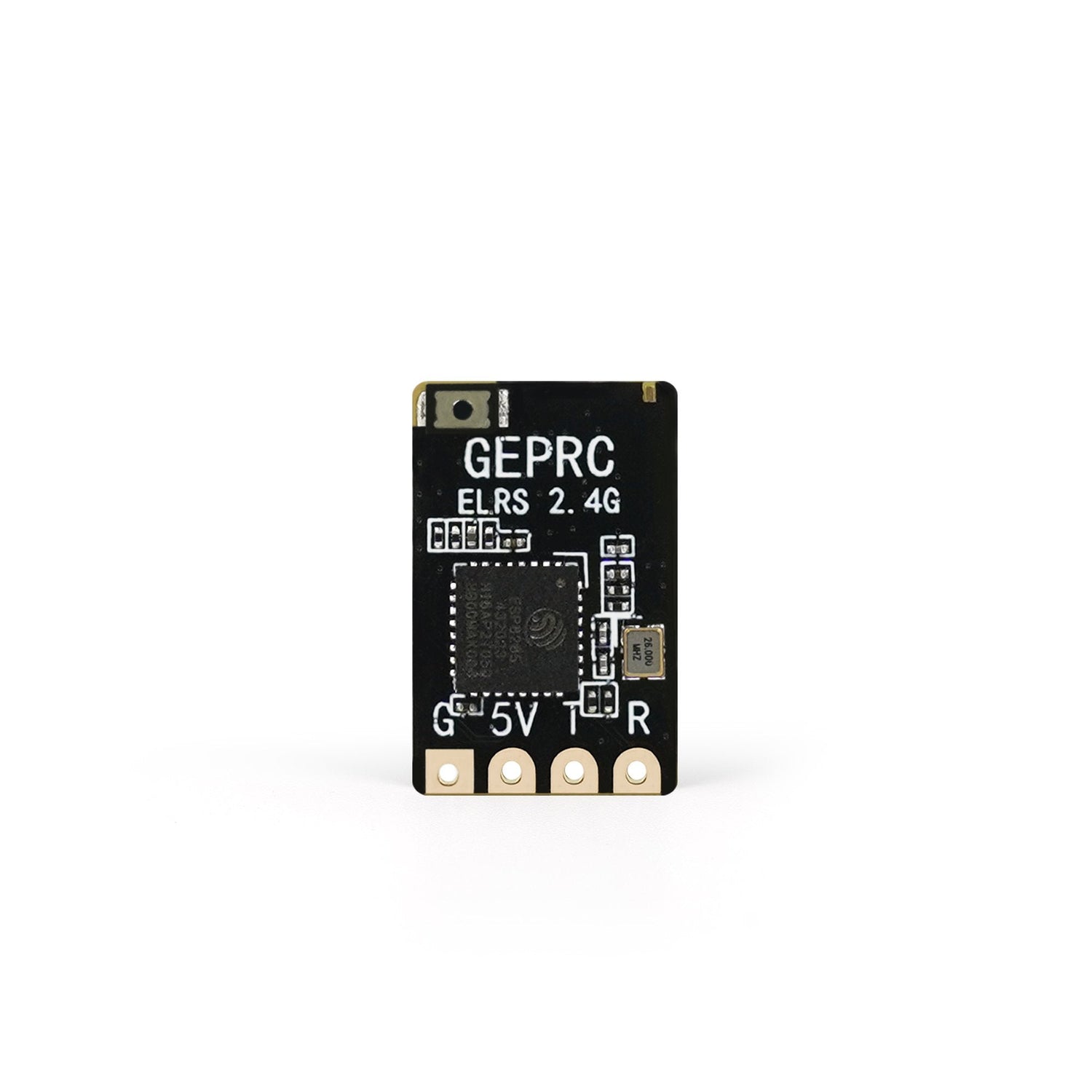

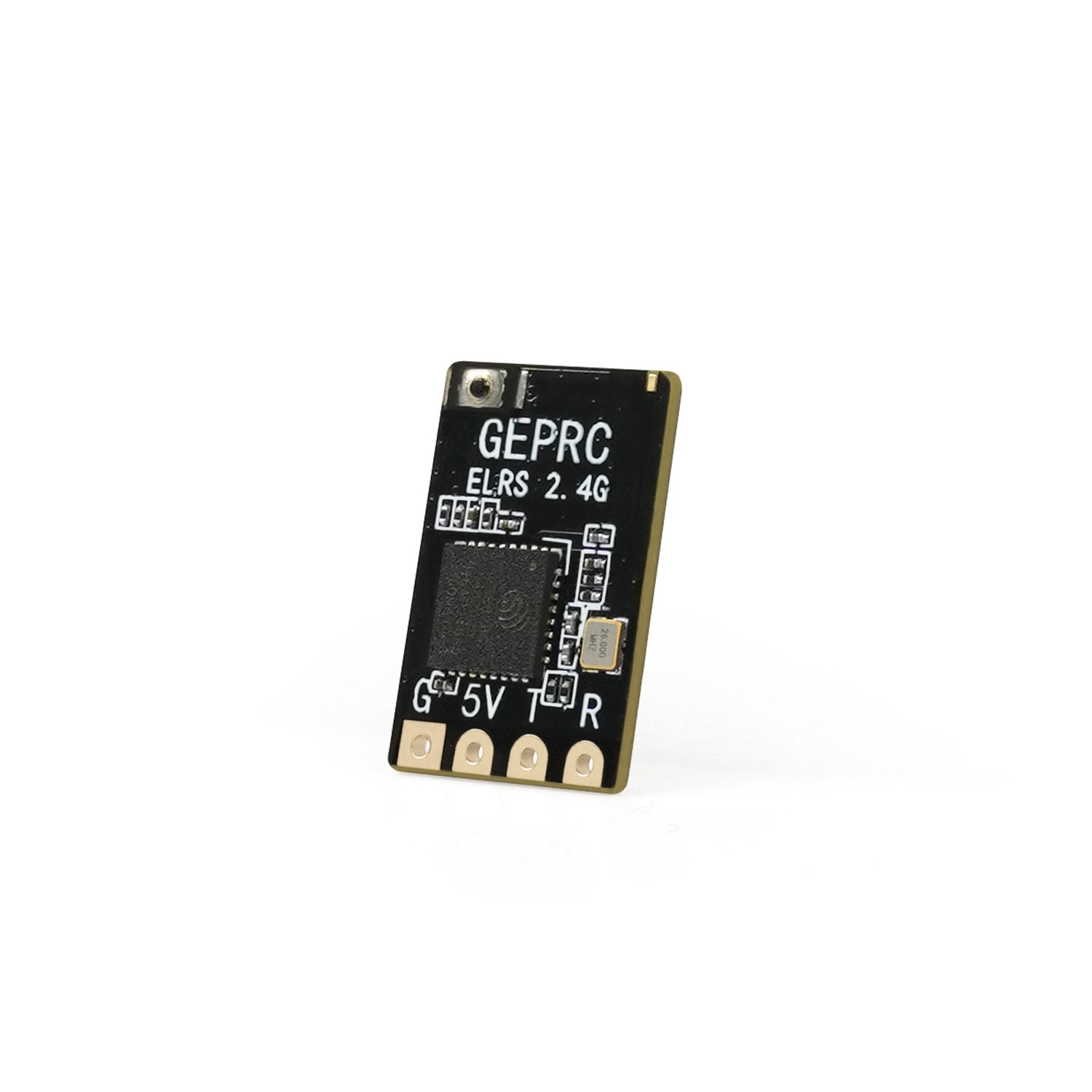

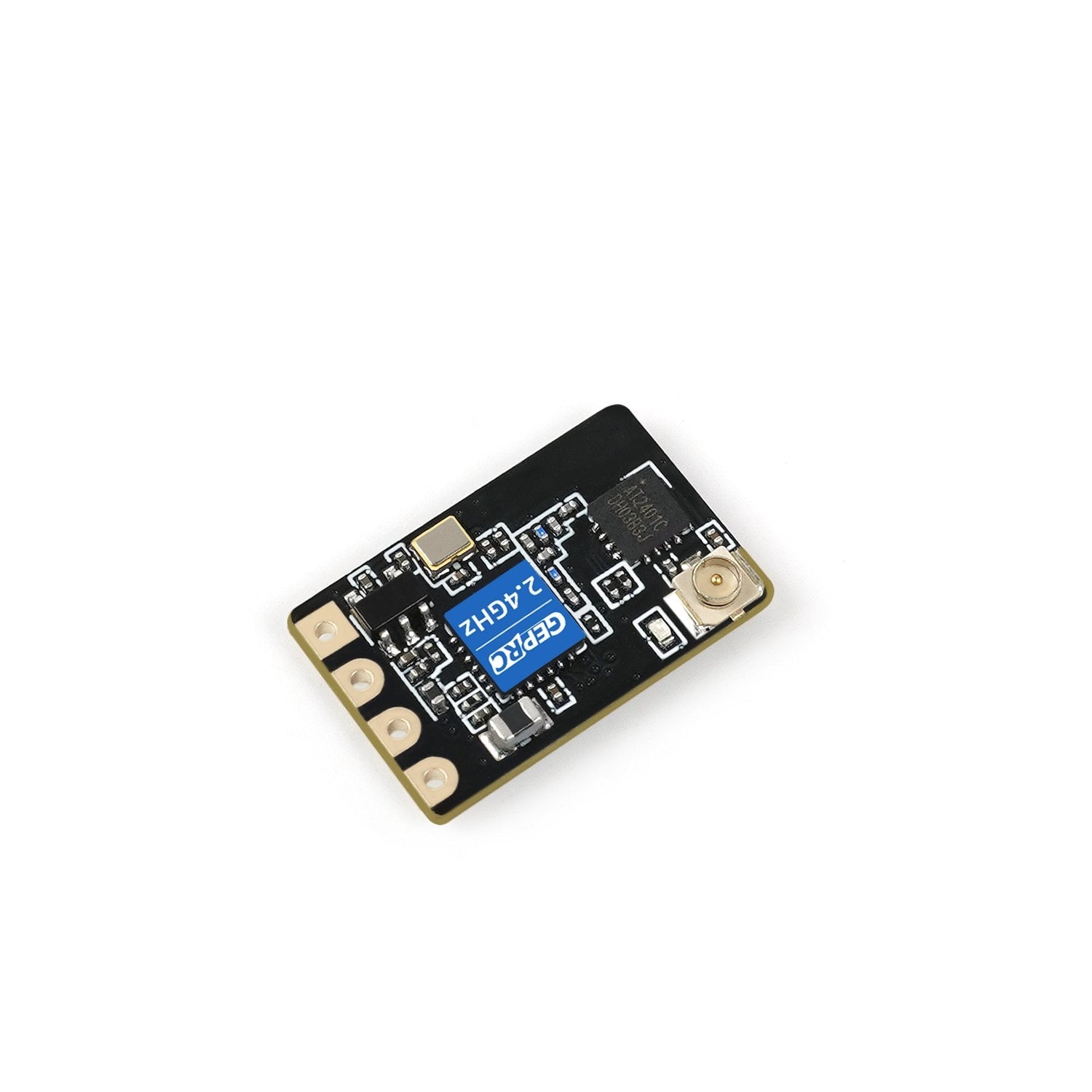

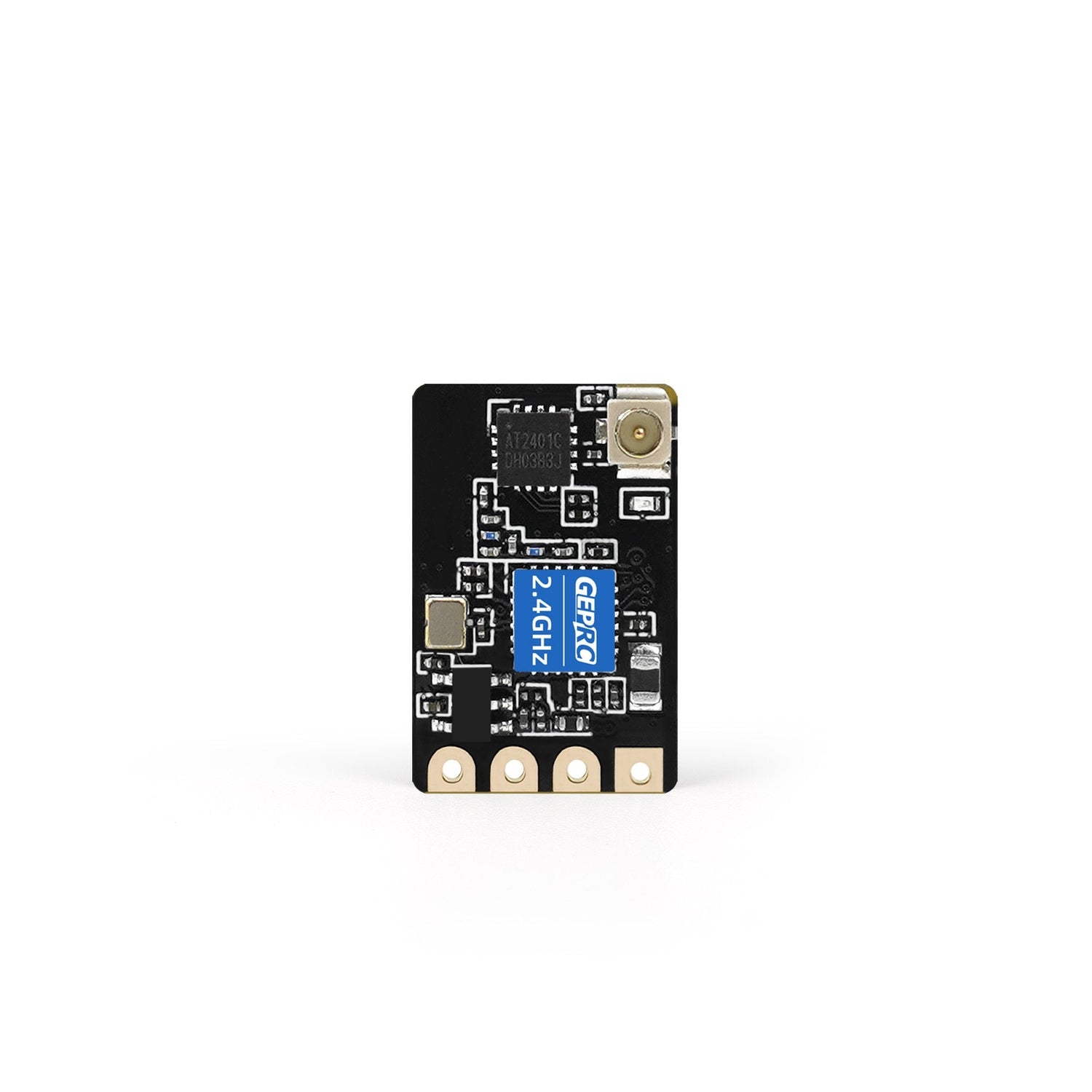

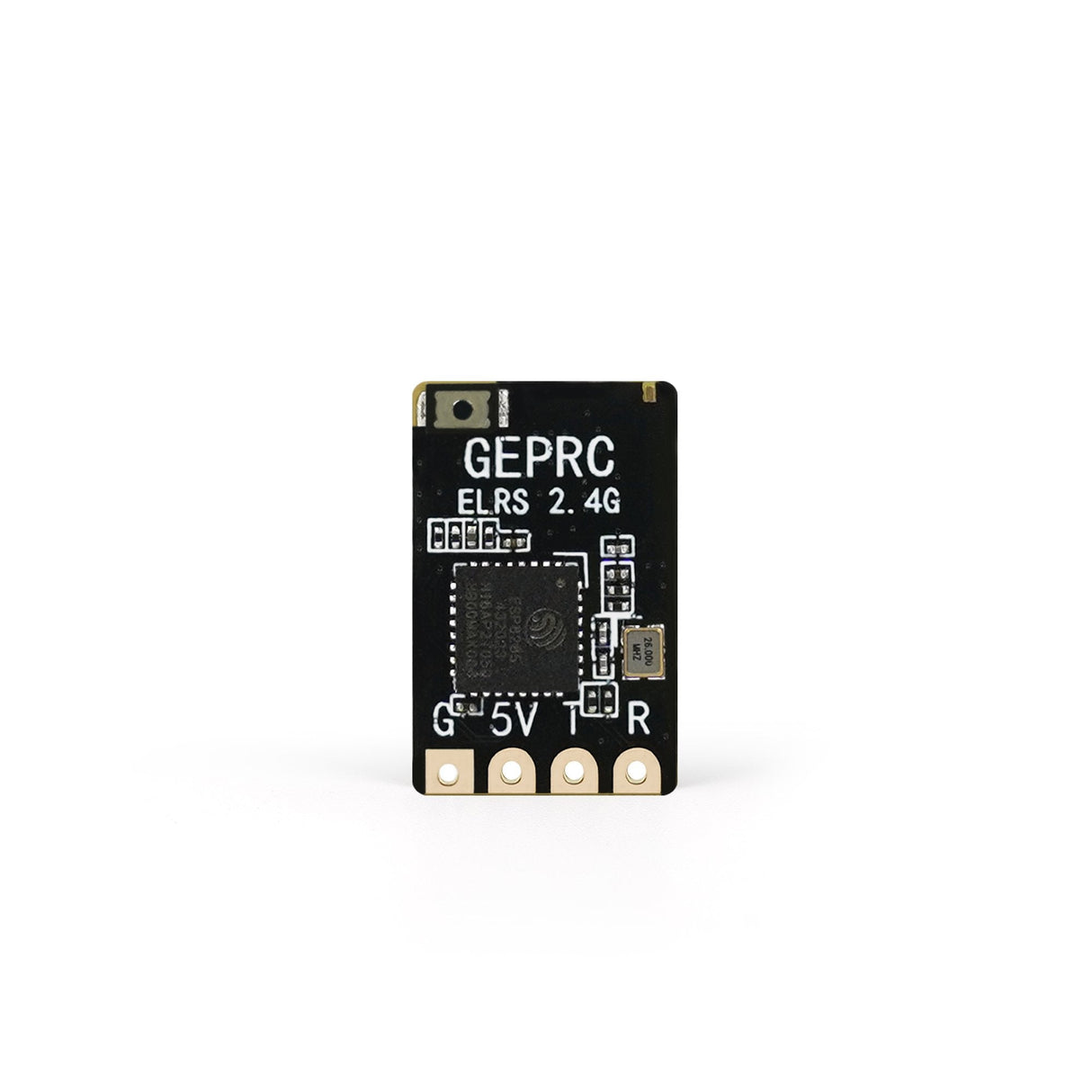

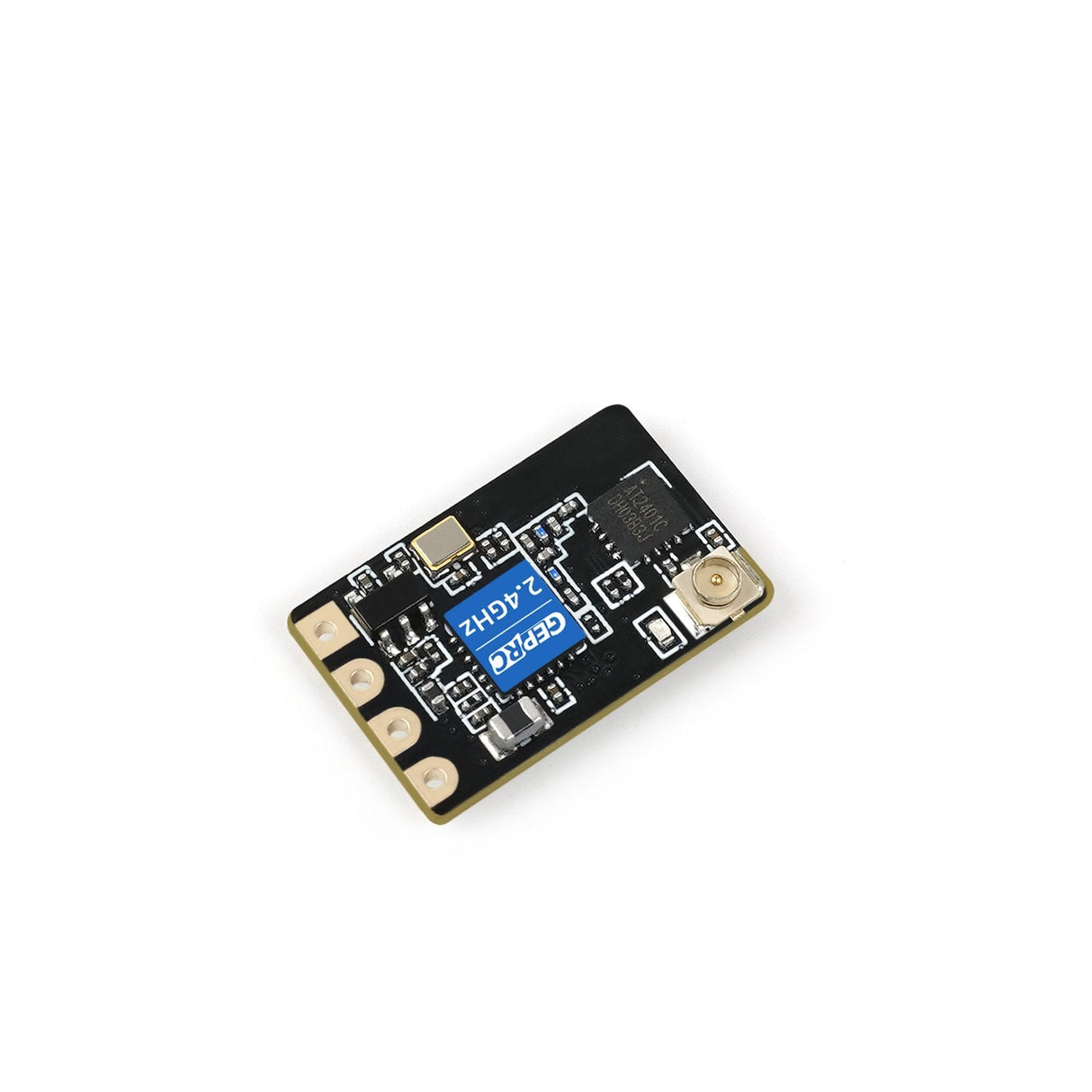

GEPRC ELRS Nano 2.4G PA100 Receiver

The GEPRC ELRS Nano 2.4G PA100 Receiver is a cutting-edge 2.4G receiver system that builds upon the powerful capabilities of the open source project ExpressLRS. This advanced system boasts long range capabilities, low latency, a refresh rate of up to 1000Hz, and an affordable price. By implementing a TCXO temperature compensated crystal oscillator, the ELRS Nano 2.4G PA100 Receiver effectively avoids frequency shifts caused by temperature changes. Additionally, it incorporates a built-in PA+LNA for a telemetry power of up to 100mW, and even includes a WIFI antenna for convenient firmware upgrades via WIFI.

Package Includes:

1x ELRS Nano 2.4G PA100 Receiver

1x Antenna

1x Heat shrink tube

4x Silicone cable

1x Pin (4pin)

1x Instruction manual

Features:

• 17x11mm Small size
•  0.7g weight
•  WIFI Upgrade firmware
•  ELRS open source project, remote control
•  Maximum refresh rate of 1000Hz
•  The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control
•  Built-in PA + LNA, up to 100mW telemetry power

Specifications:

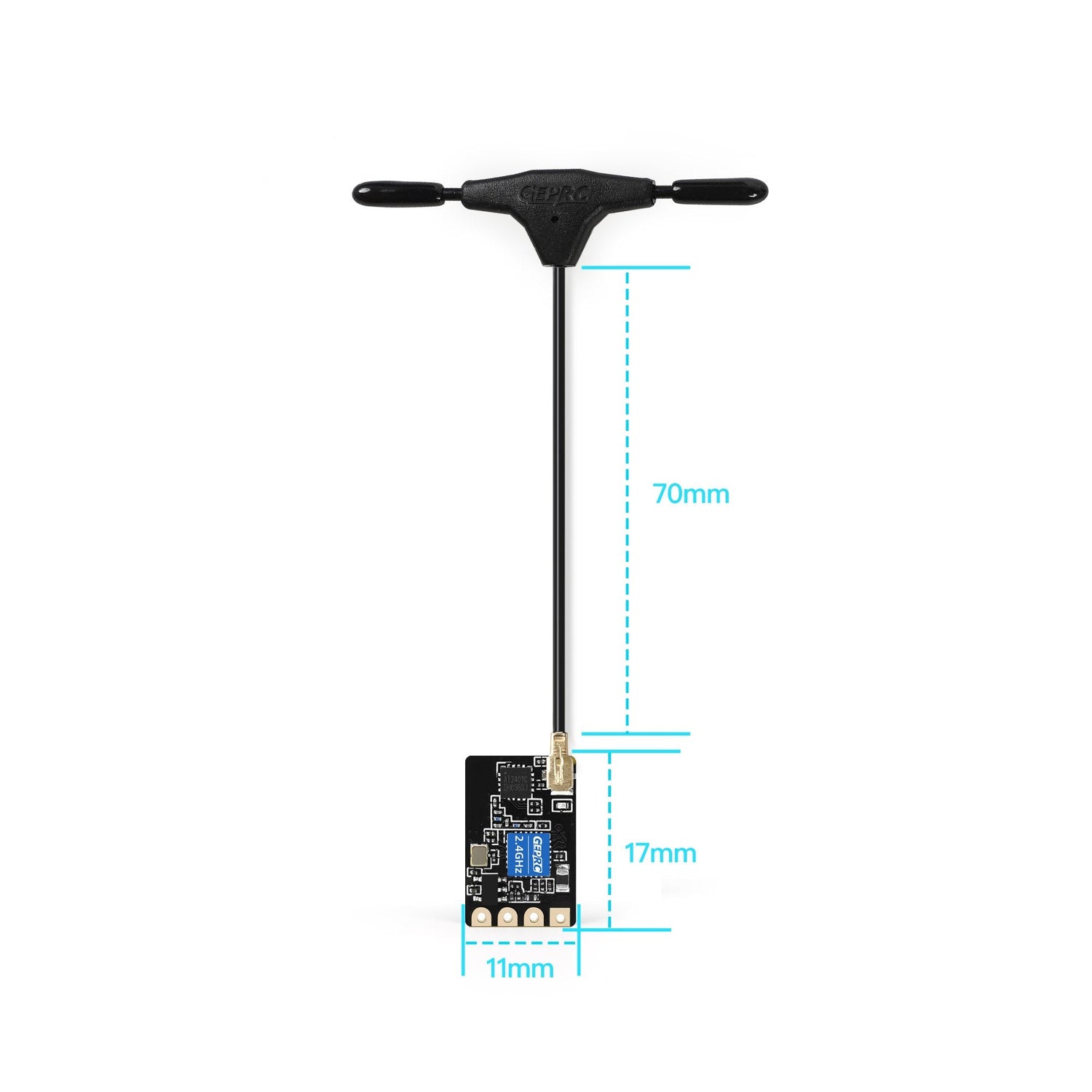

Size: 17x11mm

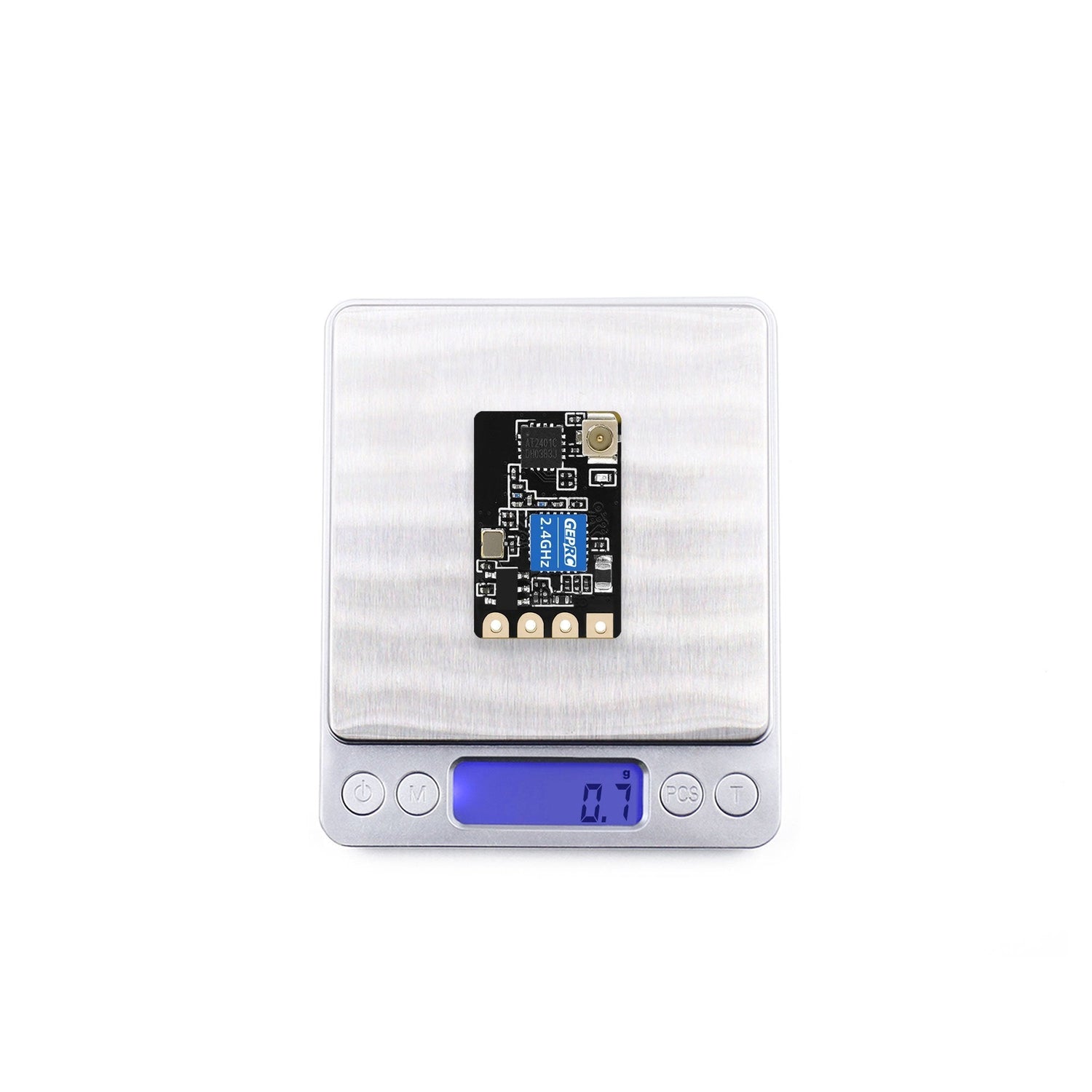

Weight: 0.7g (RX only)

Chips: ESP8285, SX1281

Crystal Oscillator: TCXO

Frequency Band: 2.4GHz ISM

Refresh Rate: 25Hz-1000Hz

Input Voltage: 5V

Antenna Connector: ipex1

TLM Power: 100mW

Firmware：GEPRC Nano 2.4GHz PA100 RX
