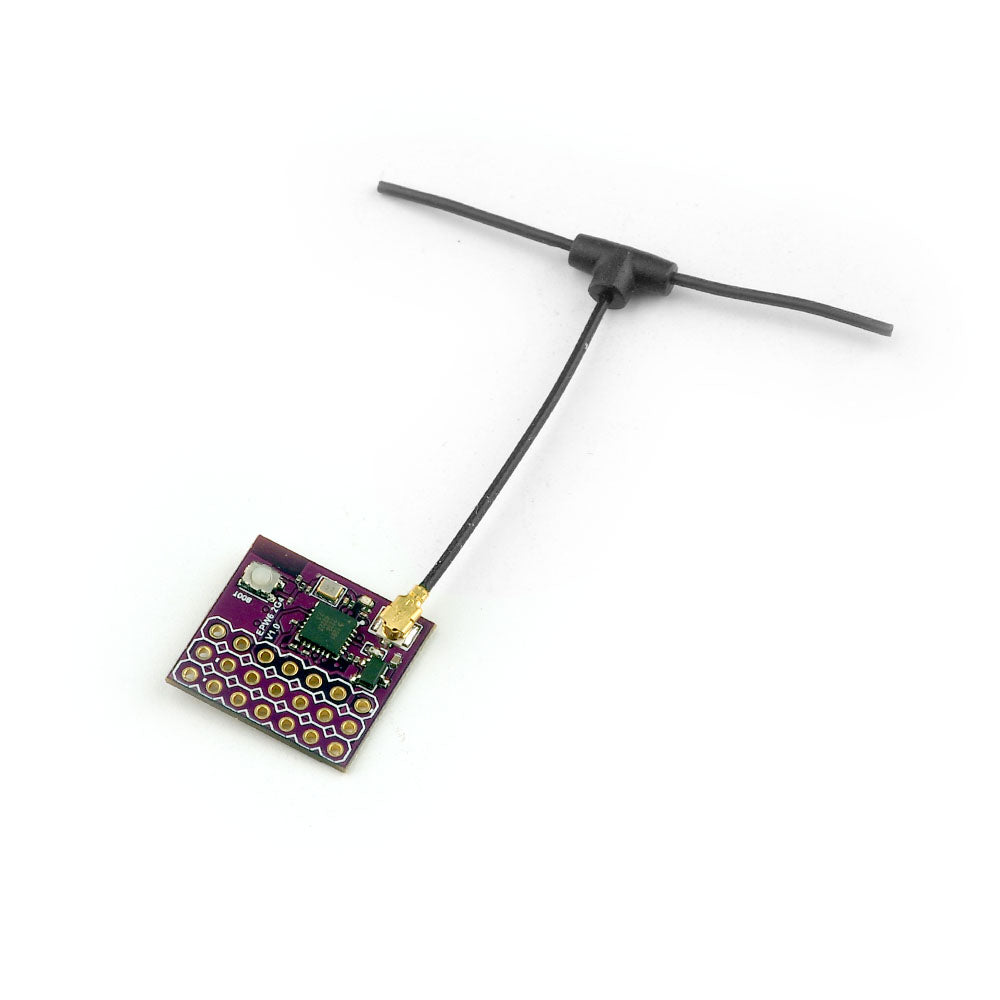

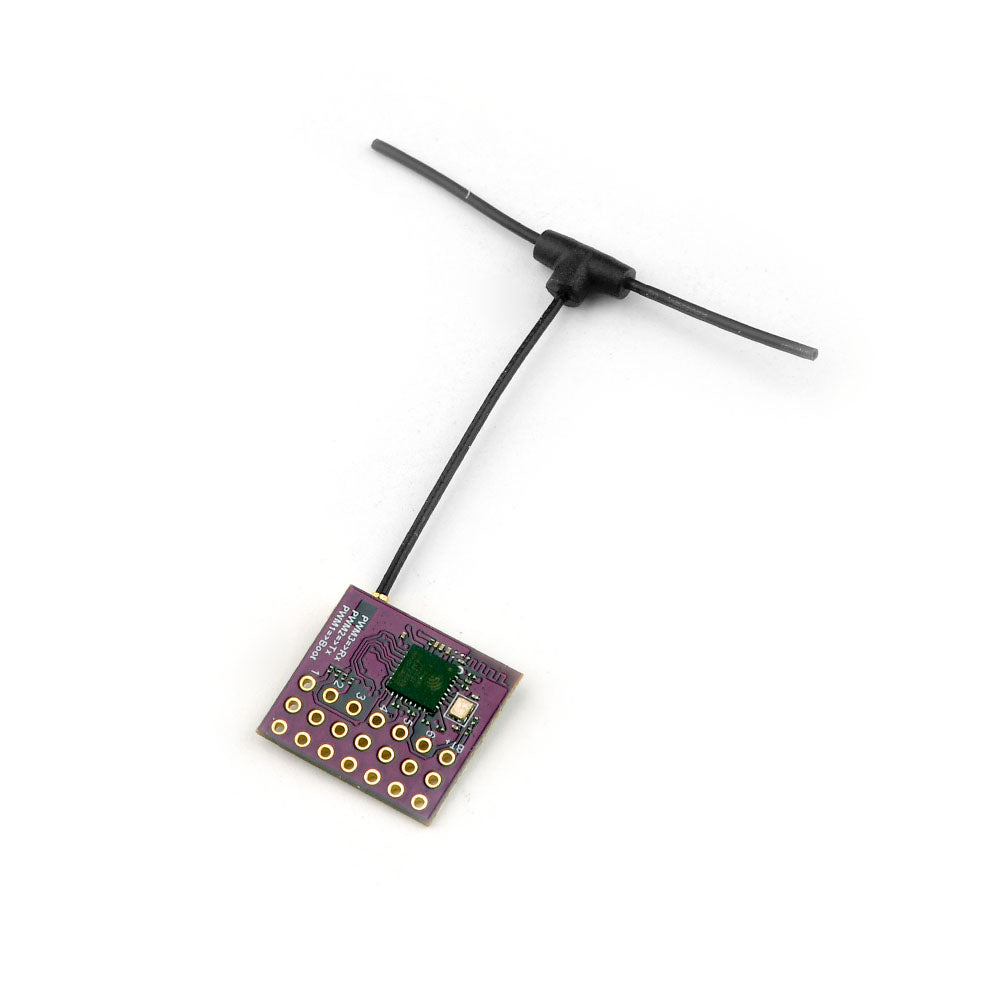

Happymodel ExpressLRS ELRS EPW6 TCXO 2.4GHz 6CH PWM RC Receiver
Happymodel ExpressLRS ELRS EPW6 TCXO 2.4GHz 6CH PWM RC Receiver est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.
Happymodel ExpressLRS ELRS EPW6 TCXO 2.4GHz 6CH PWM RC Receiver
Description
Description
Ideal for fixed wings big and small.

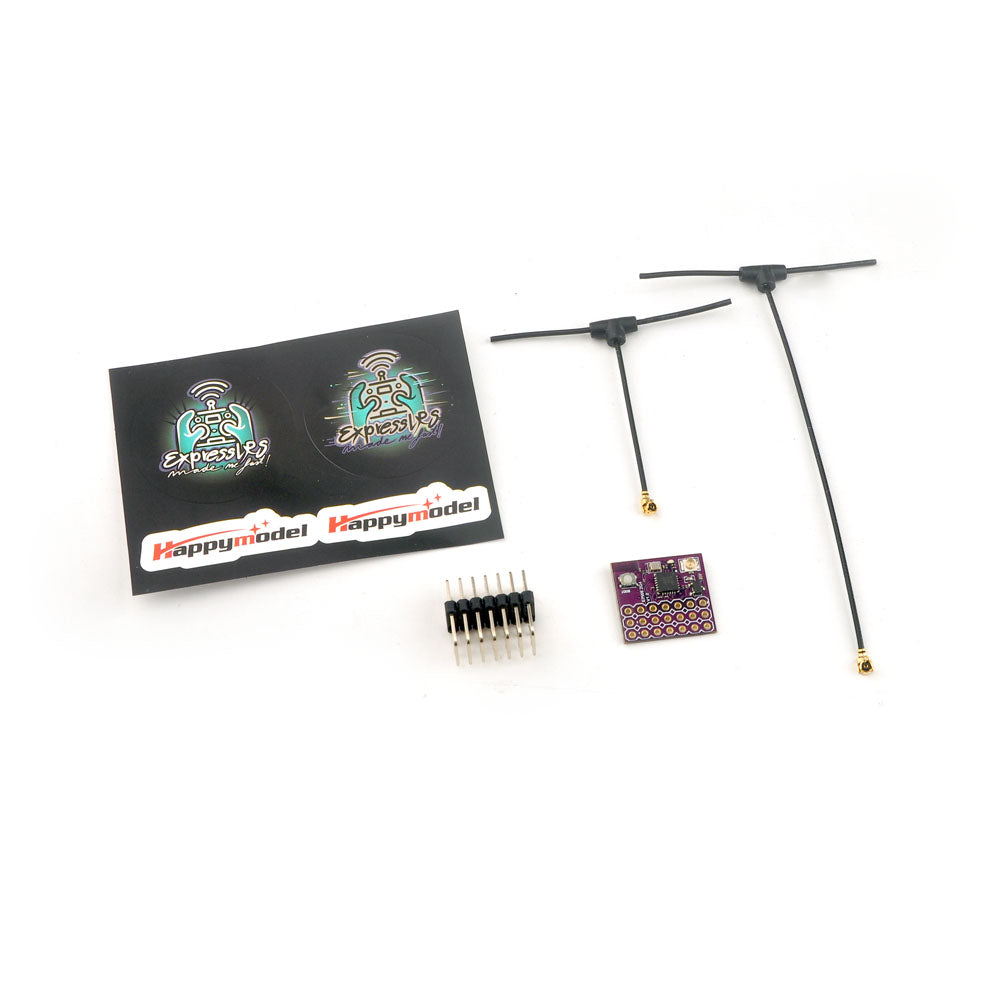

Package Includes:
1 x Happymodel EPW6 TCXO 2.4GHz PWM Receiver
2 x 2.4GHz antenna
3 x 7pin 2.54mm
Specifications:
Item: Happymodel EPW6 TCXO 2.4GHz pwm receiver
ESP8285, SX1280/1281
Antenna connector: IPEX MHF 1/U.FL

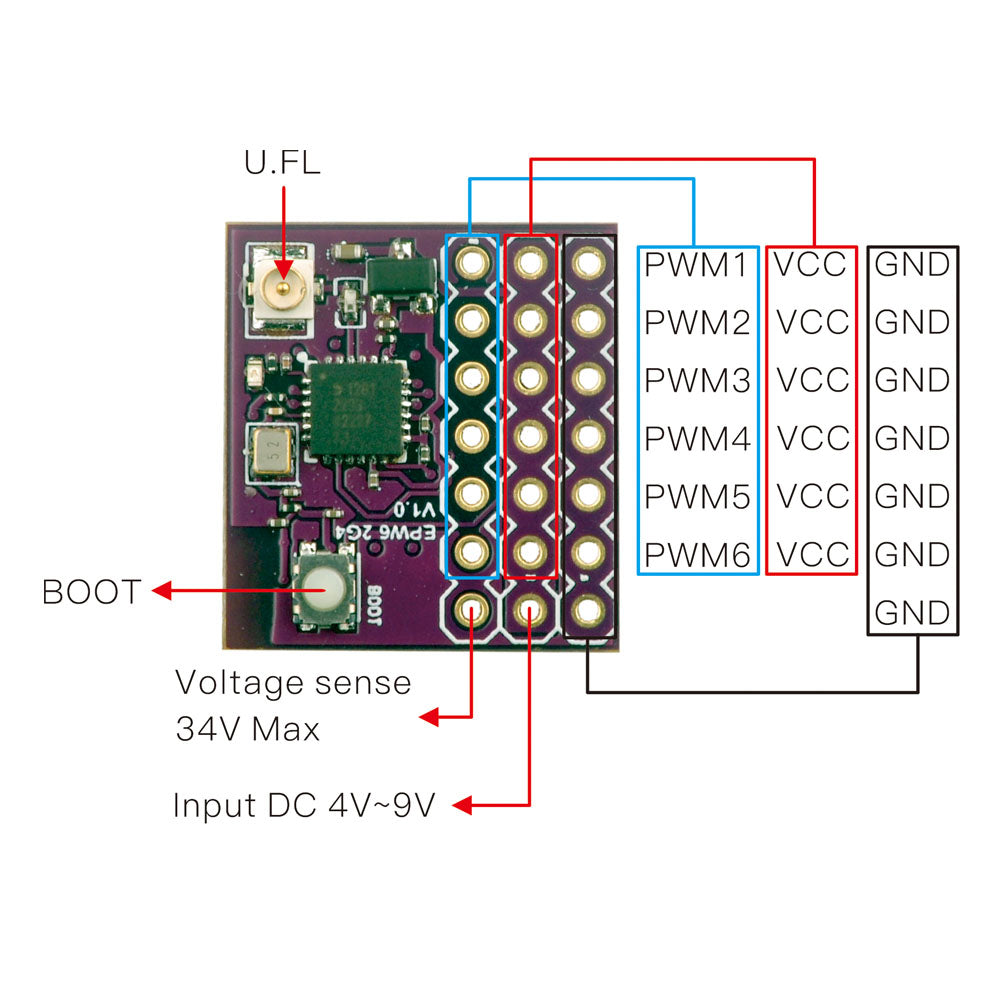

6x PWM outputs
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry power: 12dbm
Receiver protocol: PWM or CRSF
Input voltage: +5v~8.4v
PCB size: 19mm x 17.5mm
Weight: 1.49g / antenna
Firmware:
Target option1: Generic ESP8285 6xPWM 2.4Ghz RX
PWM receiver via 1~6 PWM outputs
Target option2:HappyModel_EP_2400_RX
CRSF Serial receiver via TX and RX
Firmware update via WIFI
How to enable CRSF serial output:
- First enable wifi for the receiver
- 2. Visit http://10.0.0.1/hardware.html
- 3. Delete “pin 1” and “pin 3” from pwm out pins
-
4. Add pin 3 and pin 1 to CRSF Serial Pins
