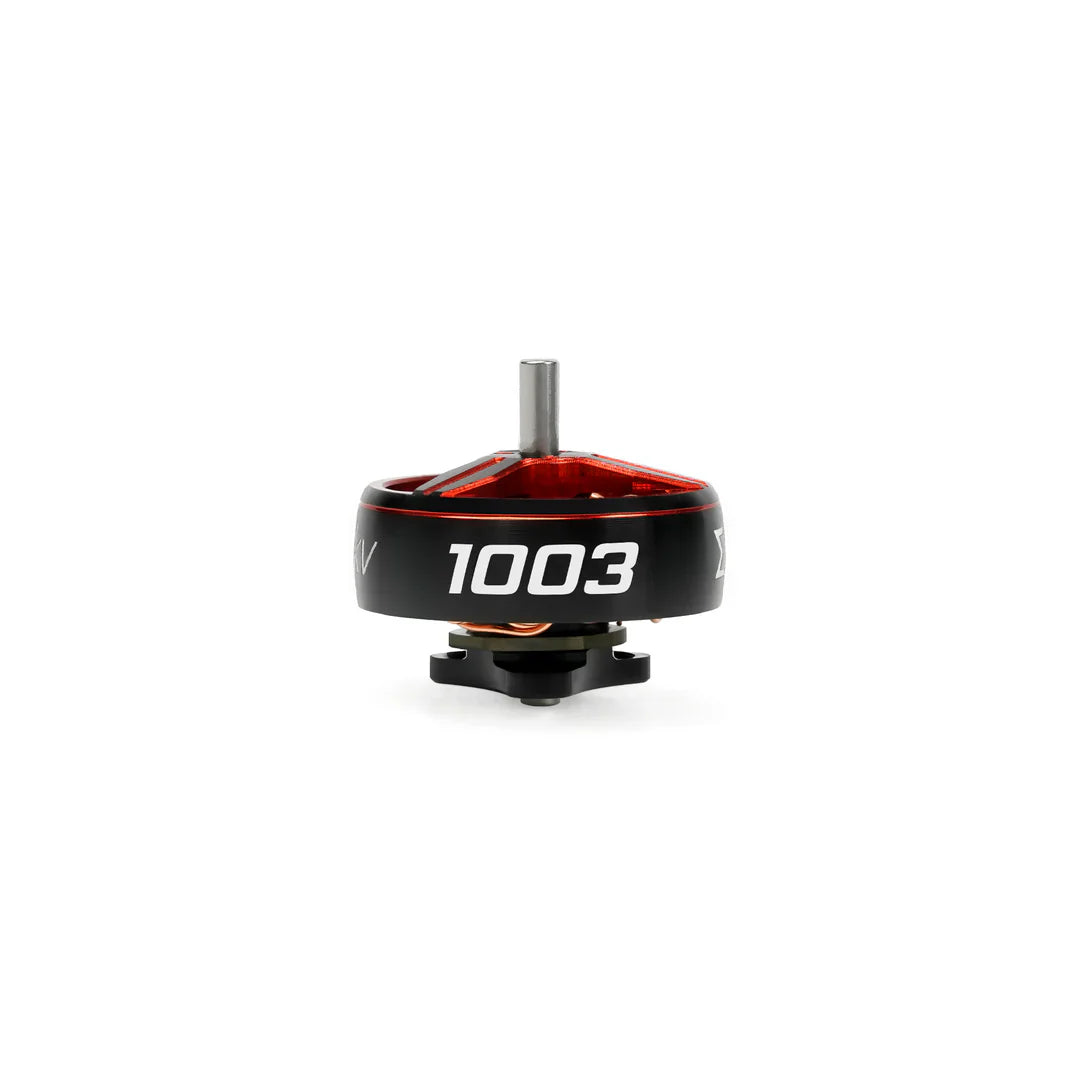

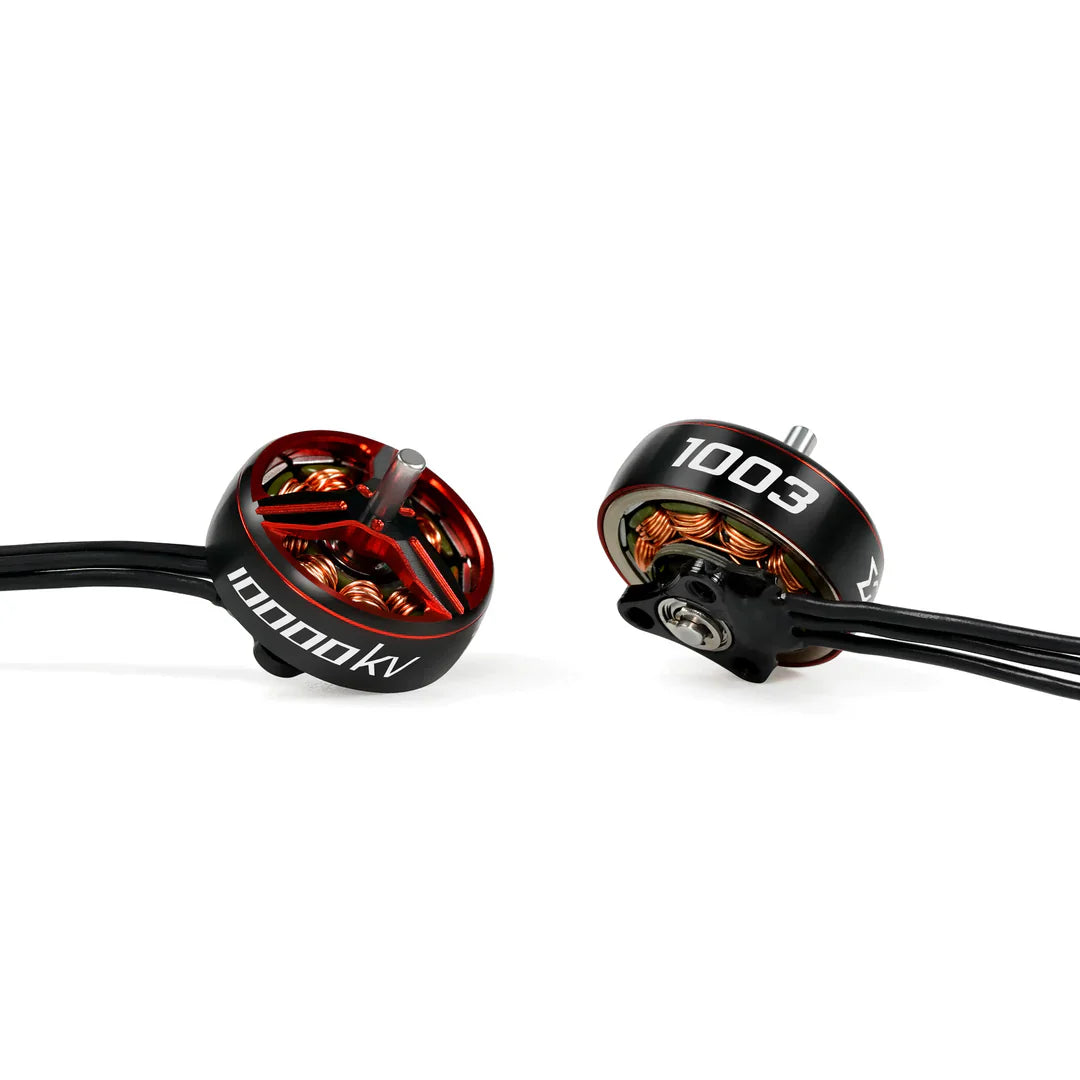

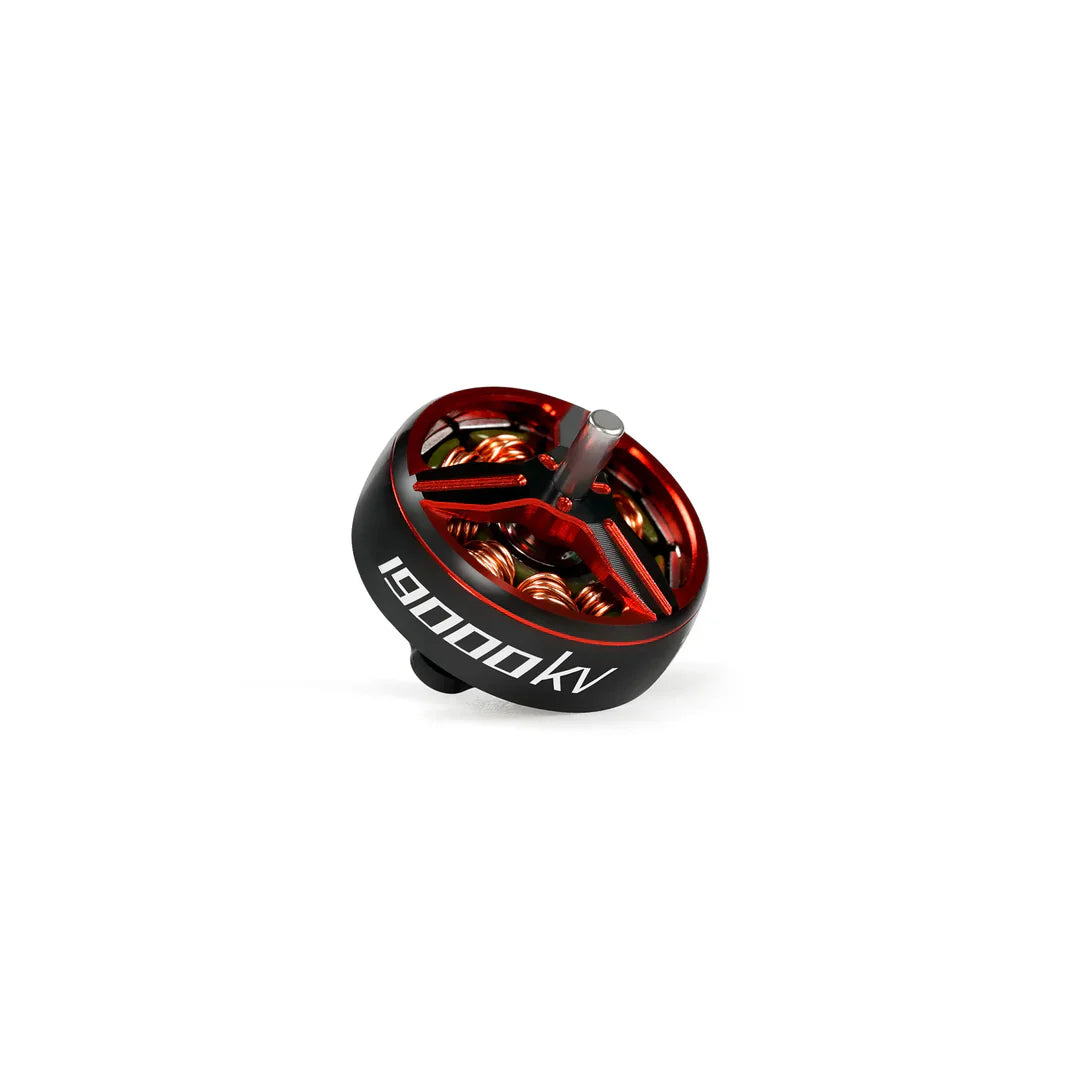

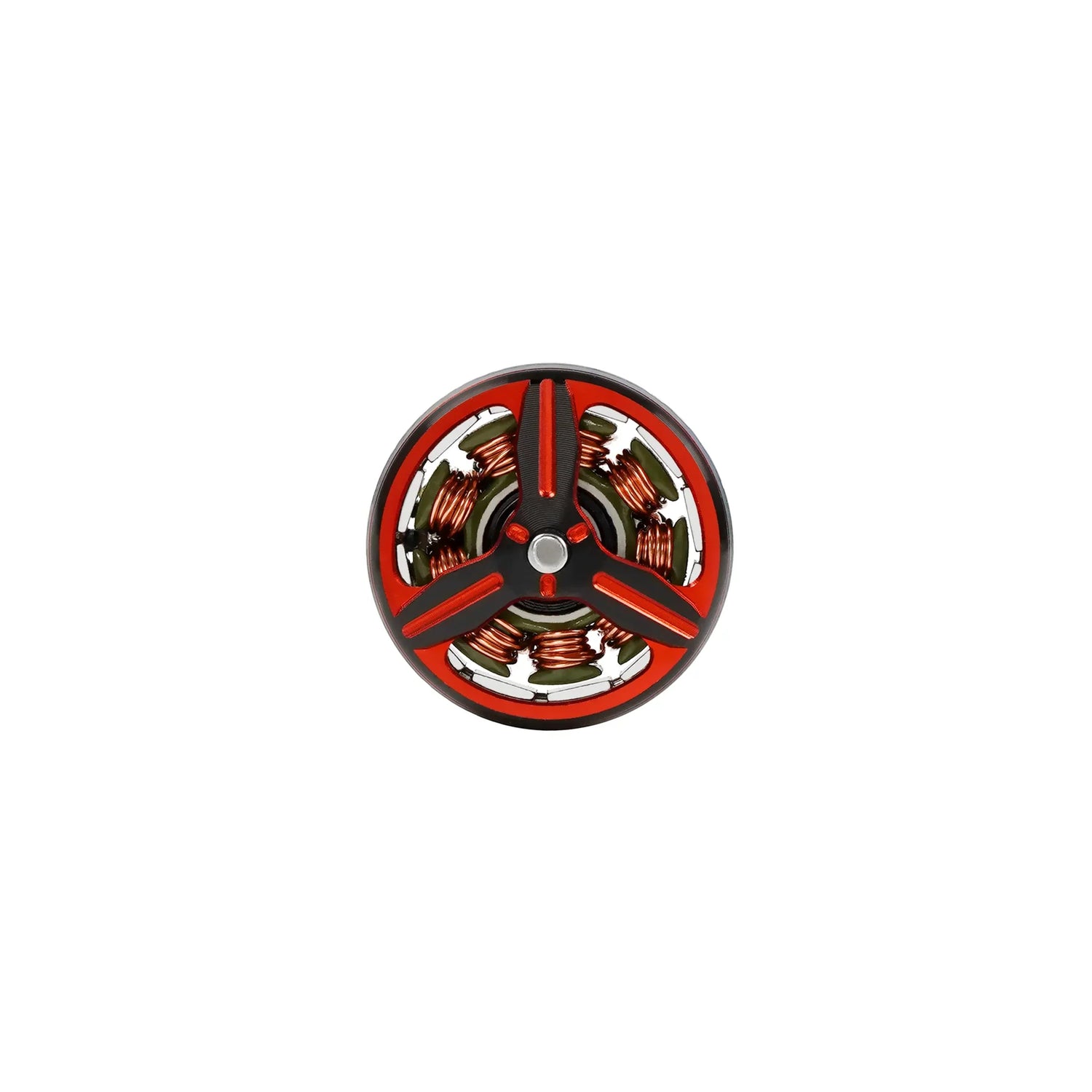

Sub250 1003 Motor 1.5mm Shaft 4-Pack (10000KV/19000KV)

Sub250 1003 brushless motors deliver reliable performance for 1.6-2 inch FPV drones. Engineered for tiny whoops, freestyle flying, and lightweight camera work, these motors combine low weight with sustained high thrust at full throttle. The 1.5mm shaft design ensures compatibility with standard micro builds.

Package includes:

4x 1003 motors

16 x M1.6*3mm screws

Features：

• Small in size and lightweight, only 3.5
• N52H strong magnetic magnet, high-temperature resistant coil, full of power.
• Using imported ball bearings, the motor has high efficiency and long service life.
• Low loss stator, low heat generation, and high efficiency.
• With fine motor dynamic balance adjustment, the motor runs smoothly and stably.
• Suitable for 1.6 -2 inches mini FPV drones.
• The 1.5mm shaft diameter is suitable for most propellers on the market.

Specifications:

Brand Name: Sub250

Model：1003 Motor

KV value: 10000KV/19000KV

Rated voltage: 3.7 -7.4(V)

Magnet: N52H

Stator diameter: 10mm

Stator height: 2mm

Outlet diameter: Φ1.5mm

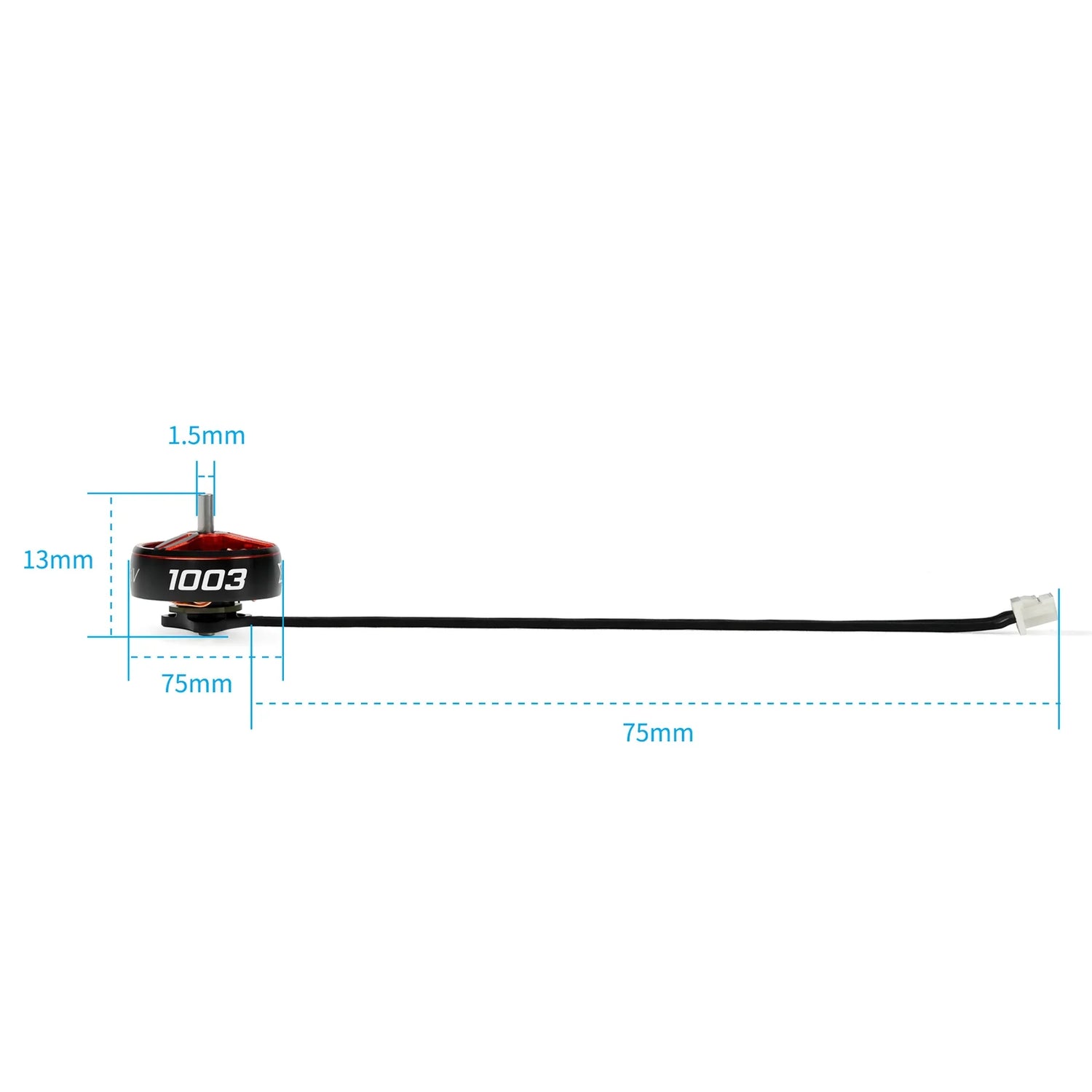

Motor Dimensions: Φ13.83mm*8.7mm

Mounting holes: 6.6*M 1.4

Maximum current: 11.5A

Recommended ESC: 5A-12A

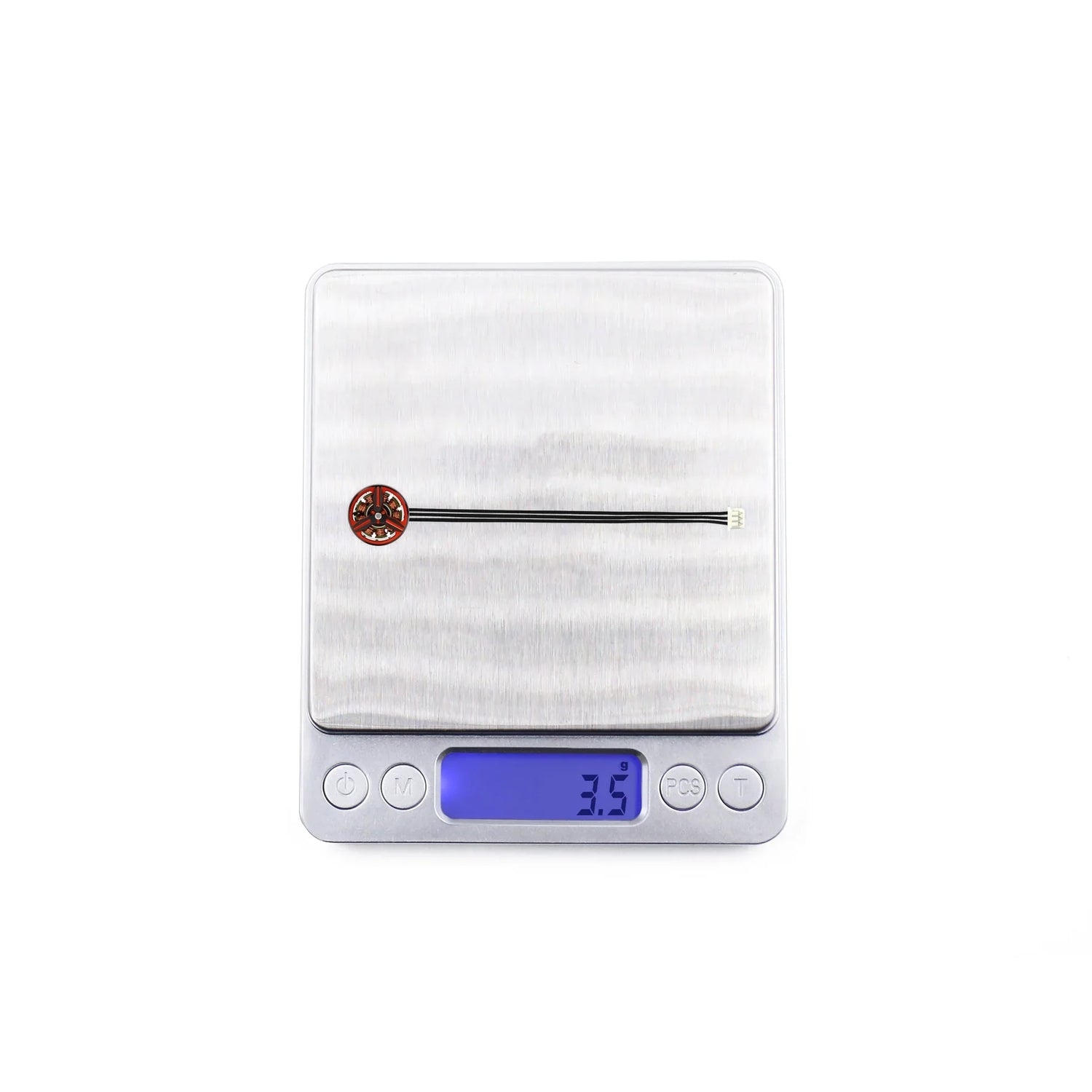

Weight: 3.5g （4cm wire）

Applicable model: 1.6- 2-inch FPV drones

Recommended battery: 1S 380mAh-530mAh LiPo
