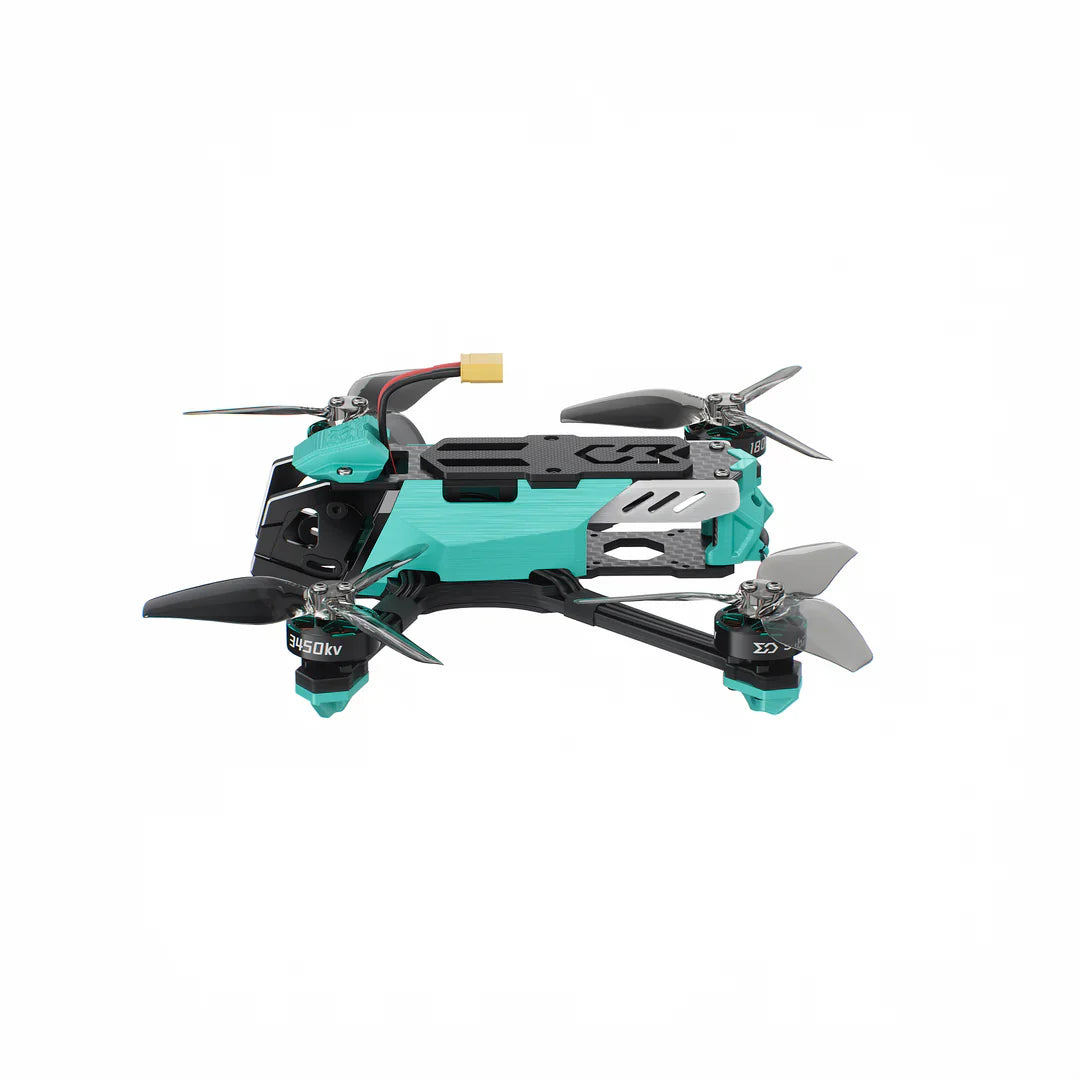

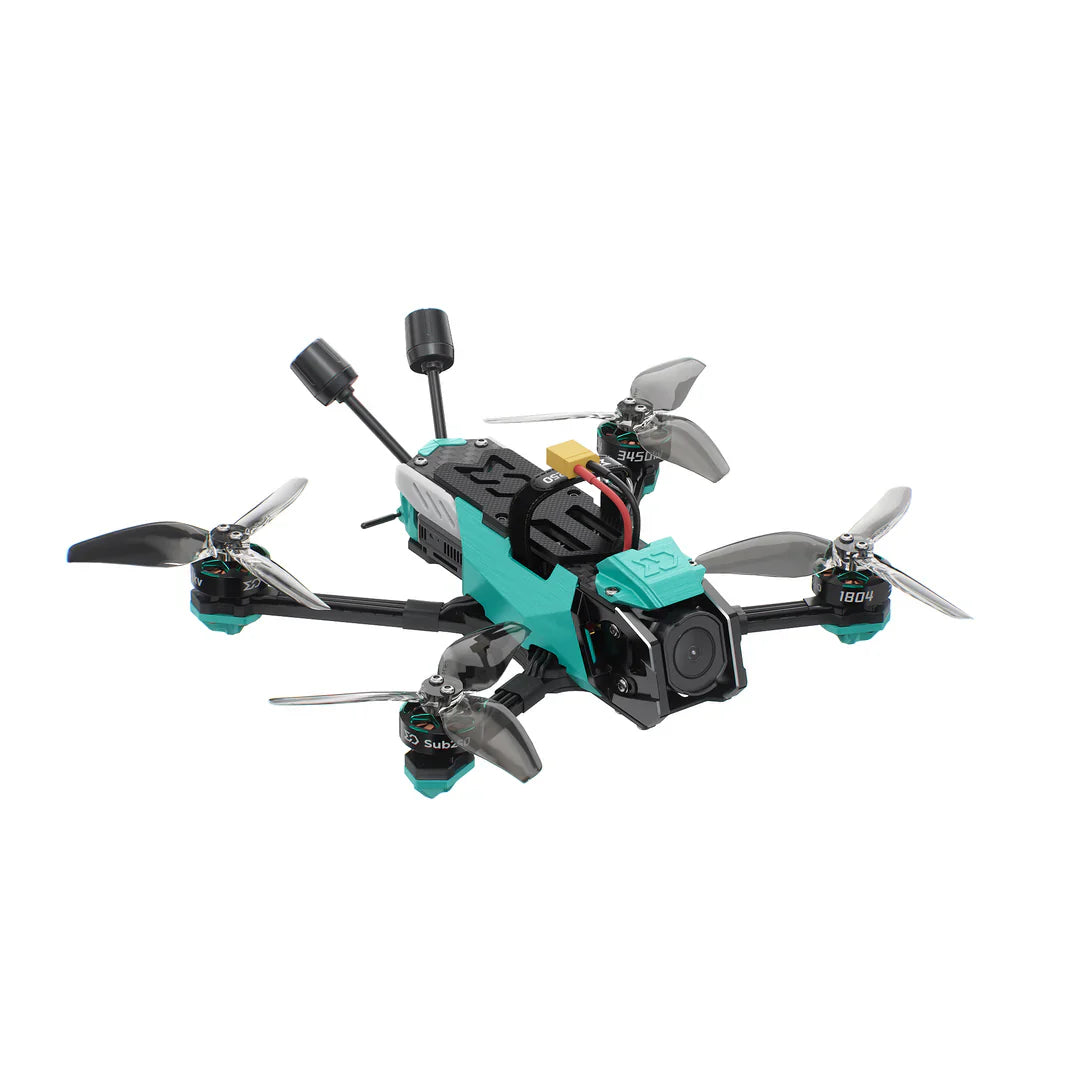

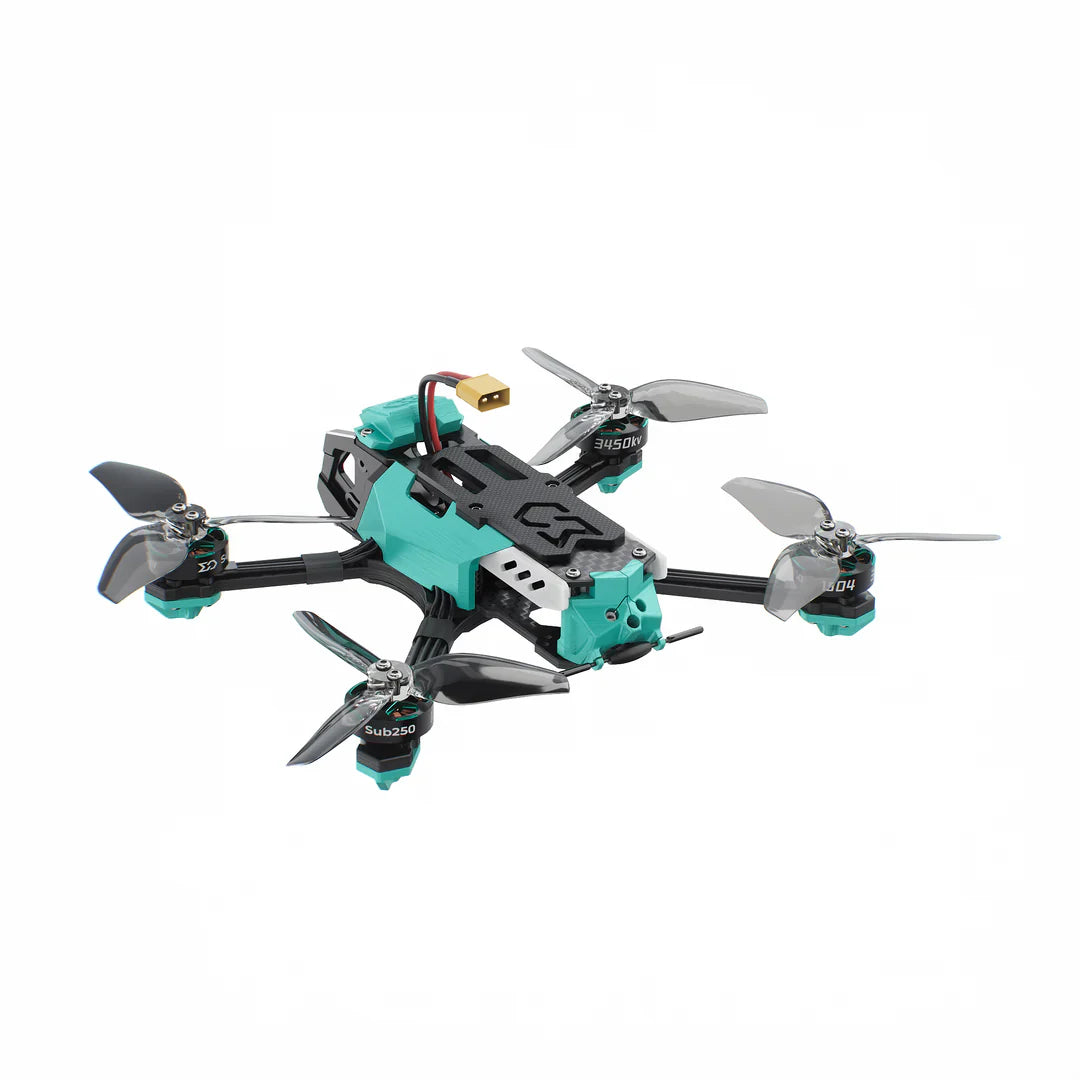

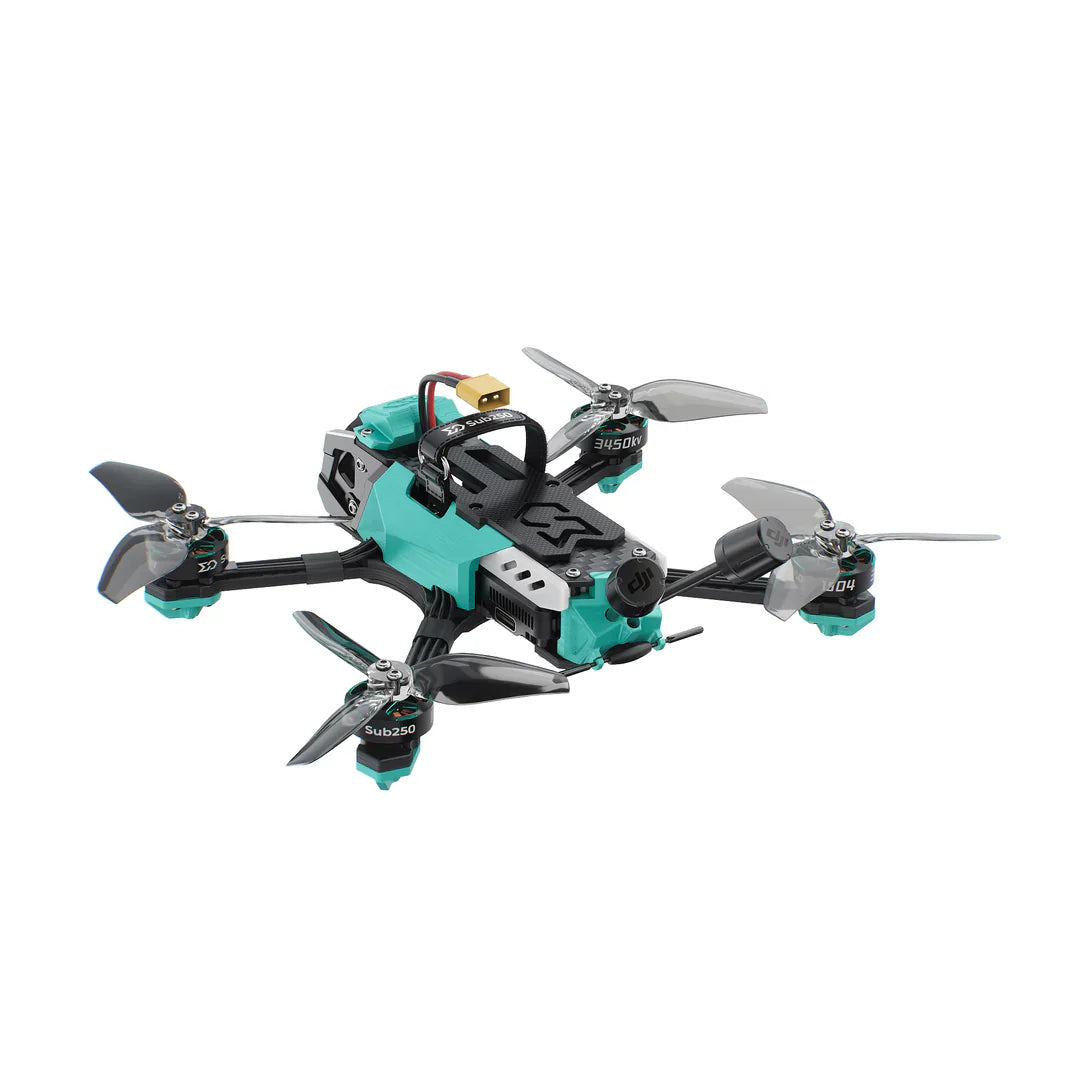

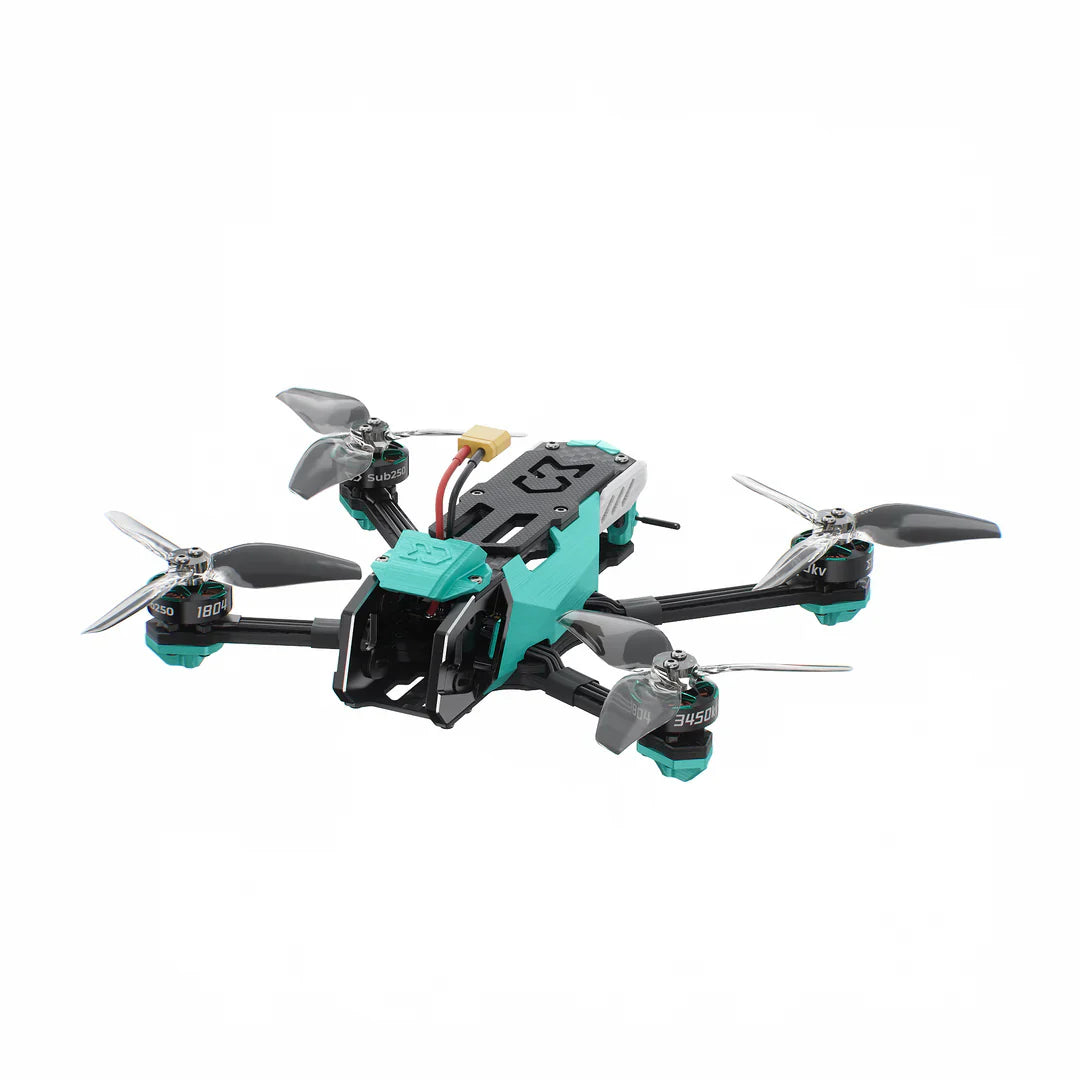

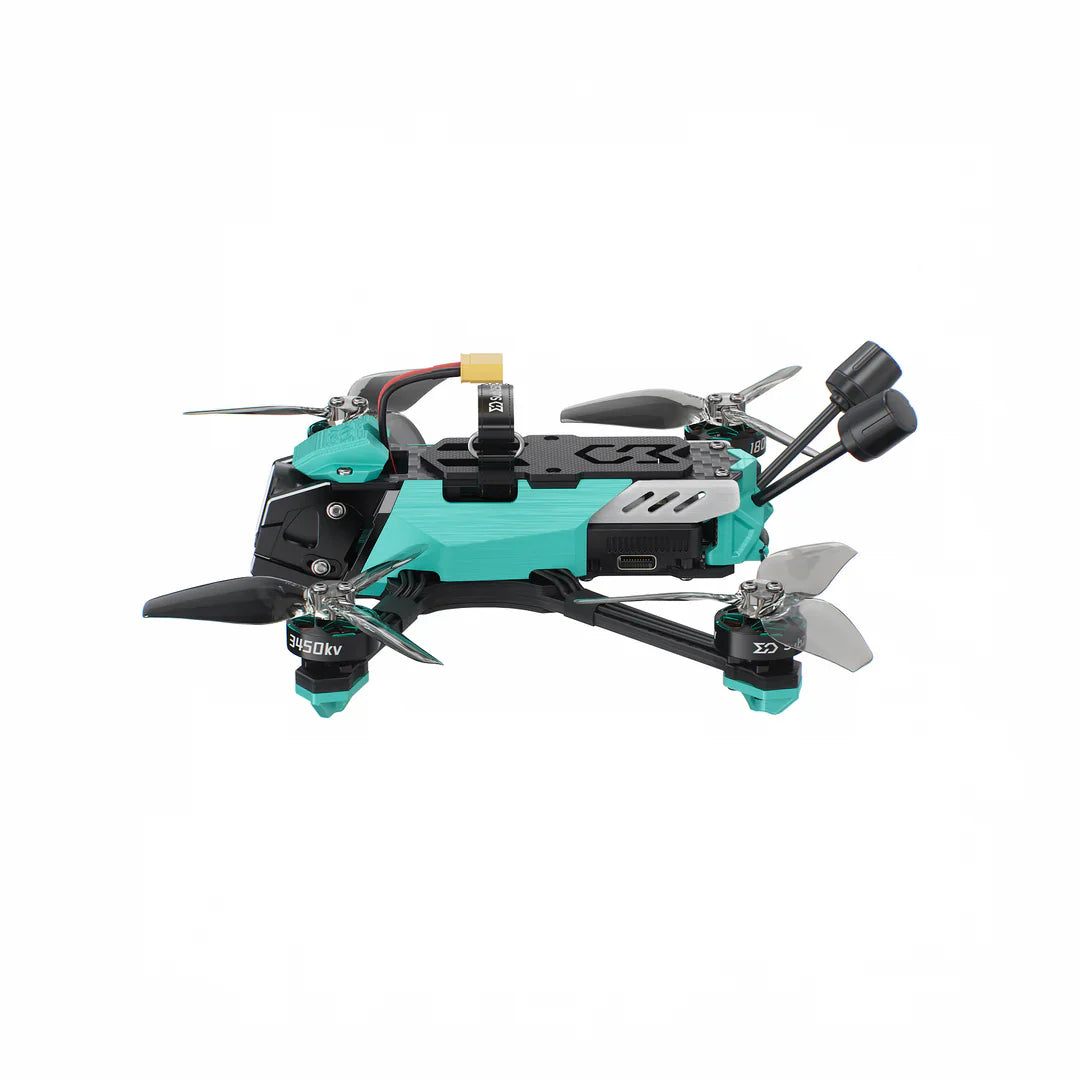

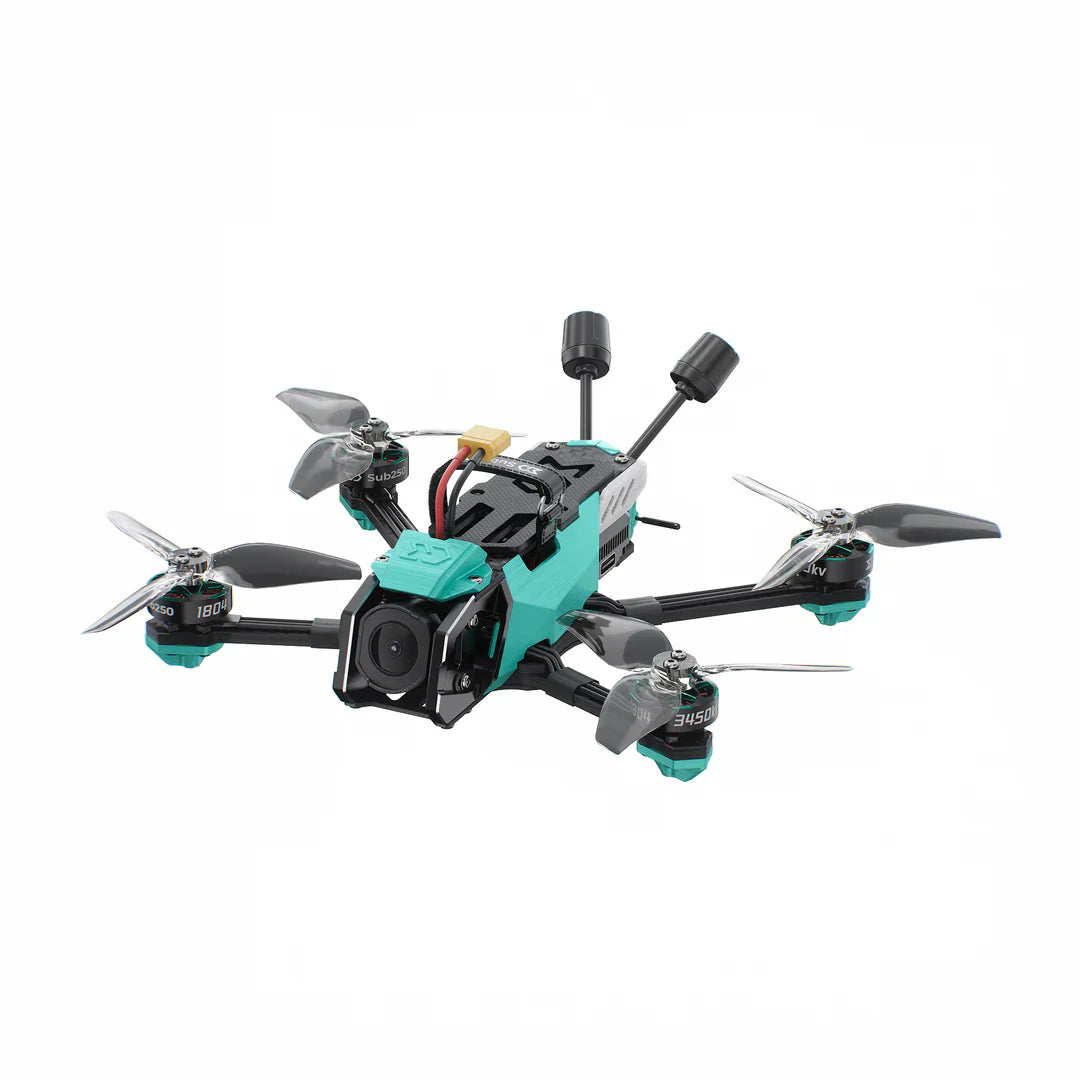

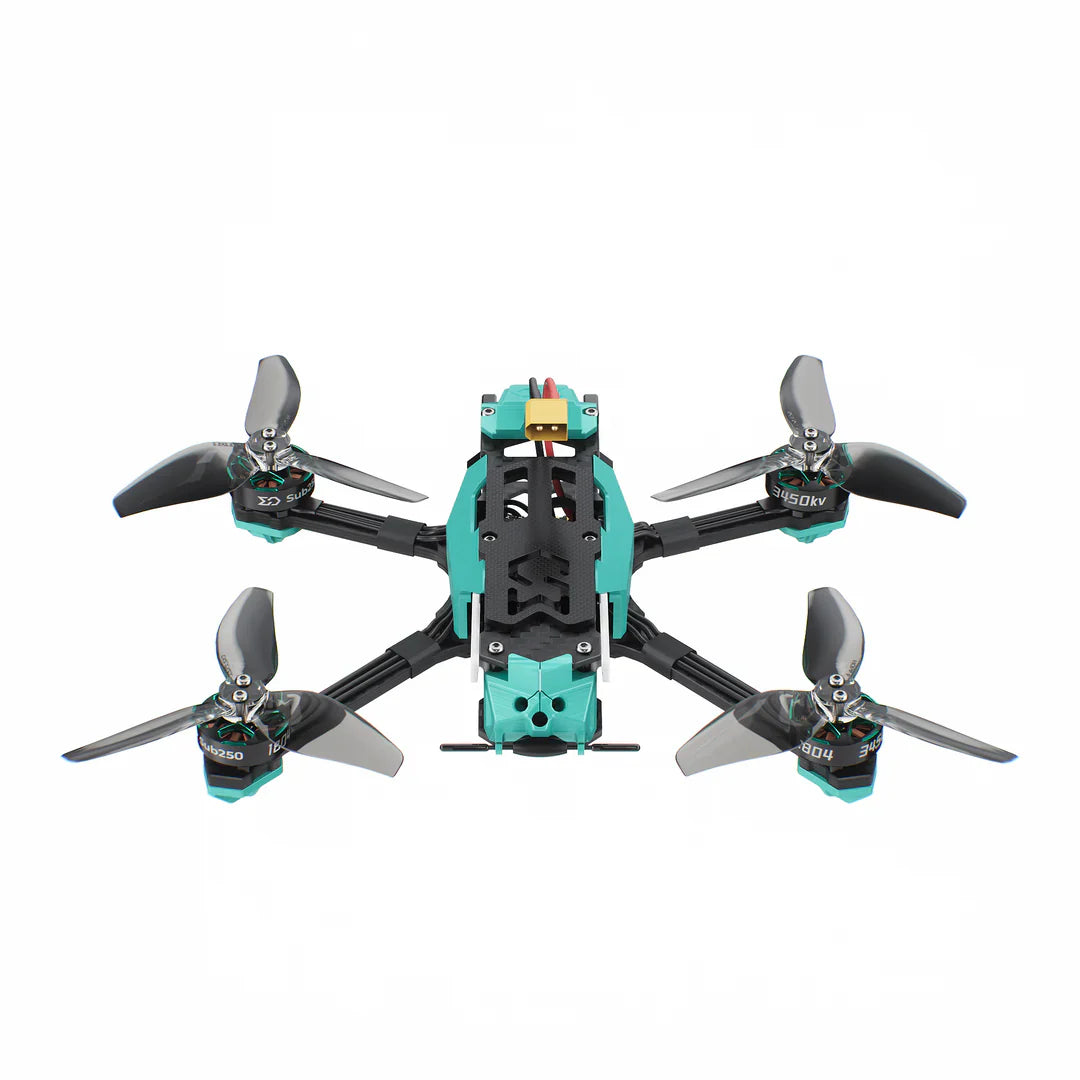

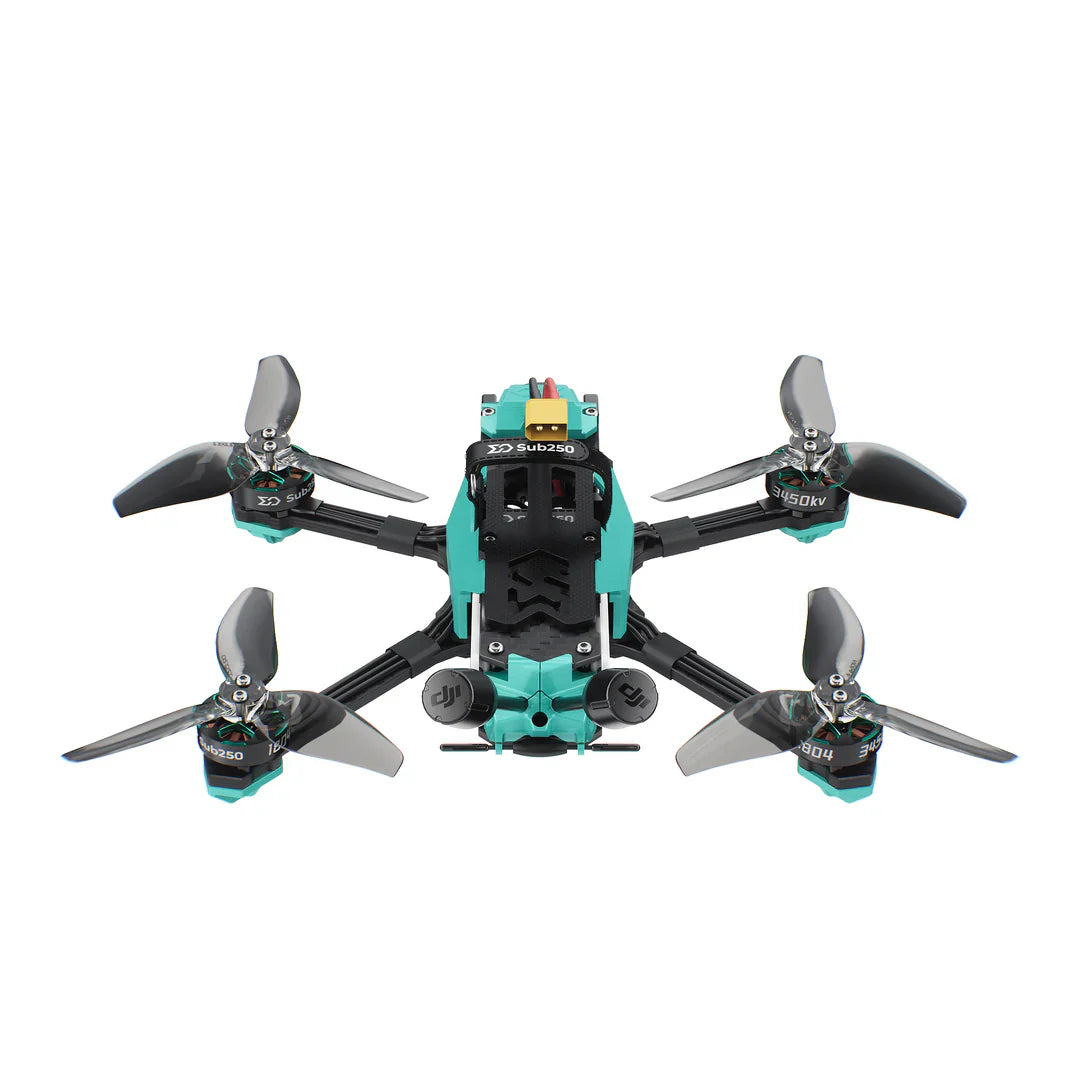

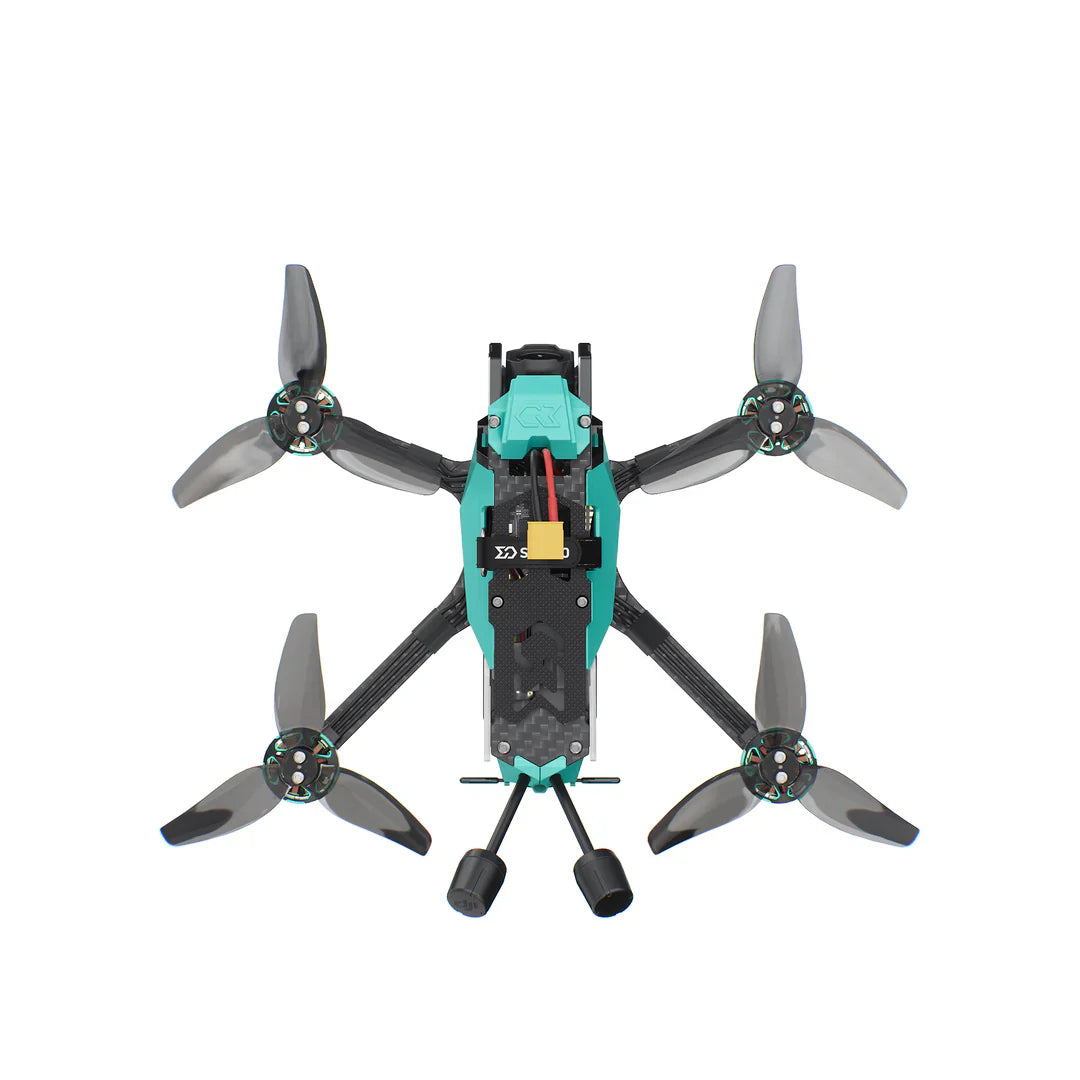

Sub250 OasisFly35 DC HD O4 Pro GPS Drone (ELRS 2.4G)

OasisFly35 – Max compatible with O4 Pro HD VTX. DC frame + 1804 motors deliver strong thrust and clean, wide visuals. Redfox A3 45A AIO ensures fast response and high efficiency. GPS included for reliable RTH in any environment.

Package Includes:

1× GPS Setup Manual

1× Sub250 RedFox A3 AIO Manual

1× Sub250 Rear Silicone Strap with Zinc-Alloy Buckle (11×170 mm)

1× HQ T3.5×3.5×3 Propellers (2 CW + 2 CCW)

1× Sub250 Redfox A3 AIO USB-C Adapter Board

1× 45 mm Dual-End SH1.0-5P Cable

1× Sub250 Merchandise Sticker

1× Sub250 Drone Series Sticker

1× Battery Anti-Slip Pad

1× Sub250 OasisFly35 Lens Silicone Pad (50°)

1× Landing Gear Vibration-Damping Pad (Pack)

1× L-Shaped Hex Wrench (1.5 mm)

2× M2×4×22 Aluminum Textured Standoff (Black)

1× Spare Screw Pack

1× OasisFly35 DC Analog Camera Mount (3D Print)

1× Right Side Plate (Large)

1× Left Side Plate (Large)

1× Right Rear Side Plate

1× Left Rear Side Plate

4x TPU Landing Pads

Features:

• Compatible with Analog / O3 / O4 Pro, switch freely between scenarios to meet varied creative needs.
• DC frame design delivers clean visuals and heightened flight immersion.
• 1804 3450KV motors + 45A AIO ESC ensure fast response for all flight maneuvers.
• Integrated side-plate structure combines aerodynamics and durability, protecting core components for impact-resistant flights.
• GPS standard across all models enables confident flying and RTH, handling complex environments with ease.

Specfications:

Wheelbase: 175mm

Arm Thickness: 3.5mm

Bottom Plate: 1.5mm

Mid Plate: 2.5mm

Top Plate: 2.0 mm

Motor Mounting Pattern: 9*9mm / 12*12mm

VTX: DJI O4 Pro

Motor: 1804  3450KV

FC: RedFox A3 45A AIO

ESC Firmware: BLHeli_32

MCU： STM32F722

IMU：ICM42688-P

Propeller: HQ 3.5*3.5*3

Receiver: ELRS/PNP

GPS: SUB-M10

Recommended Battery: 4S 530mAh

Power Connector: XT30

Body Weight: 194g

Takeoff Weight: 245g (with 4S 530mAh battery)

Max Flight Time: 5min 20s

FC Firmware & Betaflight_4.5.2-SUB250REDFOXF722AIO
