TBS Lucid H7 Wing FC

For seasoned wing pilots, affordable high quality flight controllers have been far and between. Shortcomings in either supported software, redundancy on hardware, or price, have made it hard to pick a clear contender for your next project.

Introducing the TBS Lucid H7 Wing FC. Full-featured, versatile, reliable, and affordable. Behold! Our giant list of specs:

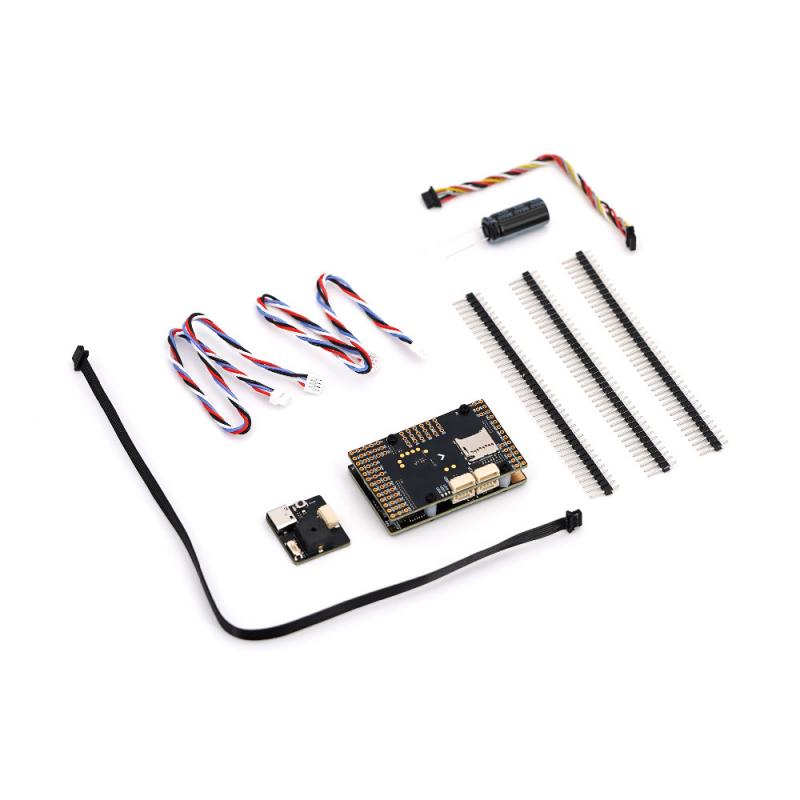

Package Includes:

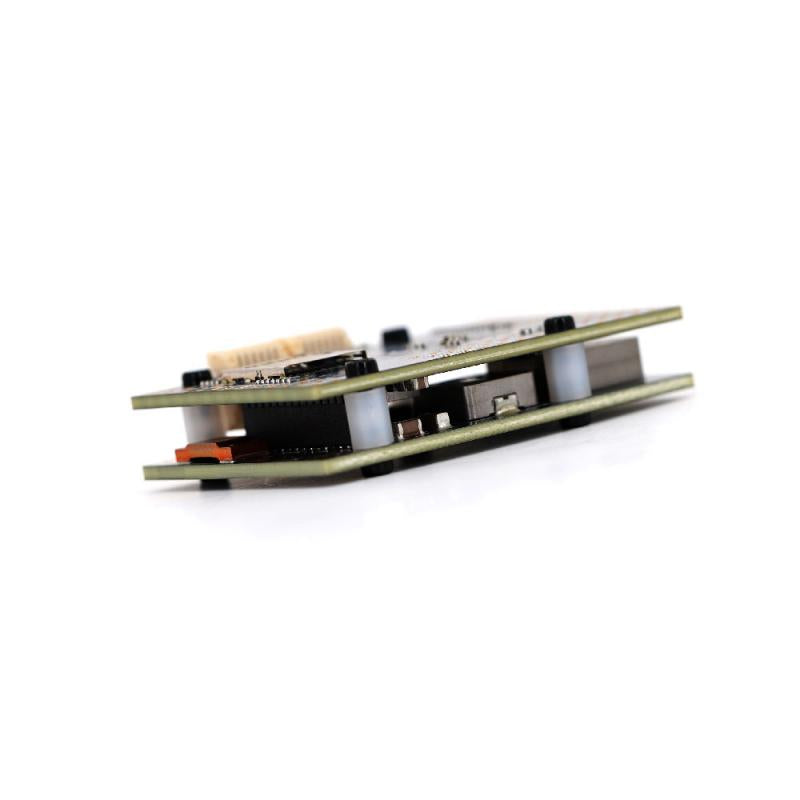

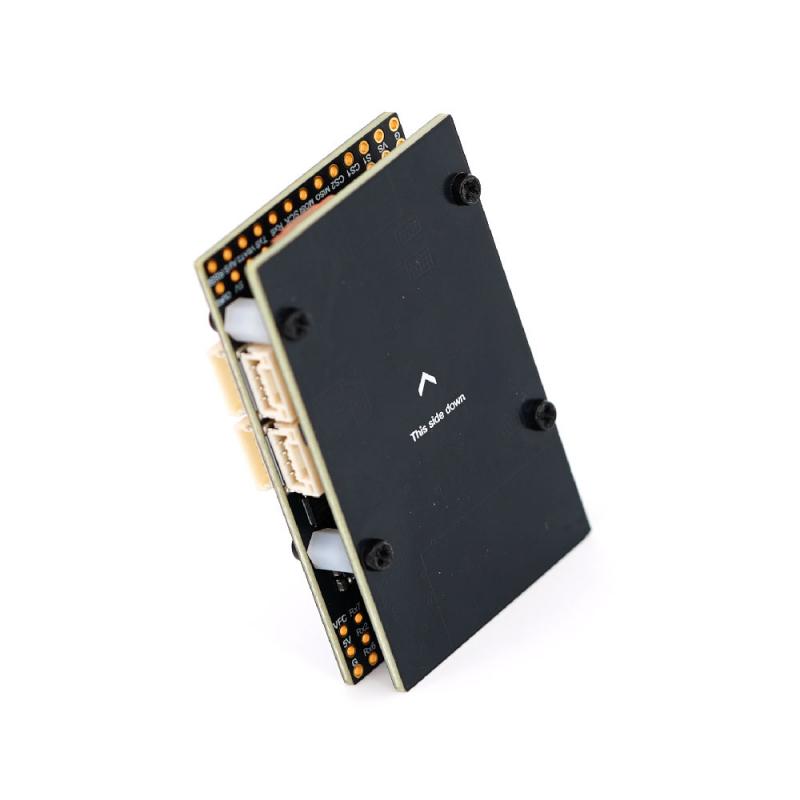

1x TBS Lucid H7 Wing FC & PDB (sandwiched boards)

1x USB(Type-C) / buzzer extender board

1x 10cm JST-SH-6P to JST-SH-6P cable for USB Extender

1x 25cm JST-SH-6P to JST-SH-6P cable foror HD Systems

2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port

1x 330uF 63V electrolytic capacitor

2.54 pin headers x 120 (unsoldered!)

Specifications:

• MCU: STM32H743VIH6, 480MHz, 2MB Flash
• Input voltage: 8V-50.4V (3-12S)
• Output power: 8A cont./10A peak BEC. 5V, 6V, 8.4V (selectable)
• Channels: 13x PWM (including LED)
• Gyro: ICM42688 x 2 (SPI1 & SPI4)
• Baro: DPS310 (I2C2)
• Peripherals: 7x UART, 2x I2C, 1x CAN
• Measurements: 6x ADC (Vbat, Current, CB2, CU2, RSSI, AirSpeed)
• High speed ports: MicroSD BlackBox, SPI3 on pin headers
• Analog FPV: Switchable dual camera inputs, AT7456E OSD, 5V/9V/12V support at 5A (selectable)
• Digital FPV: "DJI"-connector with SBUS and OSD communication
• Current sensor: 165A cont. / 240A peak
• FC BEC: 5V 3A cont. (for FC&peripherals)
• FPV BEC: 9V/12V 5A (selectable)
• Dimensions:  54 x 36 x 13 mm

Tech details:

• Battery Voltage Sensor: 1K:20K (Scale 2100 in INAV,  BATT_VOLT_MULT 21.0 in ArduPilot)
• ADC VB2 voltage divider: 1K:20K
• ADC AirSpeed voltage divider: 20K:20K
• ArduPilot Target: TBS_LUCID_H7_WING
• INAV Target: TBA
• Betaflight Target: TBA
