TBS Unify Pro32 DP (MMCX)
TBS Unify Pro32 DP (MMCX) est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.
TBS Unify Pro32 DP (MMCX)
Description
Description
The TBS UNIFY PRO32 DP (MMCX), is a high-quality video transmitter (VTx) designed for use in fpv drones. It comes with several features like improved robustness, decreased size and power consumption. Enhanced performance and durability through advanced heat dissipation, which requires no additional heatsink or fan.

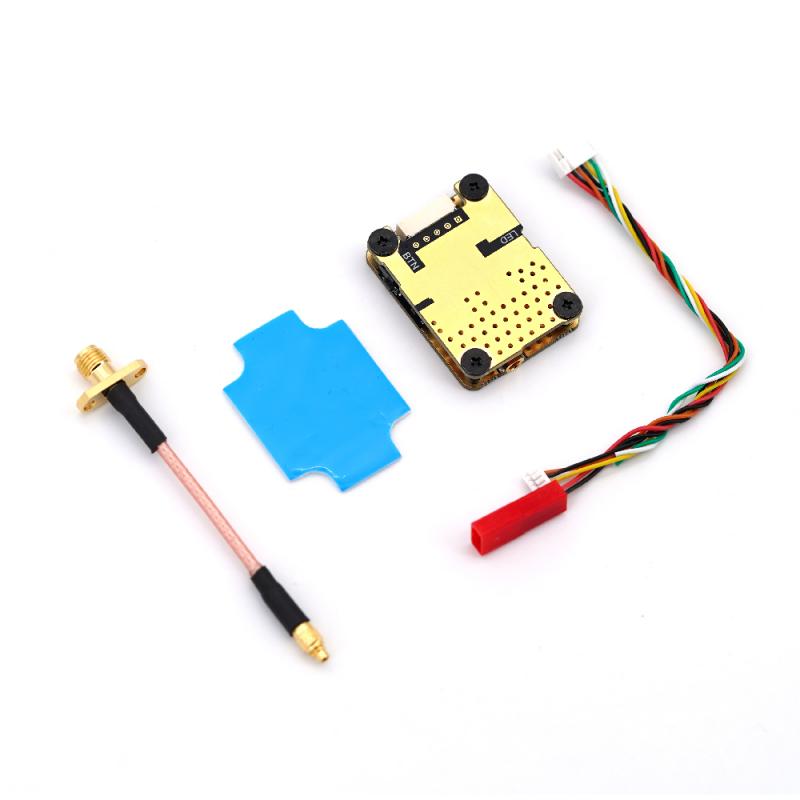

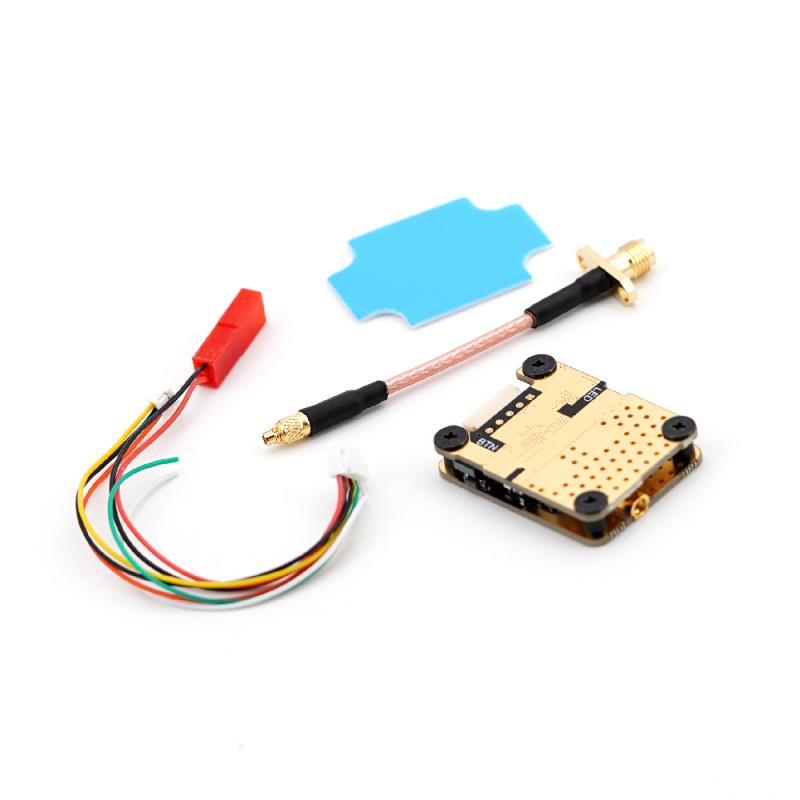

Package Includes:
1x TBS UNIFY PRO32 DP 5G8 HV Video transmitter
1x Silicone cable (ends pre-tinned)
1x MMCX to SMA pigtail
1x Heat transfer tape for easy FPV drone mounting
Highlights:
- World’s lightest 3 Watt video transmitter
- Frequency range: 4990 - 6030 MHz
- OSD configuration using TBS Smart Audio 2.1
(via Betaflight, TBS Crossfire / Tracer or Ardupilot) - One button frequency and power setup
- LUA support for CRSF users
- MMCX connector
- 2-6S input
- Double noise filtering (>63dB SNR)
- Optimized heat dissipation, no heatsink required
- Optional matching circular polarized antenna available
Specifications:
Video System: Analog
Min Input Voltage: 6V
Max Input Voltage: 25V
Min Frequency Band: 4990MHz
Max Frequency Band: 6030MHz
Output Power : 10 / 25 / 100 / 200 / 400 / 500 / 999 / MAX mW
Video Format: NTSC, PAL
Video Input Impedance: 75Ohm
Audio: No
Pit Mode: Yes
SmartAudio: Yes
OSD Support: Yes
Antenna Connector: MMCX
Size: 37 x 28 x 10mm
Weight: 8.7g
User Manual
Important!
The Unify Pro32 DP is a high power video transmitter. Operating it with bad quality antennas, or without antennas on higher power levels will inevitably brick the unit - faster than you would expect. It is therefore important to use the wideband function only with wideband antennas on the highest power settings!
