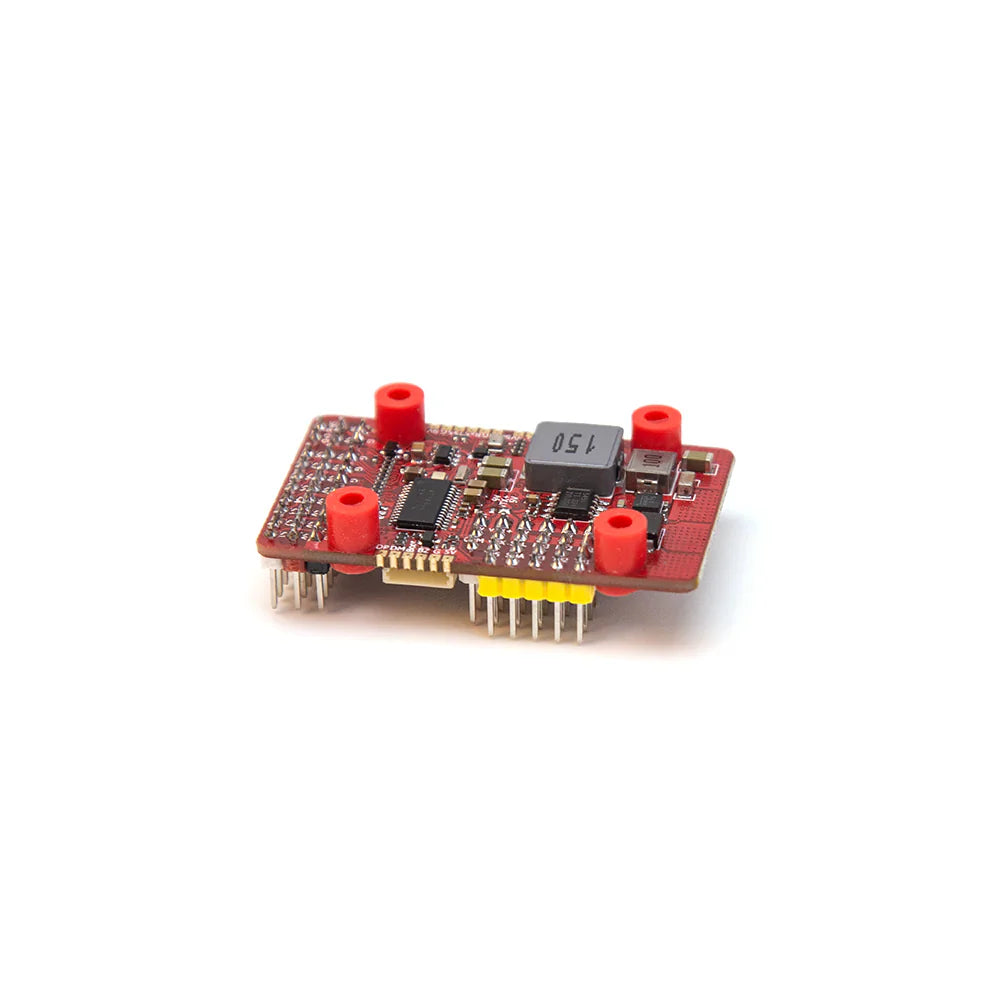

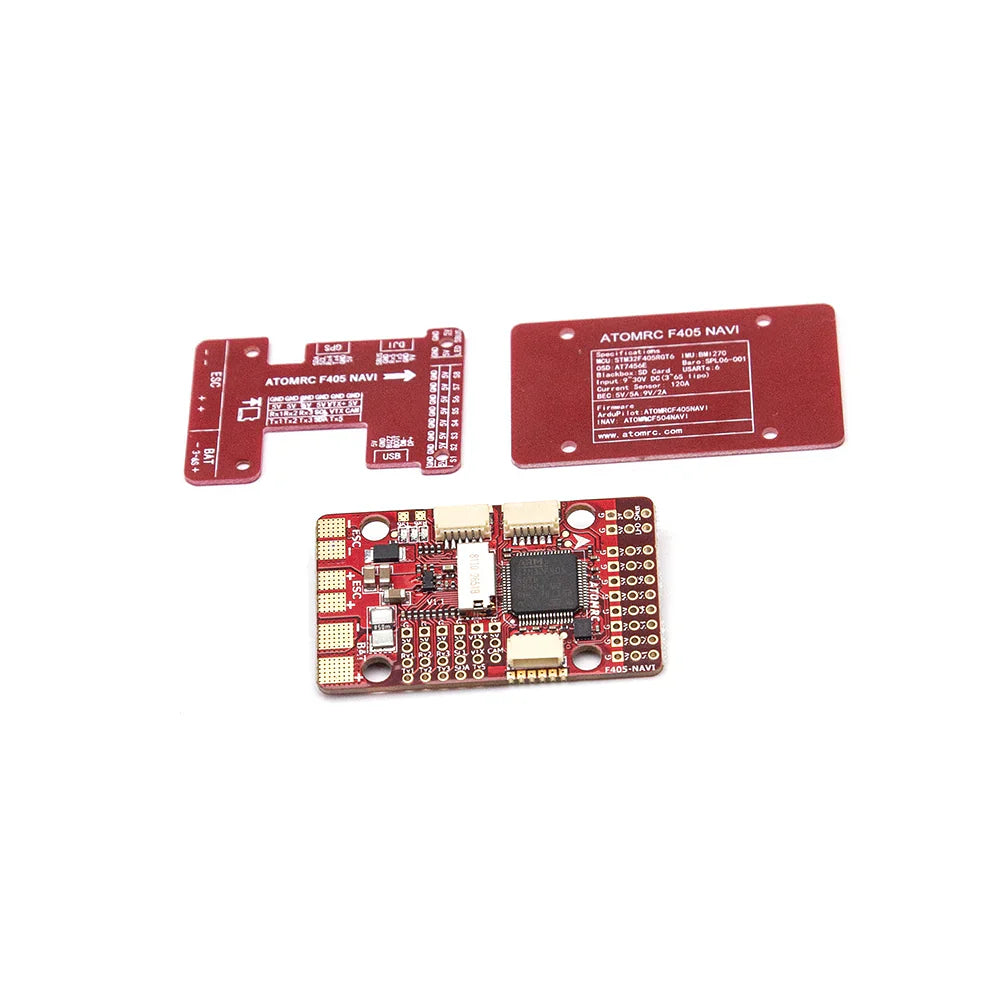

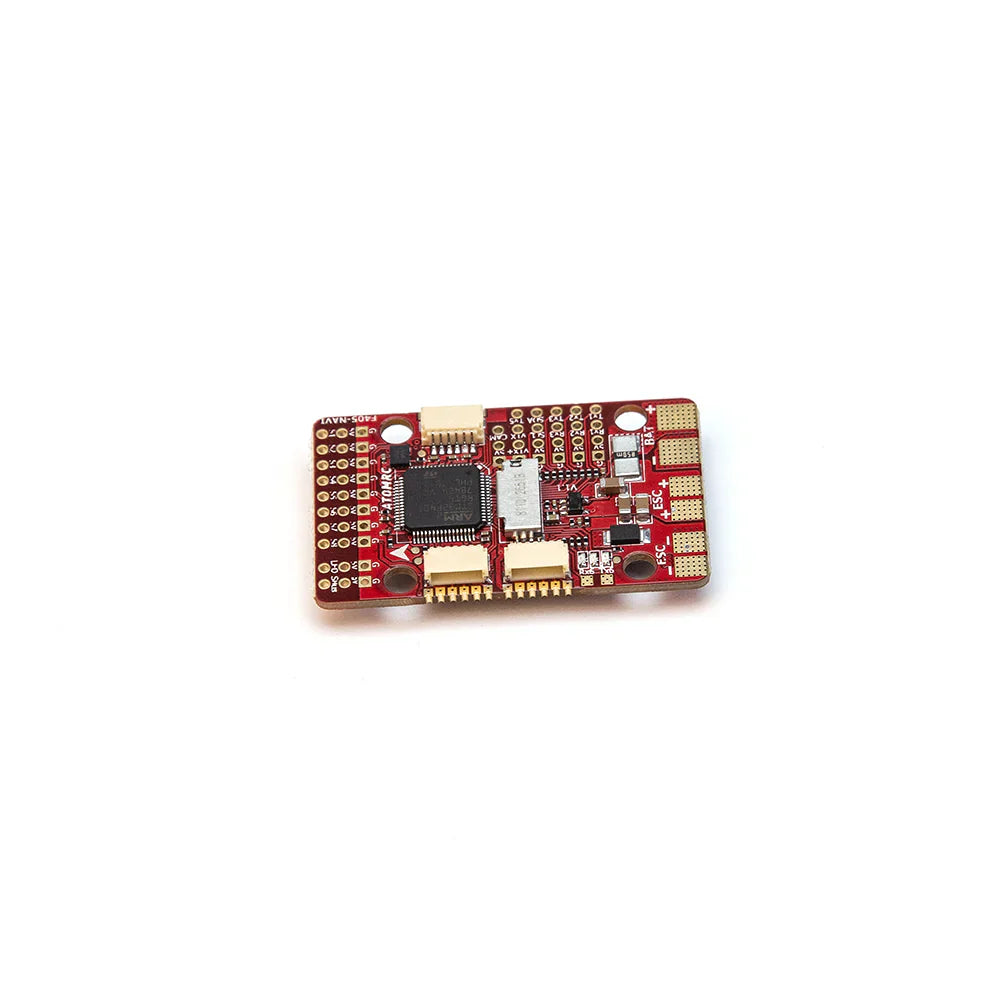

ATOMRC F405 NAVI Fixed Wing Flight Controller
Description
Description

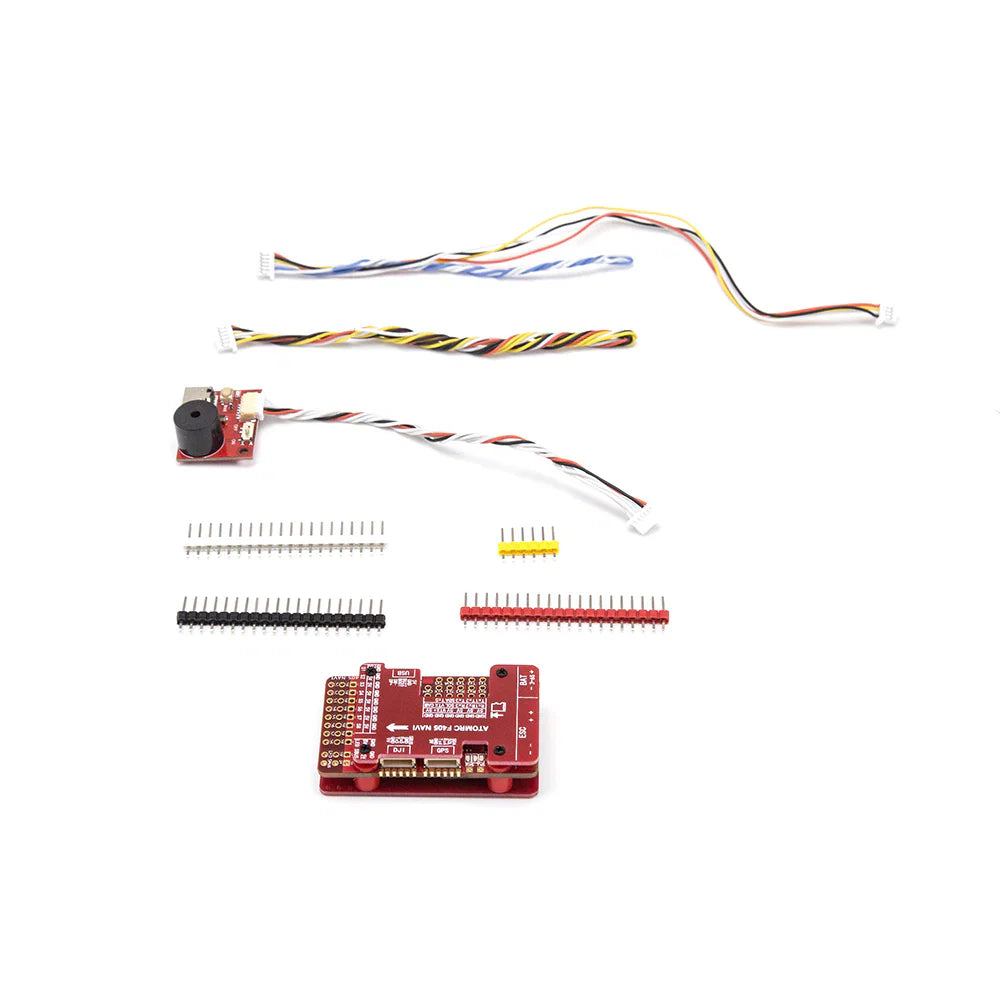

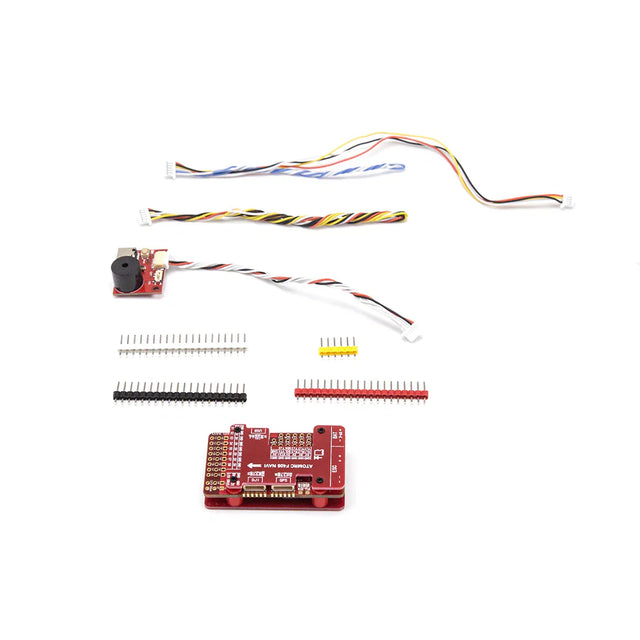

Package Includes:
1x F405NAVI

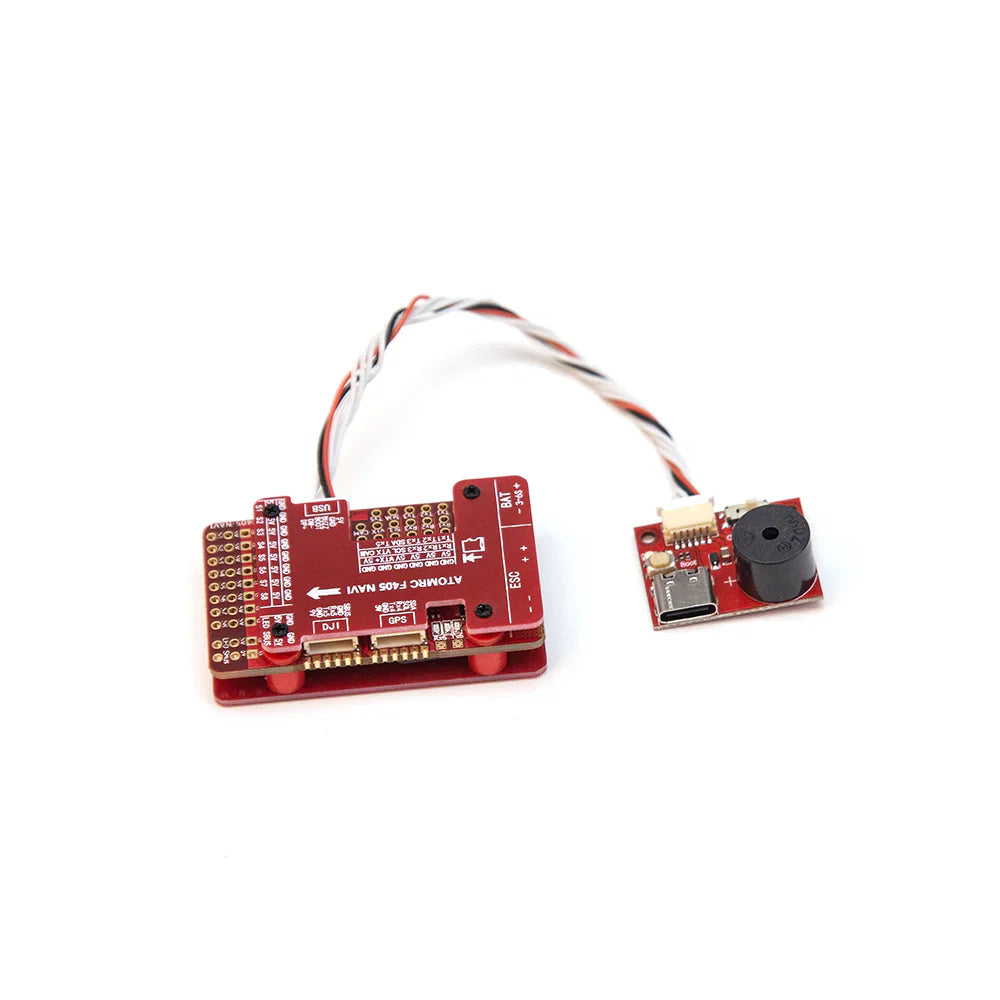

1x external USB(Type-C)/buzzer board + 12cm JST-SH-6P to JST-SH-6P cable

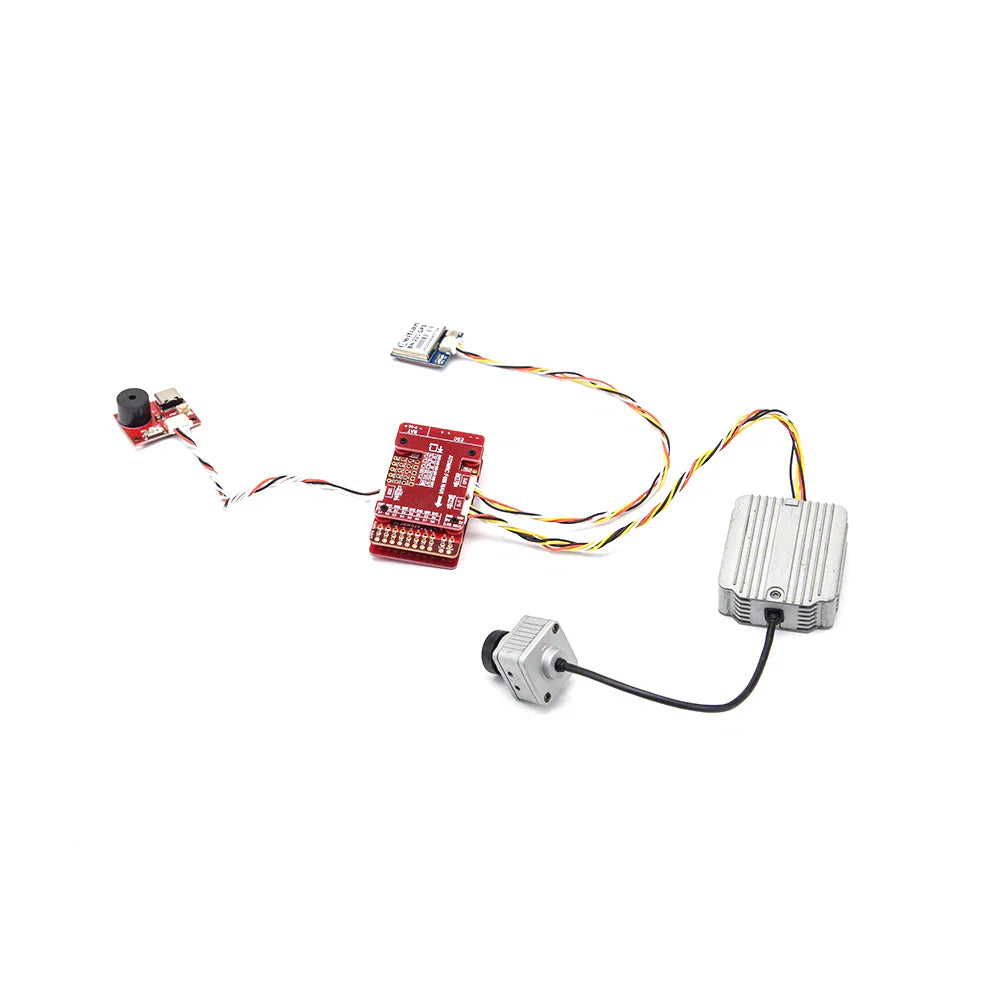

1x 20cm JST-SH-6P cable* for GPS/ DJI air unit
1x 35V 470uf Capacitor
Specifications:
MCU: STM32F405RGT6, 168MHz , 1MB Flash
IMU: BMI270
Baro: SPL06-001
OSD: AT7456E
Blackbox: SD card Slot
5x UARTs,
8x PWM outputs
1x I2C
3x ADC (VBAT, Current, RSSI)
External Type-C port and Buzzer
Inverter on UART2-RX for SBUS
Power:
12~30V(3~6s Lipo)
120A Current Sensor
BEC 5V 5A for servos
9V 2A BEC for VTX and camera
FC Firmware
ArduPilot:Â ATOMRC F405NAVI
INAV:Â ATOMRC F405NAVI (INAV 5.0 or newer)
Physical:
Dimensions: 30 *50*12mm
Mounting: 30*24mm, Φ3m
Weight: 21g
Info:
Manual:
