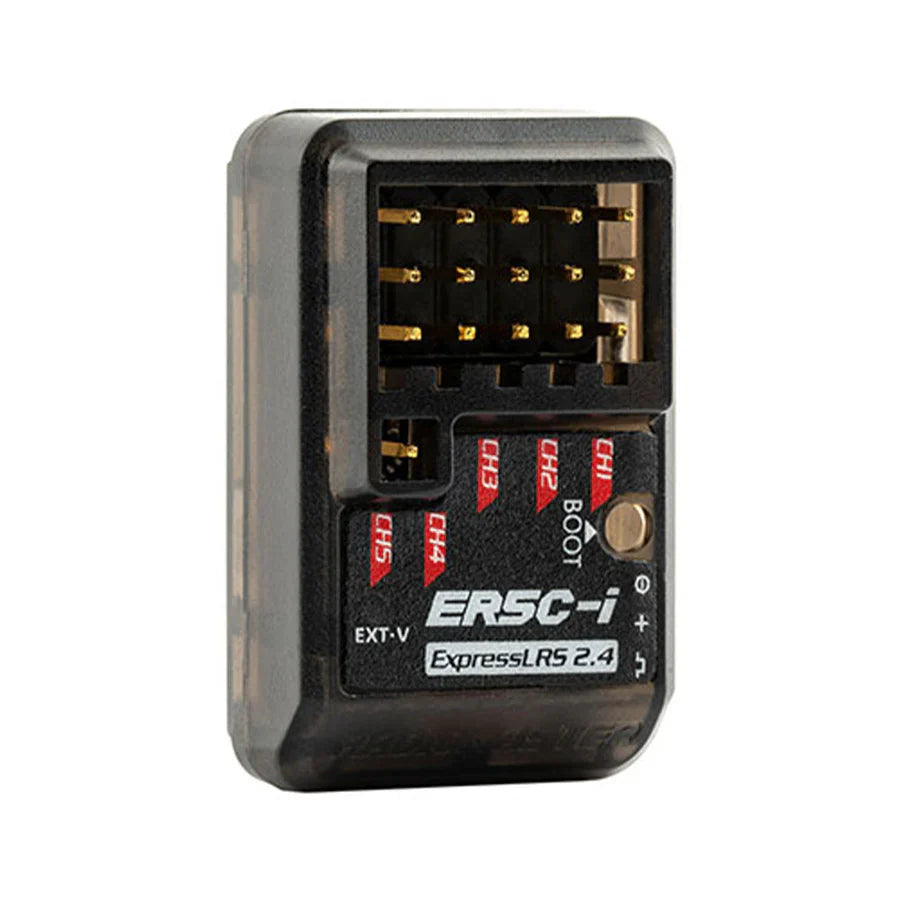

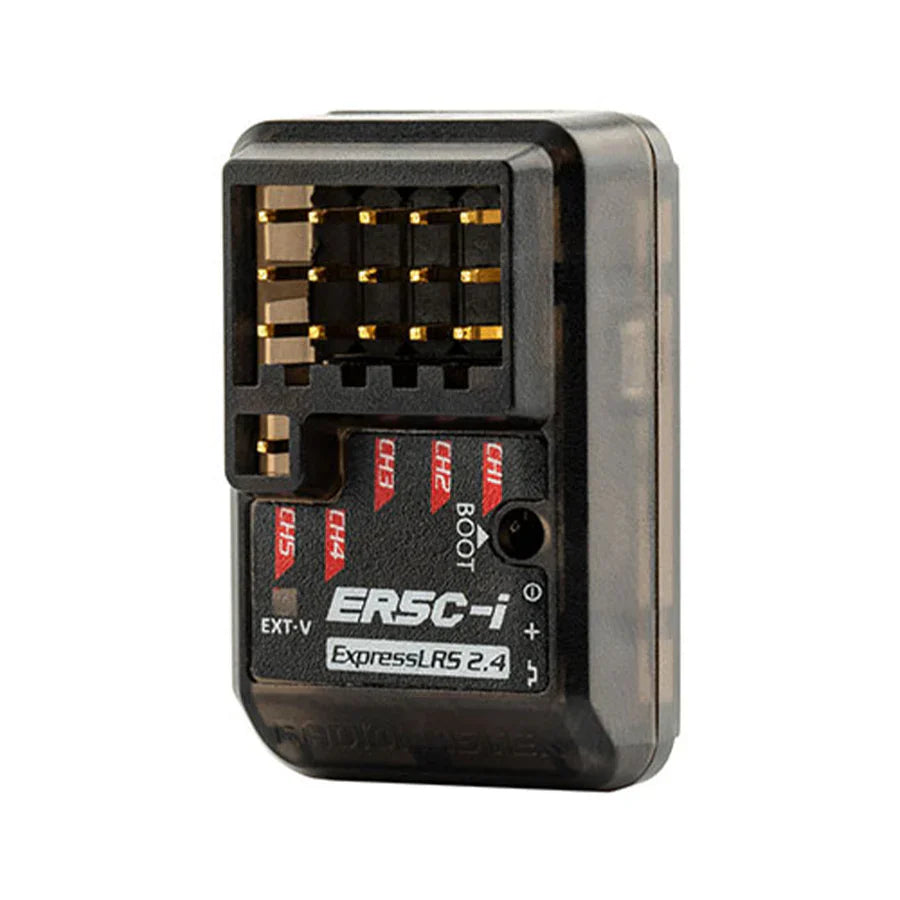

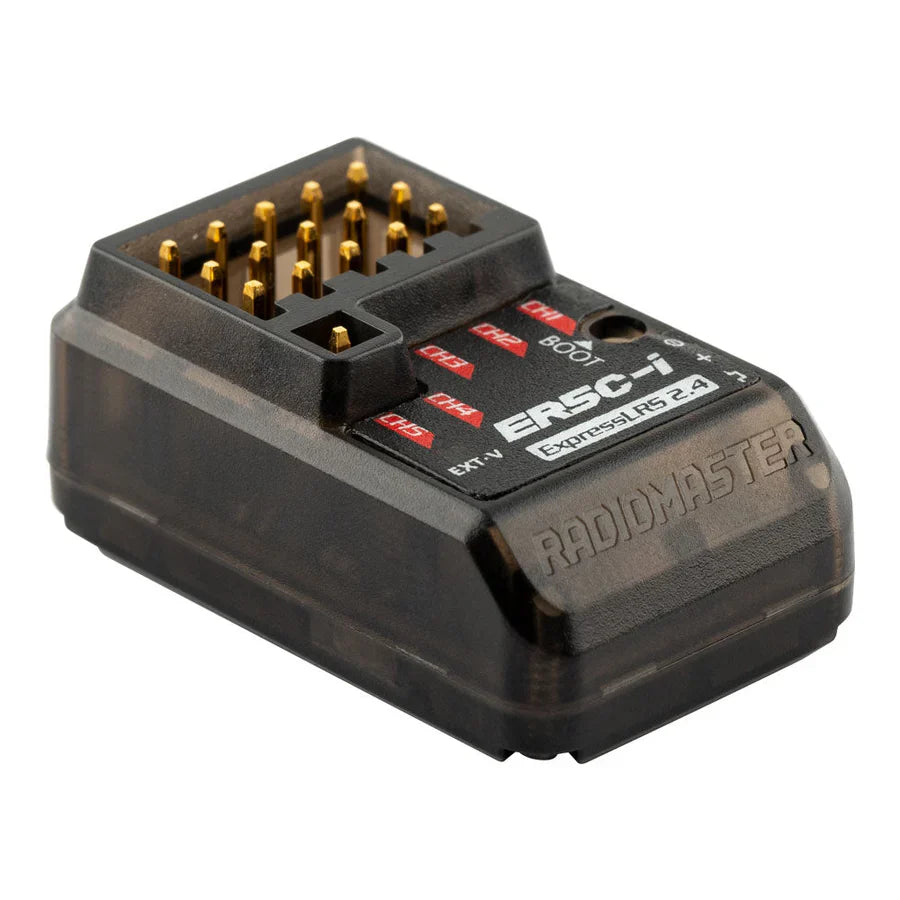

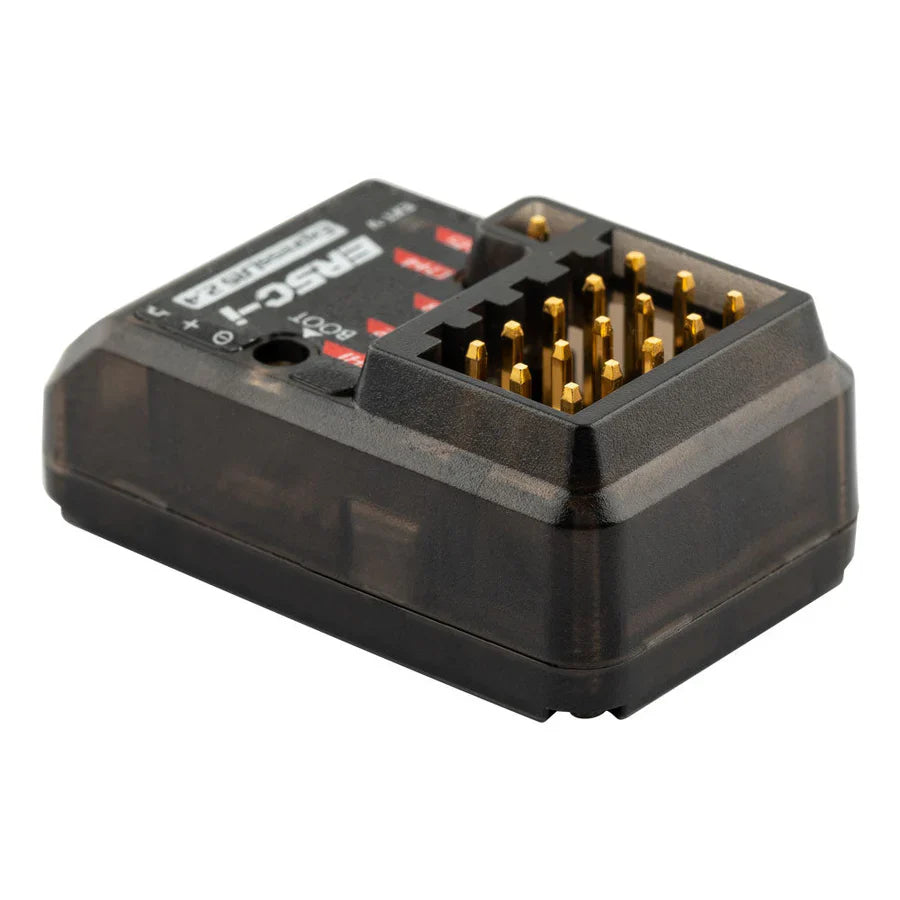

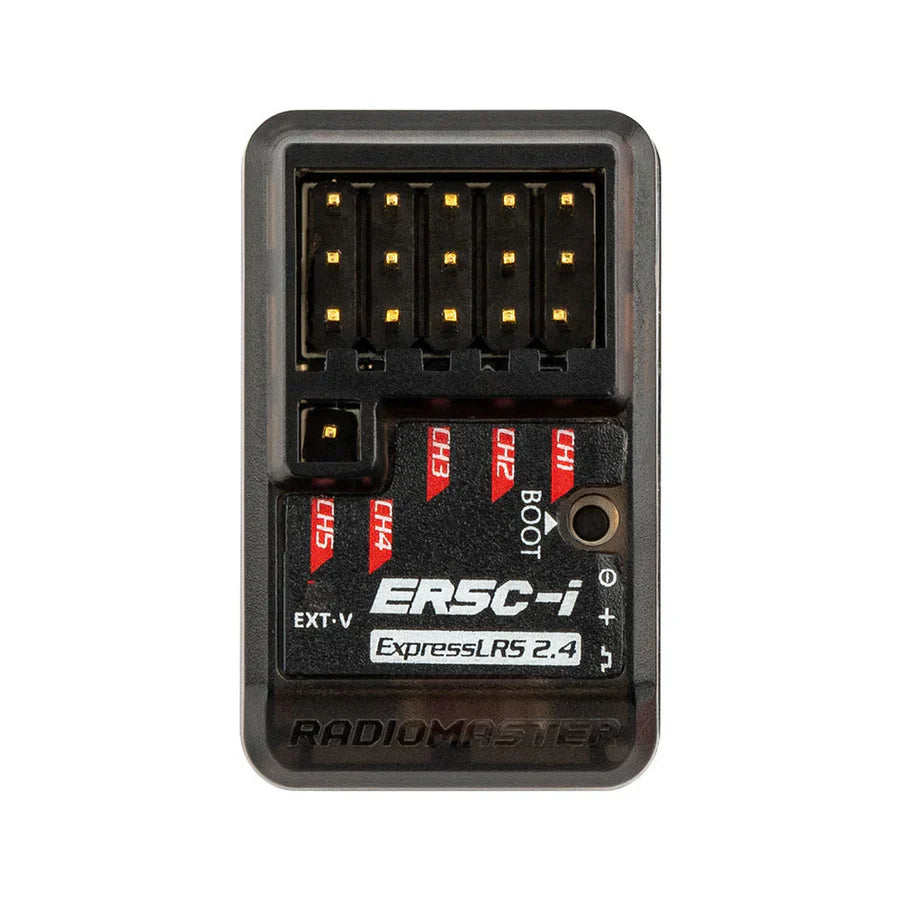

RadioMaster ER5C-i 2.4GHz ELRS PWM Receiver

The RadioMaster ER5C-i receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.

The ER5C-i ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. The ER5C-i features a built-in high-sensitivity ceramic antenna, it is designed for all types of surface models and provides a clean install without antenna wires to worry about.

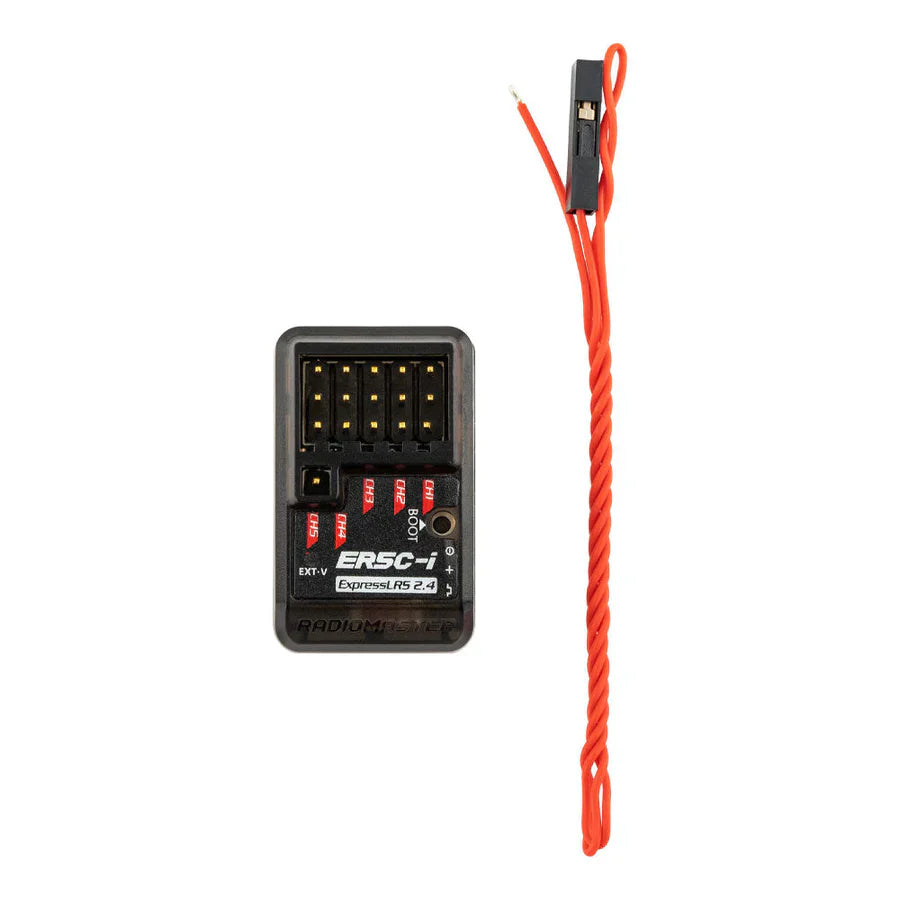

Package Includes:

1x ER5C-i

1x Bind Cable

Features:

• Built-in high-sensitivity ceramic antenna
• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, fast response speed and ultra-long range
• Supports 5 PWM Channels
• Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
• Optimized ground up PCB design
• Supports Wi-Fi updates and WEBUI configuration
• Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
• Designed for all types of surface models
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specifications:

Item: ER5C-i 2.4GHz ELRS PWM Receiver

Power supply: DC 4.5 - 8.4V

Antenna type: Built-in high-sensitivity ceramic antenna

Wireless protocol: ExpressLRS 3.3.0 pre-installed

Output channel: 5CH PWM

Telemetry power: 10mW

Battery voltage detection range: DC 4.0 - 35V

Weight: 5.0 grams

Dimensions: 30.0*18.5*13.0 mm

Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER5C-i
