Flywoo TCXO EL24E（ 3.X.X）ELRS 2.4G Receiver
Description
Description
The new Flywoo TCXO 2.4G ELRS utilizes a temperature-compensated crystal oscillator to enhance the accuracy of the MCU clock frequency, thereby improving the performance and reliability of the RC link. It enables longer control distances, allowing users to operate devices within a wider range. This module boasts low latency and high refresh rates.

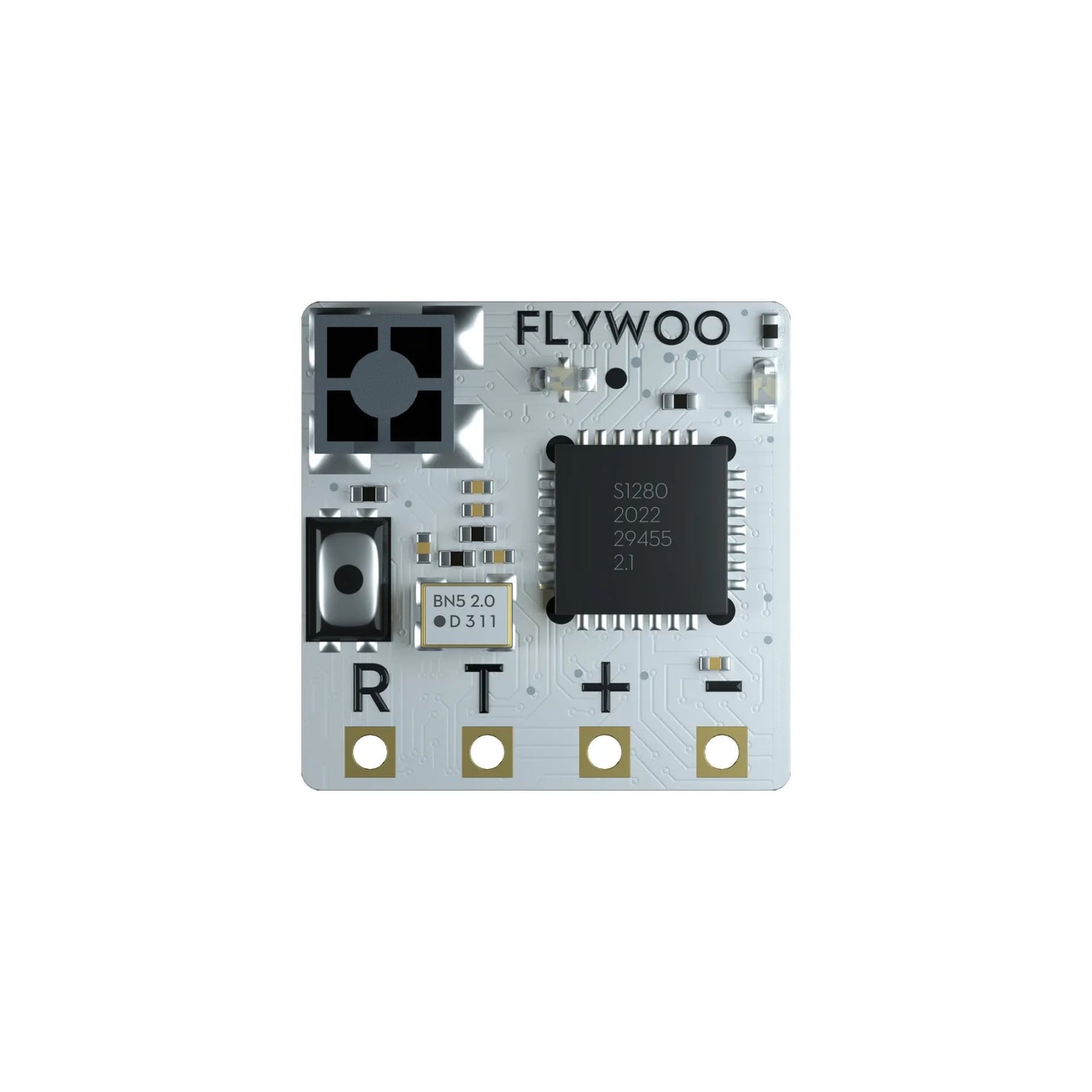

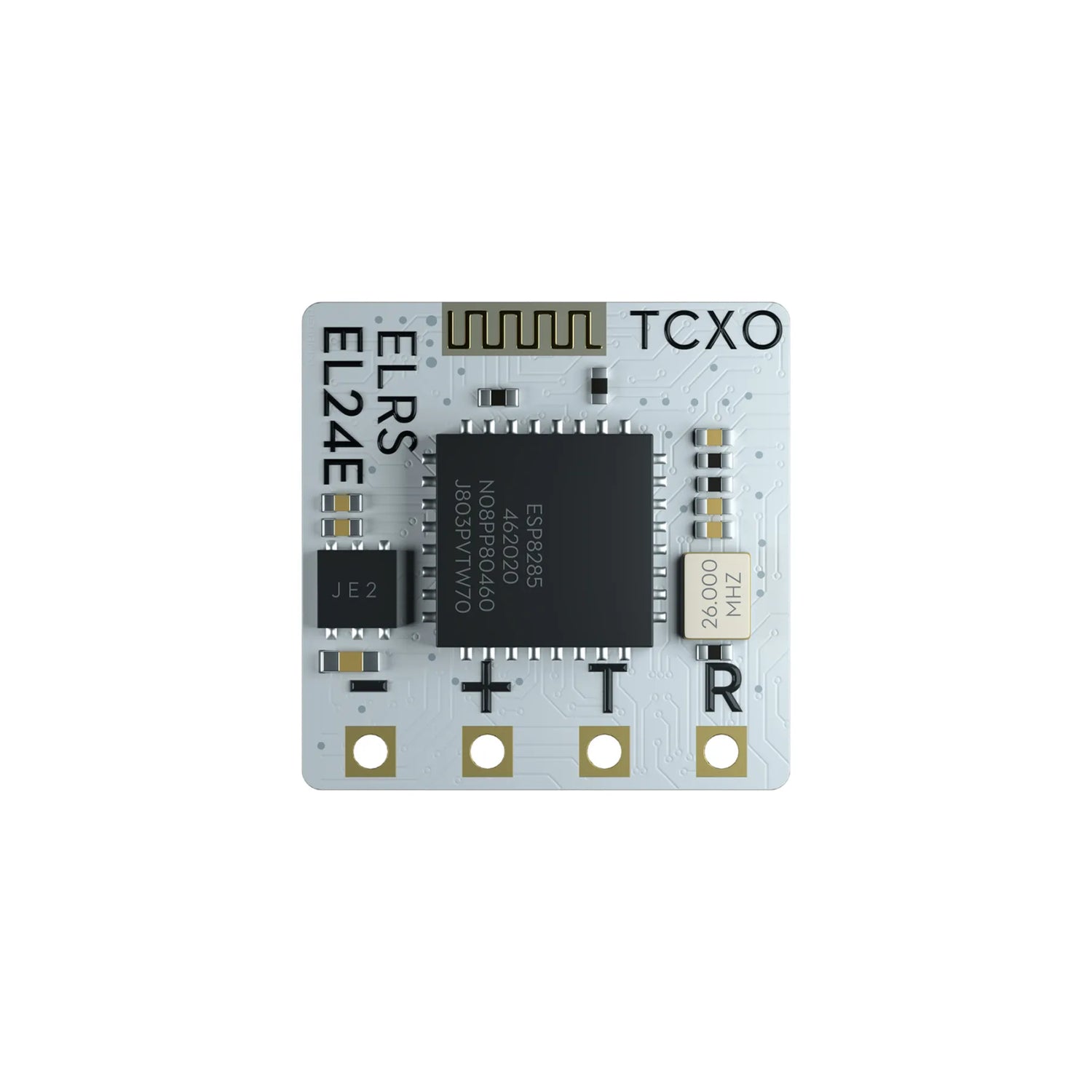

The TCXO EL24E features a built-in SMD antenna, while the EL24P includes an IPEX connector for a dipole antenna. Both modules are based on the ESP8285 MCU and can be upgraded via WiFi. They are also equipped with the SX1280 (or SX1281) IMLTRT RF module.
Package Includes:
1 x Flywoo TCXO 2.4G ELRS EL24E
1 x Silicone Cable
1 x Heat shrink tubing
Highlights:
- Enhances MCU clock frequency accuracy
- Improves RC link performance and reliability
- Enables longer control distances
- Low latency and high refresh rates
- EL24E: built-in SMD antenna
- EL24P: IPEX connector for dipole antenna
- Based on ESP8285 MCU
- Upgradeable via WiFi
- Equipped with SX1280 (or SX1281) IMLTRT RF module.
Specifications:
Type: ISM2.4GHz
ESP8285 MCU
SX1280(SX1281)IMLTRT RF Module
Frequency Range: 2400 MHz to 2500 MHz
Receive refresh rate: 25HZ~500Hz
Working voltage: 5v

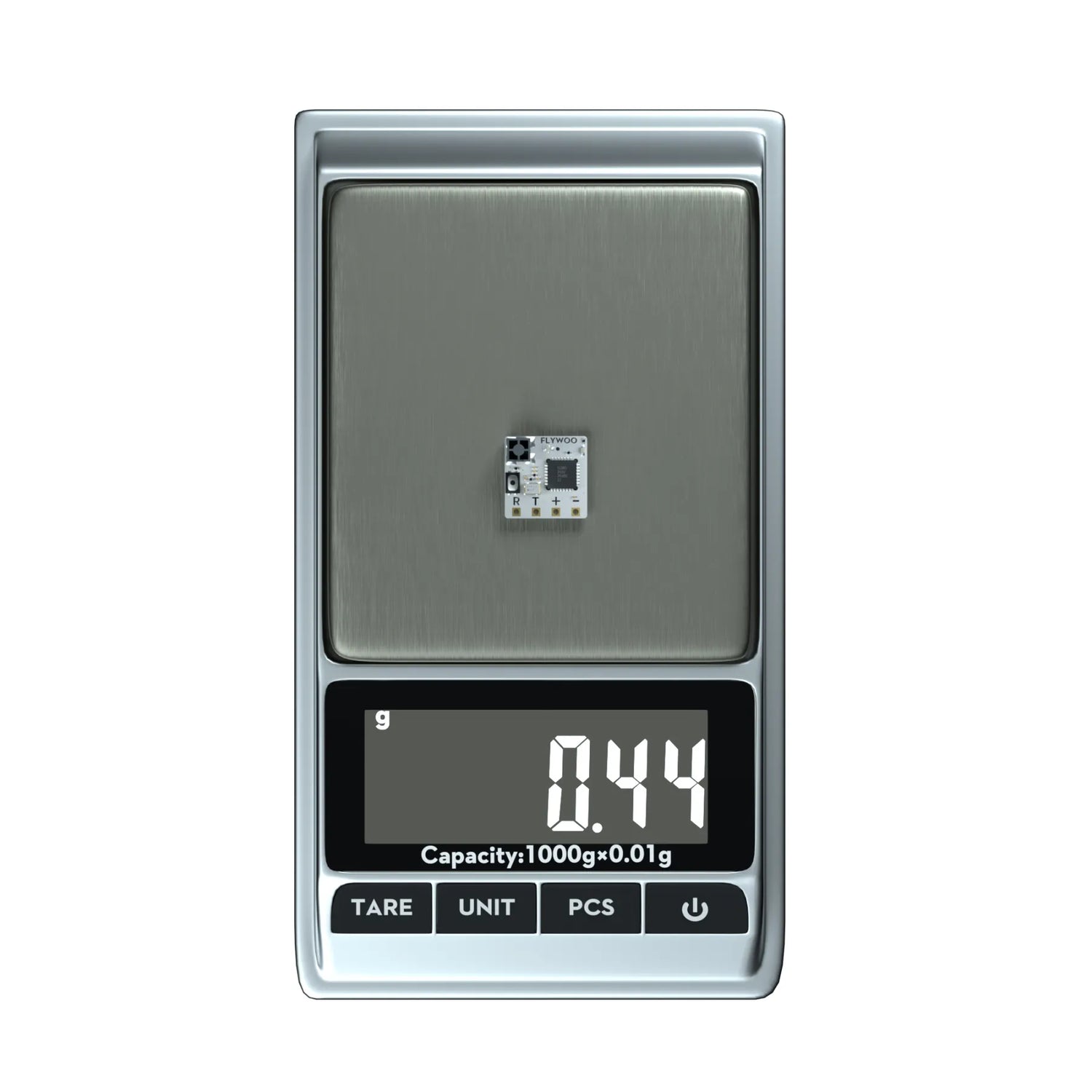

Weight: 0.44 gram(without antenna)

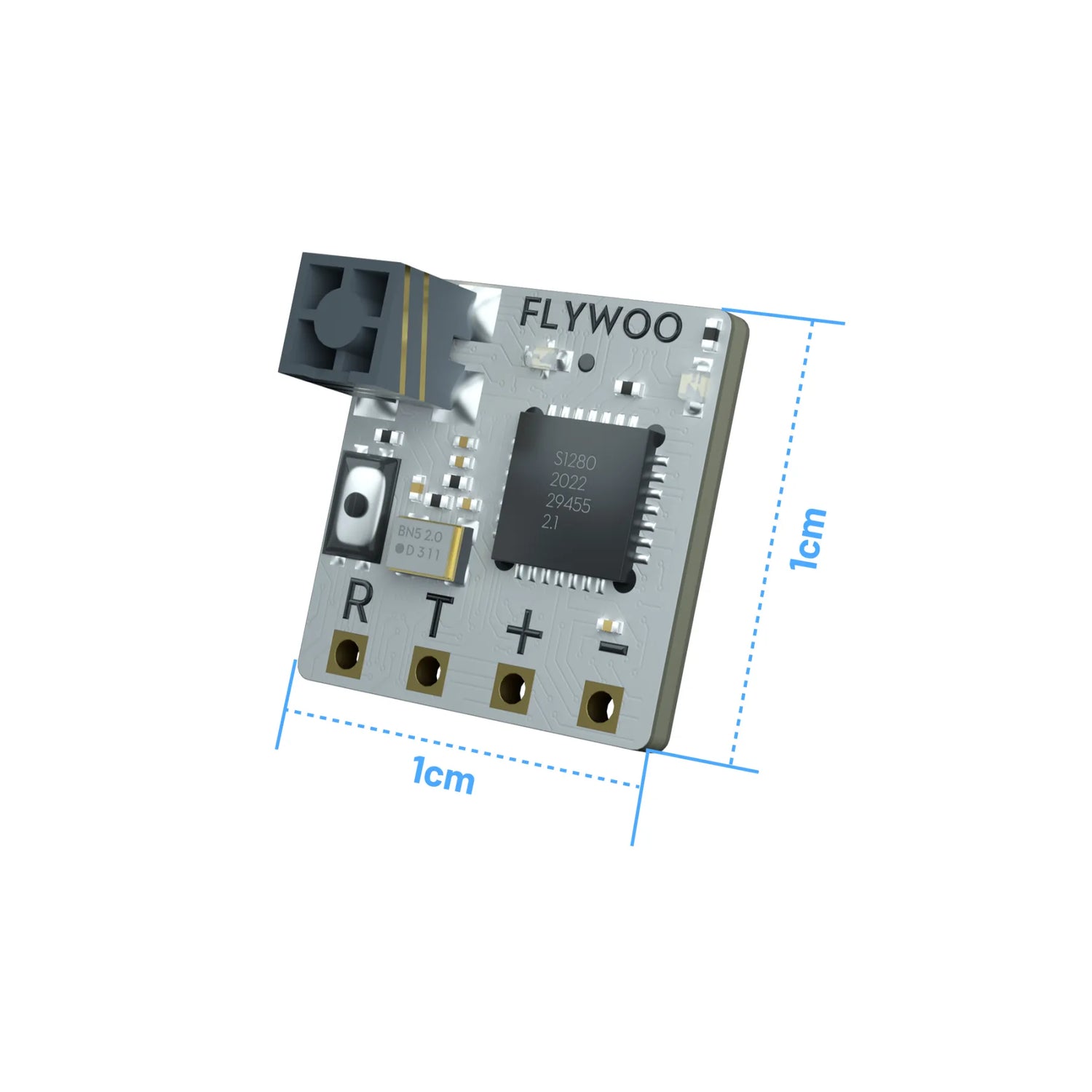

Dimension: 10mm*10mm*6mm
Communication Protocol: CRSF(Betaflight)
Peak gain: 3.7dB
