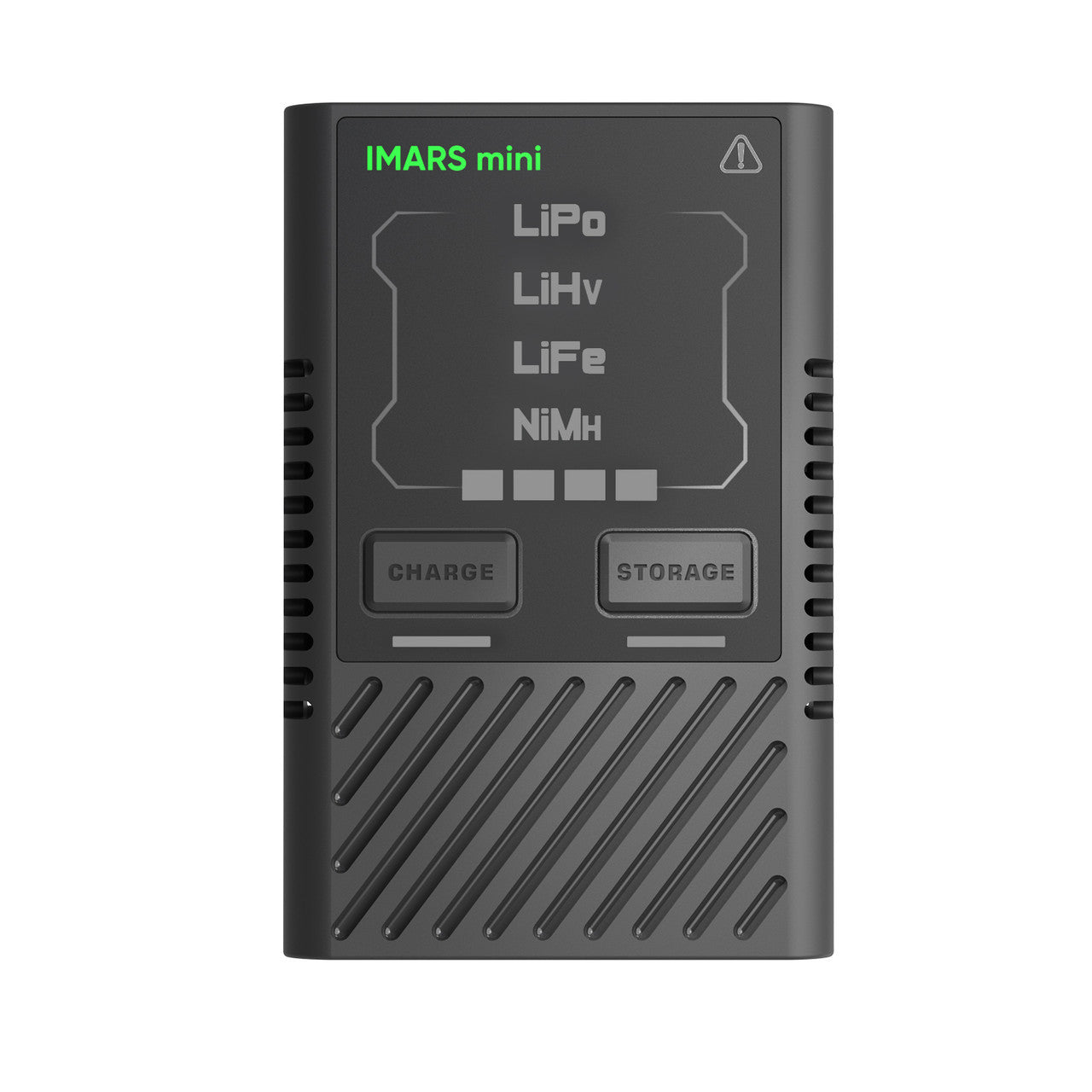

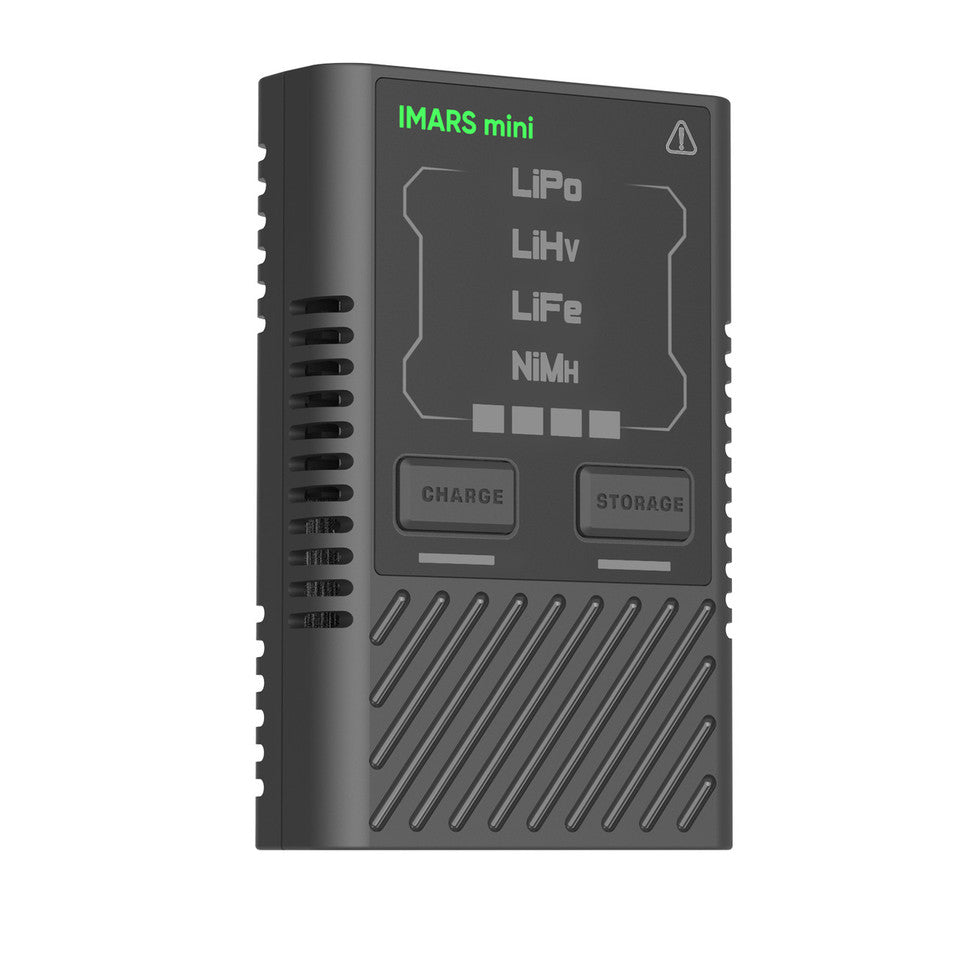

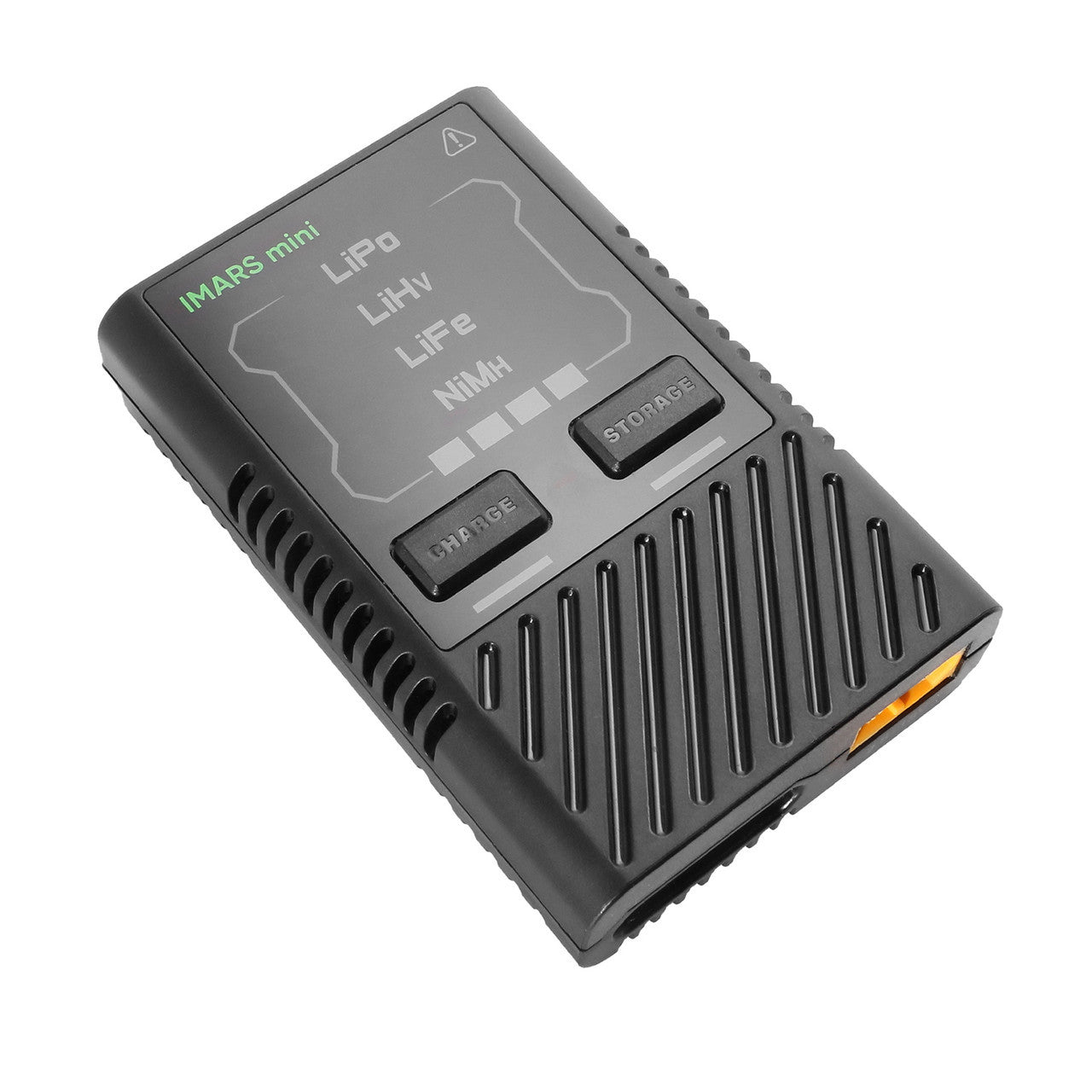

GensAce iMars mini G-Tech 60W RC Battery Charger - Eco Friendly Version

The Gens ace iMars mini Charger is an Intelligent Charger designed for the Gens ace G-Tech smart battery, which is also compatible with non-smart batteries.

It is the first member of the Gens ace G-Tech Smart Eco, when the Gens ace G-Tech battery is connected to the Imars Mini charger, the charger will automatically identify the battery type, voltage through the smart balance connector, and charging current recommended by the battery manufacturer. The charger will start charging in 5 seconds automatically after G-Tech smart battery is connected.

For non-smart batteries, it's necessary to manually select the battery type and the required working mode to get it started. The charger can intelligently adjust the charging current according to the charging voltage flow of the battery.

Package Includes:

1x iMars mini 60W Smart Charger

1x XT60 female to EC3 male adapter

1x XT60 female to EC5 male adapter

1x Product Manual

Features:

• Charges 2-4S LiPo, LiHV, LiFe, and 2-12S NiMH batteries.
• Intelligently recognizes G-Tech smart battery info through an IC chip for safe and easy charging.
• Automatic storage function, it's the smallest charger with auto storage.

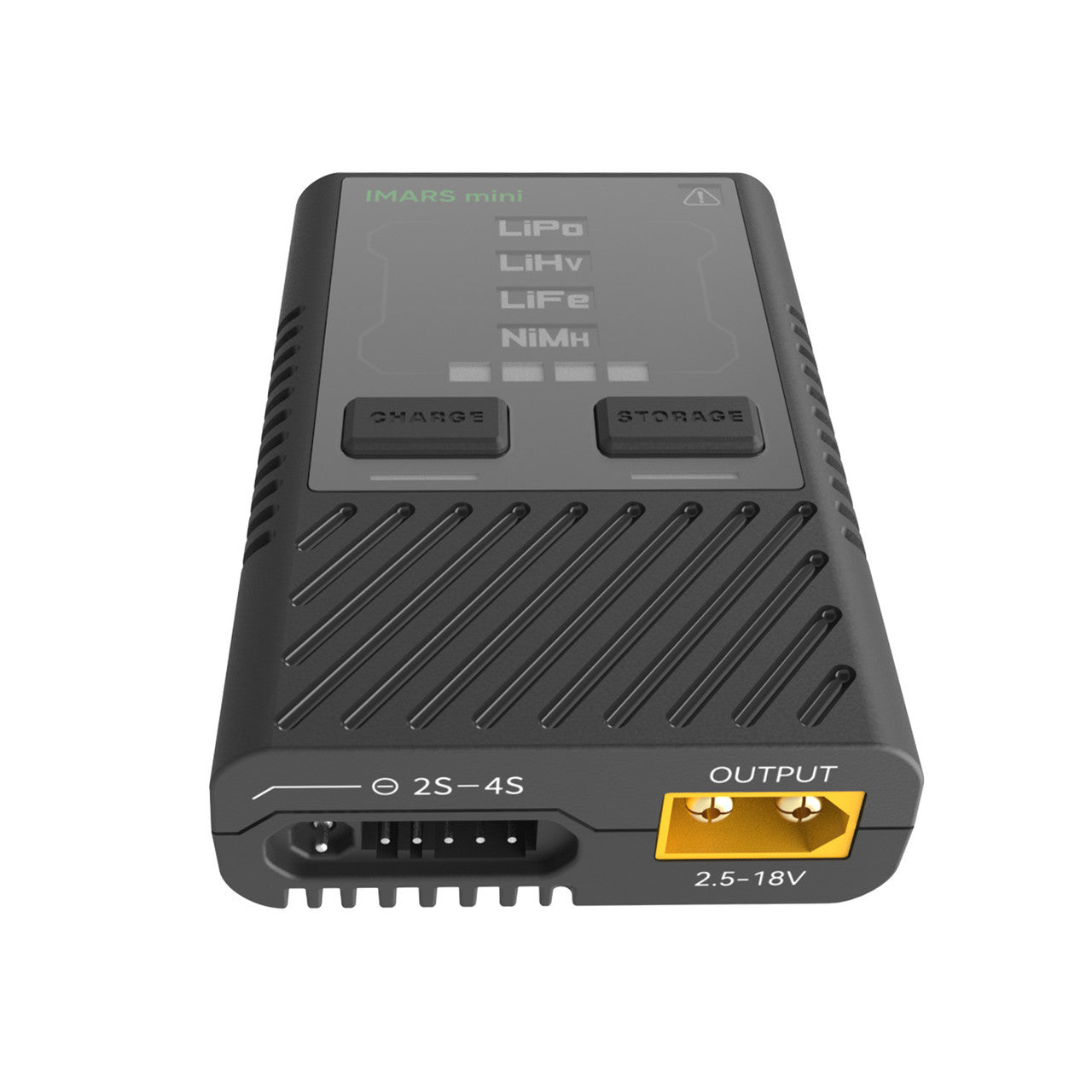

• New interface design and increased balance connector durability.
• Small & lightweight, portable design.

Specifications:

Max. Charge Power: 60W

Charge Current:1-5A, Max. 5A(Auto Adjustment)

Max. Storage Power: 3W discharge, 60W charge

Input Voltage: 5-20V

Max. Input Current: DC 3A

Balance Current: 0.4A/Cell X 2

Input Port: QC/PD/BC1.2/USB-C V1.4/SDP/CDP/DCP/Apple 5V/2.4A(Does not support 5V/1A adapter input)

Abnormal Battery Voltage Alarm: Yes

Supported Battery Types: Lipo/LiHv/LiFe(2~4S), NiMH(2-12S)

Working Temperature: 0℃~40℃

Storage Temperature: -20℃~60℃

Dimension: 85*55*21mm

Net Weight: Approx. 64g

NOTE: This is the eco friendly version that does not include the USB-C power supply adapter. For the version with USB-C power supply adapter, click here; to purchase the USB-C power supply adapter only, click here.

More Lipo Battery Smart Chargers, please click here. The Europe/UK versions are available in our EU Stores.

Product Introduction Video:

G-Tech Introduction Video:

FAQ:

Q: Why can't I select the current setting on the new imars mini charger?

A: Our new imars Mini Charger automatically configures itself to the connected battery whether it's G-TECH or NOT. Imars Mini charger uses proprietary software to detect the size of the battery and charge using the correct current settings. Imars Mini will normally charge at a 1C to 1.5C rate up to 60 watts of total power.
