HappyModel CrazybeeG473 V1.0 5IN1 AIO 5A
HappyModel CrazybeeG473 V1.0 5IN1 AIO 5A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.
HappyModel CrazybeeG473 V1.0 5IN1 AIO 5A
Description
Description
The HappyModel CrazybeeG473 V1.0 5IN1 AIO 5A is perfect for tinywhoops.

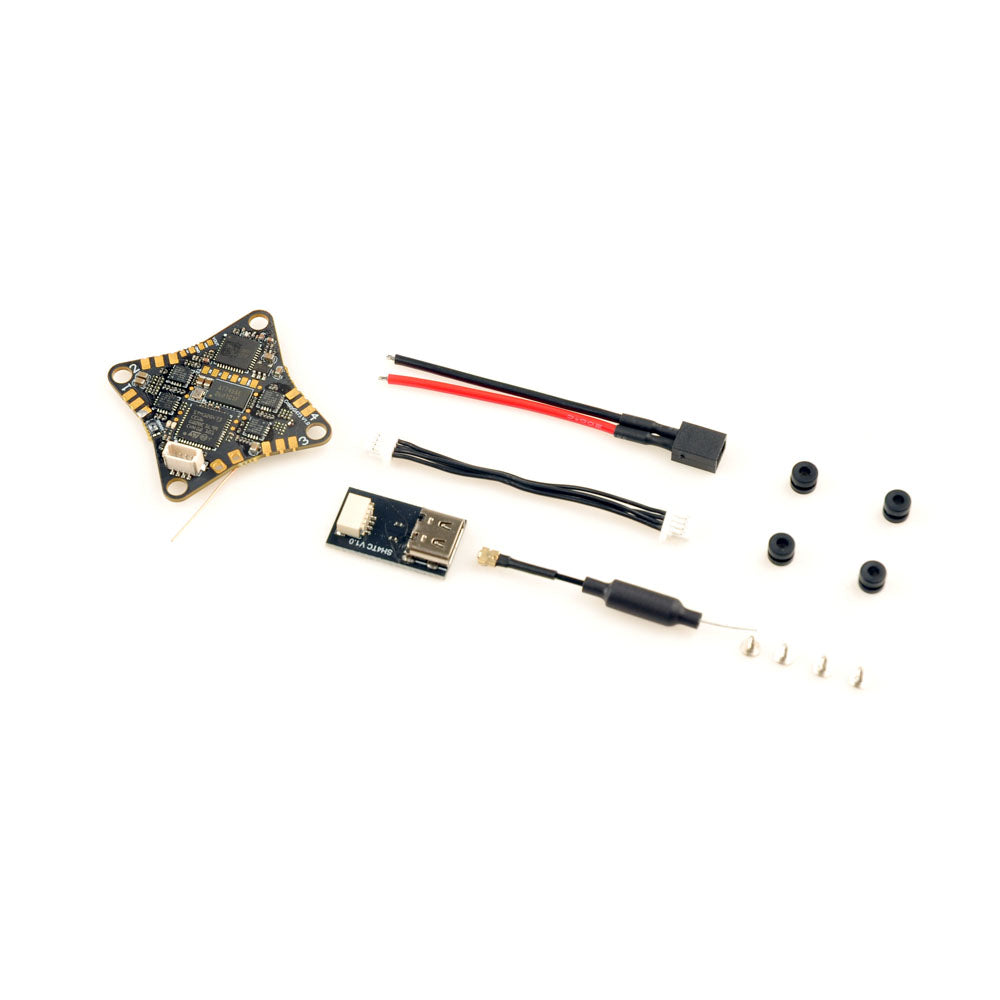

Package Includes:
1x HappyModel CrazybeeG473 V1.0 5IN1 AIO 5A
1x Power Cable
1x Data Cable
1x USB Adapter
4x Grommet
4x Screw
NOTE: Onboard VTX can only work when battery was plug. And low power of vtx when disarmed was actived. So the vtx is very lower nearly 0 power out when drone was not armed, you can change power level value.
Notes:Latest betaflight firmware 2025.12.1 version has fixed the blackbox issue .
This the first AIO 5-IN-1 flight controller based on G473 MCU platform from Happymodel, Built-in UART ExpressLRS receiver and OpenVTXbetter for 65mm 1s Micro FPV whoops.
FC
- MCU: STM32G473CEU6
- Gyro: ICM42688P
- Blackbox memory: 16MB
- Sensor: Voltage & Current
- BEC: 5V, Max. 2A
- UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX)
- BetaFlight OSD: AT7456E
- ESC: 5A continuous
- RX: Serial ELRS 2.4GHz
- RX antenna: Enameled copper wire 31mm length
- Receiver firmware target: HappyModel EP1/EP2 2.4GHz RX
- OPENVTX: 5.8GHz 48 channels, Max. 400mW
- FC firmware target: CRAZYBEEG473
- USB port: SH1.0-4Pin
- Battery connector: A30
- Mounting hole size: 5mm x 25.5mm

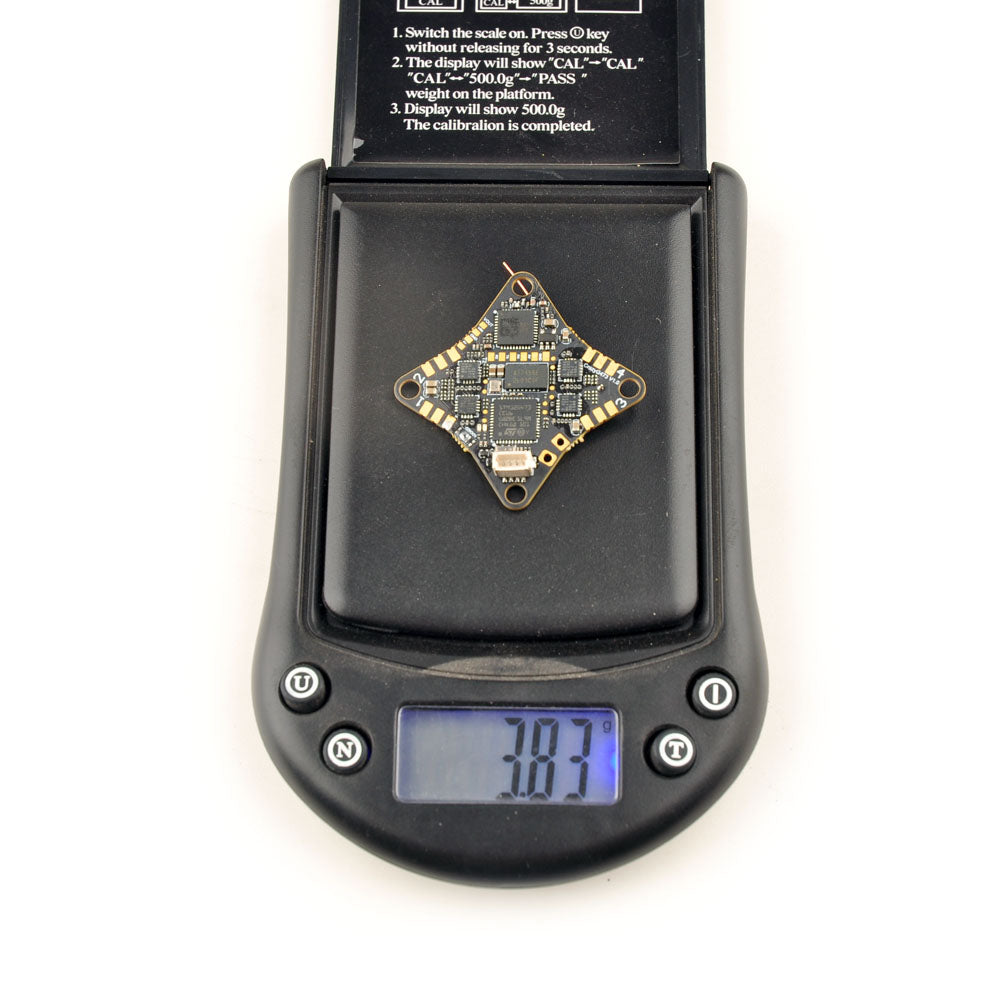

- Weight: 3.8g without pigtail and vtx antenna
ESC
- Power input: 1S Only
- Current: 5A continuous, 6A peak
- ESC firmware: V0.21.hex Bluejay
- Firmware target: A_X_5_96KHz
- Digital signal protocol: DShot300, DShot600
VTX
- OPENVTX Firmware
- Support firmware upgrade by openvtx configurator
- Output power: PIT/10/25/100/400
- Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
- Channel SEL: SmartAudio2.1
- Modulation type: FM
- Operating temperature: -10℃~+80℃
- Antenna port: IPEX1/U.FL
RECEIVER
- Serial ExpressLRS 2.4GHz
- Antenna: Enameled copper wire 31mm length
- Firmware target: HappyModel EP1/EP2 2.4GHz RX
- Telemetry output Power: <12dBm
- Compatible with ExpressLRS V3.x.x TX Module
- ExpressLRS firmware version 3.0.1
- Support flash firmware by WIFI
- Bind method is the same like all ExpressLRS 2.4GHz receivers
Noted: Visit https://app.betaflight.com and click “select your device” then choose can’t find my USB device, then connect comport and betaflight configurator.
Due to firmware target is not available in current betaflight official ,you can download hex file from the belowing link:
Firmware download CRAZYG473 4.6.0 betaflight firmware
Default factory dump file Dump file for CRAZYG473 Betaflight4.6.0
