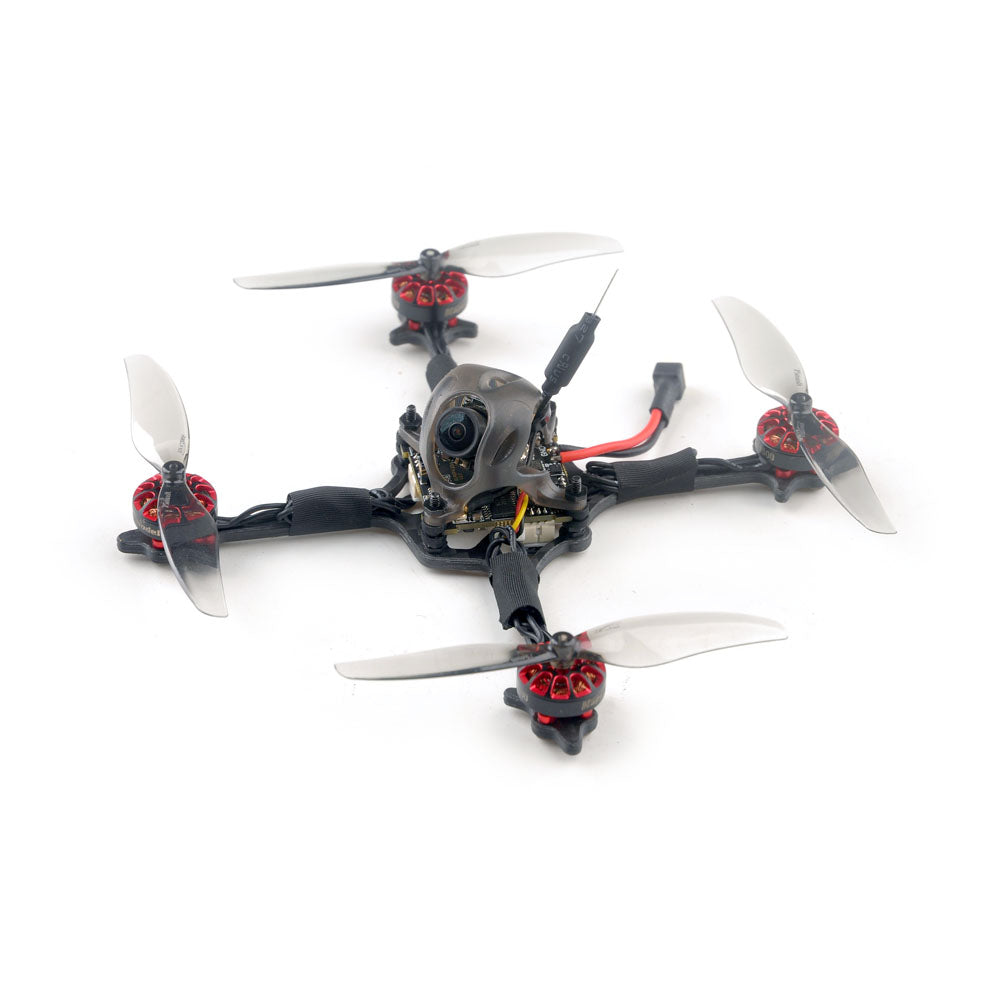

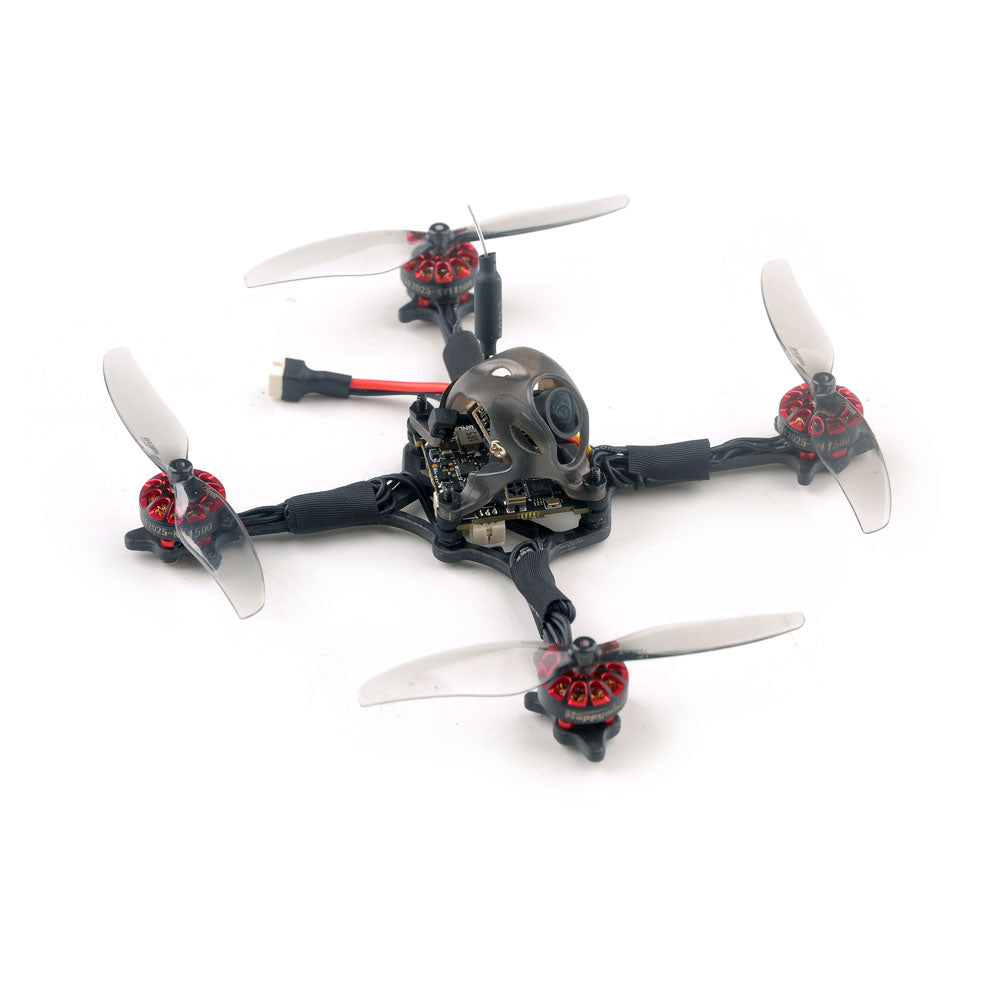

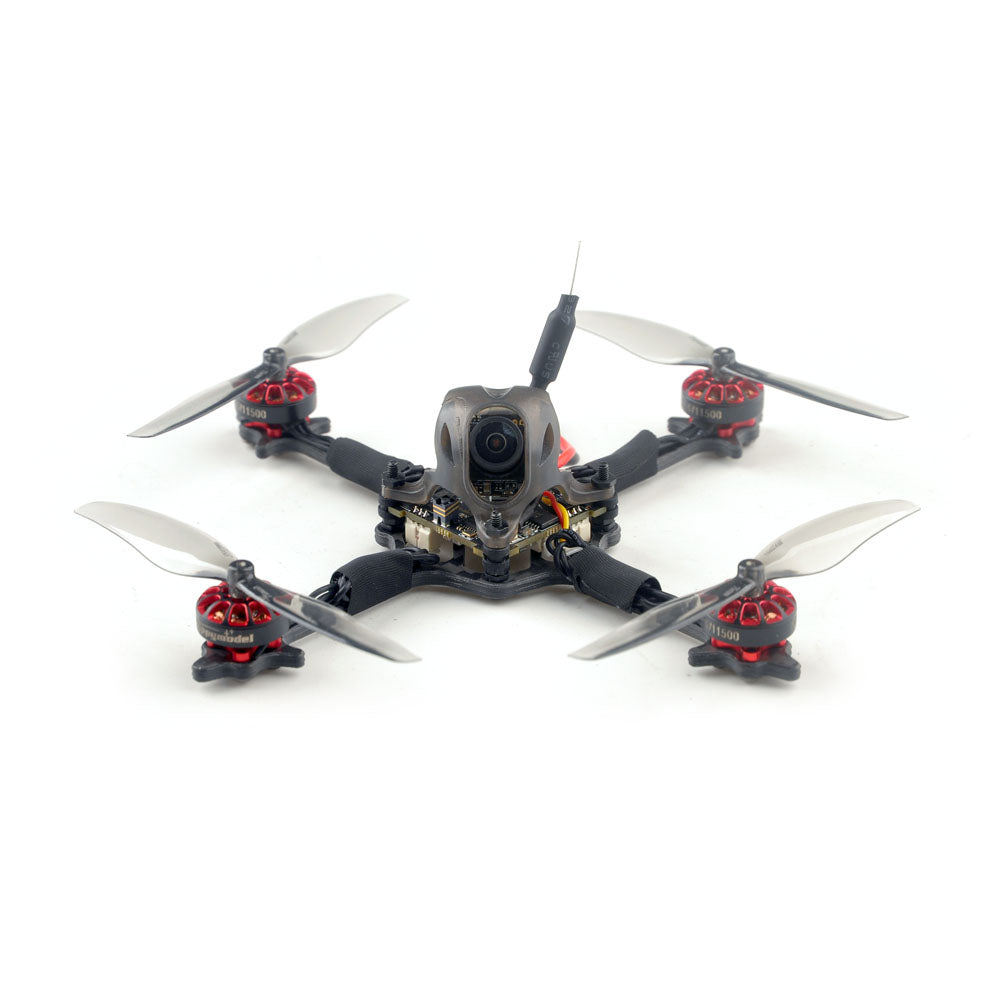

Happymodel Crux3 1S ELRS 3 Inch Toothpick FPV Racing Drone
Description
Description
Introducing the Happymodel Crux3 1s, a 3" toothpick that won't dissappoint. This analog drone feautres high quality electronics and a rugged construction, making it ideal for freestyle flying.

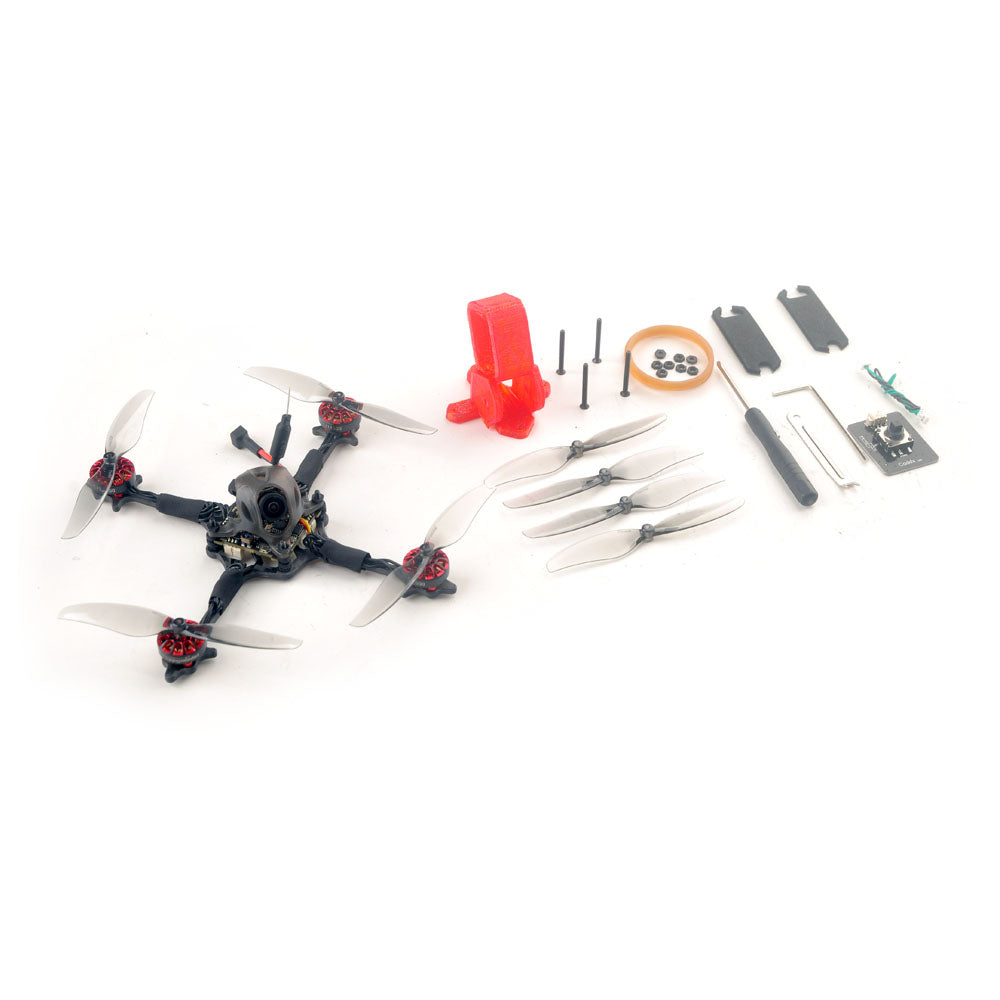

Package Includes:
| Item Name | Qty |
| Crux3 Frame and canopy | 1 |
| ELRS F4 2G4 flight controller built-in SPI ExpressLRS 2.4G receiver (PH 2.0 BATTERY LEAD) | 1 |
| Happymodel EX1202.5 KV11500 brushless motor | 4 |
| Gemfan 75mm bi-blade Propellers(4cw+4ccw) | 1 |
| Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera | 1 |
| 5.8G 25mw~200mw 40ch vtx (Flight controller built-in) | 1 |
| Screw Driver | 1 |
| Propeller disassemble tool | 1 |
| 3D Printed canopy for Insta360 GO2 and CaddxFPV Peanut | |
| Happymodel Handbag | 1 |
Does not include the Insta360 go2 or CaddxFPV peanut camera.
Features:
- 40gram 1s brushless Toothpick drone
- AIO Flight controller with ELRS Receiver and 5.8G VTX
- CADDX ANT Camera
- New 1202.5 KV11500 brushless motor
- Recommend to use 1s 450mah/650mah/660mah/720mah battery
- Compatible with CaddxFPV Peanut and Insta360 GO2
- Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery
Specifications：
Brand Name: Happymodel
Item Name: Crux3 1S ELRS (ELRS FW VERSION IS V3.0)
Wheelbase: 115mm
Size: 97mmx97mmx35mm (without propellers)

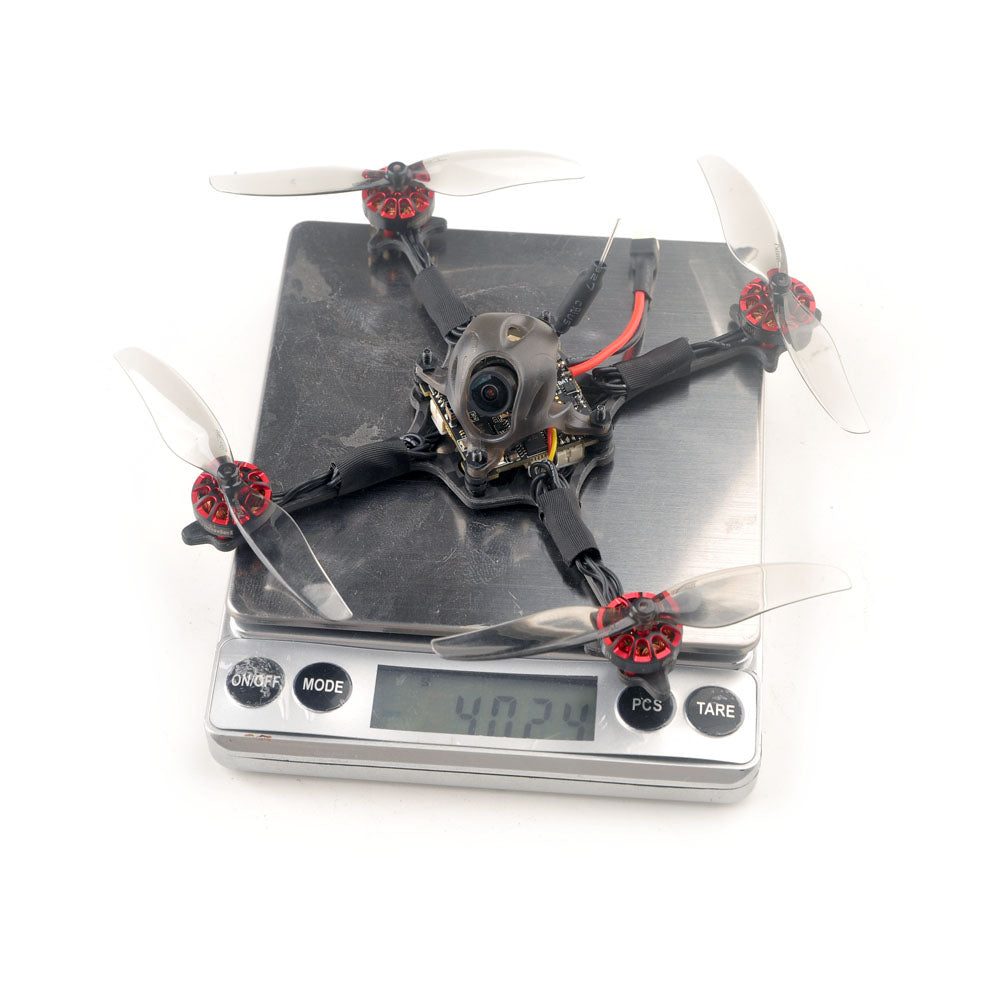

Weight: 40g(without battery)
Â
| Motor | Mode: EX1202.5 KV11500 Configu-ration:9N12P Stator Diamter:12mm Stator Length:2.5mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ14mm*14.5mm Weight(g):4.4g No.of Cells(Lipo):1S |
| Propellers | Gemfan 75mm Center Thickness:5mm Prop Diameter:75mm Center Hole diameter:1.5mm Pitch:0.9in |
| Flight controller | MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Original whoop size compatible Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI ExpressLRS 2.4GHz receiverBuilt-in 5V 1A BECFlight controllerfirmware target: CRAZYBEEF4SX1280 |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_7.HEX Default protocol: DSHOT300 |
| Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHzAntenna : SMD antenna Telemetry output Power: <12dBmReceiver protocol to flight controller: CRSFCould bind with All ExpressLRS 2.4GHz TX module , ExpressLRS firmware need 1.0.0 or latest |
| Onboard 5.8g VTX | Output power: 25mw~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race bandSmartaudio ready |
| Caddx ANT 1200tvl camera | Image Sensor: 1/3″ CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14*14mm(with bracket to 19*19mm) Wide Power Input: DC 3.7-18V Work Temperature: -20℃~+60℃ Weight: 2g (N.W.) |
