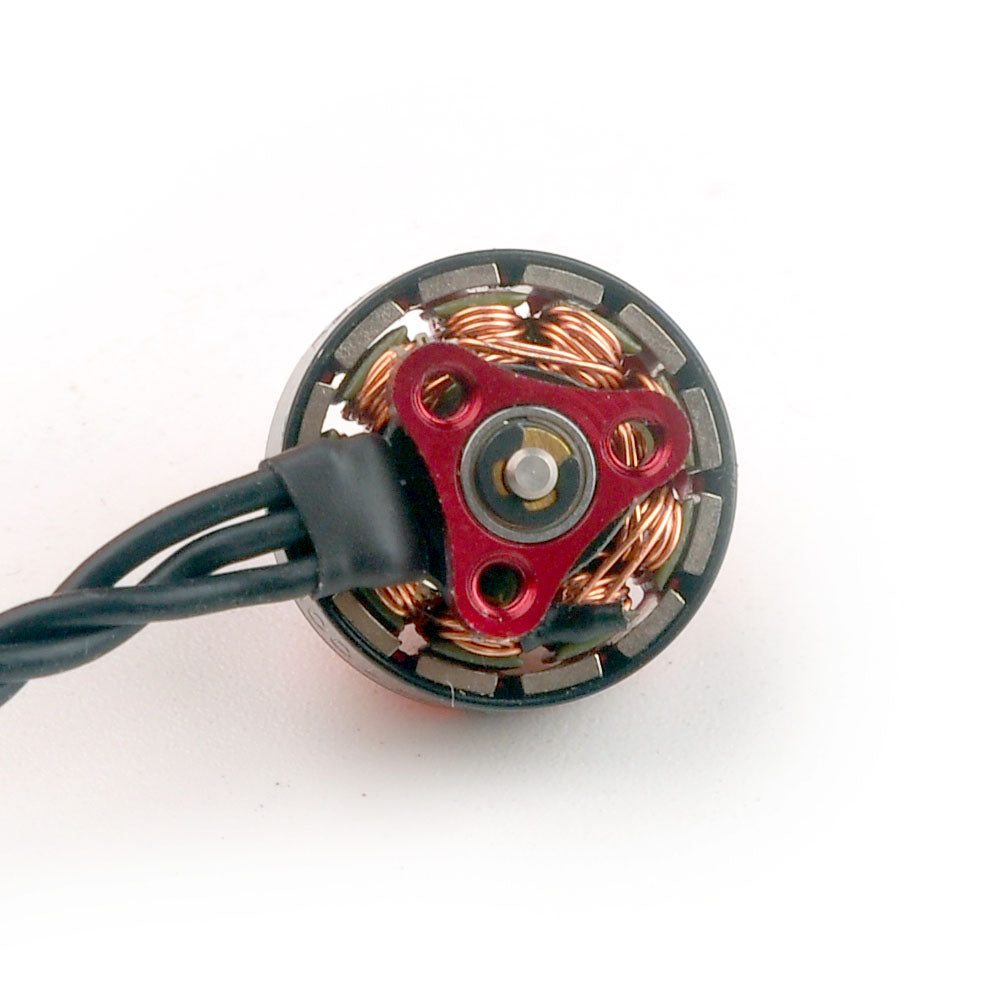

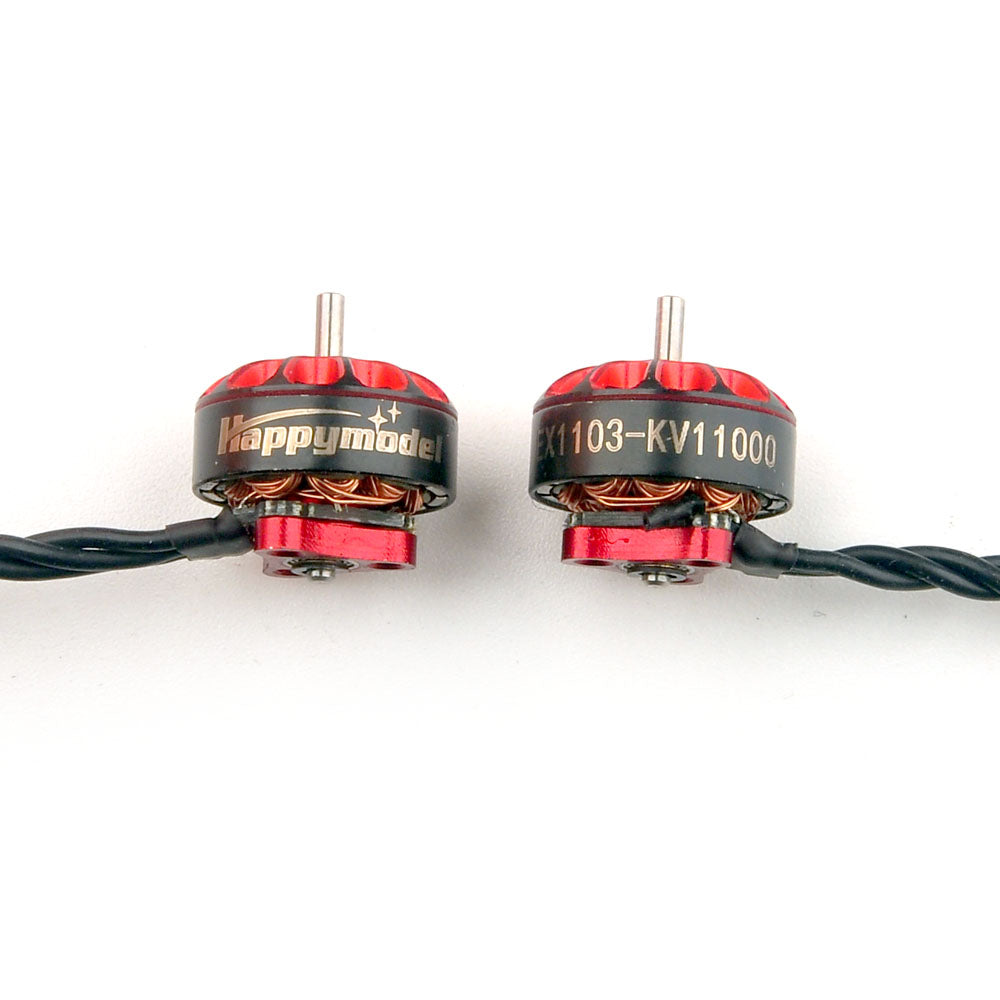

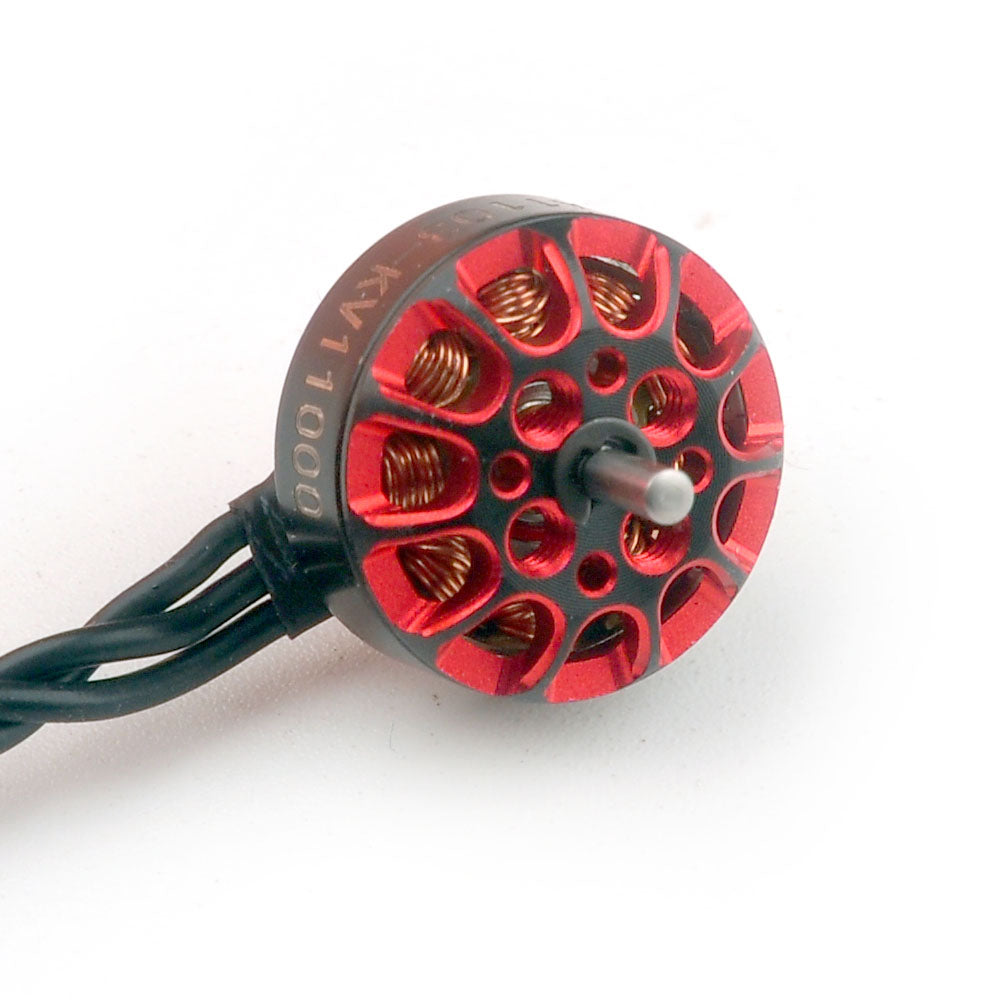

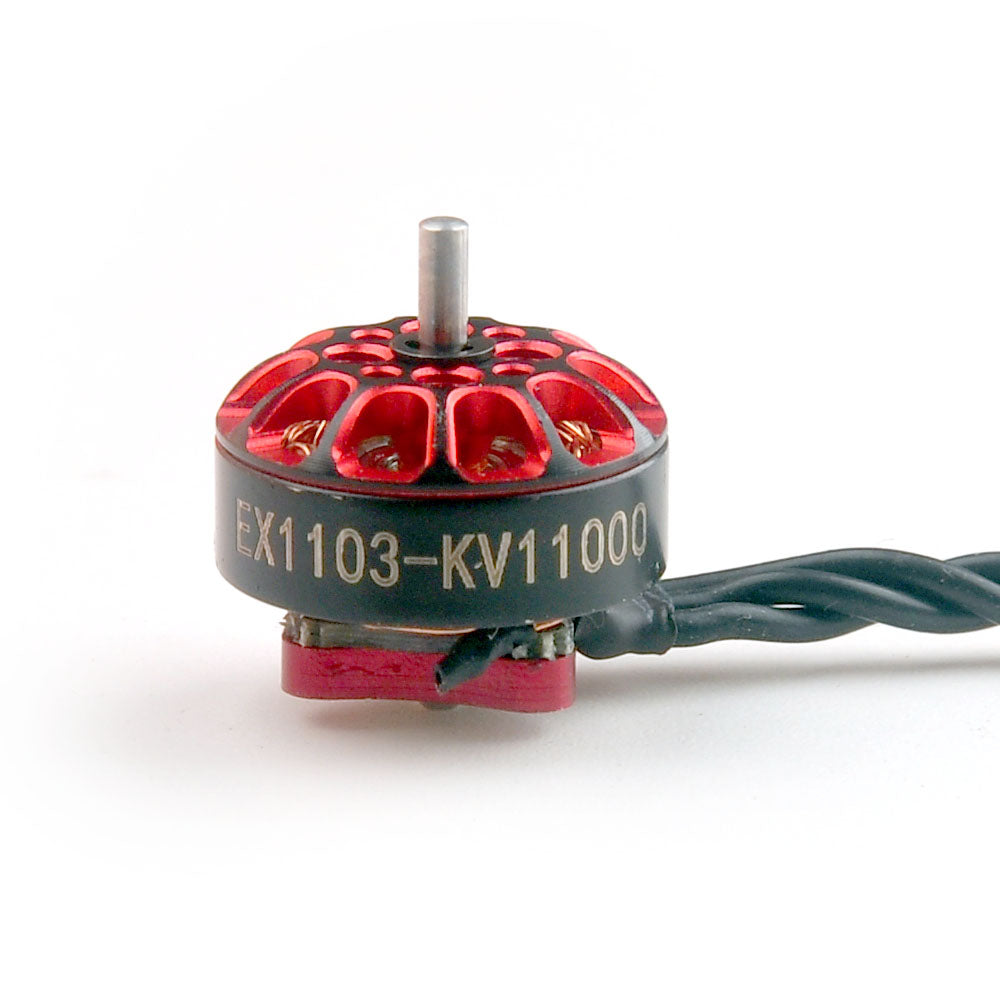

Happymodel EX1103 KV11000 Brushless Motor
Happymodel EX1103 KV11000 Brushless Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.
Happymodel EX1103 KV11000 Brushless Motor
Description
Description
Ideal for micro quads.

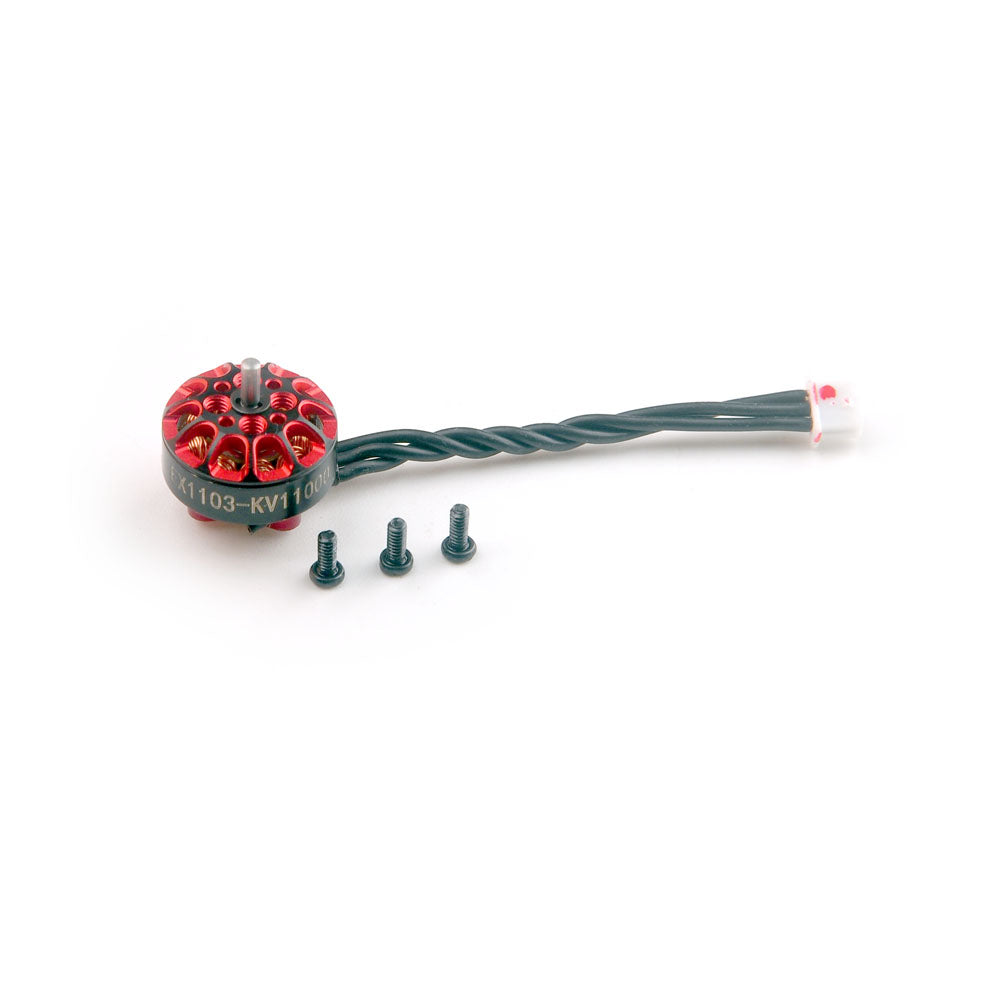

Package Includes:
1x Motor
1x Hardware Set
NOTE: Ships as CW or CCW Motors. These are T-Mount so orientation is a non-issue.
Specifcations:
Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S
| Happymodel EX1103 KV11000 Brushless motor Bench data | ||||||||||||
| No-load voltage | No-load current |
No-load Speed | KV | Voltage (v) |
Current (A) |
Thrust (g) |
Efficiency (g/w) |
Power (w) |
Propeller | |||
| Happymodel EX1103 KV11000 | ||||||||||||
| 2 | 0.38 | 22010 | 11005 | 7.4 | 1.07 | 23 | 2.905 | 7.92 |
|
|||
| 7.4 | 2.12 | 40.9 | 2.607 | 15.69 | ||||||||
| 7.4 | 3.17 | 56.6 | 2.413 | 23.46 | ||||||||
| 7.4 | 4.05 | 68.6 | 2.289 | 29.97 | ||||||||
| 7.4 | 5.04 | 81.8 | 2.193 | 37.30 | ||||||||
| 7.4 | 6.19 | 95 | 2.074 | 45.81 | ||||||||
| 7.4 | 7.23 | 106.5 | 1.991 | 53.50 | ||||||||
| 7.4 | 8.27 | 115.3 | 1.884 | 61.20 | ||||||||
| 7.4 | 9.20 | 121.9 | 1.791 | 68.08 | ||||||||
