Happymodel Moblite7 Walksnail 1S 75mm Digital Whoop V3
Happymodel Moblite7 Walksnail 1S 75mm Digital Whoop V3 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.
Happymodel Moblite7 Walksnail 1S 75mm Digital Whoop V3
Description
Description
Introducing the Happymodel Mobilite7 Walksnail edition. This ELRS Tinywhoop delivers digital quality in a compact and durable package.

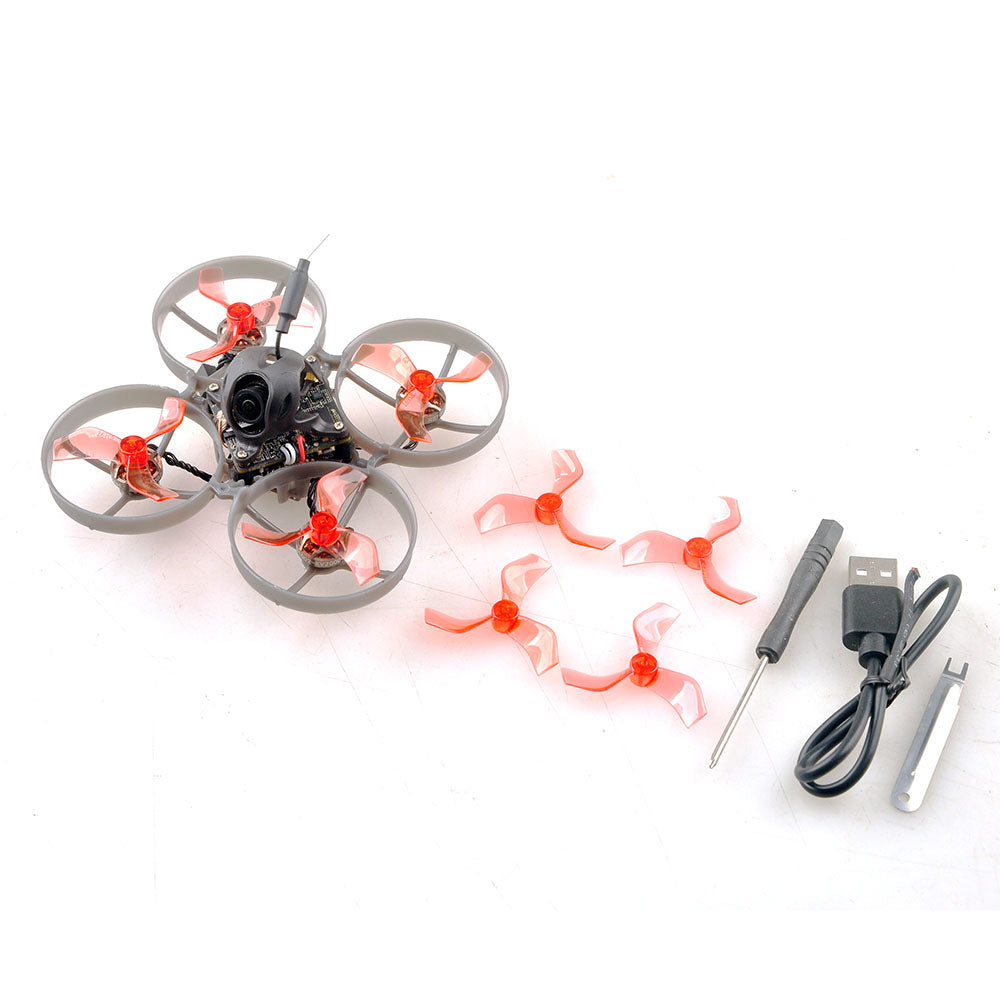

Package Includes:
| Item Name | Qty |
| Mobula7 v4 75mm frame +Canopy | 1 |
| SuperX HD ELRS AIO flight controller | 1 |
| Happymodel 1002 KV20000 Unibell brushless motor | 4 |
| Gemfan 1610-2 bi-blades propeller(4cw+4ccw) | 1 |
| Walksnail Avatar nano HD camera | 1 |
| Walksnail Avatar mini 1s tx module | 1 |
| Spare Canopy | 1 |
| Propeller disassemble tool | 1 |
| Screw driver | 1 |
| Flight |
Specifications:
Brand Name: Happymodel
Model: Moblite7 Walksnail V3
Frame wheelbase: 75mm

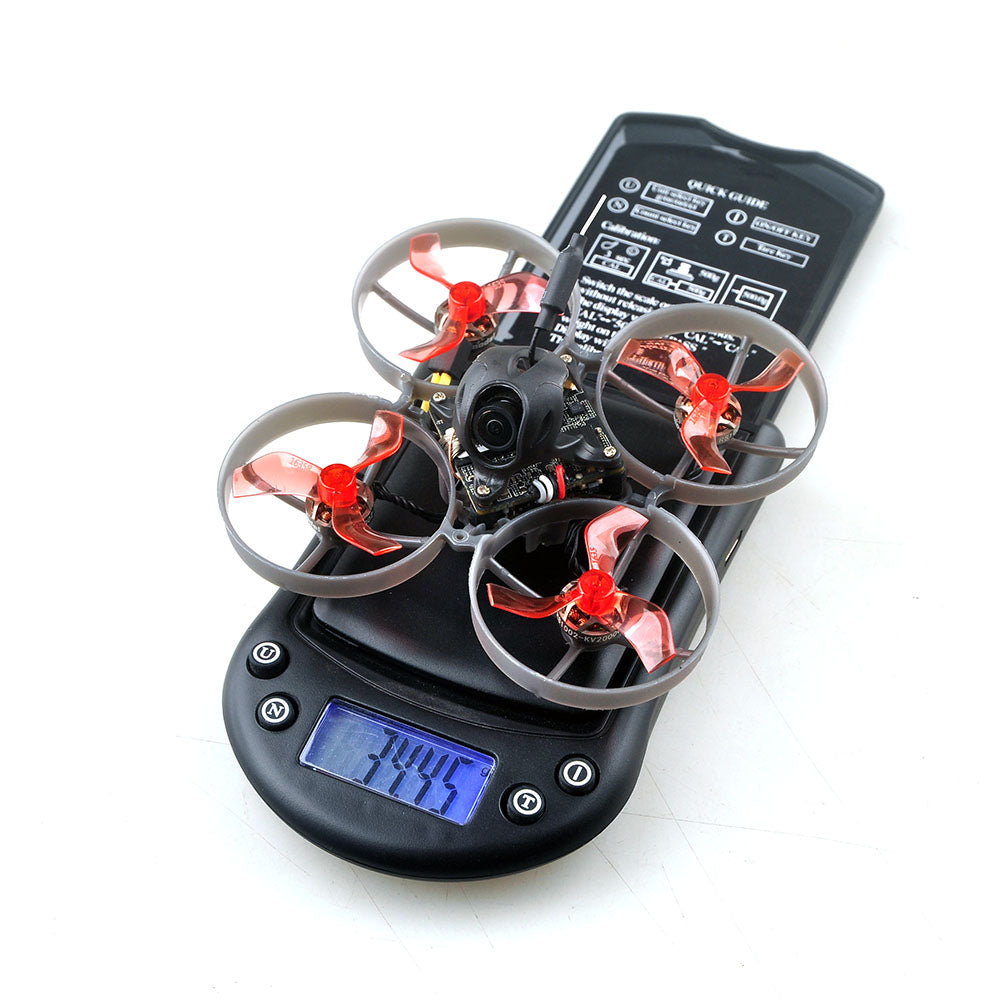

Weight: 34.5 gram without battery
Size: 98mm*98mm*48mm
UART ELRS v3.0 ready
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: GNB A30
Onboard blackbox ready
Specifcations:
|
Flight controller
SuperX HD ELRS |
Betaflight 4.4.2 firmware ready Firmware target: CRAZYBEEF4DX MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: BMI270 or ICM42688P (SPI connection) Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update Bluejay ESC Firmware ready Built-in 5V 1A BEC Built-in voltage detection No betaflight analog osd chip |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support ESC-Configurator and BLHELI_S Suite configurator Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz Default protocol: DSHOT300 |
| Onboard UART ExpressLRS 2.4GHz Receiver | RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Receiver protocol: CRSF Default firmware version: ExpressLRS V3.0.1 The same hardware with Happymodel EP1 receiver Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through |
| Motor | Model: 1002 20000KV Configu-ration:9N12P Stator Diameter:10mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm Weight(g):2.5g No.of Cells(Lipo):1S only |
| Propeller Gemfan 1610-2 Bi-blades | Weight:0.24g Material: PC Pitch:1 inch Props Dia:40mm Center Hole Dia:1.5mm |
| VTX | Model: Avatar mini 1s module Communication Frequency: 5.725-5.850 GHz Transmitter Power(EIRP): FCC:<25.5dBm; CE:<14dBm; SRRC: <20dBm;MIC:<25dBm l/o Interface: JST1.O*6(Power in)JST1.O*4(USB) Mounting Holes: 25.5*25.5 mm Dimensions: 33*33*6.5 mm Storage: 8G Recording: 1080p/720p Weight: 6.8 g Operating Temperature: -20-40℃ Channels: 8 Wide Power lnput: 3.1V-5V Supported FC System: Betaflight OSD: Canvas mode Bitrate: 25mbps / 50mbps Latency: Average delay 22ms Antenna connector: IPEX |
| Camera | Model: Avatar nano lmage Sensor: 1/2.7”Inch Resolution: 1080P/6Ofps,720P/120fps,72OP/6Ofps Ratio: 16/9 4/3 Lens: 2.1mm FOV 170° Aperture: F2.0 Shutter: Rolling shutter Min.Illumination: 0.001Lux Weight: 3.5g Dimensions: 14*14*17mm Coaxial Cable: 45mm |
Default factory dump file:
Moblite7 Walksnail 1S 75mm digital HD brushless whoop v3 dump file
