Holybro PM07 Power Module (14S)
Description
Description
This PM07 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated esc power & signal distribution for up to 8 ESCs.
PM07 has two 5.2V power output port that can provide redundant power to the flight controller, with independent circuits, BEC IC and circuitry.
It is also great for flight controller that do not have built-in servo header pins like the Pixhawk 6C & Pixhawk 4. It comes with pre-soldered wires, capacitor, and XT60 connector.

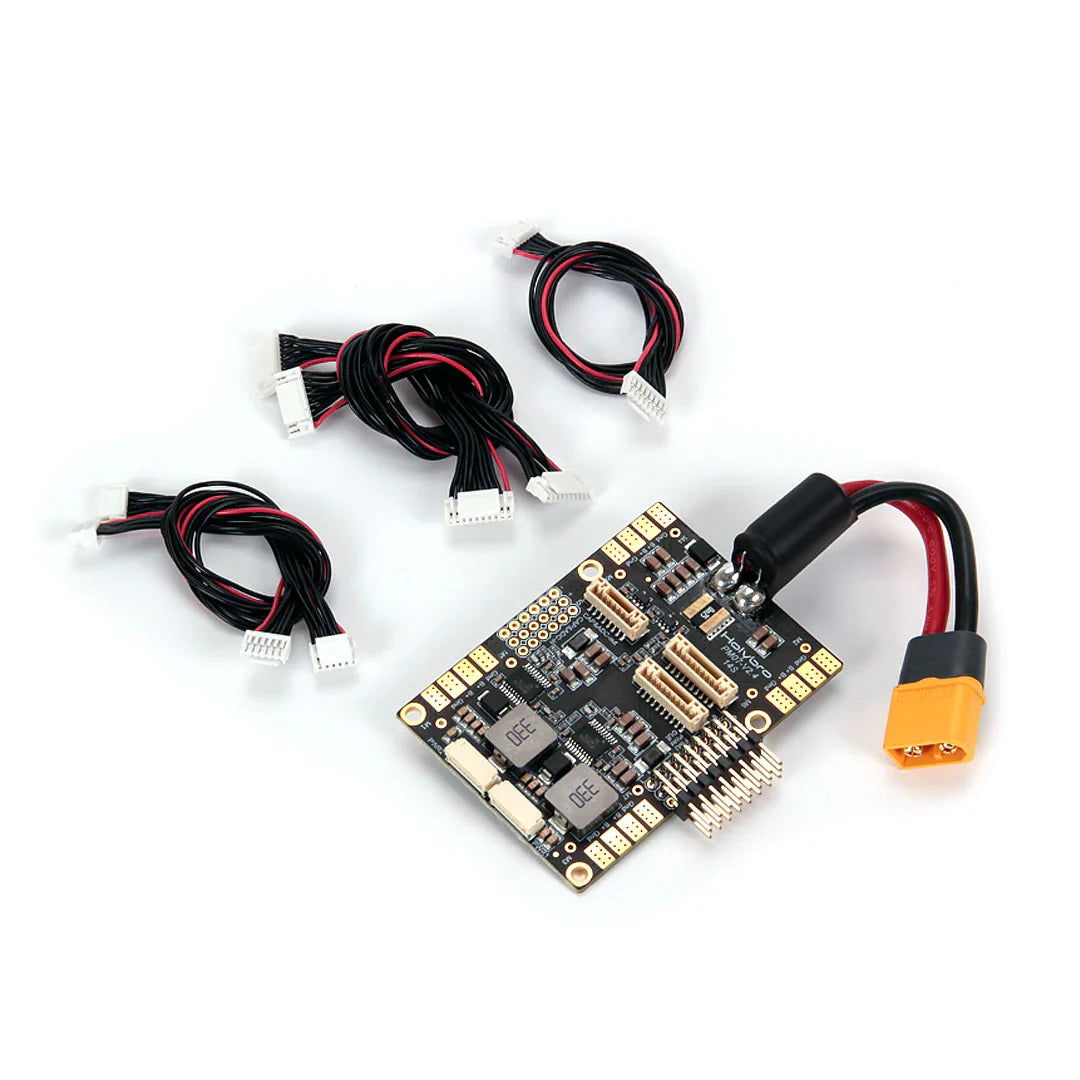

Package Includes:
1x PM07 board
1x 80mm XT60 connector wire (installed)
1x Electrolytic capacito: 220uF 63V (installed)
2x JST GH 10P Cable
1x JST GH 8P Cable
2x JST GH 6P Cable
Specifications：
Input voltage: 2S-14S
PCB Cont. Current Rating: 90A
PCB Burst Current Rating: 140A (<60 Sec)
Output: DC 5.2V & 3A Max
Voltage Divider: 18.182
Amperes per Volt: 36.364
