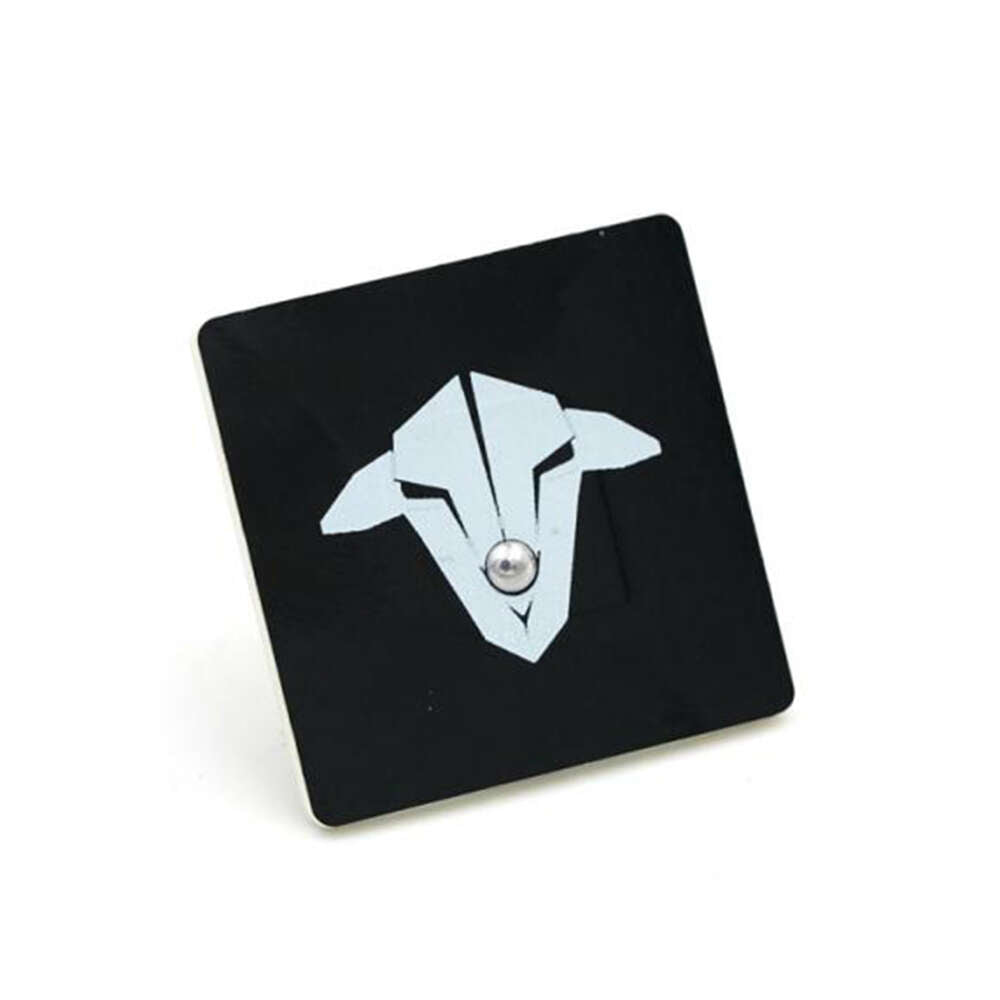

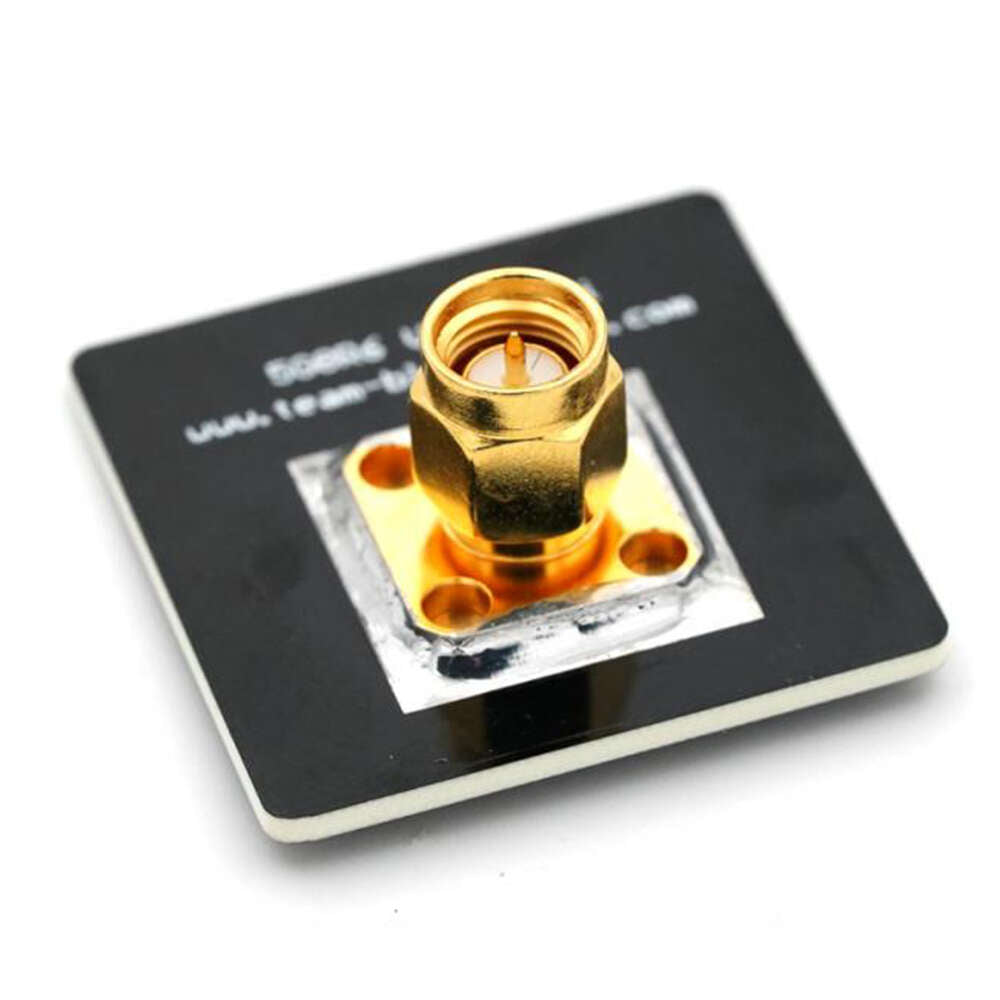

TBS 5G8 RHCP Patch Antenna (SMA)
TBS 5G8 RHCP Patch Antenna (SMA) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship.
TBS 5G8 RHCP Patch Antenna (SMA)
Description
Description
Manufactured by Team BlackSheep, this antenna is your cheap entry into circular polarization. The 5dbi gain provides enough beamwidth to mount this patch antenna directly to your goggle-receiver comfortably.
Package Includes:
1x Antenna
The typical range for this antenna is a very comfortable 1.5km on a 200mW transmitter (which translates to 3-4km if we use the same metrics as our competition). It thus matches or outperforms all existing Cloverleaf / Skew-Planar-Wheel combinations, but it only has a 110 degree coverage. It's more rugged and durable than all of the other receiver antennas too, and lighter.
Use this antenna for your everyday flights at the field in combination with our Fatshark Dominator 5.8 GHz receiver.
Specifications:
| Gain | 5dBi | ||||||||||||
| Polarization | Circular | ||||||||||||
| Frequency | 5700 - 5900 MHz | ||||||||||||
| Beamwidth | 110° | ||||||||||||
| Size | 35 x 35mm | ||||||||||||
| Connector | SMA
Manufactured by Team BlackSheep, this antenna is your cheap entry into circular polarization. The 5dbi gain provides enough beamwidth to comfortably mount this patch antenna directly to your goggle-receiver. The typical range for this antenna is a very comfortable 1.5km on a 200mW transmitter (which translates to 3-4km if we use the same metrics as our competition). It thus matches or outperforms all existing Cloverleaf / Skew-Planar-Wheel combinations, but it only has a 110 degree coverage. It's more rugged and durable than all of the other receiver antennas too, and lighter. Use this antenna for your everyday flights at the field in combination with our Fatshark Dominator 5.8 GHz receiver. SPECIFICATIONS:
|
