TBS  |  SKU: TBS295  |  ID: C-R1-35

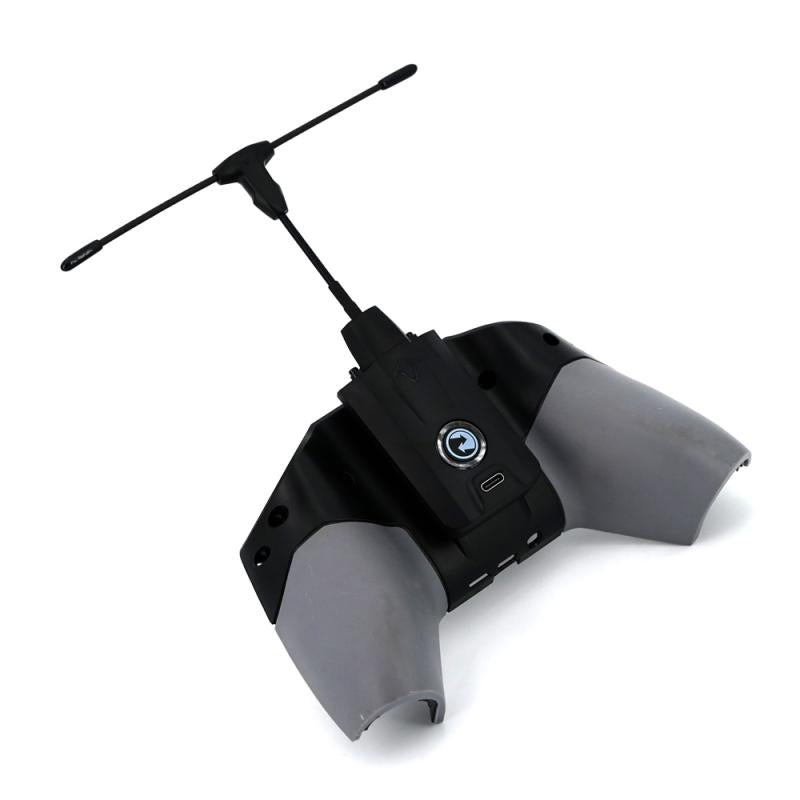

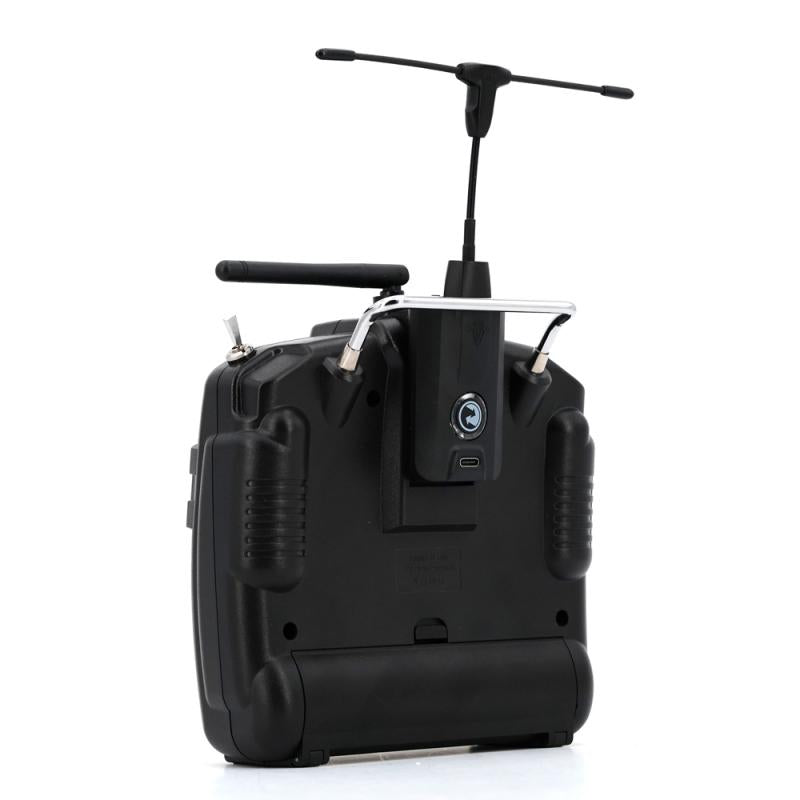

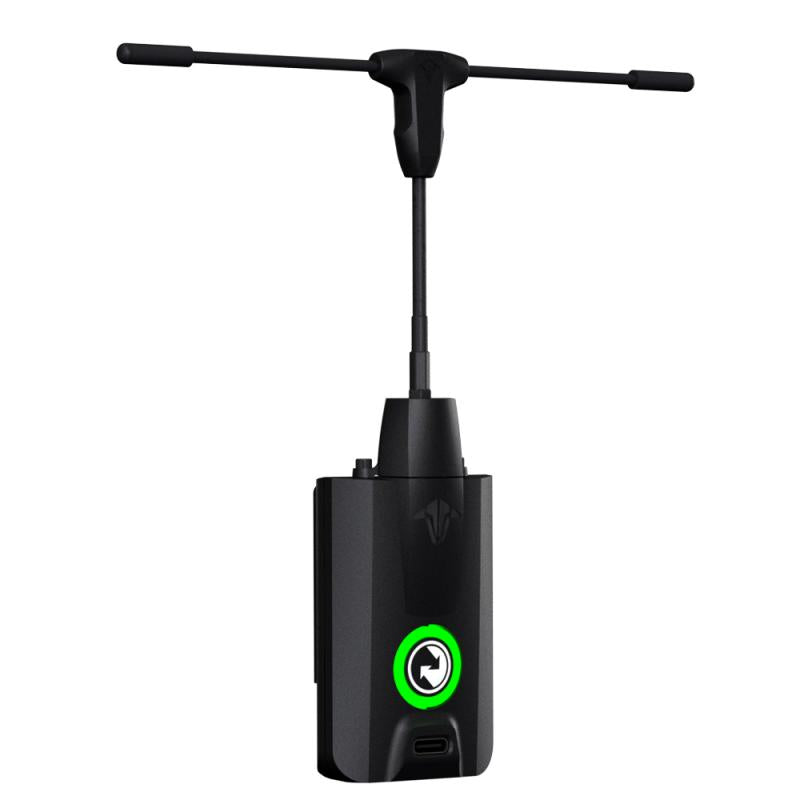

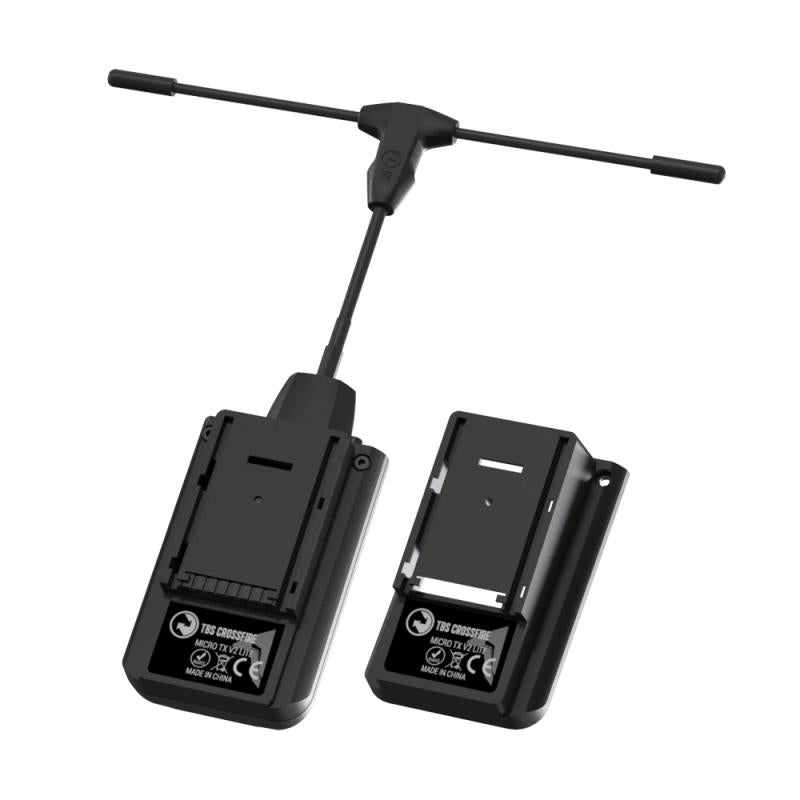

TBS Crossfire Nano TX

$98.99
Shipping calculated at checkout.

Same-Day Shipping

Order before 4:00 PM MST for same-day shipping Monday to Friday if you select UPS or Purolator at checkout. Excludes weekends and holidays. Subject to delays. Learn more.


Shipping & Fufillment

All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.

Description

The TBS Crossfire Nano TX is tailored for X-lite and X9D Lite radios using the "Lite" interface, delivering the same performance and features as the Micro TX V2 at a more accessible price. This advanced long-range R/C link employs cutting-edge RF technology, offering self-healing two-way communication with exceptional sensitivity (-130dB) and full RF diversity. Ideal for penetrating buildings, flying mini quads, or exploring several kilometers away, it supports ranges up to 40 km. Featuring built-in telemetry and the proprietary CRSF protocol, it ensures ultra-low latency and high bandwidth, making it the preferred choice for professional FPV pilots and racers.

Package Includes

1x TBS Crossfire Nano Tx

1x TBS Crossfire Stock Tx Antenna V2

1x X9D Lite Back Case

Features:

  • Long range, adaptive and robust remote control system for your aircraft
  • Immune to on-board noise
  • Two-way communication link with real-time link vitals and telemetry
  • Self-healing & frequency hopping (DSSS, FHSS)
  • Adaptive bandwidth control and range optimization
  • Super easy binding and configuration via built-in display of your R/C
  • Low latency, 150Hz update rate (3x faster than typical RC links) control for perfect immersive feeling
  • Two receiver models: 8 port Diversity Rx, 4 port Mini-receiver (4g weight!)
  • 8 or 12ch output via SBUS/PPM/CRSF on both receivers
  • Ability to fly with multiple friends at the same time (10 or more)
  • Selectable RF power from 25mW to 1W (local restrictions apply)
  • Transmitter LED shows link health
  • Micro-receiver for smaller drones. Smaller than you think!
  • Software updates via RF Link

Downloads

TBS Crossfire Manual

TBS Crossfire Manual (German)

TBS Crossfire Quickstart Guide

TBS Agent M (new! online configurator and firmware update tool)

TBS Agent X (desktop configurator for software updates)

Latest OpenTX LUA Scripts for Crossfire

TBS Cloud - Wifi Firmware

TBS Cloud - Crossfire & Mavlink Over Wifi

OpenTX Nightly Firmware (Updated - Jan.11. 2021)

TBS Agent Lite

Specifications:

Frequency Bands 868MHz (EU) / 915MHz (USA, Asia, Australia)
Input Voltage 6.0 - 13V
Connector USB-C
Power consumption 1.1W (@10mW) - 2W (@100mW)
Dimensions 65 x 42 x 25 mm (JR module size)
Weight 48g
