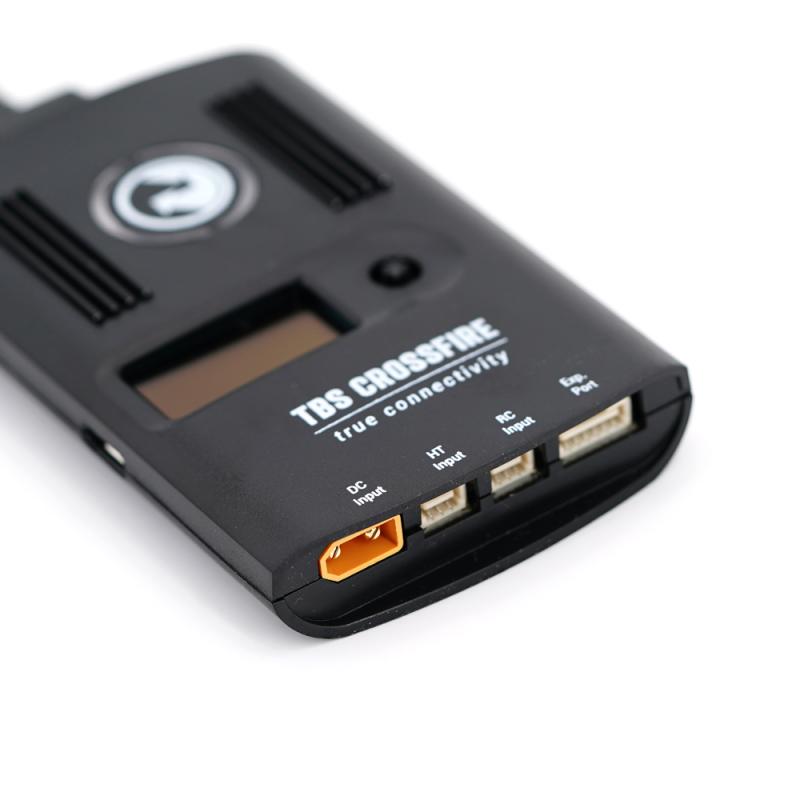

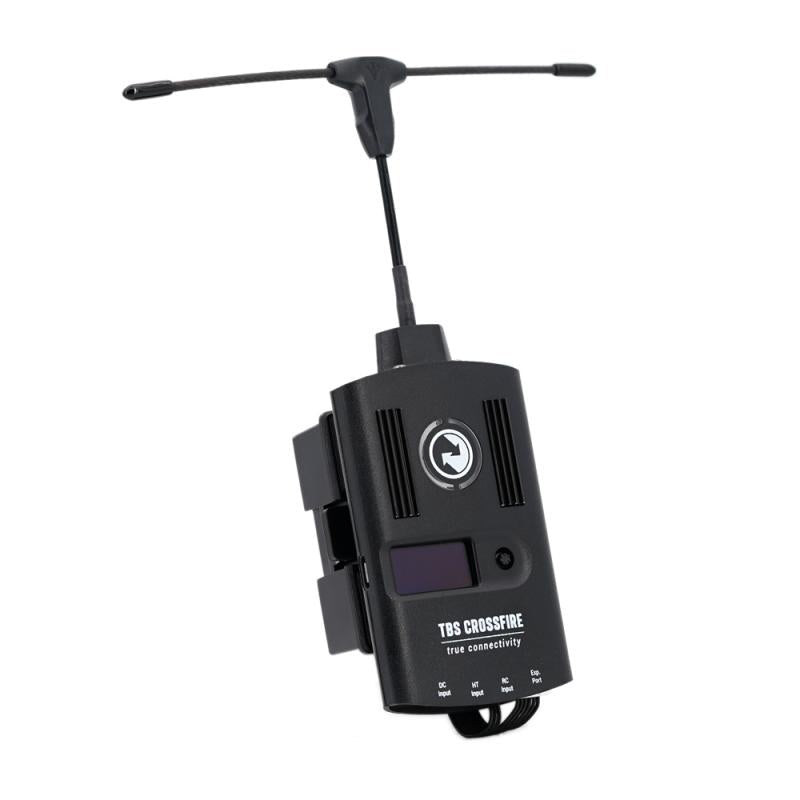

TBS Crossfire TX Long Range R/C Transmitter

The TBS CROSSFIRE is an advanced long-range R/C system utilizing cutting-edge RF technology to deliver self-healing, two-way communication with exceptional range. Featuring a remarkable -130dB sensitivity, full RF diversity, and compact receivers ideal for FPV drones, it integrates the latest innovations for a superior control link. Beyond just range, it excels in low latency, telemetry accuracy, interference resistance, smart device compatibility, and user-friendly design. The Crossfire not only offers extensive range but also leverages it to enhance functionality and reliability, setting a new standard for FPV control systems.

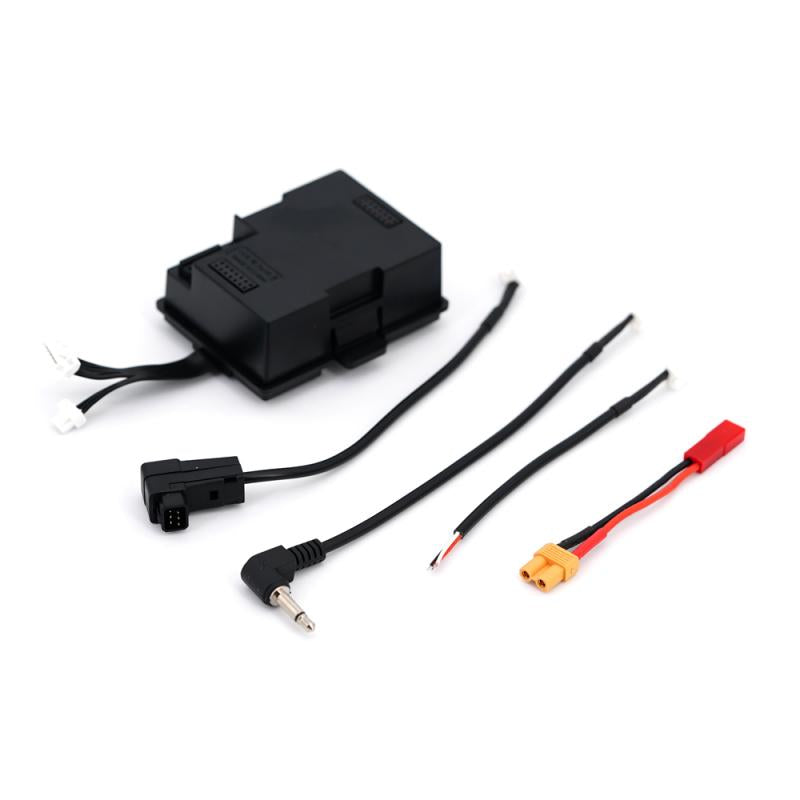

Package Includes:

1x TBS Crossfire Transmitter

1x TBS Crossfire JR Adapter

1x TBS Crossfire Stock Tx Antenna V2

1x Crossfire Futaba cable

1x Crossfire Graupner / Spektrum cable

1x Crossfire PWM Pigtail

1x Crossfire JST to XT30 cable

Features:

• Long range, adaptive and robust remote control system for your aircraft
• Immune to on-board noise
• Two-way communication link with real-time link vitals and telemetry
• Self-healing & frequency hopping (DSSS, FHSS)
• Adaptive bandwidth control and range optimization
• Serial Modem capable of transmitting MAVLink or other serial protocols (up & downlink)
• RX beacon mode to recover your downed aircraft
• Super easy binding and configuration via built-in display
• Low latency, 150Hz update rate (3x faster than typical RC links) control for perfect immersive feeling
• Two receiver models: 8ch Diversity Rx, 4ch PPM/SBUS Mini-receiver (4g weight!)
• 8 or 12ch output via PPM/SBUS/CRSF on both receivers
• Ability to fly with multiple friends at the same time (10 or more)
• Selectable RF power from 10mW to 2W (local restrictions apply)
• Dedicated head-tracking input option for full FPV immersion
• Transmitter LED shows link health, OLED display for built in configuration
• Short-Range mobile connectivity telemetry output for smartphone apps
• Fully configurable by OpenTX and TBS TANGO remote using CRSF protocol
• CRSF protocol interface to Betaflight, Kiss and Raceflight FCs ( lower latency, higher update rate, telemetry support )
• Expansion port for future feature support
• Micro-receiver for smaller drones. Smaller than you think!
• Software updates via RF Link

Downloads:

• TBS Crossfire Manual
• TBS Crossfire Manual (German)
• TBS Agent M (new! online configurator and firmware update tool)
• TBS Agent X (desktop configurator for software updates)
• Latest OpenTX LUA Scripts for Crossfire
• TBS Cloud - Wifi Firmware
• Manual: TBS Cloud - Crossfire & Mavlink Over Wifi
• OpenTX Nightly Firmware (Updated - Jan.11. 2021)
• TBS Agent Lite

Specifications:
