TBS  |  SKU: TBS-MOJI-SERVO  |  ID: L-R8-12

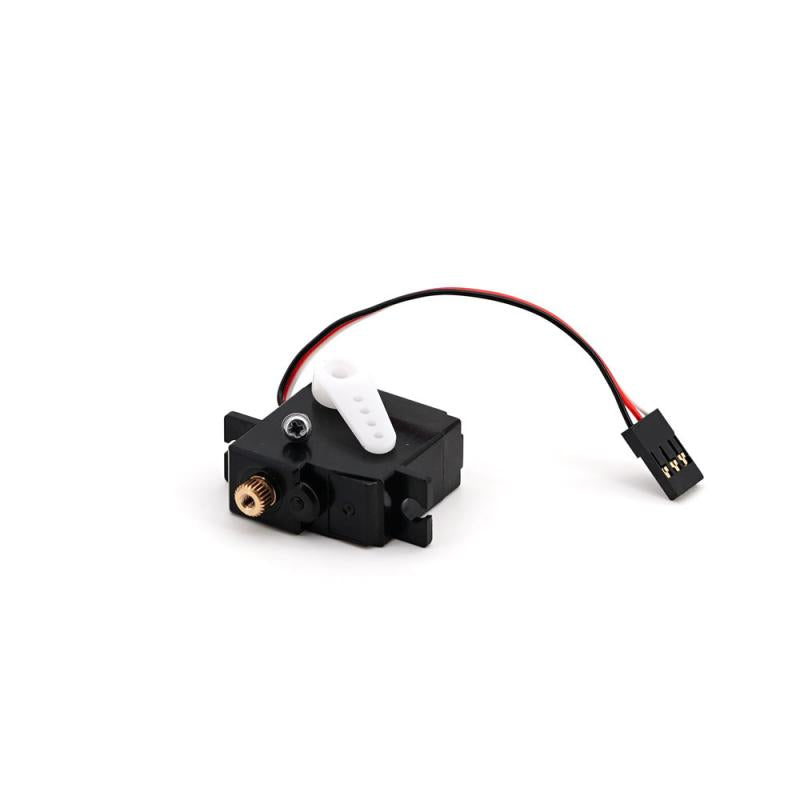

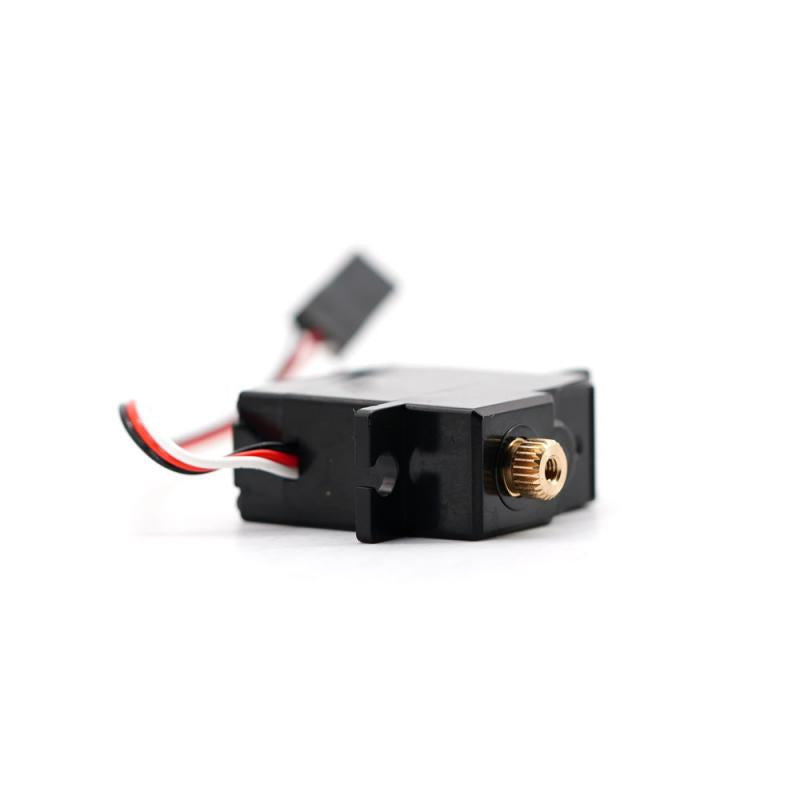

TBS Mojito Servo

$25.99
Shipping calculated at checkout.

Same-Day Shipping

Order before 4:00 PM MST for same-day shipping Monday to Friday if you select UPS or Purolator at checkout. Excludes weekends and holidays. Subject to delays. Learn more.


Shipping & Fufillment

All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.

Description

The perfect companion for your TBS Mojito, the Mojito Servo is custom-designed to enhance the performance of this advanced flying platform. Built to withstand the rigors of high-speed flights, it ensures your maneuvers are as aggressive and precise as you desire. Experience smooth, exhilarating control that complements the Mojito’s capabilities, allowing you to navigate the skies with confidence and finesse.

Package Includes:

1x Motor

1x Hardware Packet

Specifications:

Operating Voltage: 4.8V-6V DC

Standby Current: ≤20 mA

Consumption Current* (No Load): 4.8V ≦70 mA / 6V ≦80 mA

Stall Current: 4.8V ≦1.1 A / 6V ≦1.3 A

Rated Torque: 4.8V ≥2.8kgf·cm / 6V ≥3.2kgf·cm

Max. Torque*: 4.8V ≥4.5 kgf.cm / 6V ≥5.5 kgf.cm

No Load Speed*: 4.8V ≦ 0.26sec/60° | 6V ≦ 0.24sec/60°

Rotating Direction: CCW(500→2500us)

Pulse Width Range:500~2500us

Neutral Position: 1500us

Operating Travel Angle: 90° ±10° (1000~2000 us)

Max. Operating Travel Angle: 180°±10°(500~2500us)

Mechanical Limit Angle: 360°

Left & Right Travelling Angle Deviation: ≤ 6°

Centering deviation: ≤ 1°

Back Lash*: ≤ 1°

Dead Band Width: ≤ 5 us

Operating Temperature Range: -10℃~+50℃

Storage Temperature Range: -20℃~+60℃

Operating Humidity Range: ≤ 90%RH

Storage Humidity Range: ≤ 90%RH

Weight: 21± 0.5g

Case Material: ABS

Gear Set Material: Metal

Reduction ratio: 1/403

Motor Type: Core motor

VR Parameter

Type: Carbon-Film Potentiometer

Angle: 330°

Life: 1,000,000 Cycles Min

Cable:

Material: Ф1.08,19 芯 PVC

Length: 115±5mm

Horn Gear Spline: 25T/Φ5.9mm

Horn Gear Type: Please check product photos

Rocker Arm Screw: WPMФ2.5* 5 W=5 镀镍

Connector:

Type: JR/3Pin/2.54mm

Pin Assignment

Brown: GND

Red: Vcc

Orange: Signal / PWM

Communication Interface: PWM

Signal Voltage: V (HIGH: Min,2.0V, Max.Vcc) / (LOW: Min,0.0V, Max.0.45V)

Frame Rate: T (3.0~30ms (Default 20ms))

Left/Center/Right: Td (2500/1500/500us)

Amplifier Type: Digital
