RadioMaster  |  SKU: RM04-C1

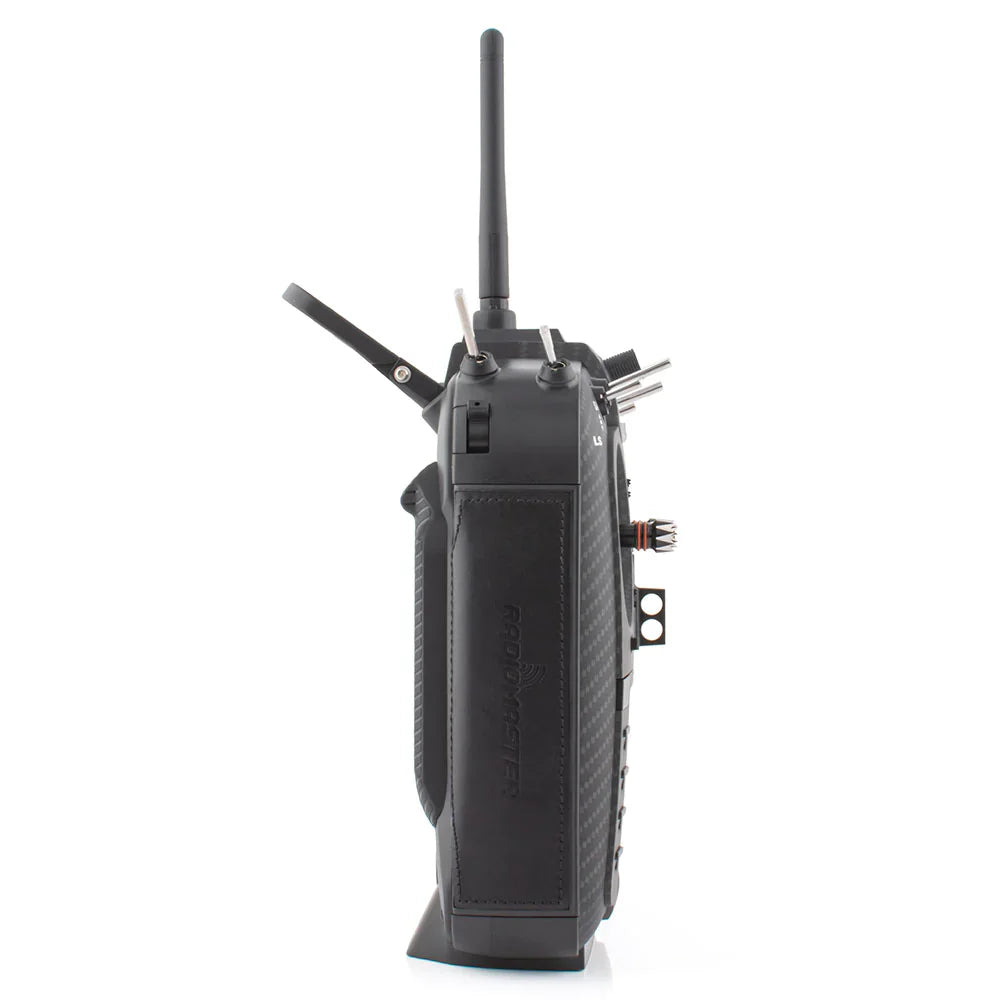

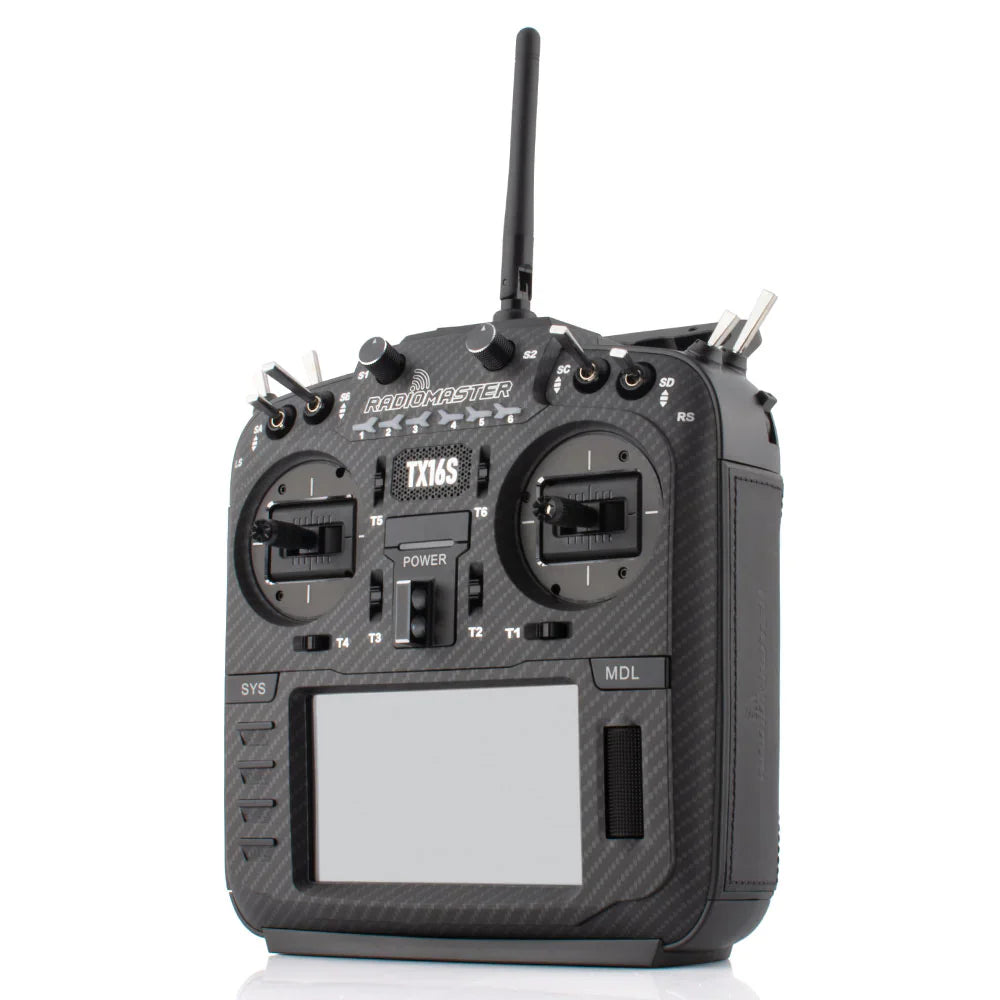

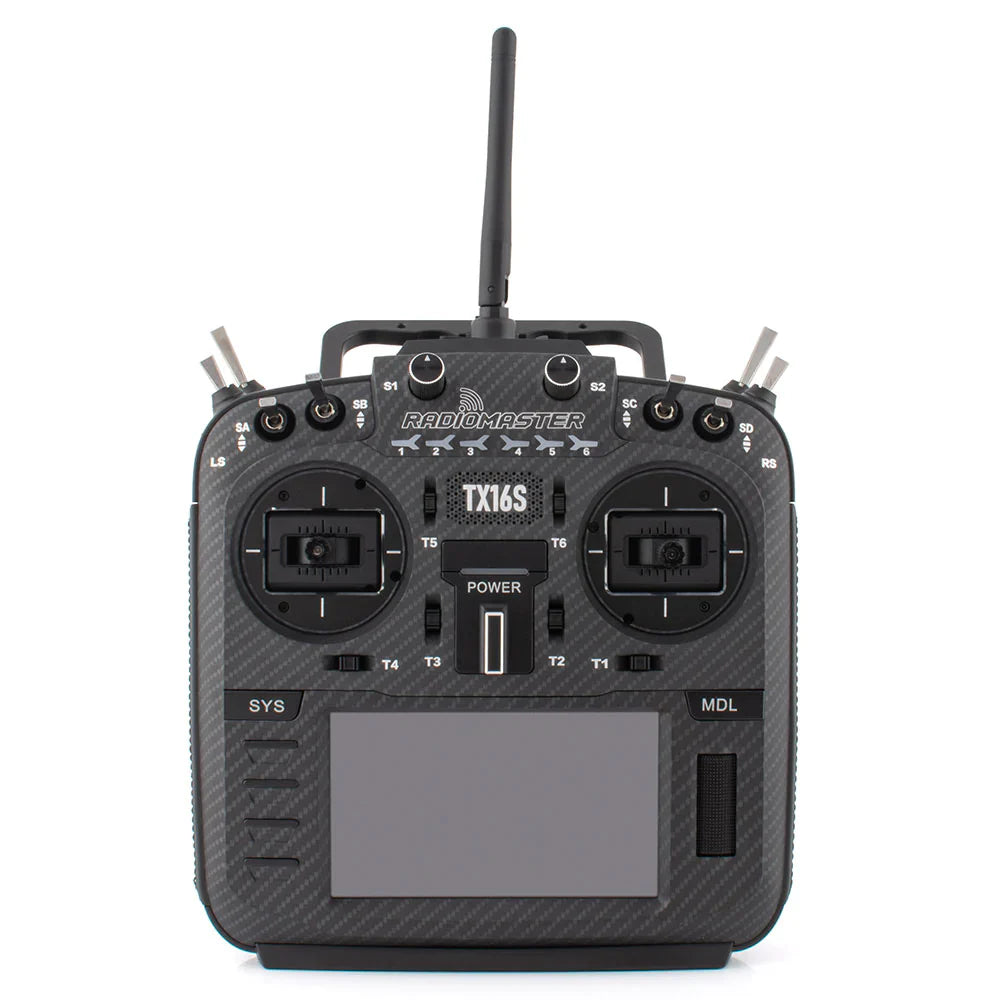

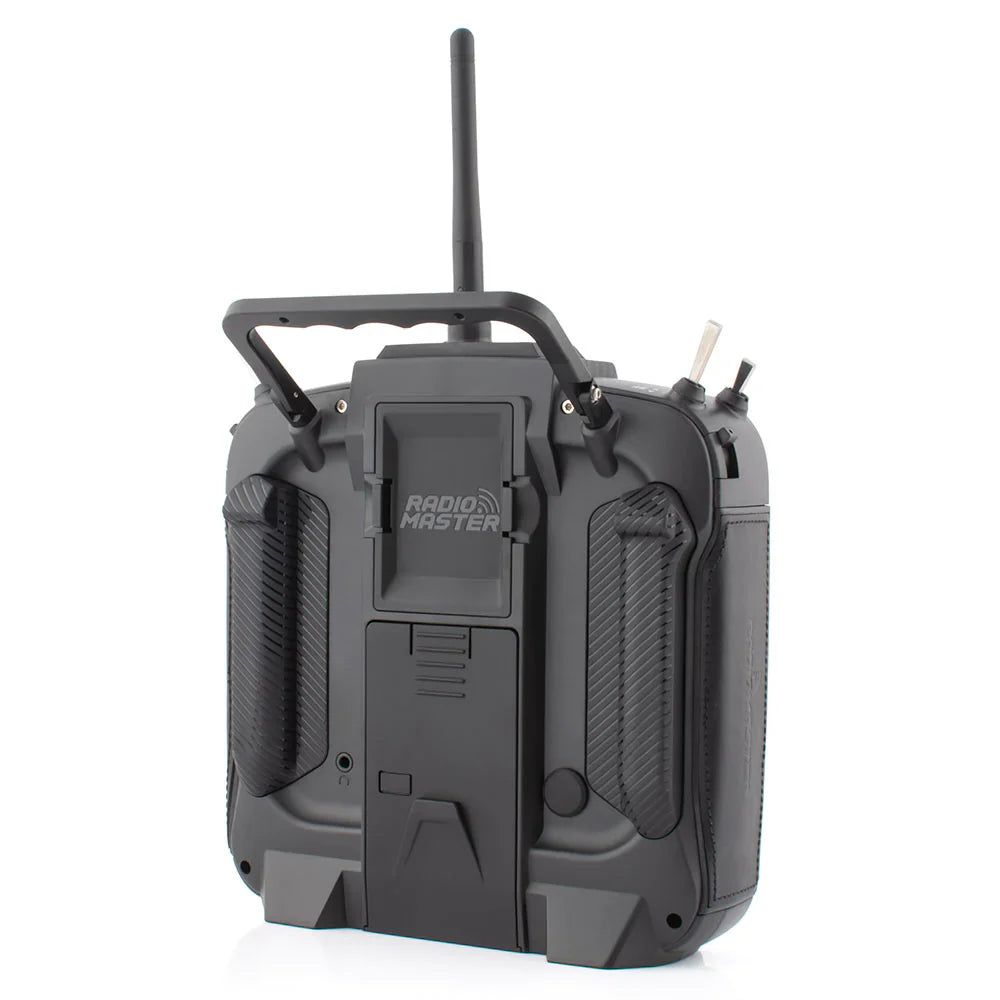

TX16S Mark II Max Radio Controller ELRS V4.0 Gimbals

$344.99
Shipping calculated at checkout.

Shipping & Fufillment

All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.

Description

Package includes:

  • 1 * TX16S Mark II Max Radio Controller (V4.0 Gimabls/ELRS/Black)
  • 1 * 18650 Tray
  • 1 * USB-C Cable
  • 1 * Screen Protector
  • 1 pair of flat grips
  • 1 pair of raised grips  (installed on radio by default)
  • 1 * TX16S Key Chain

Features

  • Improved internal circuitry and optimized power supply.
  • New charge circuitry with integrated reverse-polarity protection.
  • Optimized charge IC now allows up to 2.2A internal USB-C charge current.
  • Rear-mounted audio jack provided headphone output.
  • V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
  • Optional high/low rear grips are included for improved ergonomics.
  • Improved S1/S2 knobs with clear center detents.
  • Improved LS/RS Sliders with smoother feel and better center detents.
  • Redesigned battery cover for improved battery access.
  • Retooled body shell with improved fit and finish.
  • Trainer socket changed to standard TRS 3.5mm socket.
  • Rear DIY Socket added for personalized mods.
  • Improved internal plastics for better longevity.
  • Built-in ExpressLRS Backpack and 4in1 versions.

Specifications:

  • Items: TX16S Mark II Max
  • Size: 287x129x184mm
  • Weight: 750g (without battery)
  • Transmission frequency: 2.400GHz-2.480GHz
  • Transmitter module:  Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401); Option 2: Internal ELRS (SX1280)
  • SD card: 256MB by default, 8GB maximum
  • Antenna gain: 2db (transmit power adjustable)
  • Working current: 400mA
  • Working voltage: 6.6-8.4v DC
  • Radio firmware: EdgeTX
  • Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
  • Channels: Up to 16 channels (depending on the receiver)
  • Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
  • Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia;  Option 2: AG01 CNC Hall sensor
  • Module Bay: JR compatible module bay
  • Upgrade method: Supports USB-C online / SD card offline upgrade

Support EdgeTX and OpenTX

EdgeTX is installed by default (Touch screen enabled).

* Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later
