UBEC 12A (3-14S)
UBEC 12A (3-14S) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.
UBEC 12A (3-14S)
Description
Description

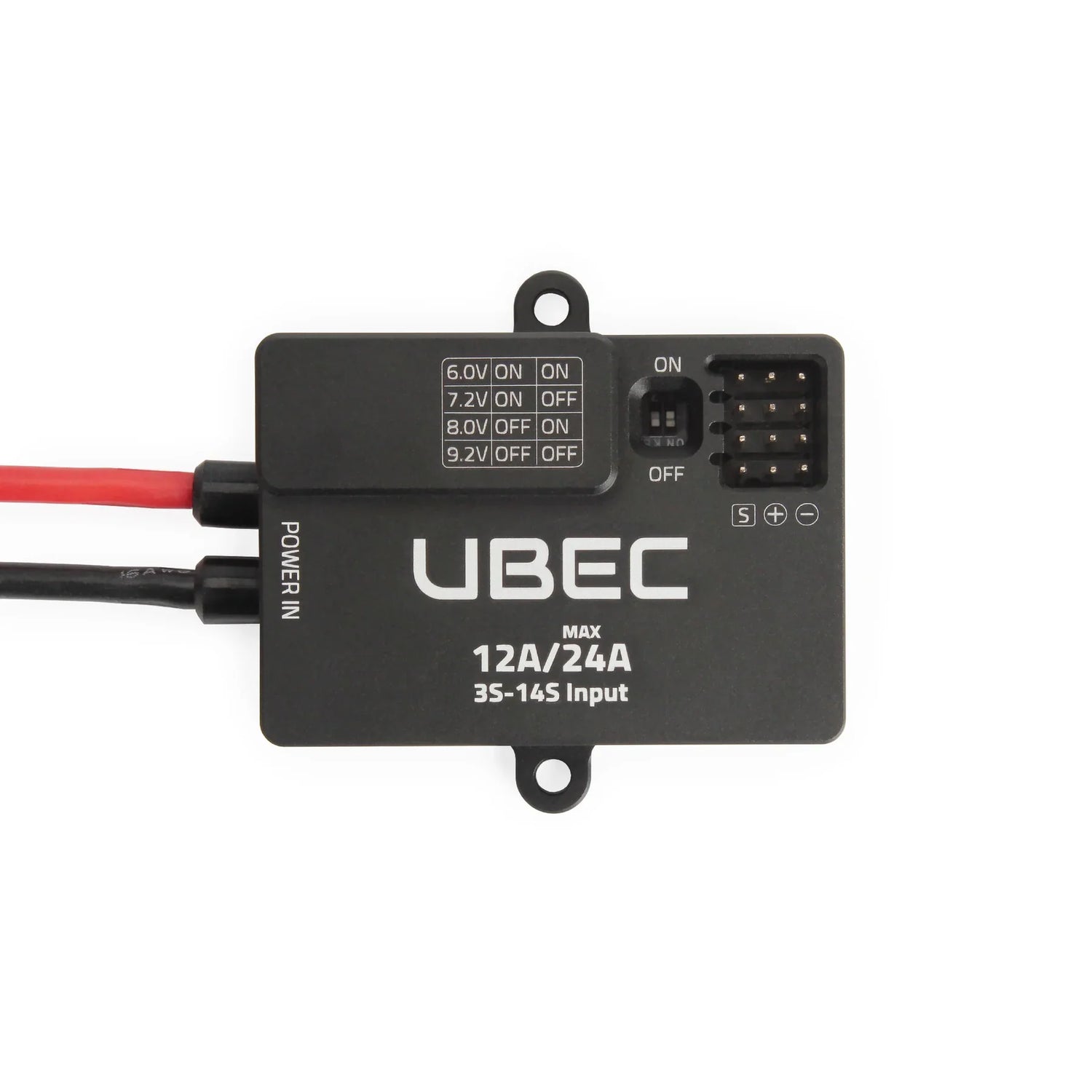

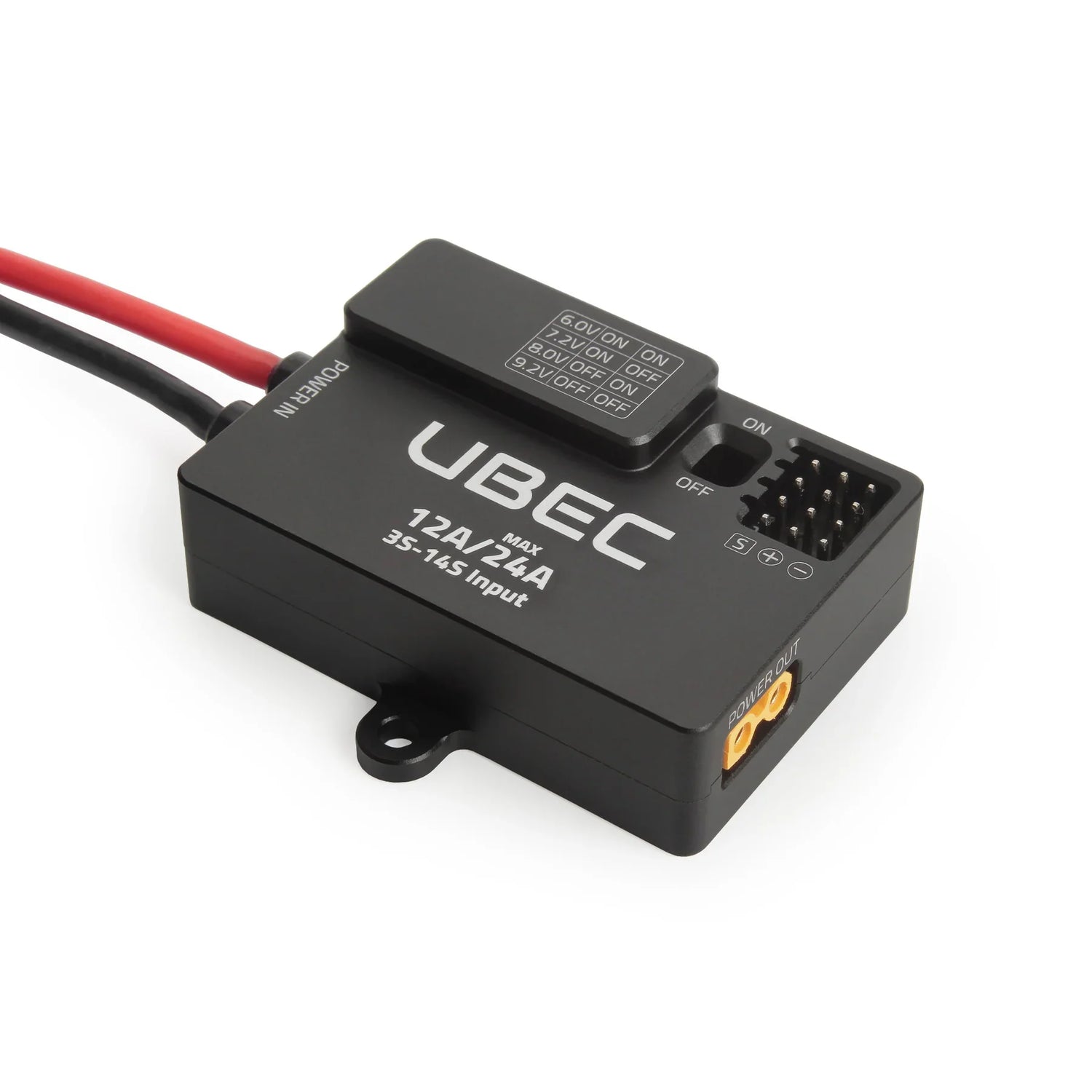

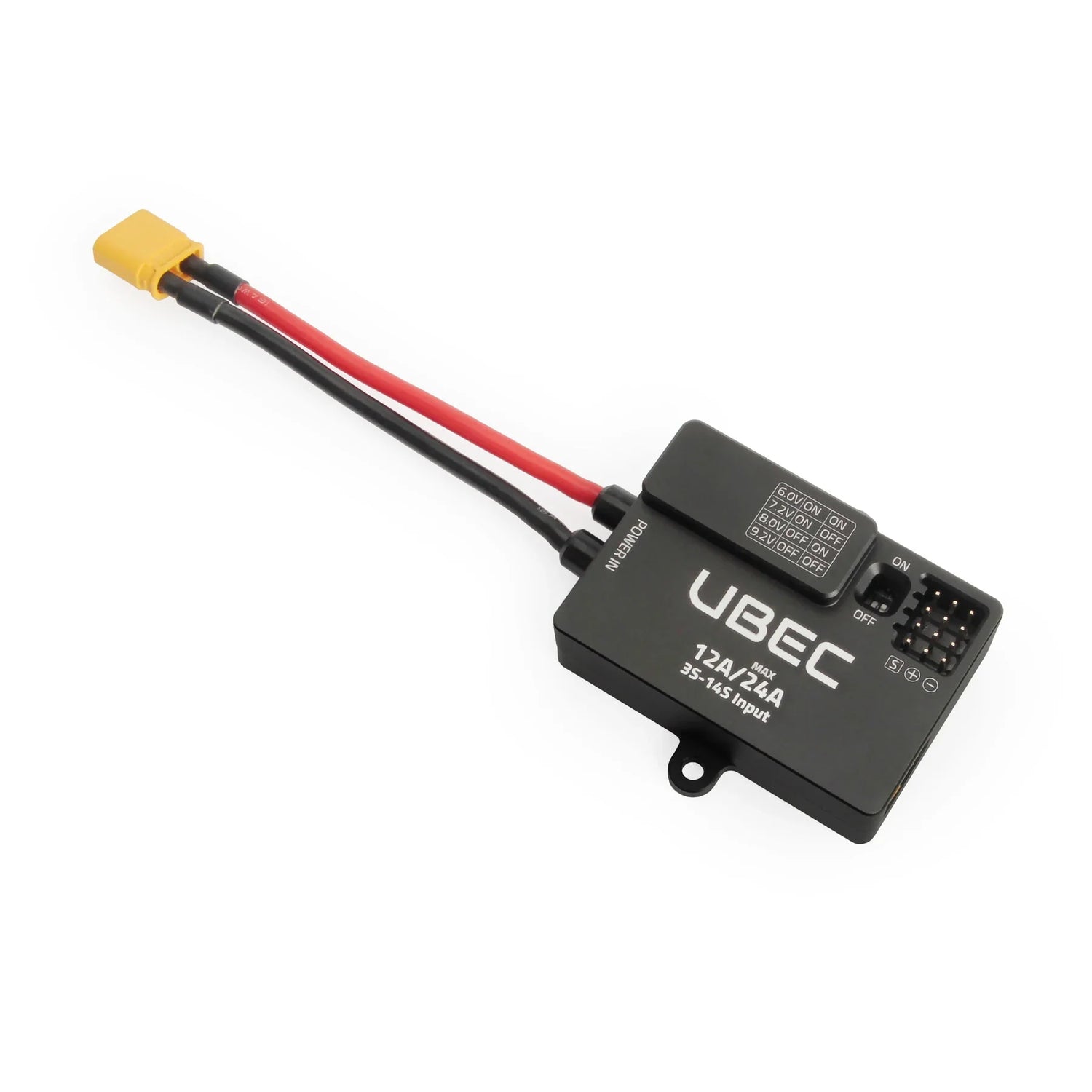

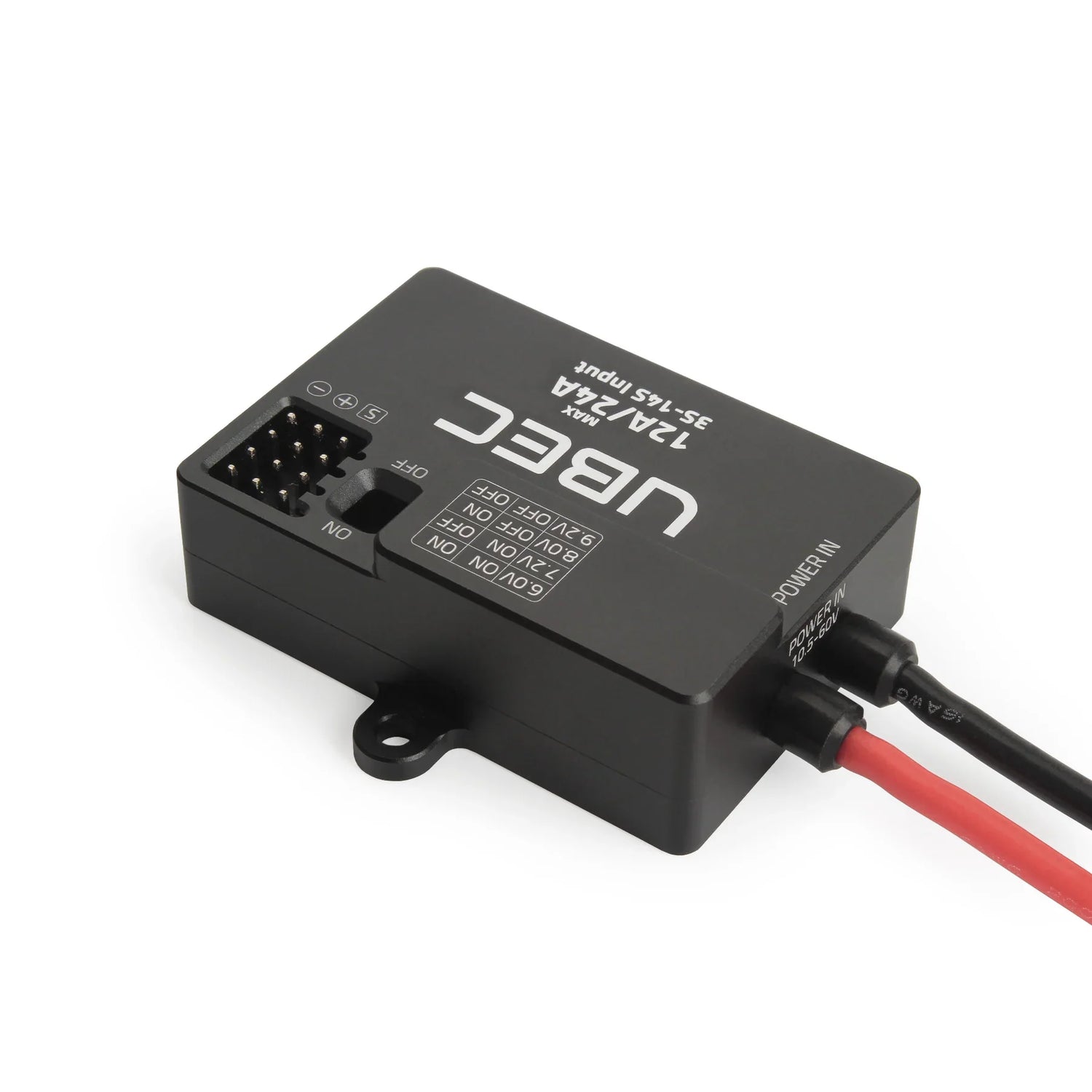

UBEC 12A (3-14S) is a synchronous step-down regulator from a high voltage or widely varying input supply. It draws the DC voltage from a 3-14S LiPo battery and drops the voltage to a level suitable for receivers and other electronic devices and keeps providing the stable current output of up to 12Amp. The output voltage can be adjusted by the onboardĀ DIP switches.Ā

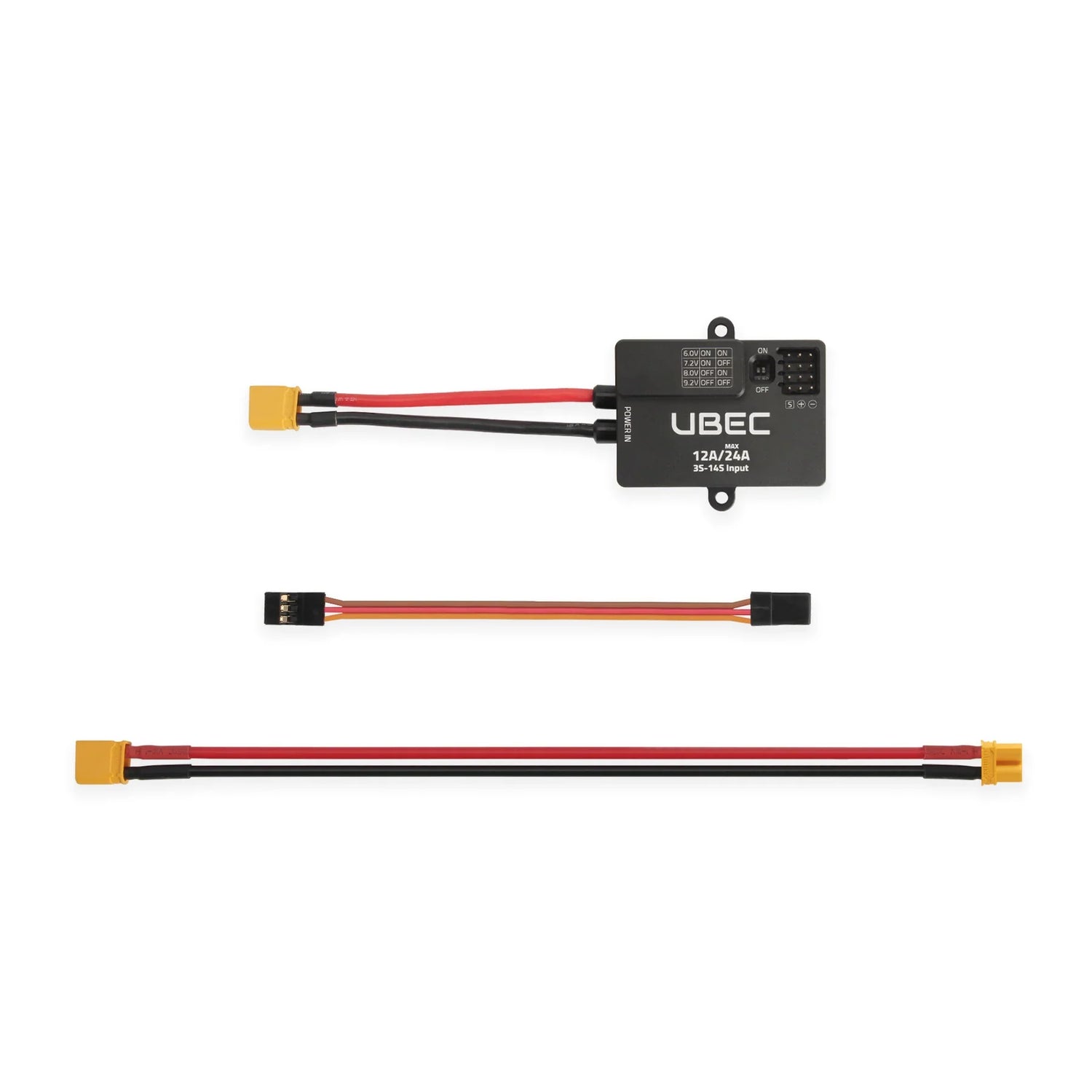

Package Includes:
1x UBEC Power Module
1x XT30 18AWG Cable
1x DuPont 3P Cable
Features:
- High efficiency DC-DC regulator chip for transfer efficiency of over 90%
- Adjustable output voltage (6.0V/7.2V/8.0V/9.2V) applicable for devices with different voltages
- 4-channel parallel header pin outputs for servos
-
XT30 output for high current devices
-
Multiple protections including over-current, (output end) short circuit, overheat, and low-voltage cutoff
- Metal housing for quick heat dissipation and less electromagnetic interference.
Specifications
- Input voltage: 3~14S (XT30)
- Output voltage: 6.0V/7.2V/8.0V/9.2V (Adjustable by using onboardĀ DIP Switches)
- Output CurrentĀ
- Continuous: 12A
- Burst: 24A
-
Size: 48x33.6x16.3 mm
- Weight: 47.8g
