Walksnail Avatar HD Kit V2 (Single Antenna)
Walksnail Avatar HD Kit V2 (Single Antenna) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.
Description
Description
New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

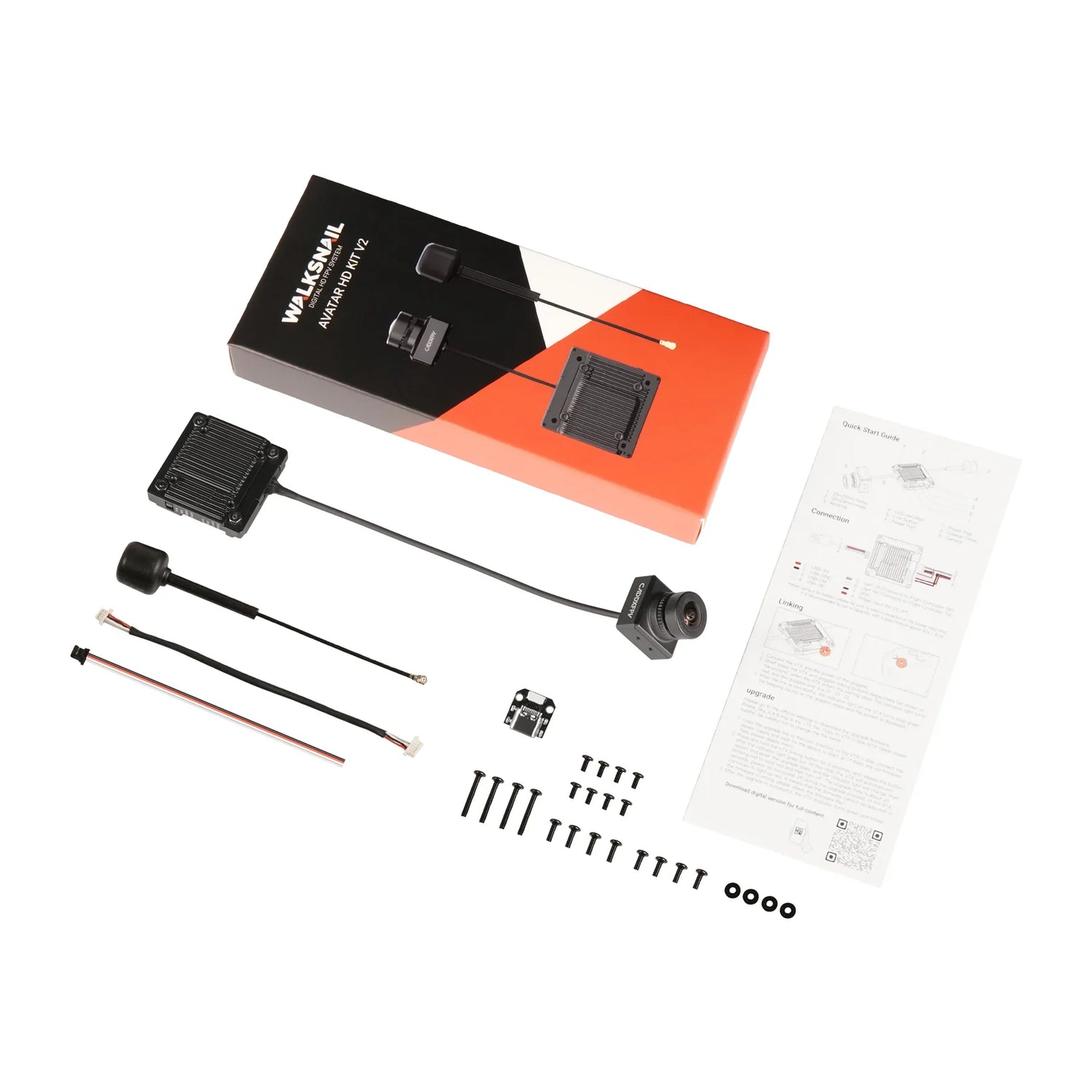

Package Includes:
1x Walksnail Avatar HD Kit V2
1x Accessory Packet
Features:
- 1080P 120fps compatibility
- 22ms low latency
- Ranging Mode
- 4KM range
- Light weight design
- FOV160°
- Built-in 8G/32G storage,Â
- Support Gyroflow
- GPS anti-jamming
- 6V-25.2V
- The only native 4:3 high-definition sensor in the FPV industry
Specifications: | Â |
Camera | |
Model | Avatar V2 camera |
Image Sensor | 1/3.2-Inch 4Mp 4:3sensor |
Resolution | 1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;Â |
Ratio | 4:3 native /16:9 |
Lens | 2.1mm |
FOV | 160° |
Aperture | F2.0 |
Shutter | Rolling shutter |
Min.Illumination | 0.001Lux |
Weight | 7.2g |
Dimensions | 19*19*22mm |
Coaxial Cable | 140mm |
Gyroflow | Only 32G VTX Supported |

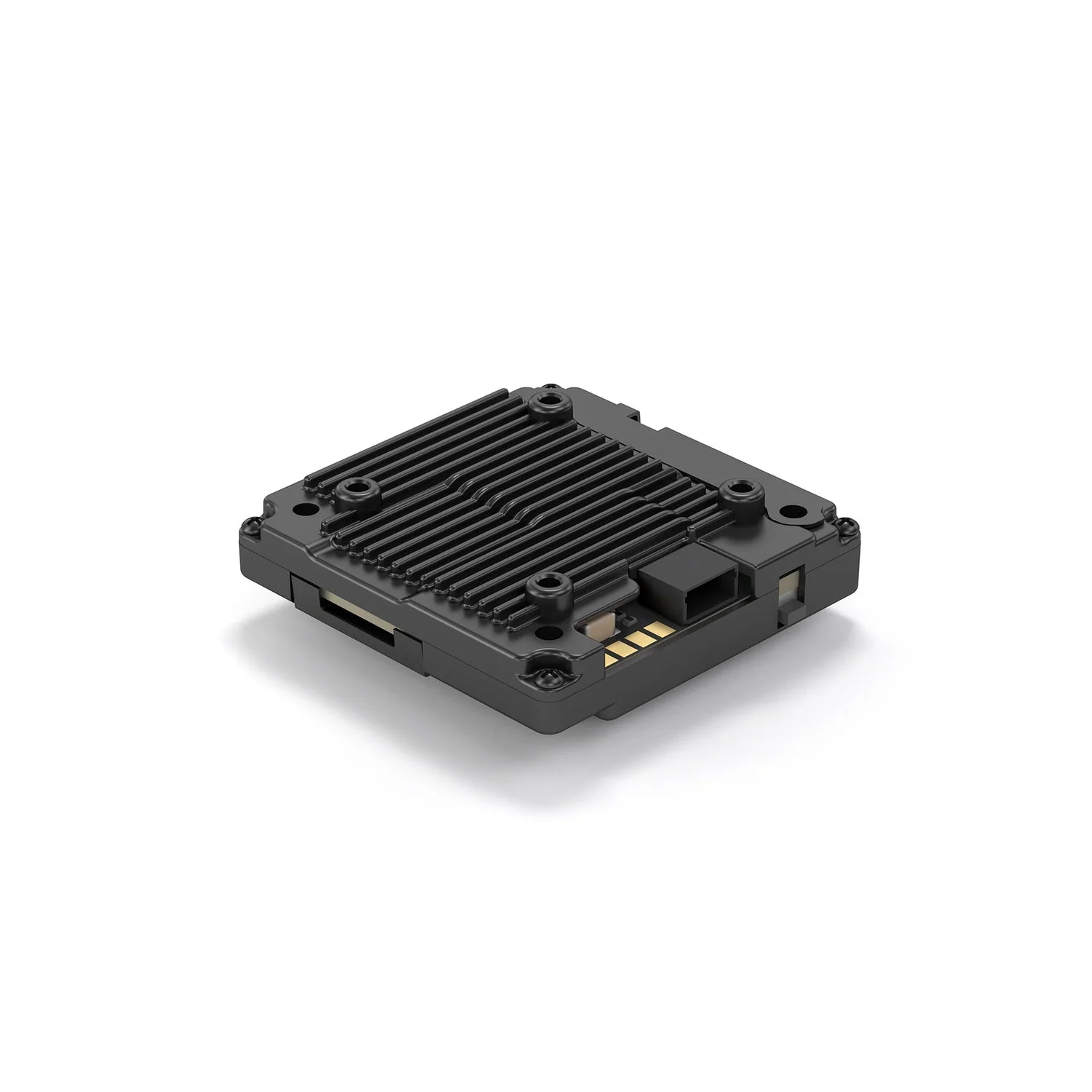

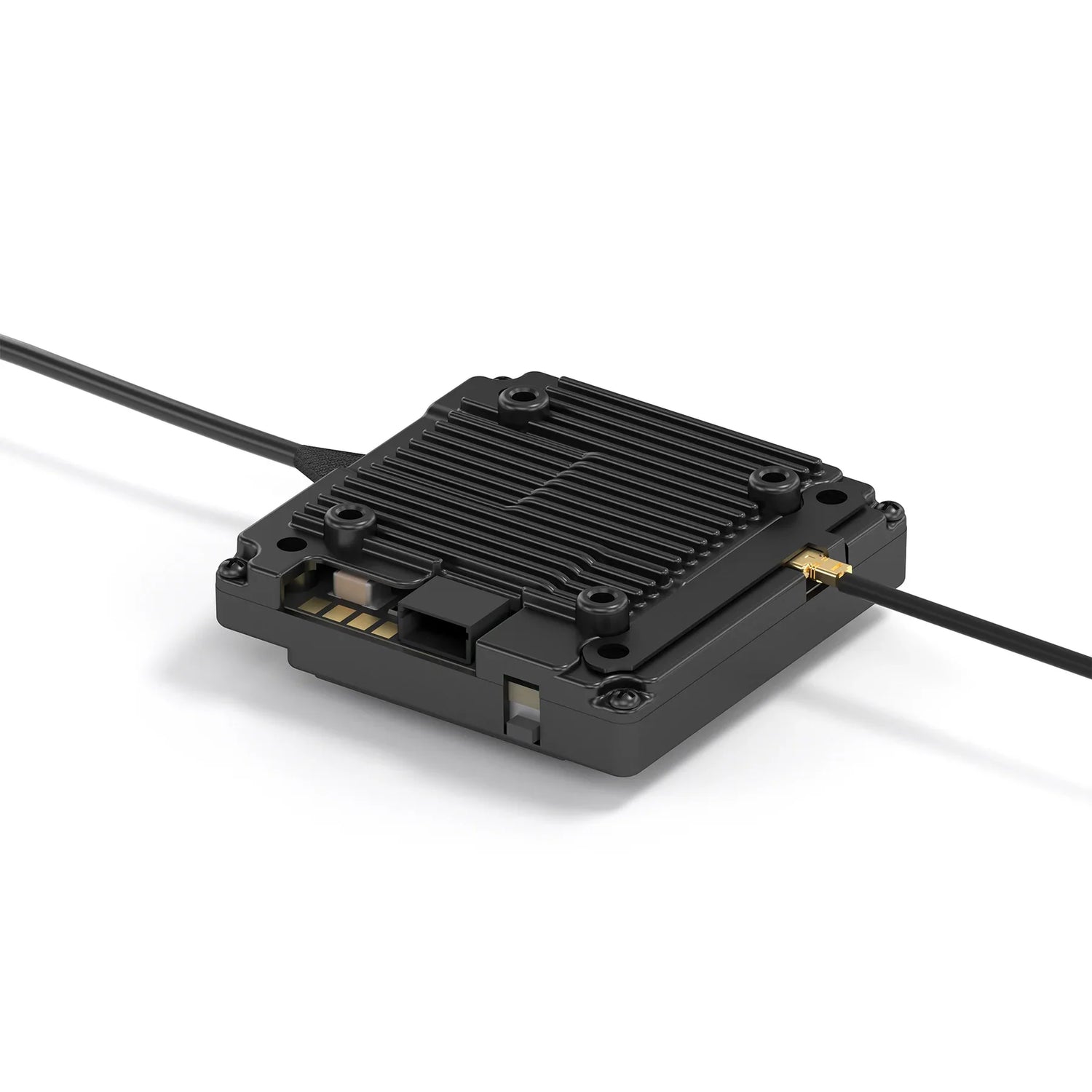

VTX | |
Model | Avatar V2 module |
Communication Frequency | 5.725-5.850GHz |
Transmitter Power (EIRP) |
FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
Mounting Holes | 25.5*25.5mm; 20*20mm |
Dimensions | 33.5*33.5*10.5mm |
Storage | 8G/32G |
Recording | 1080p/720p |
Weight | 17.6g |
Operating Temperature | -20-40℃ |
Channels | 8 |
Wide Power Input | 6V-25.2V |
Supported FC System | Betaflight; Inav; Fettec; ArduPilot; Kiss |
OSD | Canvas mode |
Latency | Average delay 22ms |
Antenna | 1(IPEX) |

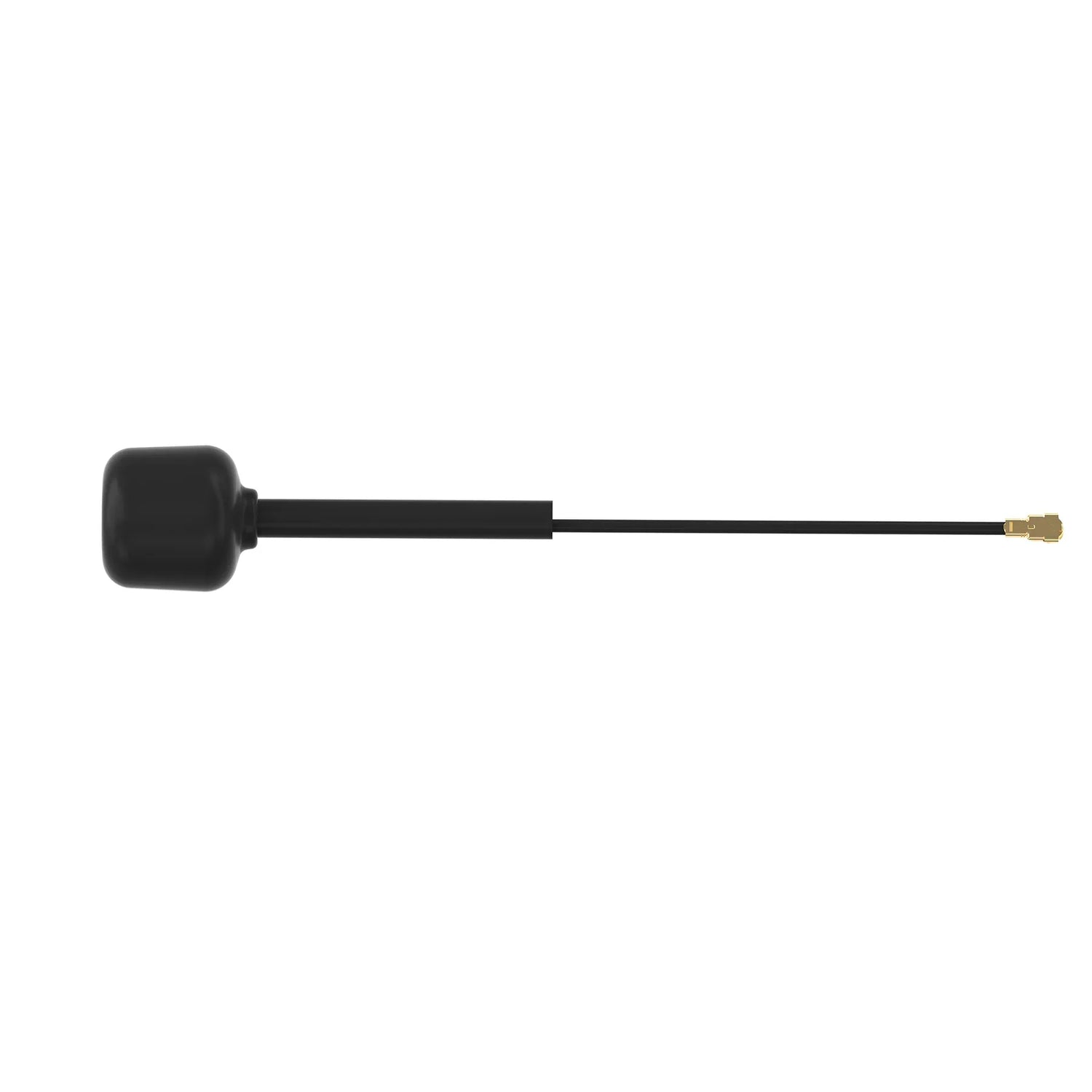

Avatar V2 antenna | |
Polarization | LHCP |
Bandwidth | 5600MHz-6000MHz |
Gain | 1.9dBi |
VSWR | ≤1.5 |
Input Impedance | 50Ω |
Interface | IPEX-1 |
Size | R15 X 45mm (without cable) |
Weight | 2g |
