Zorro Radio Controller ELRS 2.4G (M2)
Description
Description

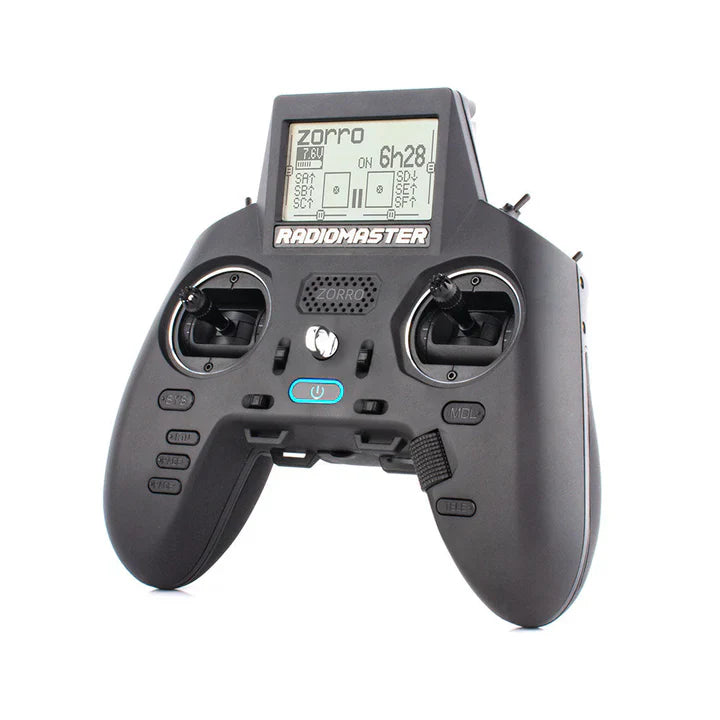

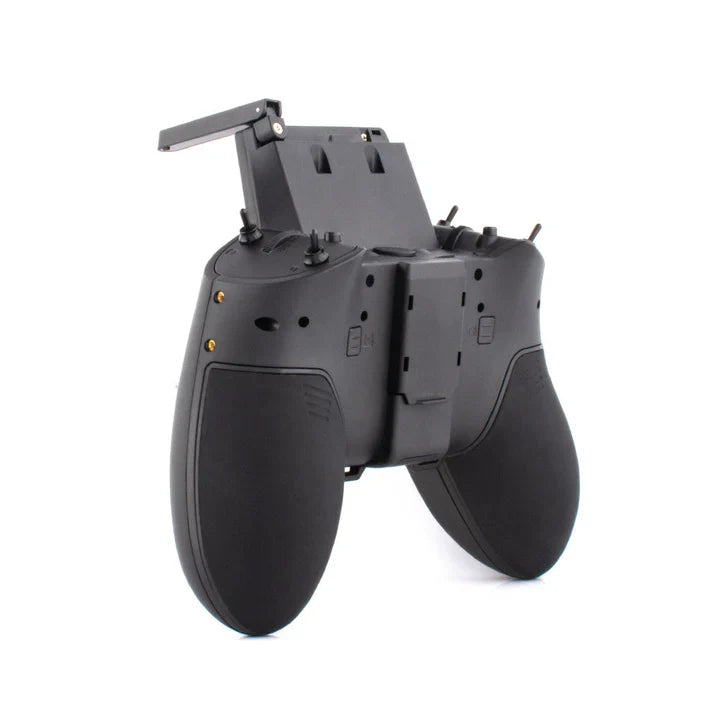

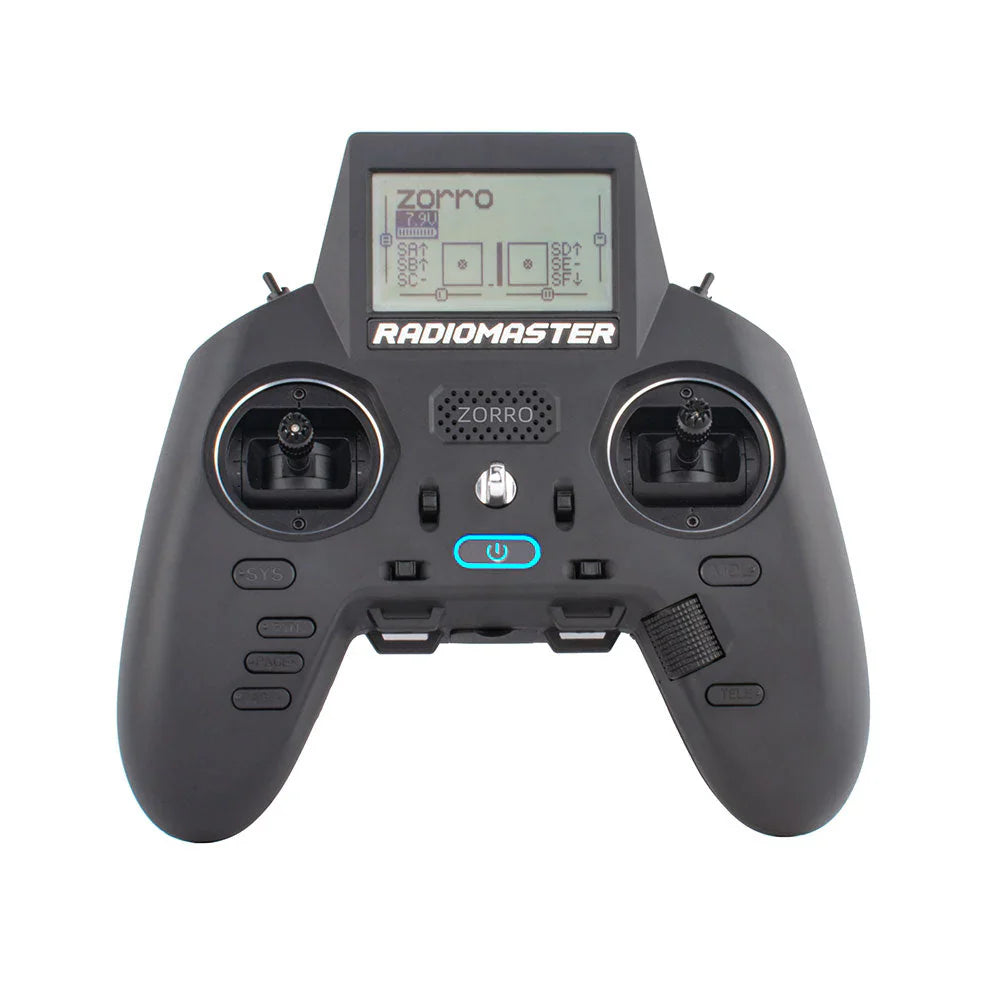

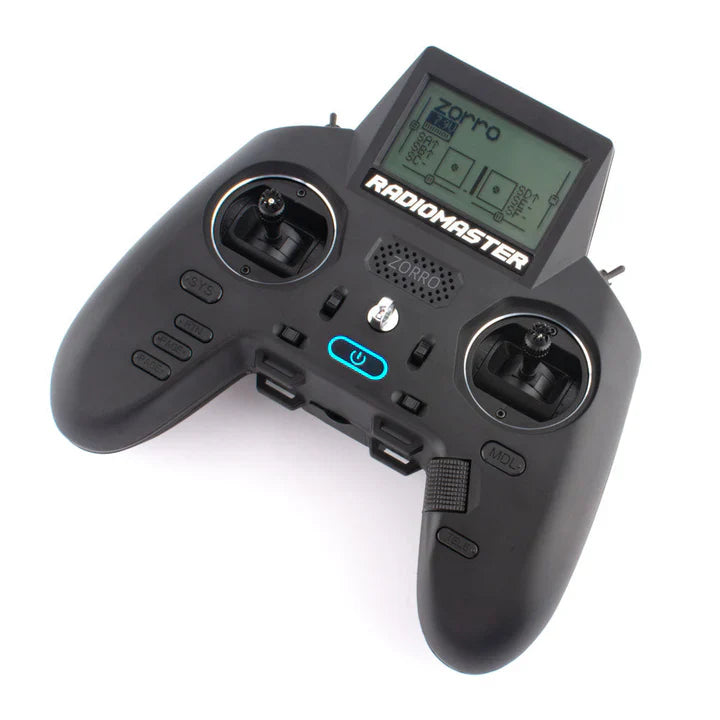

RadioMaster Zorro Radio - The Compact Class-Leader.
Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.
Package Includes:
1x Zorro Radio Controller ELRS Version
Info:
Specifications:
|
Versions |
CC2500 |
4in1 |
ELRS |
ELRS Starter Set |
CC2500 + TBS Nano Crossfire Combo |
|
Physical Dimensions |
170*159*108mm |
||||
|
Weight |
350 grams |
||||
|
Operating Frequency |
2.400GHz-2.480GHz |
||||
|
Internal RF Options |
CC2500 multi-protocol |
4-in-1 multi-protocol |
ELRS |
CC2500 multi-protocol |
|
|
Supported Protocols |
Module dependent |
Module dependent |
ELRS |
Module dependent |
|
|
Antenna Gain |
Folding 2db |
||||
|
Operational Current |
160mA@8.4V |
||||
|
Operational Voltage |
6.6-8.4v DC |
||||
|
Control Distance |
> 2km |
> 2km |
Receiver and Power Output dependant |
> 2km |
|
|
Operating system |
OpenTX / EdgeTX Compatible |
||||
|
Control channels |
Maximum 16 (Rx dependent) |
||||
|
Display |
128*64 Monochrome LCD |
||||
|
Battery |
2 x 18350 (Not included) |
||||
|
Charging |
Built in USB-C Charging |
||||
|
Gimbal |
X4 Hall-effect gimbals (AG01 Mini compatible) |
||||
|
Module Bay |
Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost) |
||||
|
Firmware Upgrade Method |
Via USB or SD card |
||||
Click to check the RadioMaster Radio Comparison Chart.
Standard FCC Version
- CC2500 (FCC) Version supports all CC2500 protocols
- 4in1 (FCC) Version supports all MPM protocols
- ELRS (FCC) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependant)
