SpeedyBee | SKU:
SPB01-C1

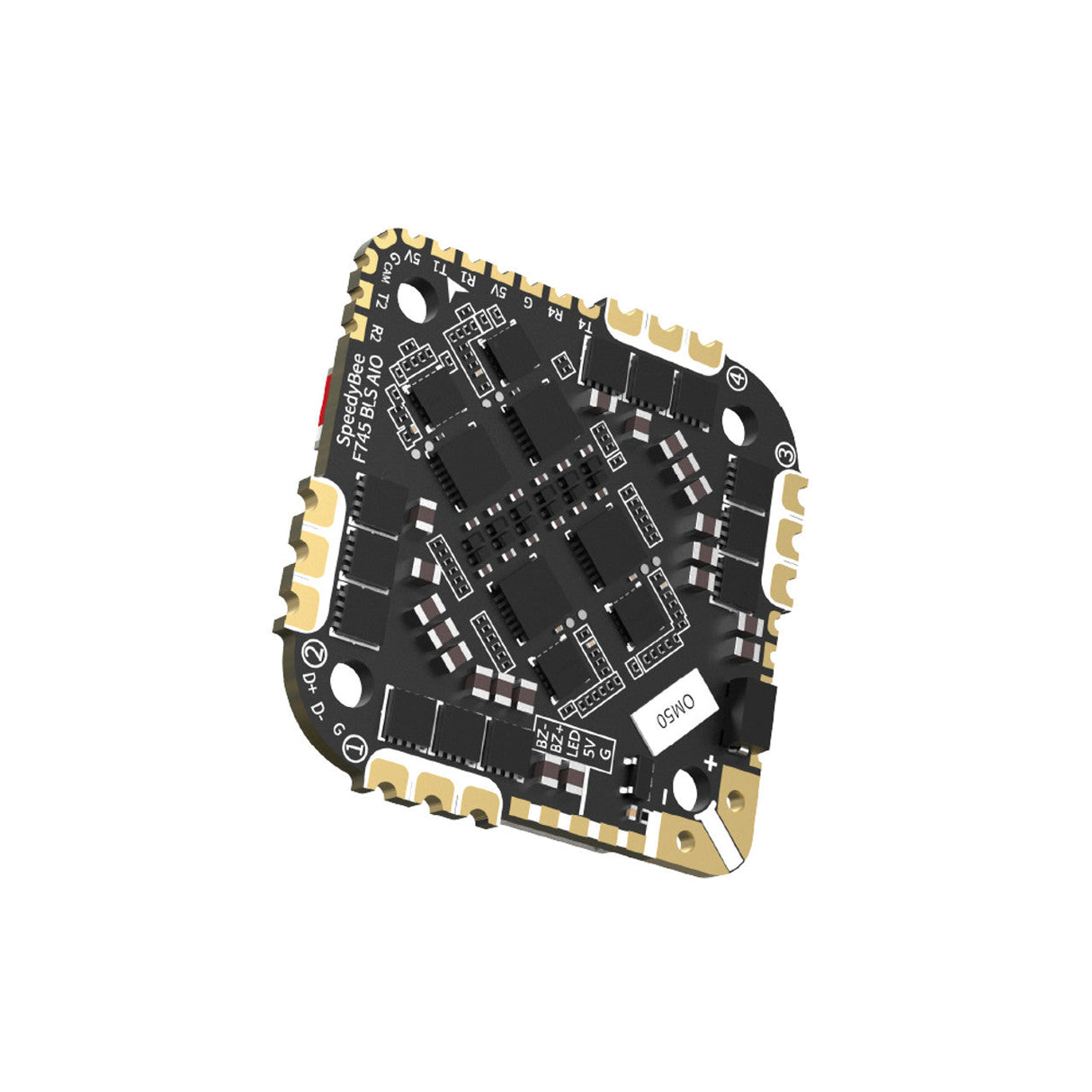

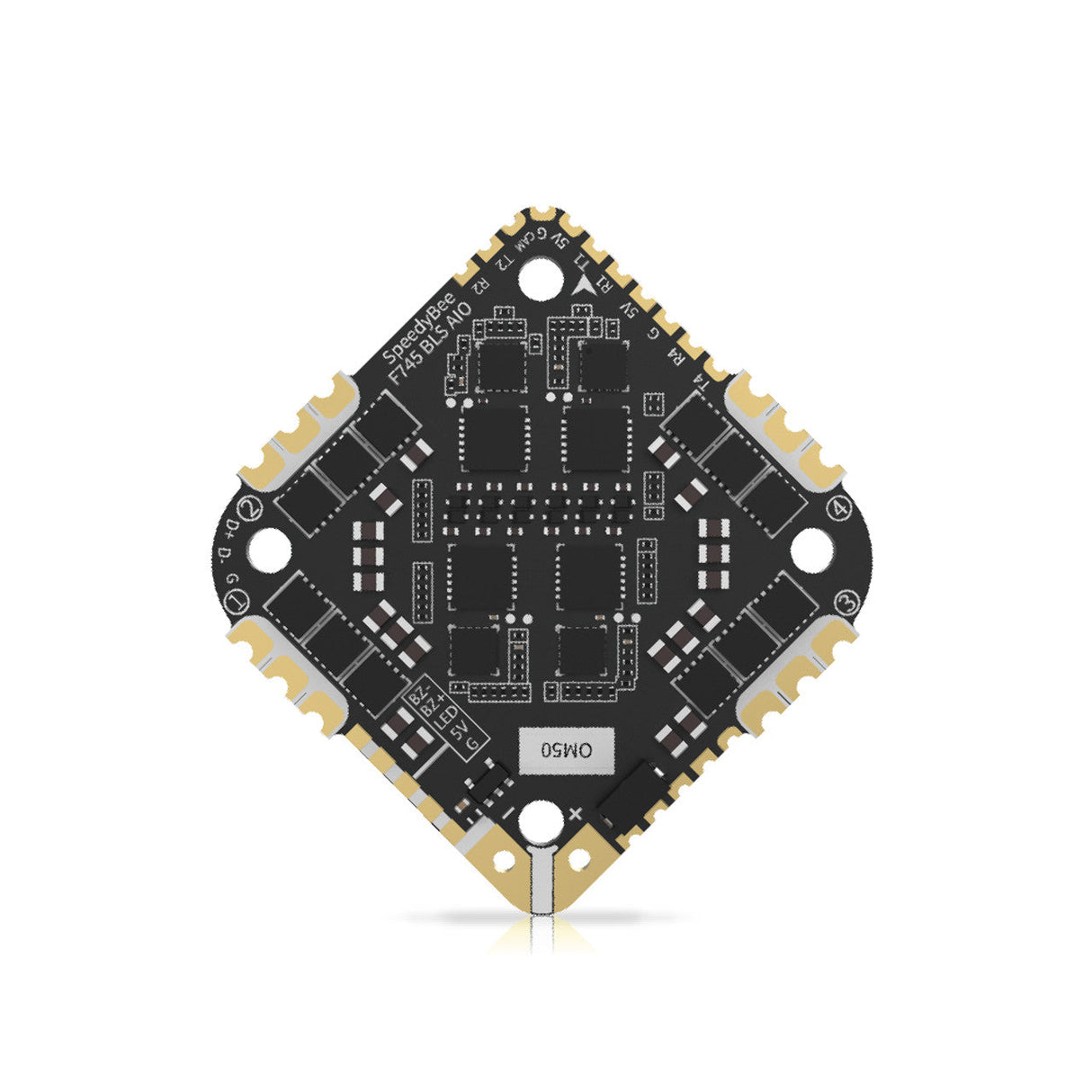

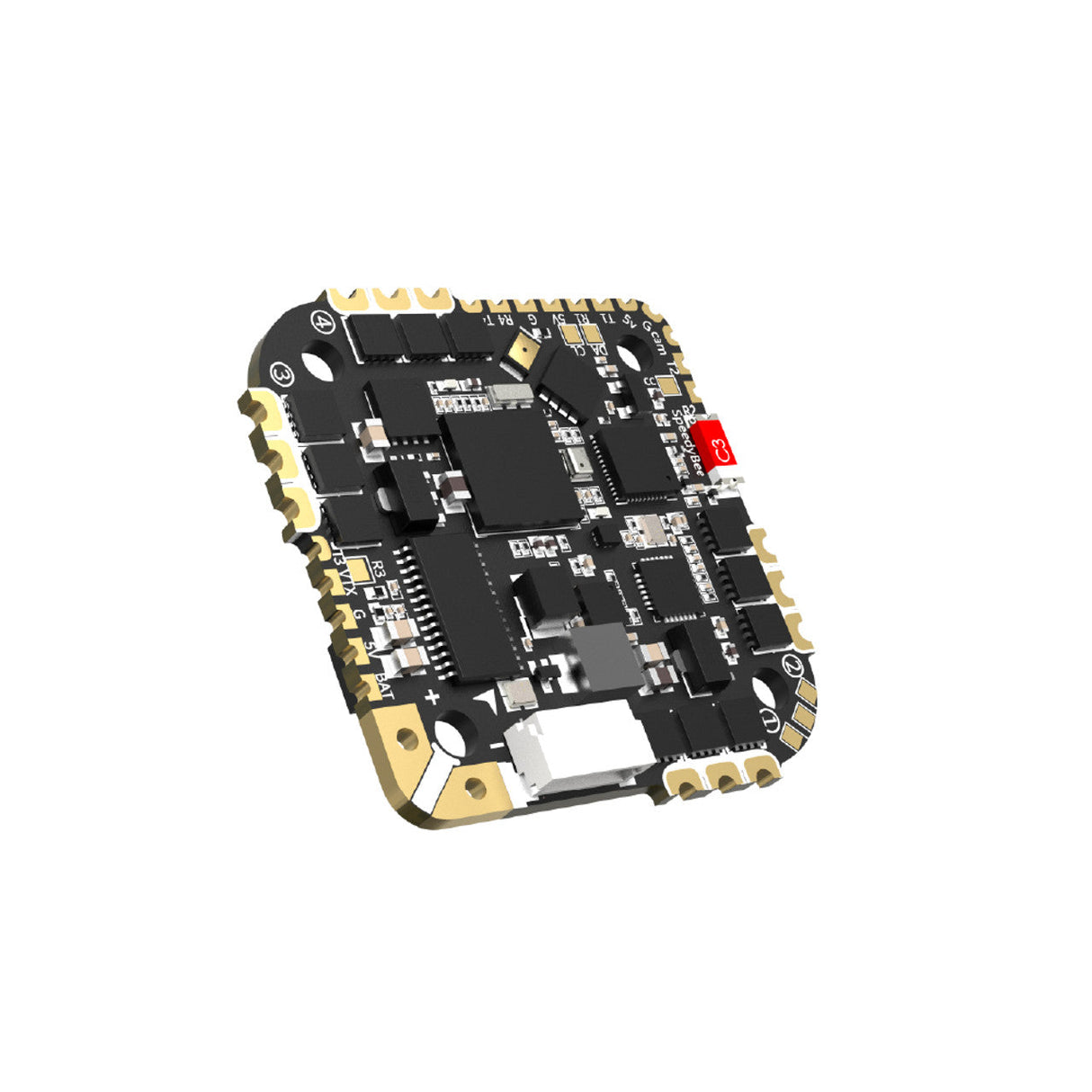

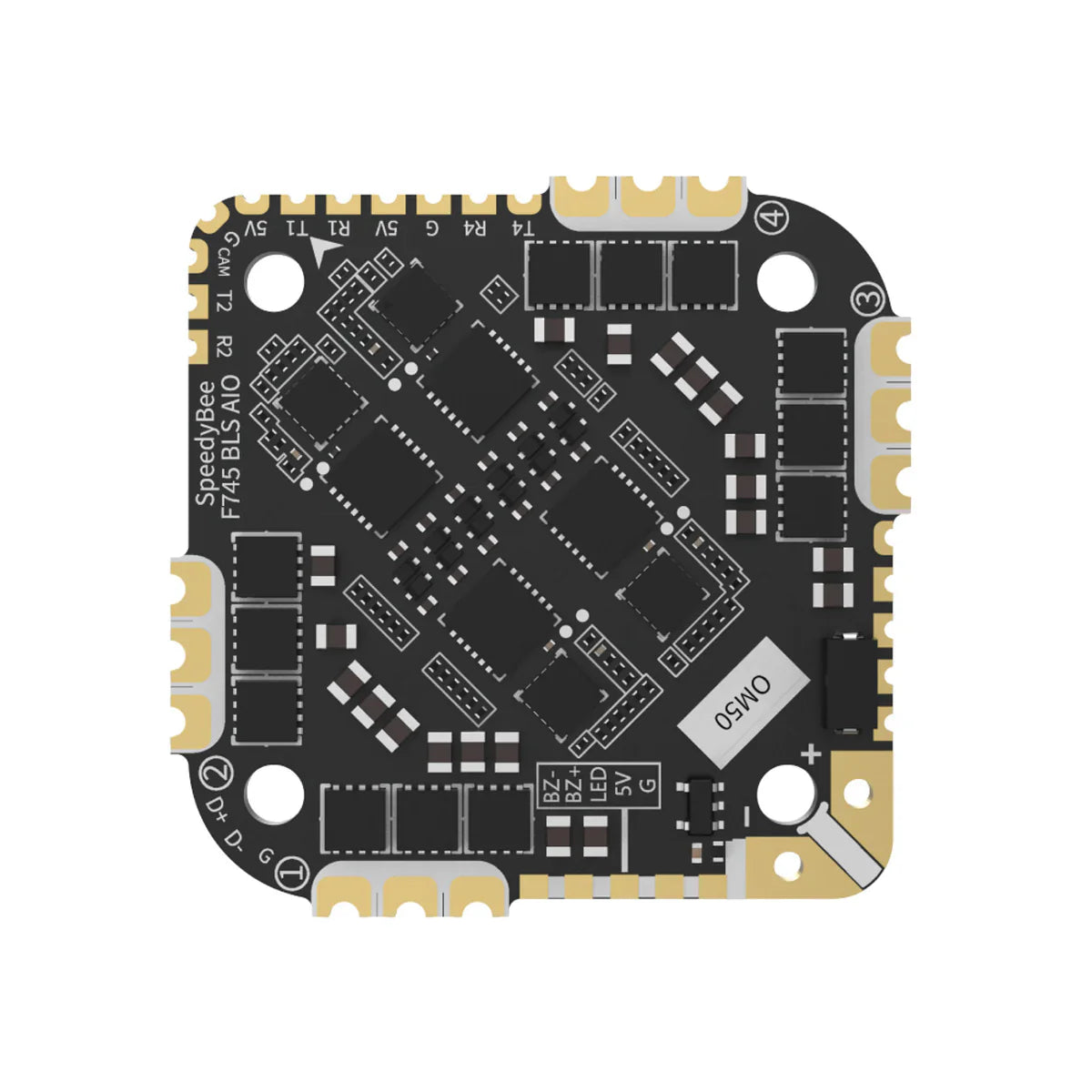

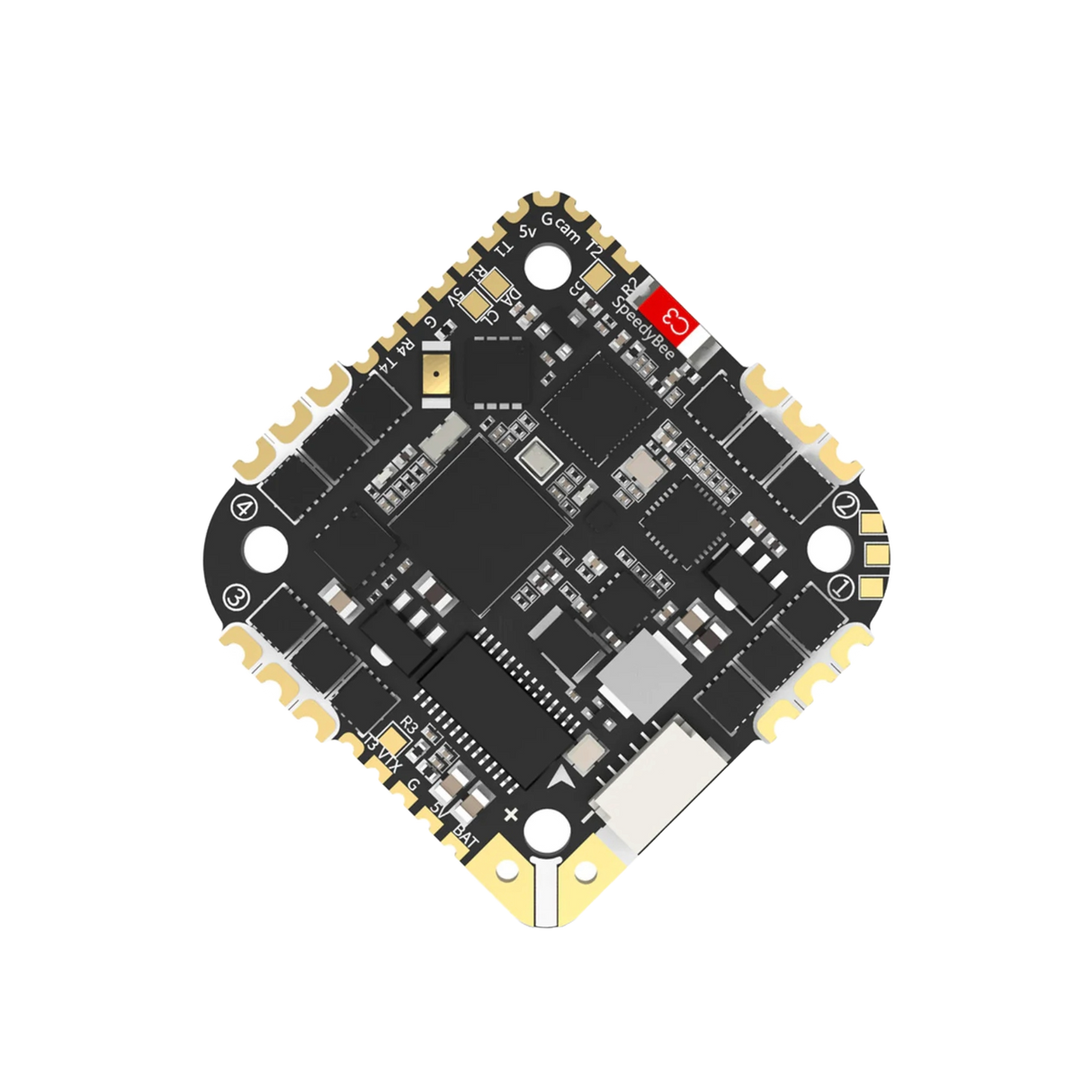

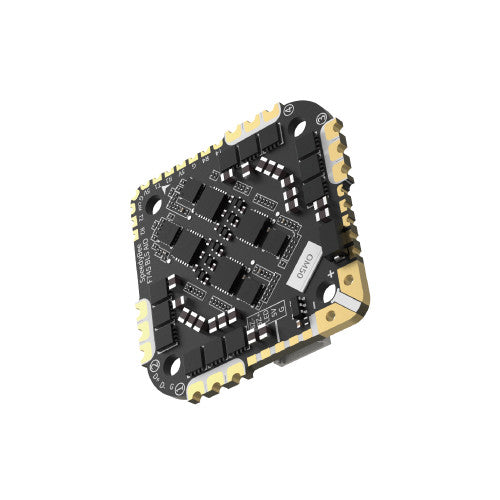

SpeedyBee F745 35A BLS 25.5X25.5 AIO
$168.97
$168.99
Unit price
/
Unavailable
Shipping calculated at checkout.
SpeedyBee F745 35A BLS 25.5X25.5 AIO is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship.
SpeedyBee F745 35A BLS 25.5X25.5 AIO
$168.97
$168.99
Unit price
/
Unavailable
Description
Description
The SpeedBee F745 AIO is an excellent FC for 3.5" quads and 4" quads.
Please refer to the image at the bottom of the description to see whats included.
- SpeedyBee F745 35A BLS AIO
- Power Input 3S - 6S Lipo
- Mounting 25.5 x 25.5mm, 3mm hole diameter
- Dimension 36.5mm(L) x 36.5mm(W) x 7mm(H), recommended for quads at 3.5" or above
- Weight 10.1g
- FC
- MCU STM32F745
- IMU(Gyro) MPU6000
- USB Connection Need to solder a USB TYPE-C module to D+,D-,GND pads.
- Barometer BMP280
- OSD Supported
- BLE Bluetooth Supported. Used for parameter configuration
- Flash FC Firmware Wirelessly Supported
- Download/Analyze Blackbox Supported
- DJI Air Unit 6-pin Connector Built-in.
- Flash(for BlackBox) 8MB
- Current Sensor Supported. Scale=256
- BetaFlight Camera Control Pad Yes(CC pad)
- 5V Output 4 groups of 5V output. The total current load is 2.5A.
- 9V Output None
- 3.3V Output Supported. Up to 500mA current load.
- ESC Signal Pads M1 - M4
- UART Full UART * 4(UART1, UART2, UART3,UART4)
- ESC Telemetry UART None
- I2C Supported.
- LED Pad Used for WS2812 LED
- Buzzer BZ+ and BZ- pad used for 5V Buzzer
- BOOT Button Used to enter DFU mode
- RSSI Input Not supported
- SmartPort Use any TX pad of UART for the SmartPort feature.
- Supported Flight Controller BetaFlight(Default)
- Firmware Firmware Target Name SPEEDYBEE F745AIO
- ESC
- Power Input 3-6S LiPo
- Continuous Current 35A * 4
- Burst Current 45A(5S)
- ESC Protocol DSHOT300/600
- Power Output VBAT
- Current Sensor Supported(Scale=25)
Important Note:
Make sure the AIO's slightly bigger size can fit your own quad! The size of this AIO is 36.5(L)*36.5(W)*7.0(H)mm.
We suggest you use this AIO on your 3.5" to 5" cinewhoops/long-range or lightweight quads.For quads below 3.5",
you should carefully check if your quad has enough room for this AIO.
We suggest you use this AIO on your 3.5" to 5" cinewhoops/long-range or lightweight quads.For quads below 3.5",
you should carefully check if your quad has enough room for this AIO.
Specifications
| Overview | |
| Product Name | SpeedyBee F745 35A BLS AIO |
| Power Input | 3S - 6S Lipo |
| Mounting | 25.5 x 25.5mm, 3mm hole diameter |
| Dimension | 36.5mm(L) x 36.5mm(W) x 7mm(H), recommended for quads at 3.5" or above |
| Weight | 10.1g |
| FC | |
| MCU | STM32F745 |
| IMU(Gyro) | MPU6000 |
| USB Connection | Need to solder a USB TYPE-C module to D+,D-,GND pads. |
| Barometer | BMP280 |
| OSD | Supported |
| BLE Bluetooth | Supported. Used for parameter configuration,built-in a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip |
| Flash FC Firmware Wirelessly | Supported |
| Download/Analyze Blackbox | Supported |
| DJI Air Unit 6-pin Connector | Built-in. |
| Flash(for BlackBox) | 8MB |
| Current Sensor | Supported. Scale=256 |
| BetaFlight Camera Control Pad | Yes(CC pad) |
| 5V Output | 4 groups of 5V output. The total current load is 2.5A. |
| 9V Output | None |
| ESC Signal Pads | M1 - M4 |
| UART | Full UART * 4(UART1, UART2, UART3,UART4) |
| ESC Telemetry UART | None |
| I2C | Supported. |
| LED Pad | Used for WS2812 LED |
| Buzzer | BZ+ and BZ- pad used for 5V Buzzer |
| BOOT Button | Used to enter DFU mode |
| RSSI Input | Not supported |
| SmartPort | Not Supported |
| Supported Flight Controller | BetaFlight(Default) |
| Firmware Target Name | SPEEDYBEE F745AIO |
| ESC | |
| Power Input | 3-6S LiPo |
| Continuous Current | 35A * 4 |
| Burst Current | 45A(5seconds) |
| ESC Protocol | DSHOT300/600 |
| Power Output | VBAT |
| Current Sensor | Supported(Sacle=256) |
| Firmware | BLHeli_S JH40 |
