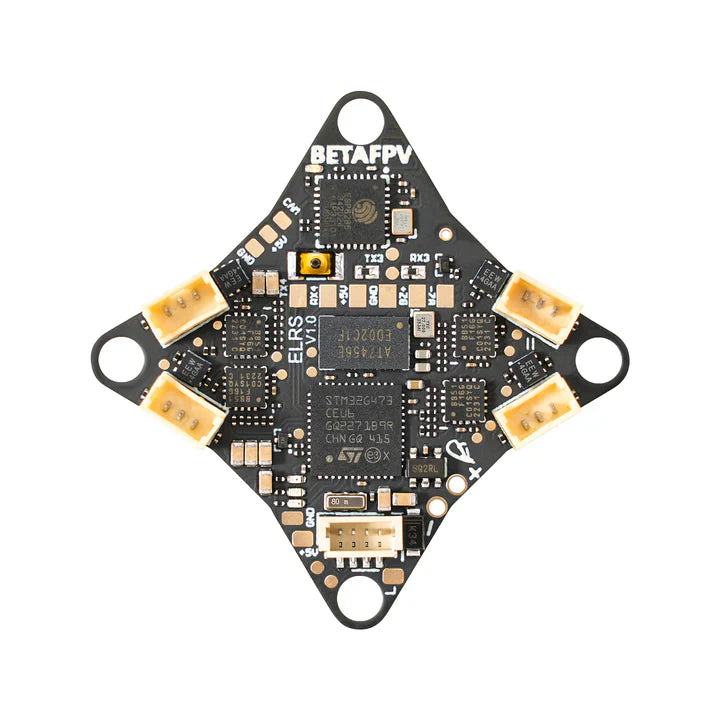

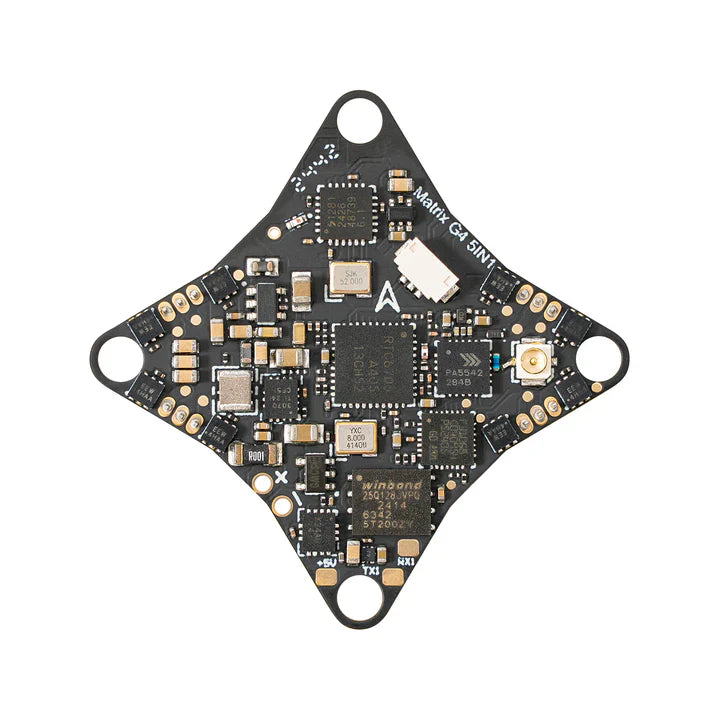

The Matrix 1S Brushless Flight Controller is a highly integrated solution designed for beginners and FPV enthusiasts. Its robust 1mm-thick board ensures durability during intense training, while the built-in motor connectors simplify installation, eliminating welding. Upgraded with the G473 processor, it delivers a 55% performance boost over the F411 for more precise control in racing and freestyle. Plus, its premium 5.8GHz 400mWVTX ensures stable, high-quality video transmission.
Package Includes:
1x AIO
1x Hardware Packet
Features:
- Built Tough: The Matrix 1S Brushless FC features a robust 1mm-thick circuit board. While slightly heavier, this design enhances durability for everyday training. For advanced pilots, the Air Brushless FC 5IN1 Verion provides a lighter alternative.
- Simplified Installation: The Matrix 1S Brushless FC is a true all-in-one flight controller with integrated FC+VTX+OSD+ESC+RX, plus standard motor connectors, making setup and maintenance remarkably easy. Ideal for FPV beginners, this design requires no welding and ensures a smooth installation experience.
- Upgraded Performance: Upgraded with the G473 processor, the Matrix 1S Brushless FC achieves a remarkable 55% increase in computing speed over the F411, delivering swift response for precise racing and complex freestyle maneuvers.
-
Premium Video Transmission: Equipped with a high-quality 5.8GHz VTX supporting up to 400mW, the Matrix 1S ensures stable, accurate transmission for both daily flying and competitive racing.
Specifications:
FC
-
MCU: STM32G473CEU6
- Gyro: ICM42688P
- Blackbox memory: 16MB
- Sensor: Voltage & Current
- BEC: 5V, Max. 3A
- UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
- BetaFlight OSD: AT7456E
- ESC: 5A continuous
- RX: Serial ELRS 2.4GHz (V3.4.3)
- VTX: 5.8GHz 48 channels, Max. 400mW
-
FC firmware: Betaflight_4.5.0_BETAFPVG473
- USB port: SH1.0-4Pin
- Motor Connector: JST1.25
- Battery connector: BT2.0
- Mounting hole size: 26mm x 26mm
-

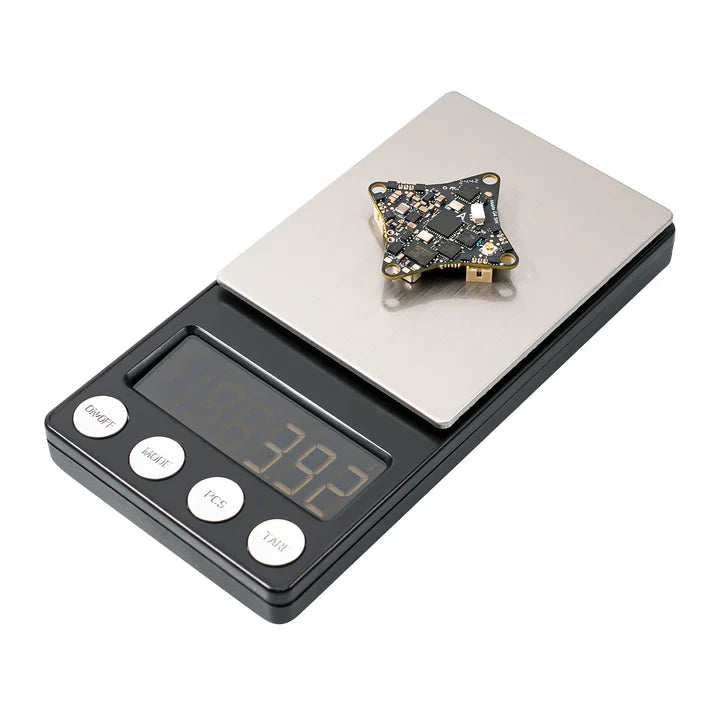

Weight: 3.92±0.1g
ESC
-
Power input: 1S Only
- Current: 5A continuous, 8A peak
- ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
- Digital signal protocol: DShot300, DShot600
VTX
- Output power: 25/100/200/400/PIT
- Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
- Channel SEL: SmartAudio2.0
- Modulation type: FM
- Frequency control: PLL
- All harmonic: Max -50dBm
- Frequency stability: ±100KHz (Typ.)
- Frequency precision: ±200KHz (Typ.)
- Channel carrier error: ±1.5dB
- Antenna port: 50 Ω
- Operating temperature: -10℃~+80℃
Attention: The Matrix 1S Brushless Flight Controller is crafted for beginners and casual pilots, offering enhanced durability with its thicker board and no welding required—making it perfect for entry-level users. As a result, it is slightly heavier than the Air Brushless Flight Controller 5IN1 version. For advanced FPV pilots seeking a more responsive, race-oriented experience, the Air Brushless FC 5IN1 version is highly recommended. The Matrix 1S Brushless FC and Air Brushless FC 5IN1 Version have undergone rigorous testing and meet competition-grade standards.
